T-Motor Mini F7 20×20 Flight Controller (HD+VTX+VTX Switch, BMI270)
SKU TM-MINI-F7-20X20-BMI270
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

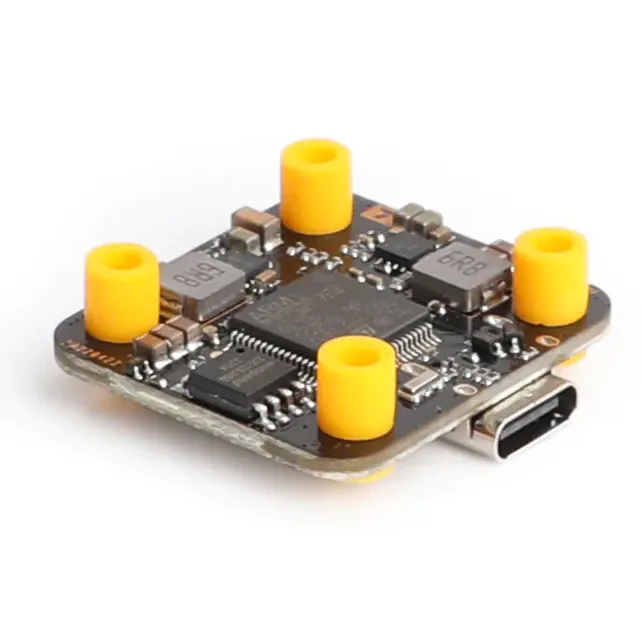

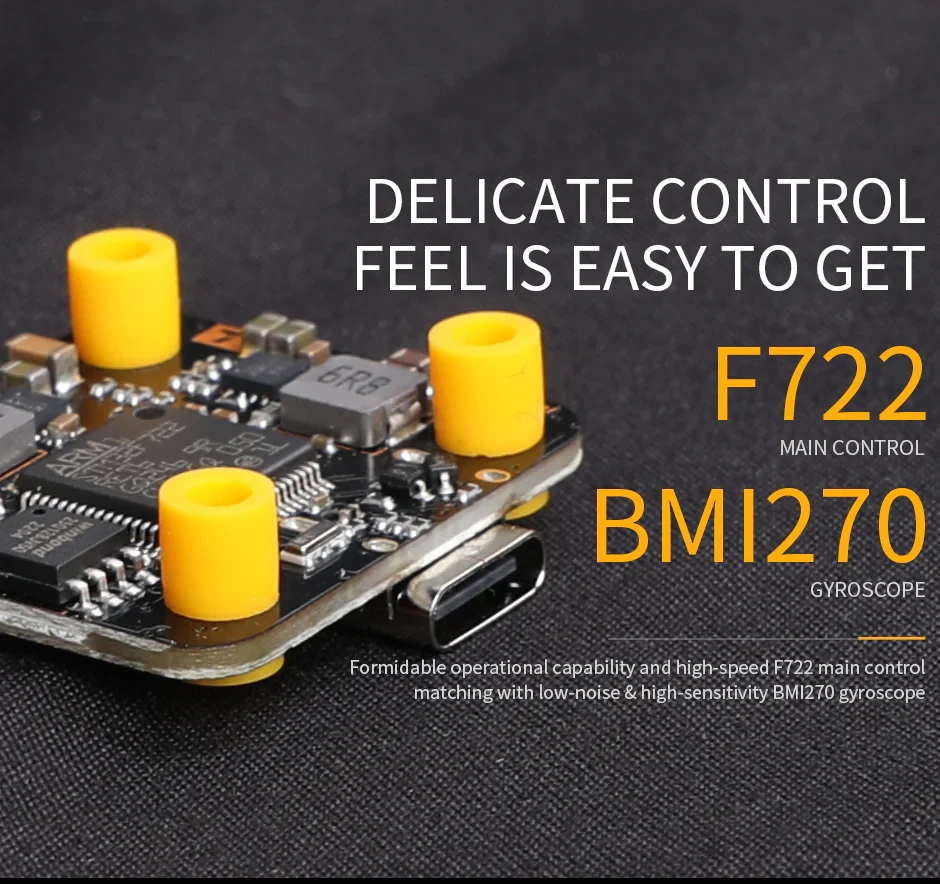

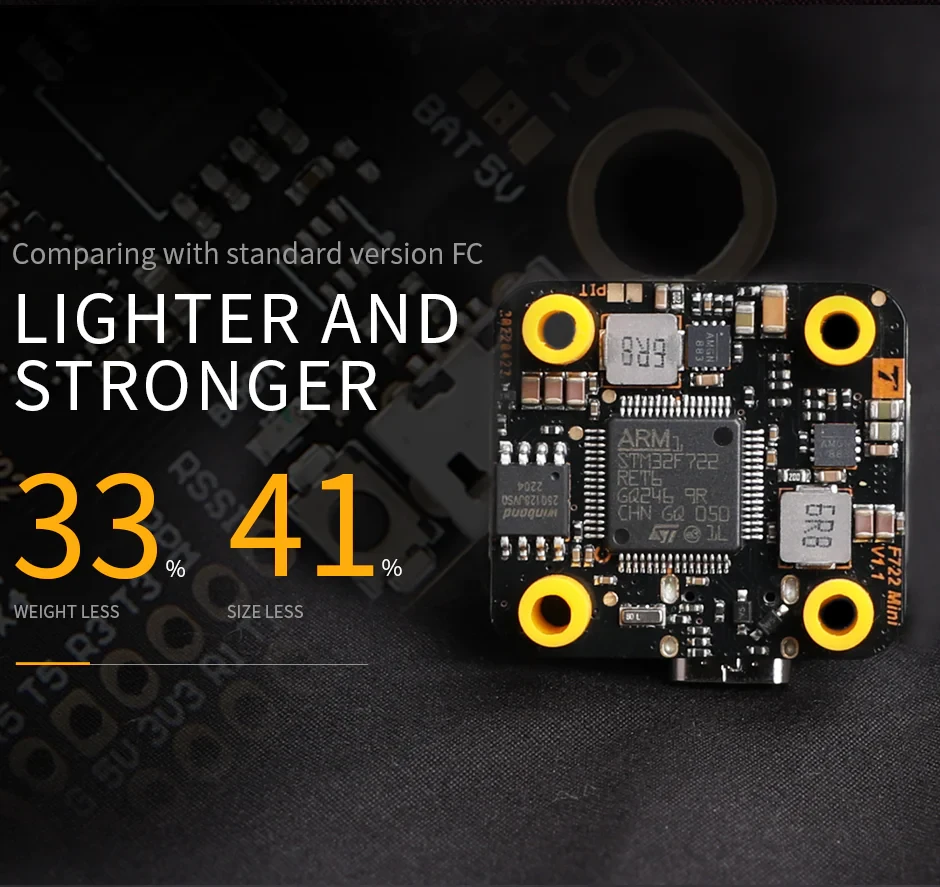

The T-Motor Mini F7 is a compact 20x20mm flight controller tailored for sub-250g micro builds, 3-inch cinewhoops, and lightweight 5-inch freestyle quads. Built around a powerful F722 MCU and a reliable BMI270 gyroscope, this board comfortably handles high PID loop frequencies and demanding Betaflight filter configurations.
Key features

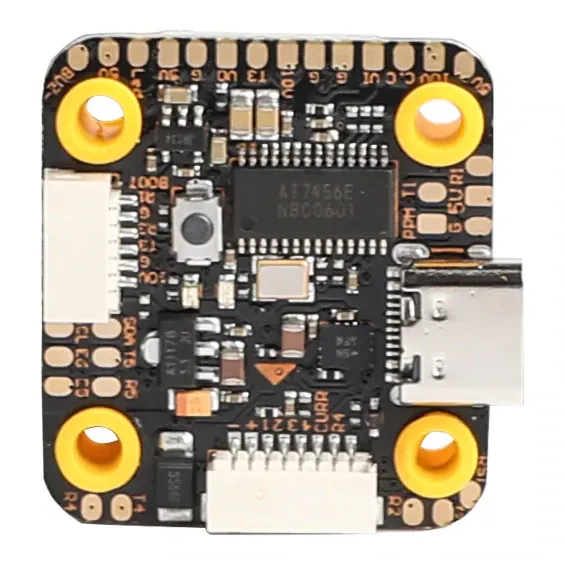

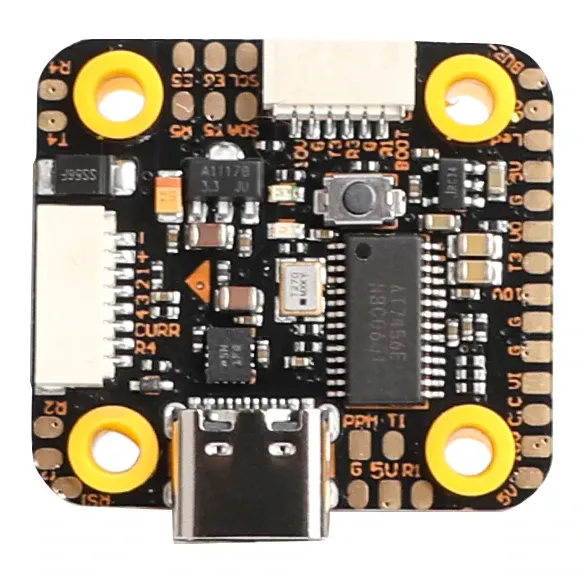

Direct plug-and-play connectors for digital HD systems and 4-in-1 ESCs to minimise soldering.

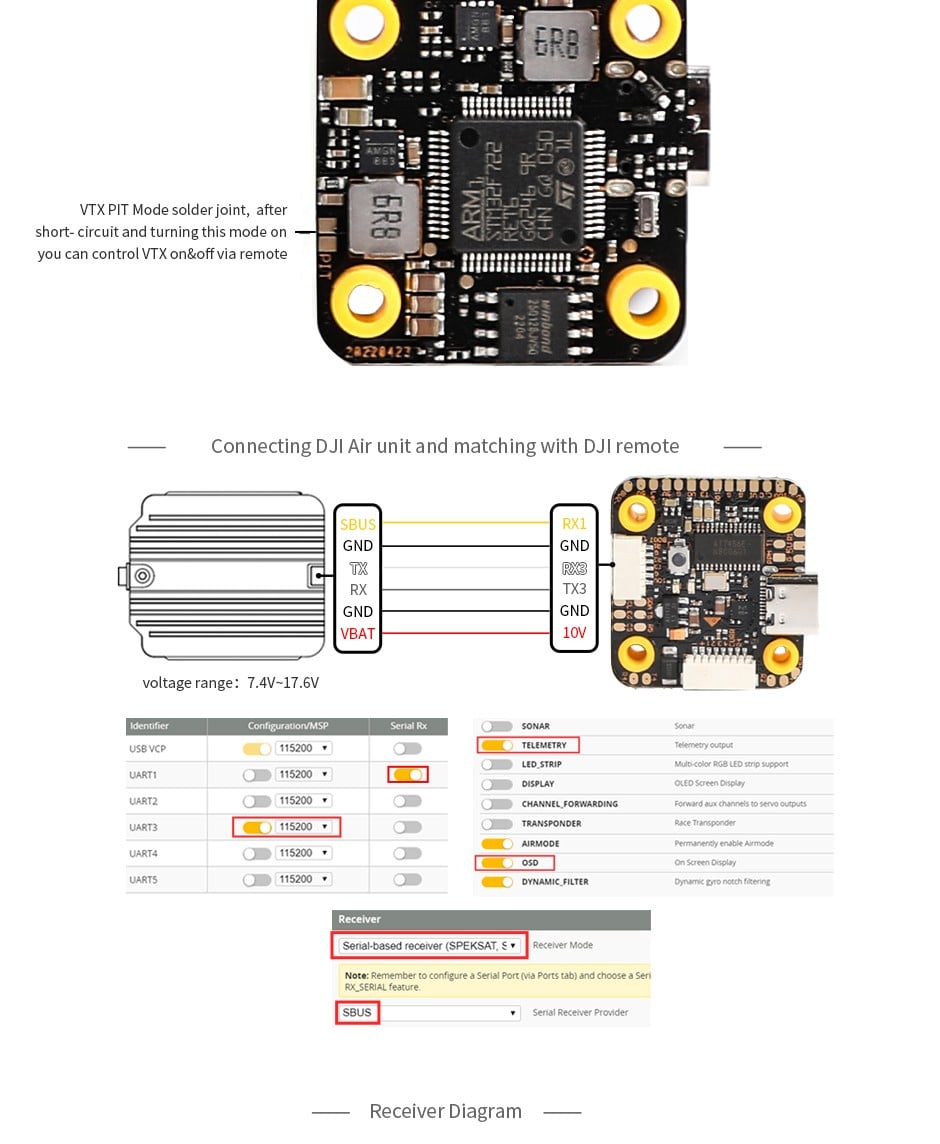

Integrated VTX pit switch allows you to power down your video transmitter remotely via a radio switch, preventing overheating on the bench or while waiting to be recovered.
Dual onboard BECs deliver clean, stable power to both 5V receivers and 10V HD video transmitters.

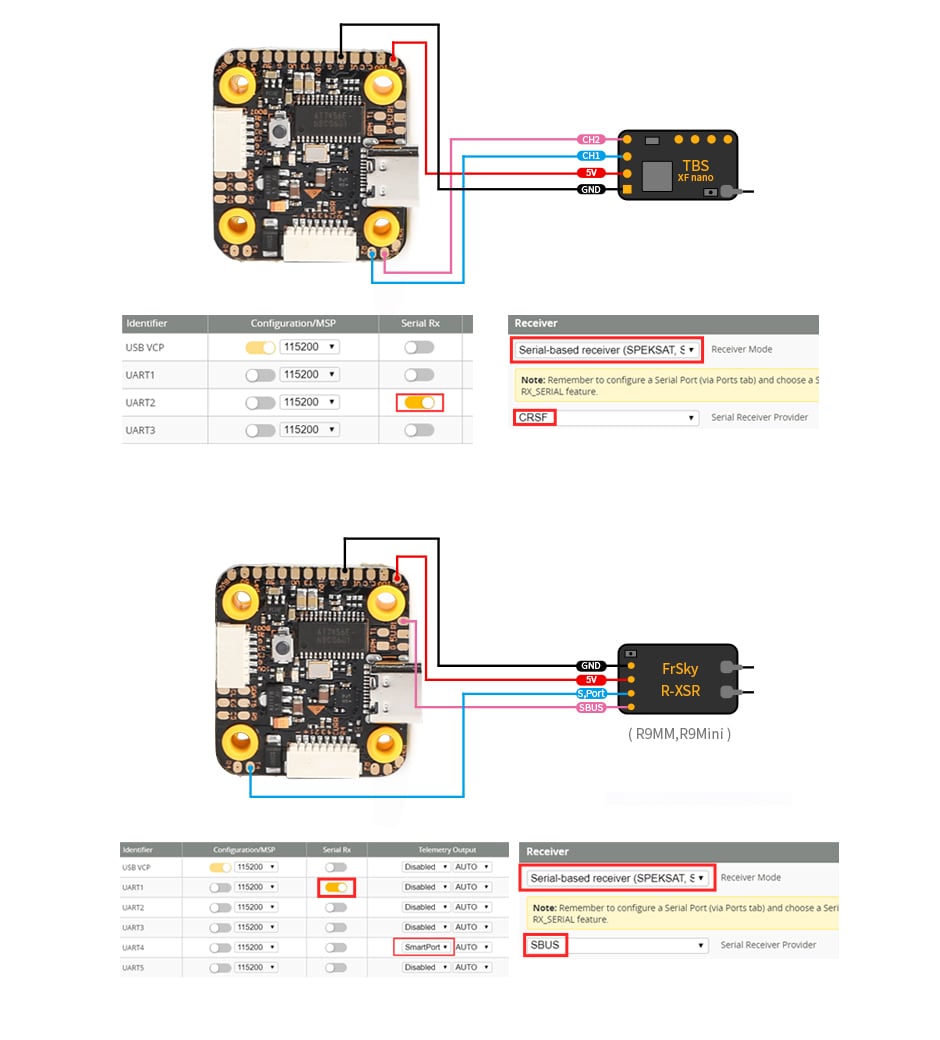

Generous I/O with six full UARTs for wiring up GPS modules, receivers, and telemetry peripherals.
Specifications

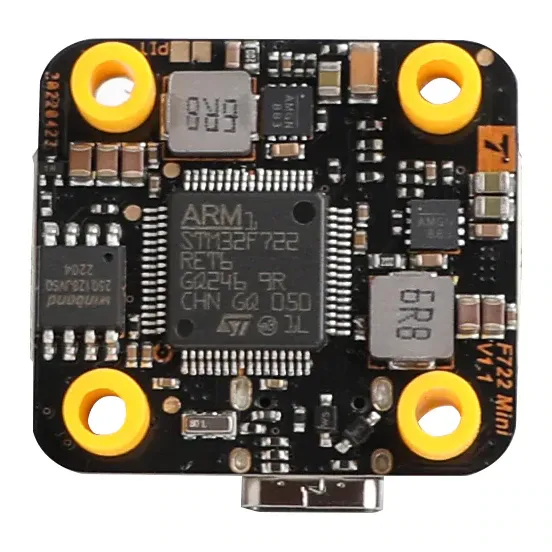

MCU: STM32F722
Gyro: BMI270
Input voltage: 3-6S LiPo
BEC: 5V/2A, 10V/2A
UARTs: 6
Blackbox: 16MB Flash
Mounting: 20x20mm (M3 holes)
Weight: 5.1g
Supported firmware: Betaflight (Target: TMOTORF7)

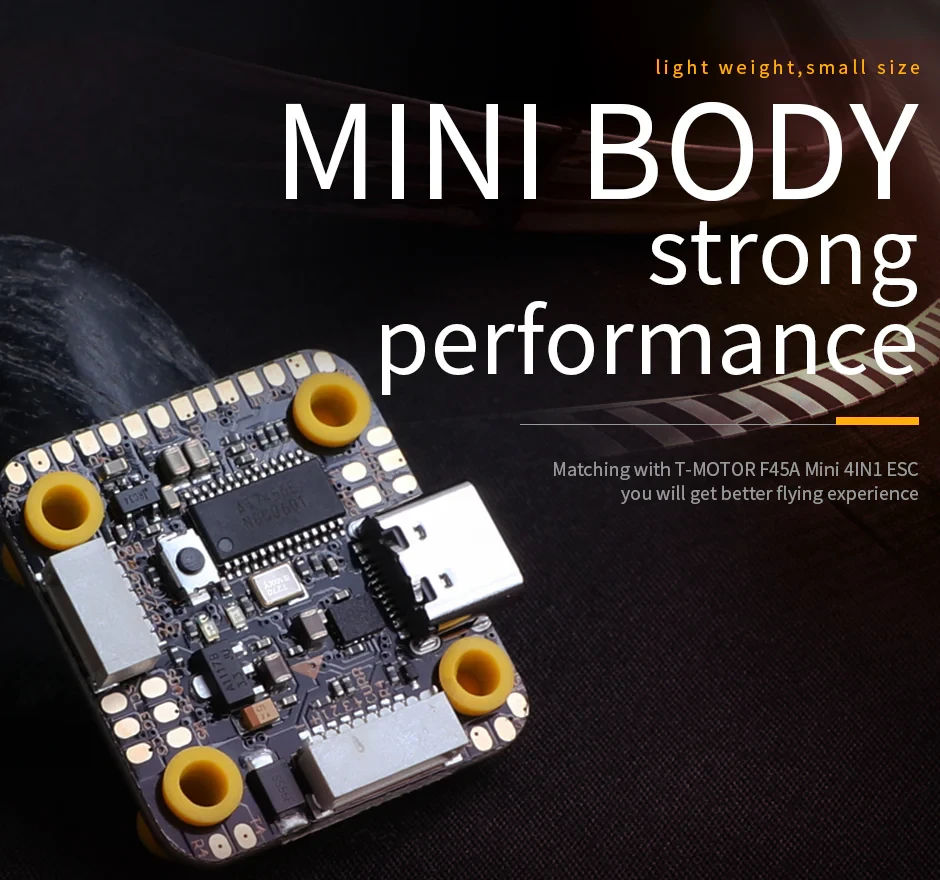

Designed to pair seamlessly with T-Motor Mini 4-in-1 ESCs, it features a dedicated 8-pin harness port for a clean, solder-free stack assembly while remaining fully compatible with traditional analogue FPV setups.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 20x20 |
| Integrated VTX | No |
| FC Processor | F722 |
| Gyro | BMI270 |
| Input Voltage | 3–6S |
| Made in India | No |
| Brand | T-Motor |
| Supported Firmware | Betaflight |
| Barometer | No |
| UARTs | 6 |
| Weight | 5.1 g |
