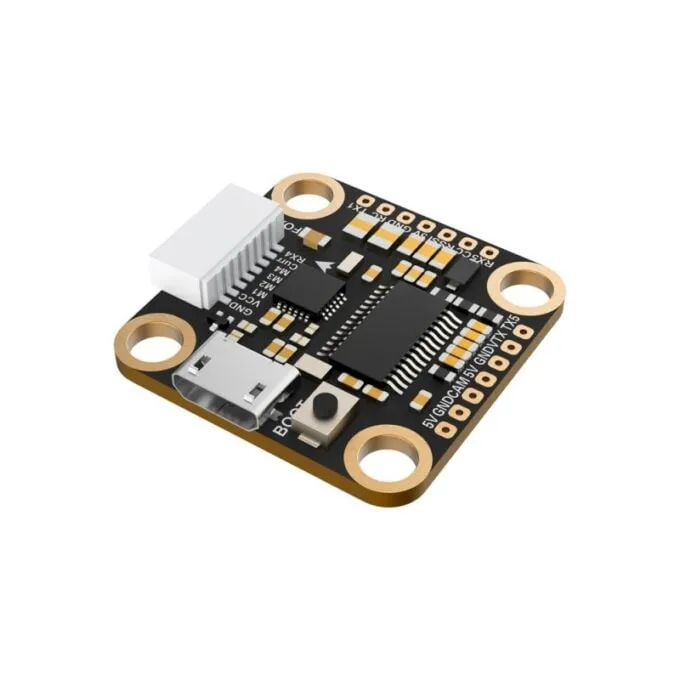

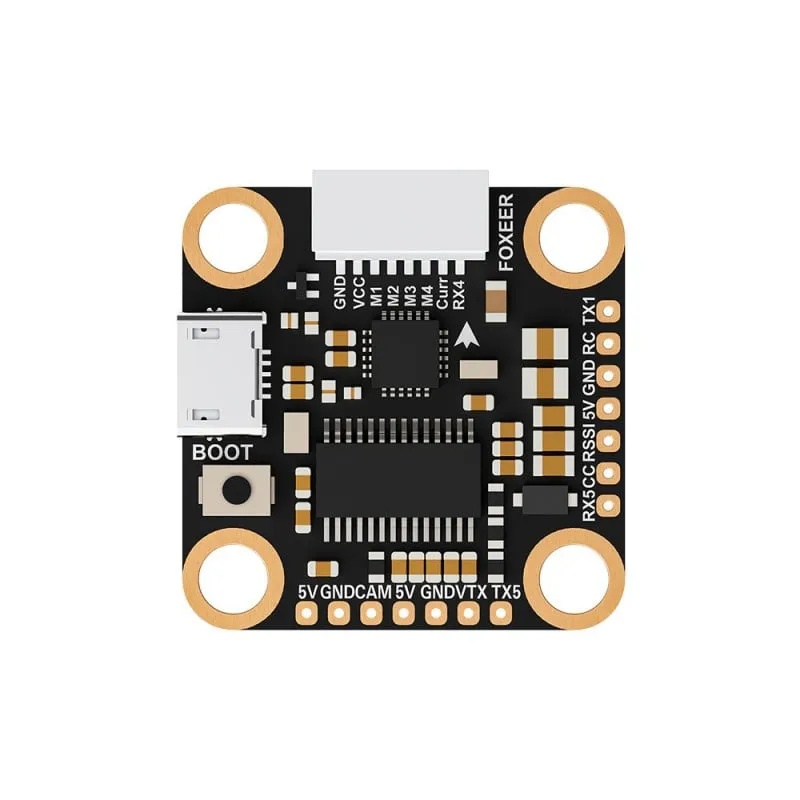

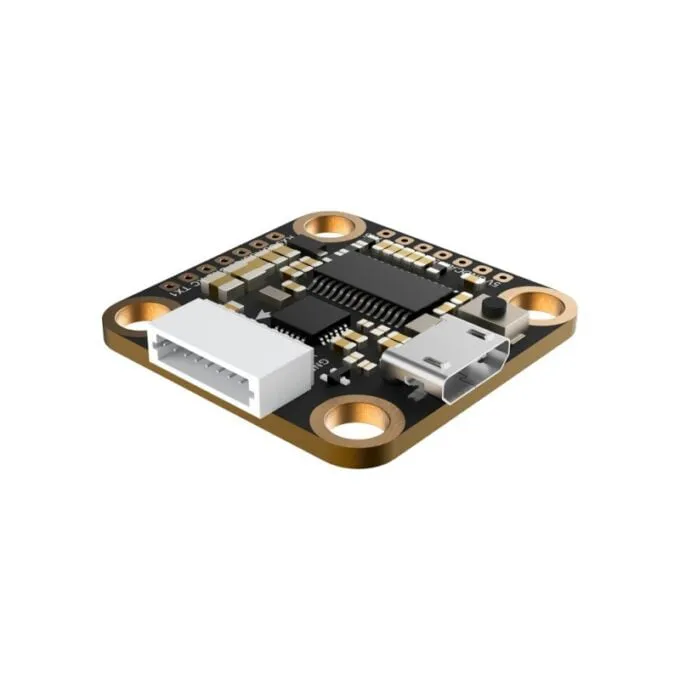

Foxeer F722 V4 Mini Flight Controller (MPU6000, 20×20mm)

The Foxeer F722 V4 Mini is a 20×20mm flight controller designed for cinewhoops and lightweight freestyle quads. Built around an STM32F722 processor, this board is equipped with the highly sought-after MPU6000 gyro, selected by builders for its exceptionally low noise floor and clean flight tuning characteristics without requiring heavy software filtering.

Key features

• Dual BEC system (5V and 9V) powers both standard 5V electronics and high-definition video transmitters directly from the board.

• Native plug-and-play socket for digital HD video systems reduces wiring clutter.

• Integrated 16MB flash memory handles continuous Blackbox flight data logging.

• Generous pad layout includes five available UARTs for connecting receivers, GPS modules, and telemetry systems.

Specifications

• Processor: STM32F722

• Gyro: MPU6000

• Input voltage: 2-6S LiPo

• BEC output: 5V/2.5A, 9V/2A

• Blackbox: 16MB onboard flash

• UARTs: 5 sets

• Supported firmware: Betaflight

• Firmware target: FOXEERF722V4

• Mounting pattern: 20x20mm (M3 holes)

• Dimensions: 26.2×26.2mm

• Weight: 4g

With its compact footprint and stable MPU6000 gyro, this flight controller integrates easily into modern 3-inch, 4-inch, or lightweight 5-inch frames carrying advanced high-definition digital video units.
