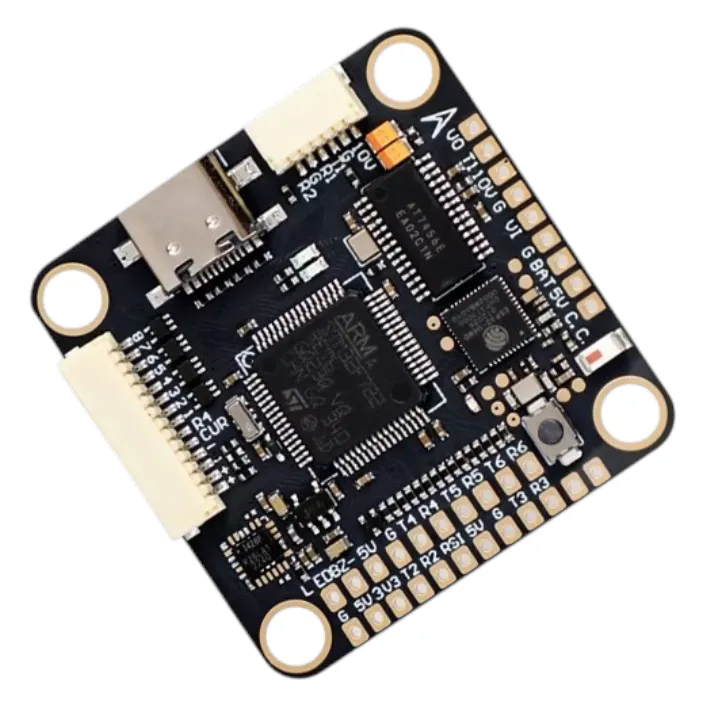

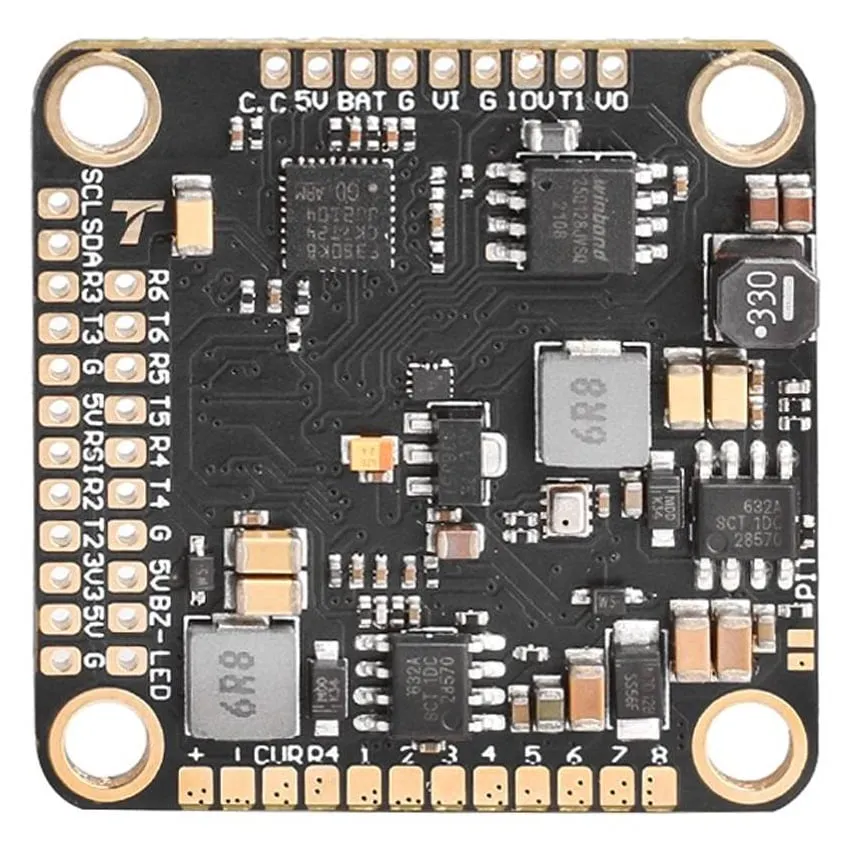

T-Motor F7 Pro 30.5x30.5 Flight Controller with WiFi & Bluetooth

The T-Motor F7 Pro is a full-function 30.5×30.5 mm flight controller with built-in WiFi and Bluetooth, so tuning, firmware flashing and blackbox review can be done without a USB cable. It runs on 3–8S and suits freestyle, long-range and cinematic builds, including eight-motor layouts.

Key features

• STM32F722 processor with an ICM42688 gyro and BMP280 barometer

• Wireless setup through the SpeedyBee app: Betaflight tuning, motor direction, firmware flashing and blackbox analysis

• Up to 8 PWM motor outputs (M1–M8) for X8 and octocopter frames

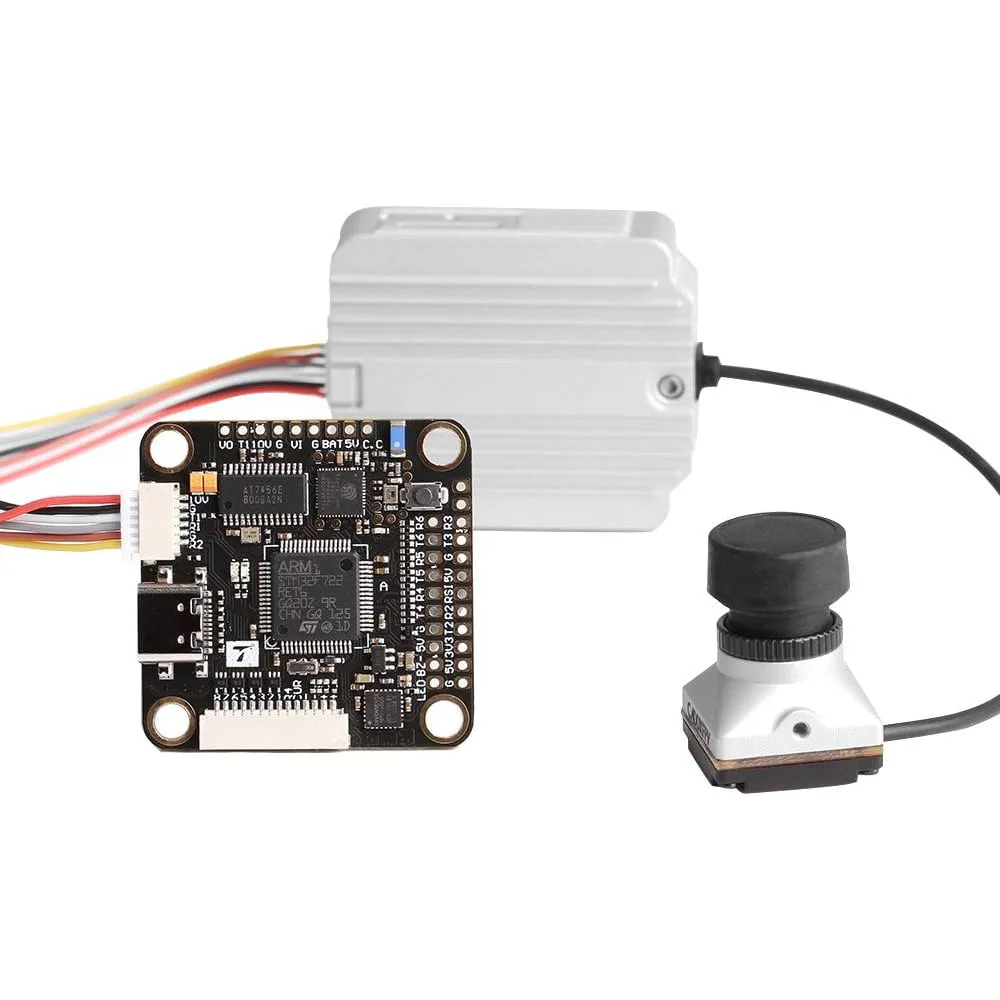

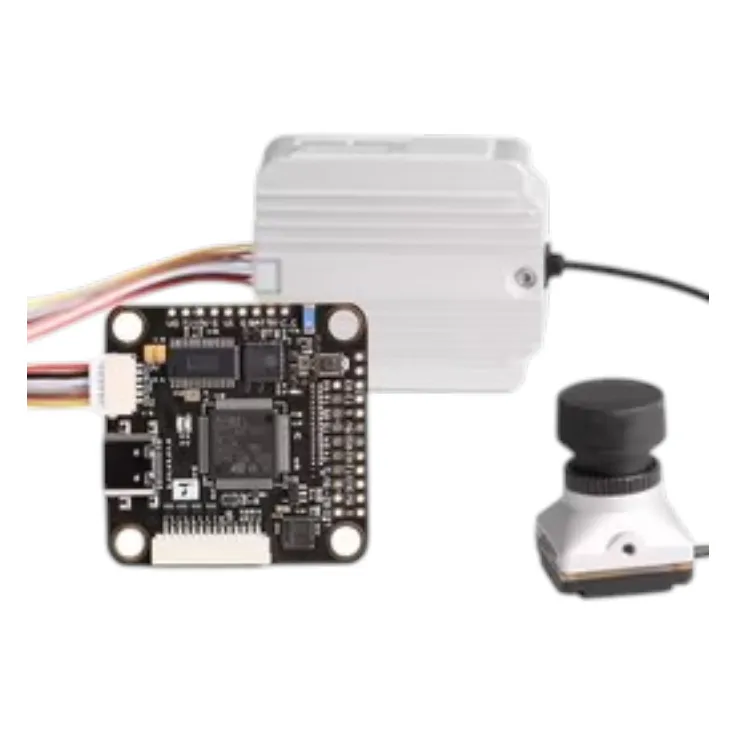

• Plug-and-play connection for the DJI FPV Air Unit, plus a VTX switch jumper

• Dual BEC rated 10V/2A and 5V/3A

• 16MB blackbox flash and AT7456 analogue OSD

Specifications

• MCU: STM32F722RET6

• Gyro: ICM42688

• Barometer: BMP280

• Input voltage: 3–8S LiPo

• BEC: 10V/2A, 5V/3A

• Motor outputs: 8

• OSD: AT7456

• Blackbox: 16MB flash

• Firmware: Betaflight, INAV

• USB: Type-C

• Mounting: 30.5×30.5 mm, M3

• Dimensions: 37 × 37 × 7.5 mm

• Weight: 8.1 g

• In the box: flight controller, 4 vibration dampeners, 2 FC-to-ESC cables

Wireless access pays off on cinematic rigs where the USB port ends up buried under a camera mount or air unit, and INAV support makes it a fit for GPS-assisted long-range builds too.
