iFlight BLITZ Mini F7 V1.1 Flight Controller

The iFlight BLITZ Mini F7 V1.1 is a compact 20x20mm flight controller tailored for sub-250g micro drones, 3-inch cinewhoops, and lightweight 5-inch freestyle frames. Driven by an STM32F722 processor and a BMI270 gyro, it provides ample computing headroom for advanced Betaflight filtering and precise flight dynamics.

Key features

• Plug-and-play connectors for digital HD video transmitters (DJI O3, Caddx Vista) and 4-in-1 ESCs reduce build time and eliminate micro-soldering.
• Six available hardware UARTs easily accommodate a full suite of peripherals including GPS, ELRS receivers, and VTX telemetry.
• Integrated 16MB Blackbox flash memory simplifies PID tuning and resonance analysis.
• Robust 5V/2.5A BEC effortlessly powers demanding receivers and LED arrays.
• Modern USB Type-C connector handles frequent plugging without the fragility of older micro-USB standards.

Specifications

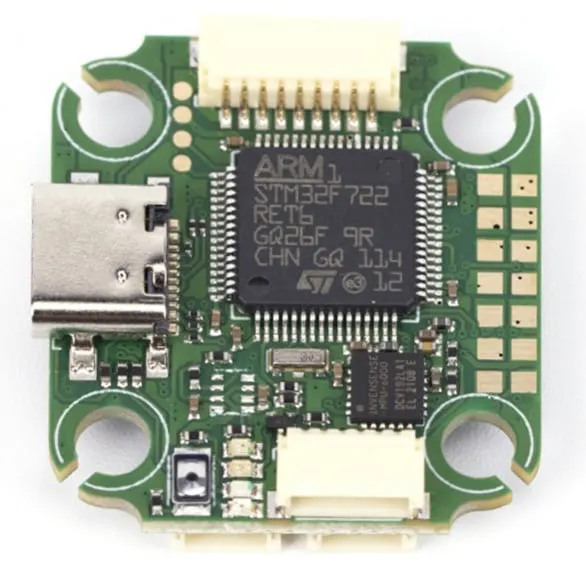

• MCU: STM32F722RET6
• Gyro: BMI270
• Input voltage: 2-6S LiPo
• BEC output: 5V / 2.5A
• UARTs: 6
• Blackbox: 16MB onboard flash
• Mounting pattern: 20x20mm (M4 holes, includes M3 silicone grommets)

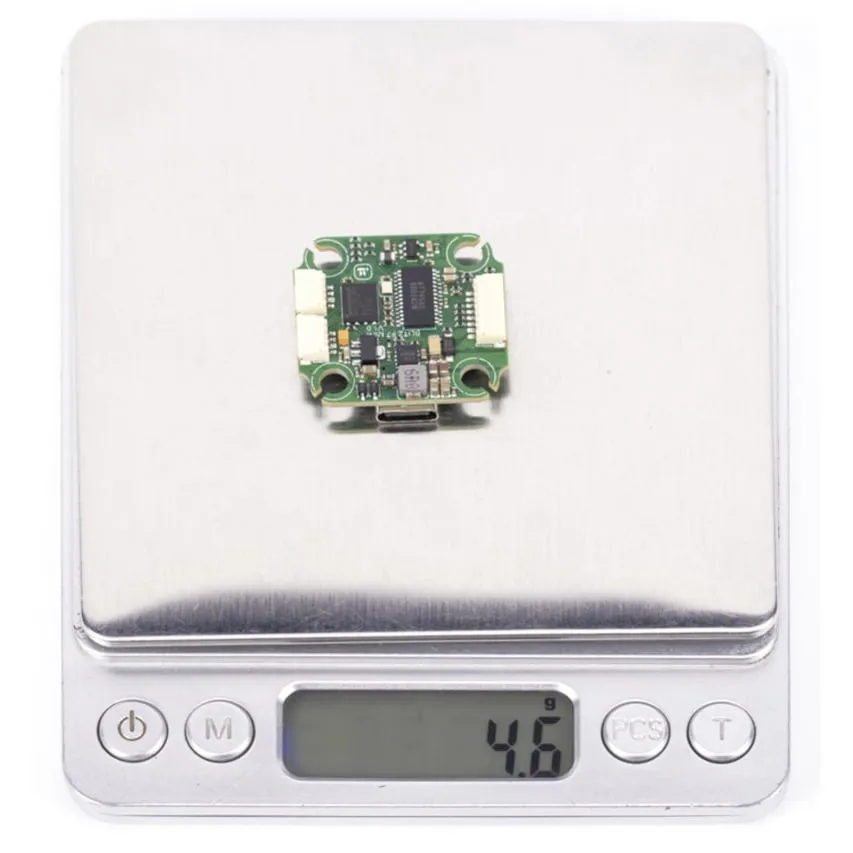

• Weight: 5g
• Supported firmware: Betaflight
• Firmware target: IFLIGHT_BLITZ_F722

This board is an excellent core for builds with restricted stack clearance. It ships with pre-wired harnesses for standard video transmitters and ESCs, while retaining direct solder pads for pilots who prefer custom wiring lengths.
