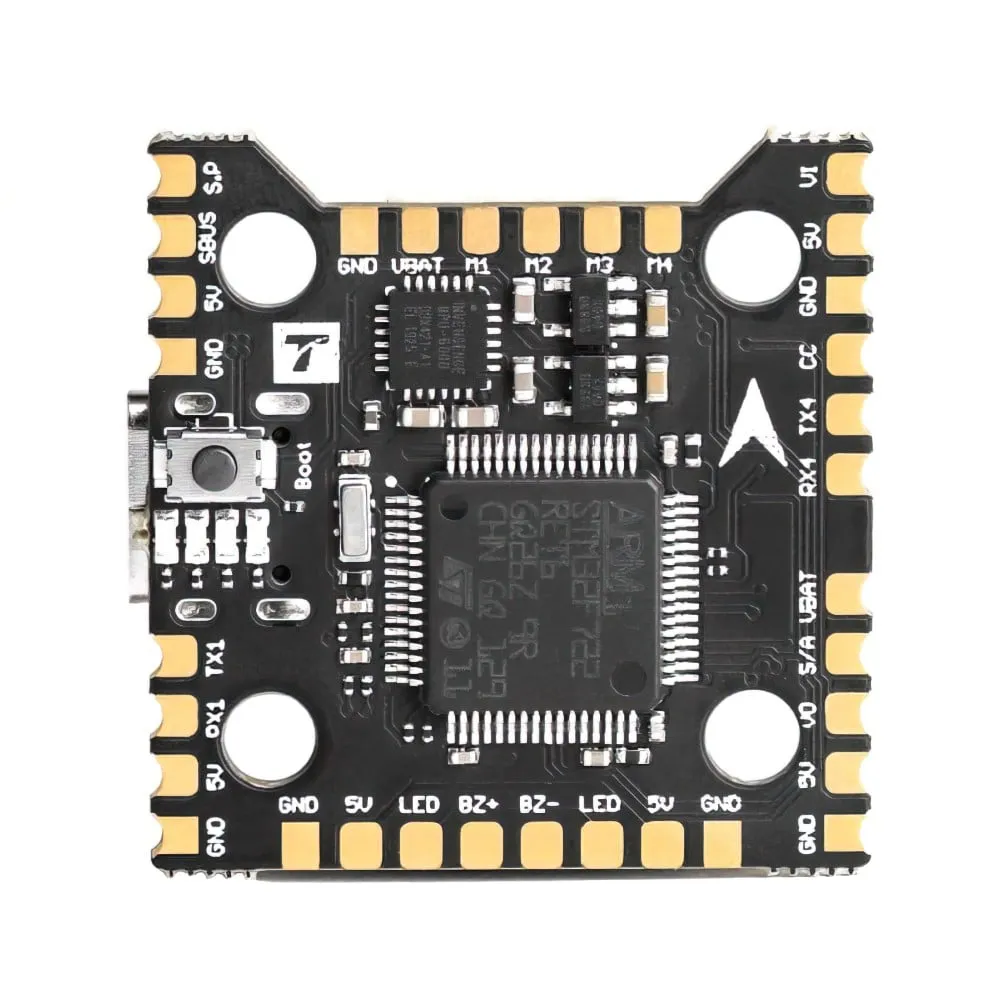

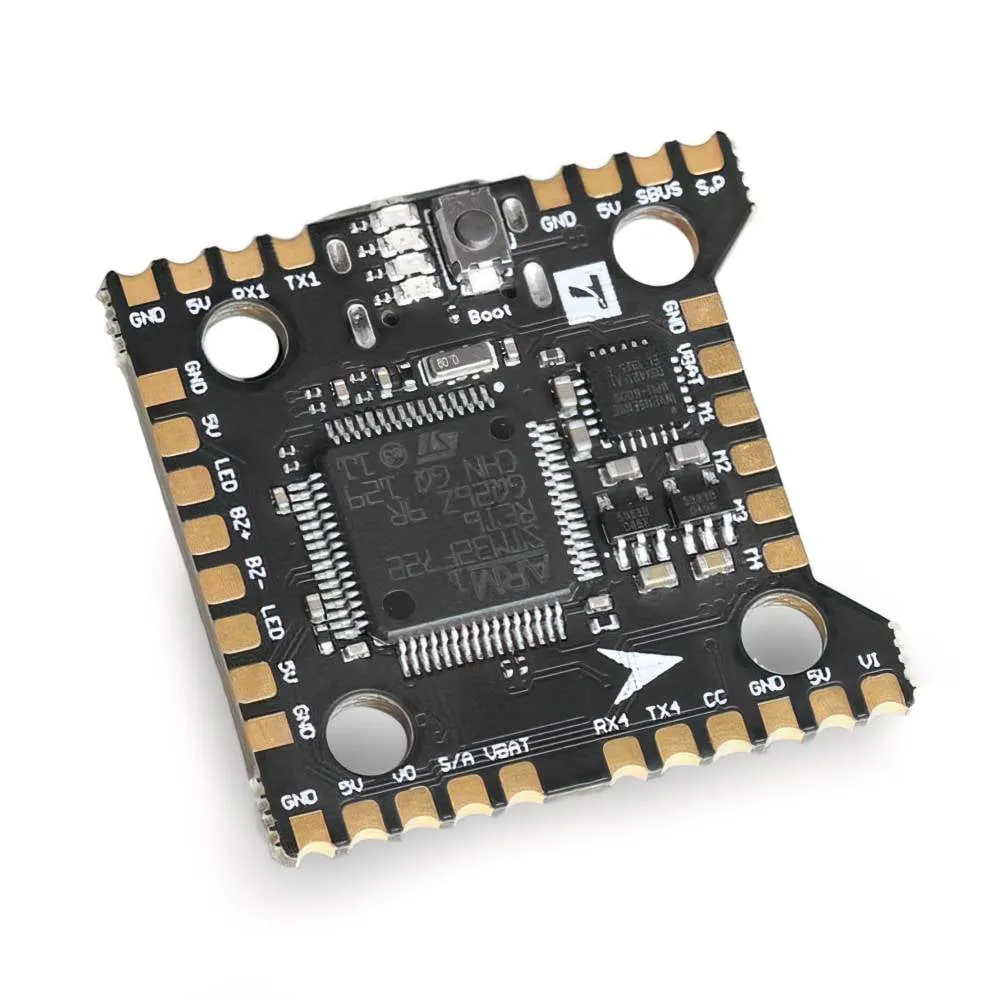

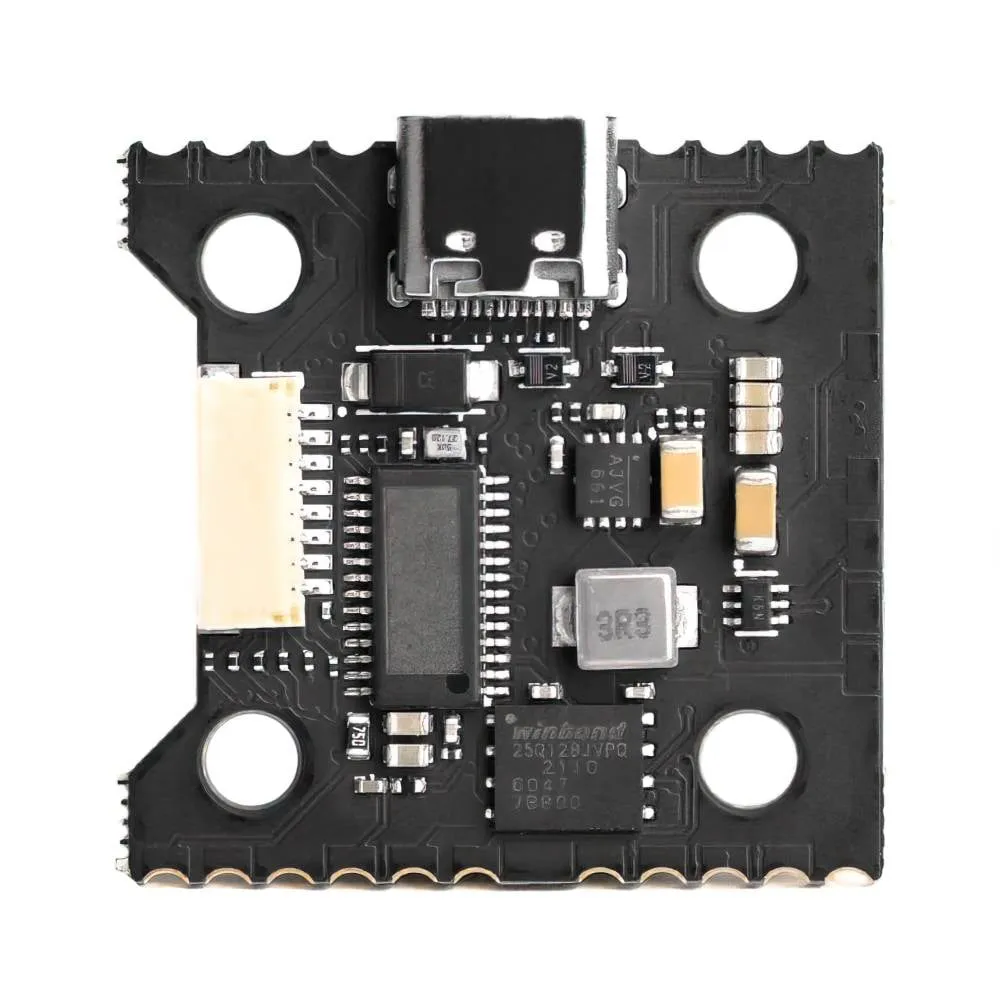

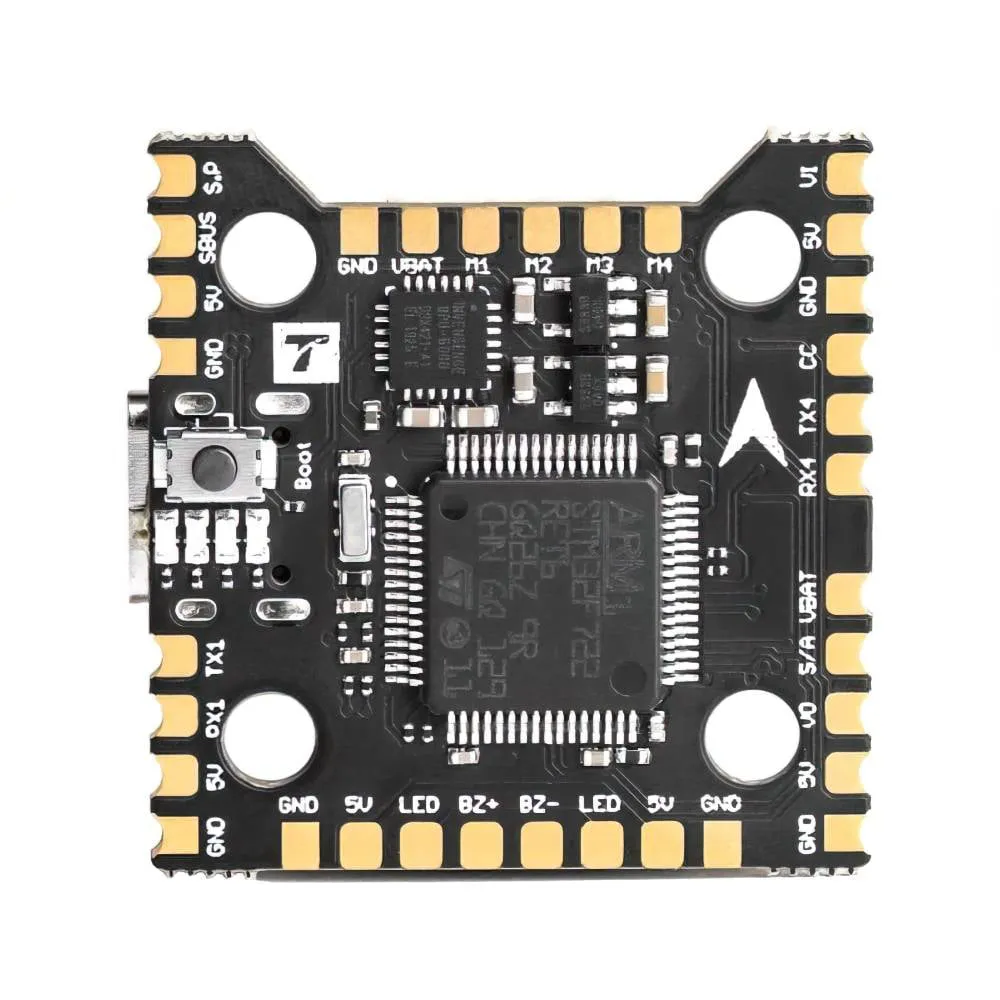

T-Motor Mini Racer 20×20 F7 Flight Controller
₹4,399Incl. GST
SKU TMOTOR-MINIRACER-20X20-F7-FC
Integrated Receiver: NoMounting Size: 20x20Integrated VTX: NoFC Processor: F722
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

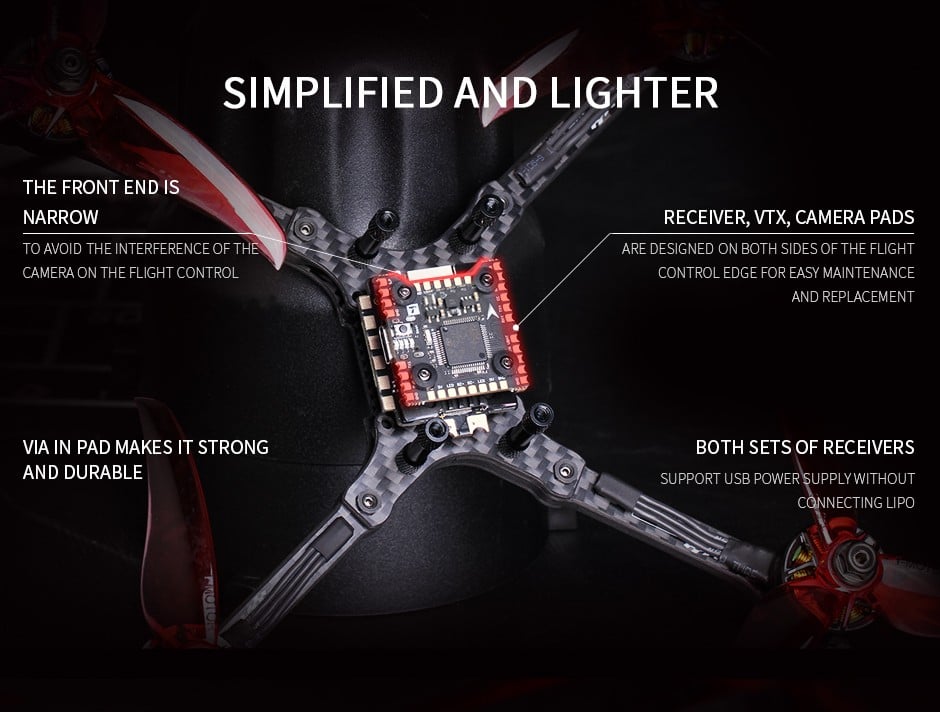

The T-Motor Mini Racer F7 is a compact 20x20mm flight controller built for 3–6S 5-inch racing and freestyle quads, pairing an STM32F722 processor with an MPU6000 gyro for tight PID loops and fast filtering.
Key features
- 16MB onboard blackbox flash logs PID and vibration data for tuning
- 5V/2A BEC (2.5A peak) powers receivers, GPS and other peripherals
- 4 UARTs for connecting a receiver, GPS and a digital VTX
- USB-C port with USB-power-without-LiPo support for bench configuration
- Plugs directly onto T-Motor's Mini F45A or F66A 4-in-1 ESCs, cutting down on soldering
Specifications
- MCU: STM32F722RET6
- Gyro: MPU6000
- Input voltage: 3–6S LiPo
- Mounting pattern: 20x20mm
- Dimensions: 31x30mm
- BEC: 5V / 2A (2.5A peak)
- Blackbox: 16MB
- UARTs: 4
- Weight: 4.7g
Ships with a connector wire and four pre-installed damping grommets; T-Motor recommends pairing it with F60 Pro V or F40 Pro V motors on a Mini F45A/F66A ESC stack for a clean, low-interference racing build.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 20x20 |
| Integrated VTX | No |
| FC Processor | F722 |
| Gyro | MPU6000 |
| Input Voltage | 3–6S |
| Made in India | No |
| Brand | T-Motor |
| Supported Firmware | Betaflight |
| Barometer | No |
| UARTs | 4 |
| Weight | 4.7 g |
