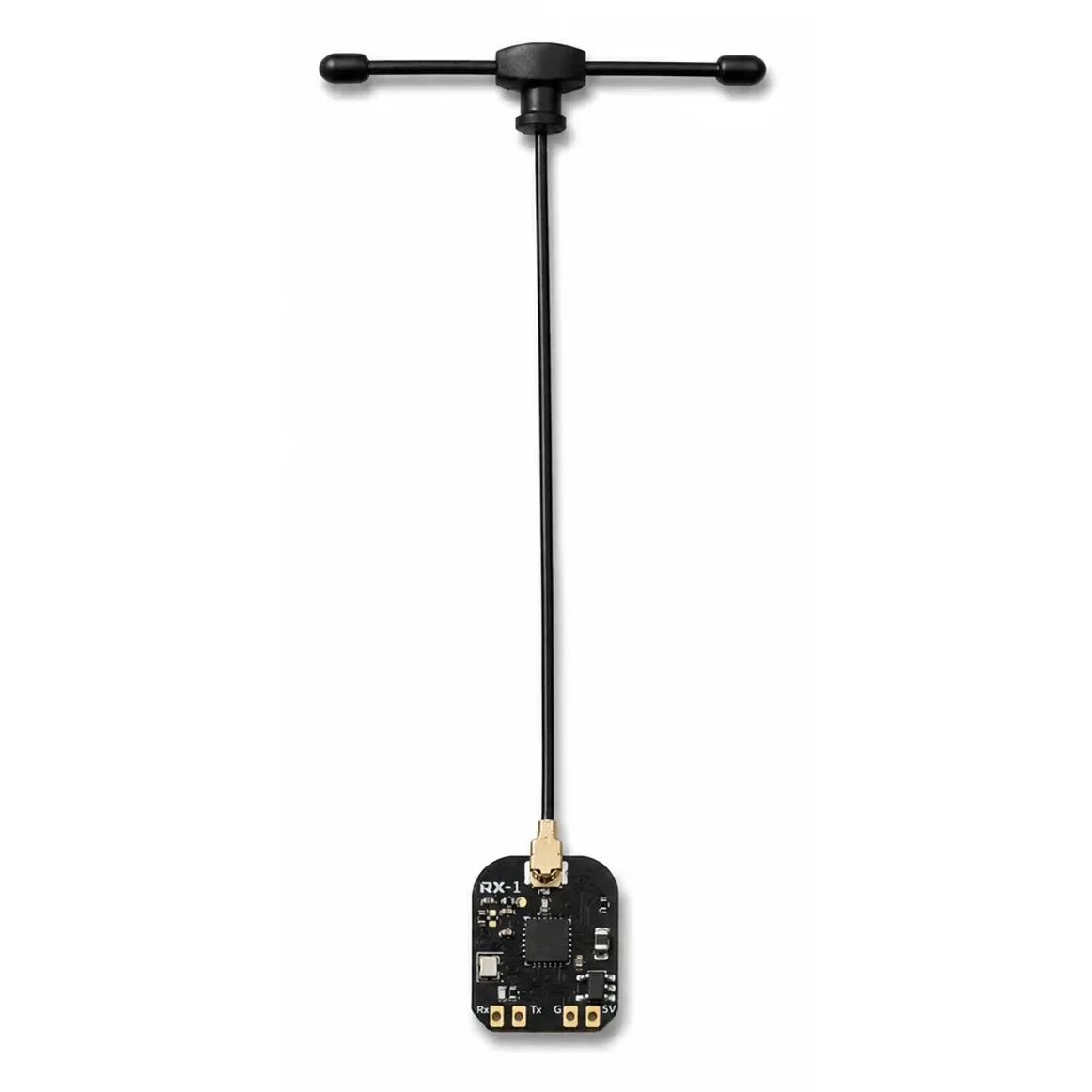

EDITHFPV IronLink Rx-1 Nano 2.4GHz ELRS Receiver
SKU EDITH-IRONLINK-RX1-NANO
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The EDITHFPV IronLink Rx-1 Nano is a 2.4GHz ExpressLRS receiver that weighs 0.8 g without its antenna. It suits racing, freestyle and long-range quads and fixed-wing aircraft where space and weight are tight, and it works with any ExpressLRS 2.4GHz transmitter.
Key features
- ExpressLRS 3.6.0 pre-installed: matches current 3.x transmitter firmware and takes updates through the standard ExpressLRS tools.
- 17 x 14 mm board, 3 mm thick: fits beside a stack, under a canopy or inside a narrow fuselage.
- Telemetry up to 100 mW: sends link quality, signal strength and flight-controller telemetry back to the radio.
Specifications
- Protocol: ExpressLRS (ELRS), 2.4GHz
- Firmware: ExpressLRS 3.6.0, pre-installed
- Telemetry power: up to 100 mW
- Output to FC: CRSF over UART
- Dimensions: 17 x 14 x 3 mm
- Weight: 0.8 g without antenna
Wire it to a spare UART on the flight controller, receiver TX to FC RX and receiver RX to FC TX plus power and ground, then select Serial RX with the CRSF protocol in Betaflight or INAV. Set the same binding phrase on the receiver and transmitter, and keep both on the same major ExpressLRS version (3.x), or they will not link.
| RC Protocol | ELRS |
|---|---|
| Made in India | No |
| Brand | EDITHFPV |
| Frequency | 2.4GHz |
| Weight | 0.8 g |
| Output Protocol | CRSF |
