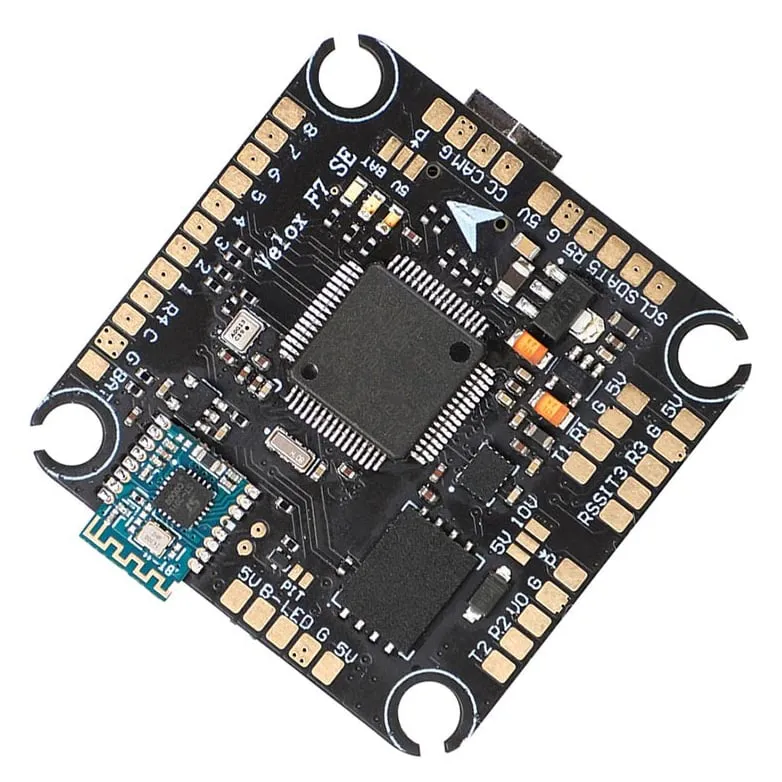

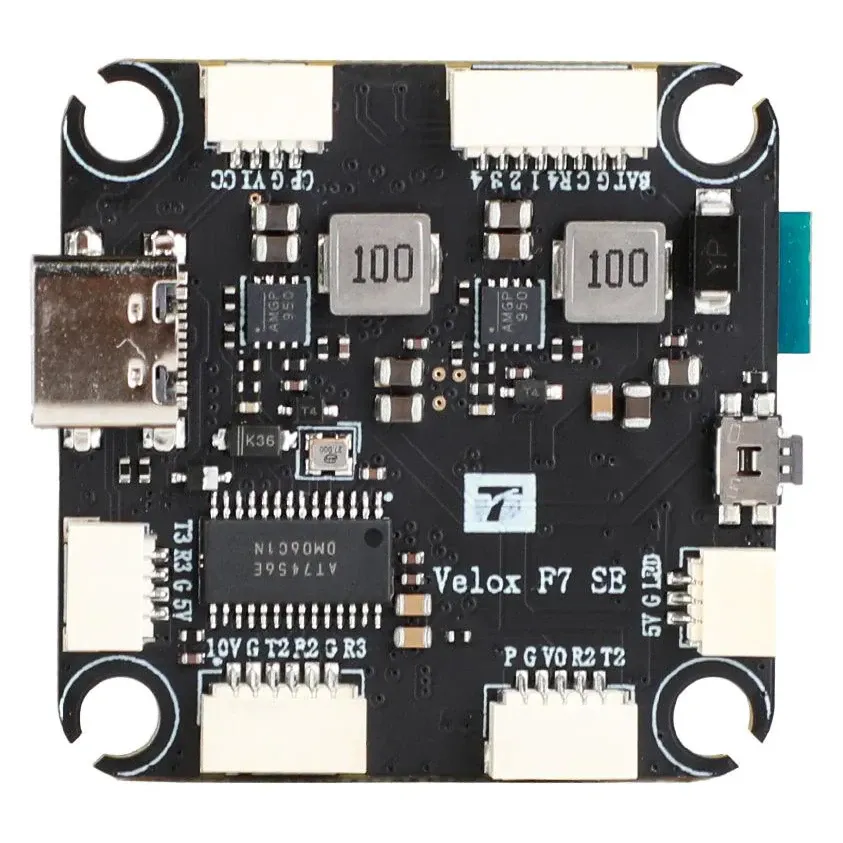

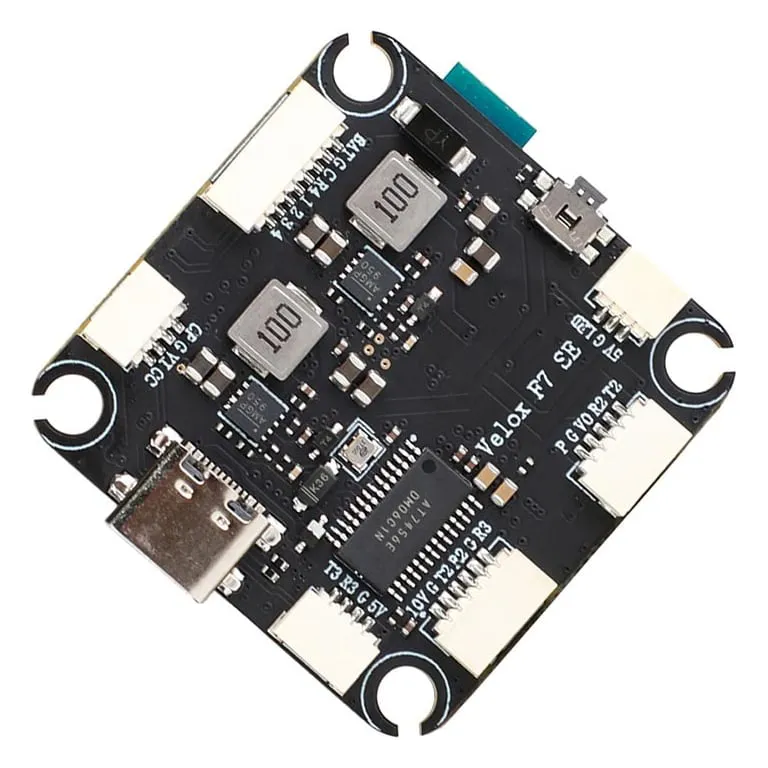

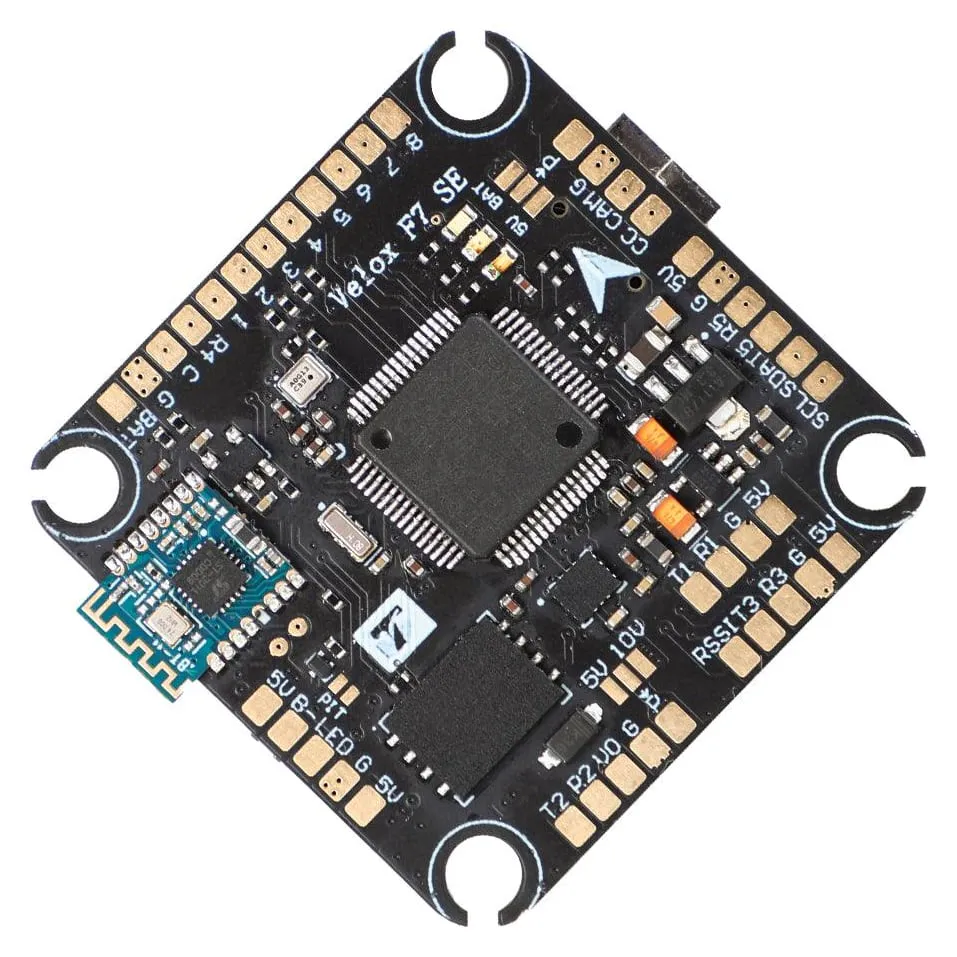

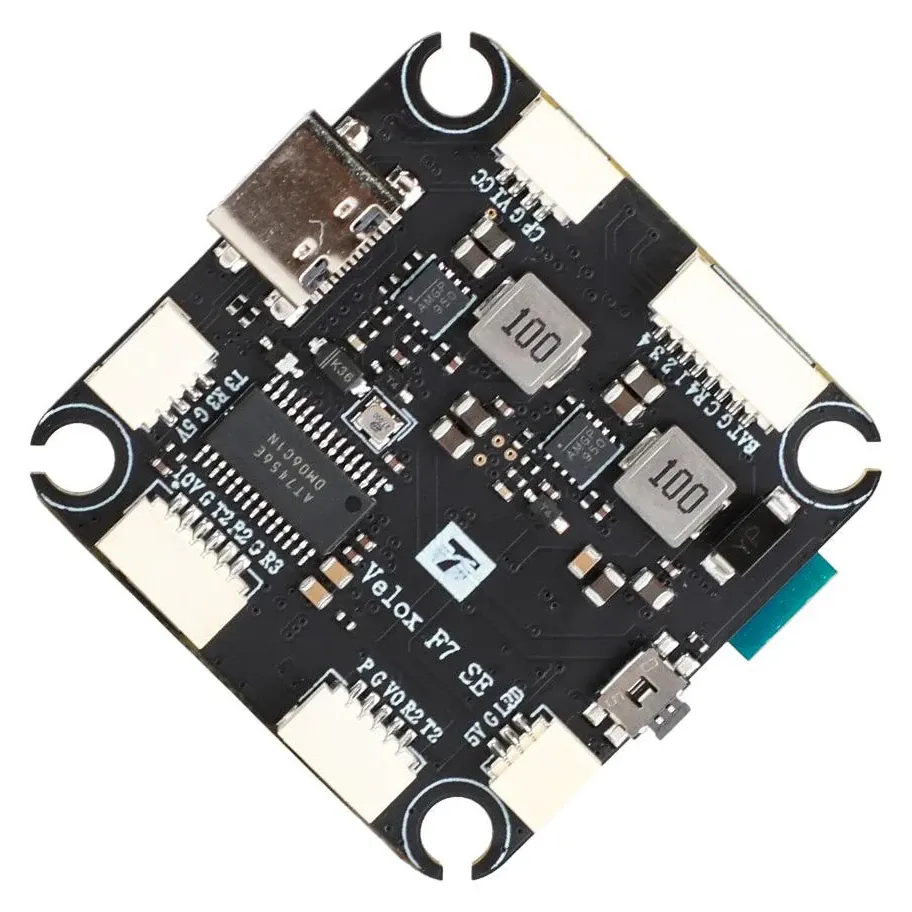

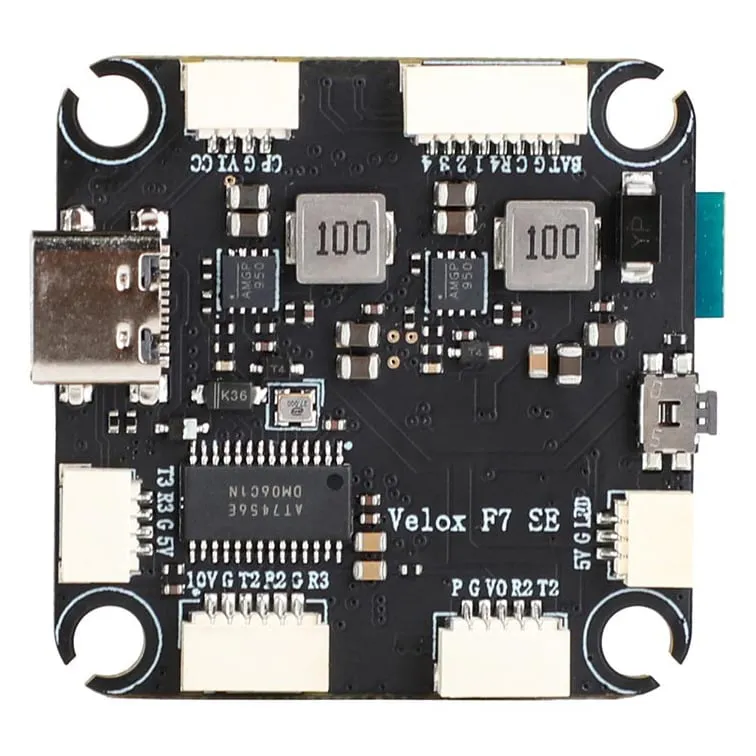

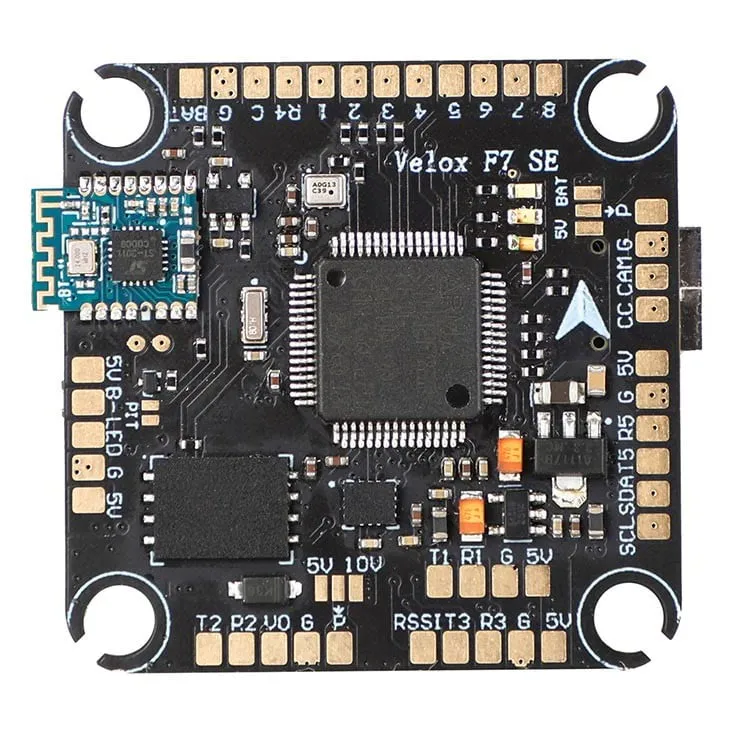

T-Motor Velox F7 SE Flight Controller

The T-Motor Velox F7 SE is a 30.5 × 30.5 mm flight controller for 3–6S freestyle, racing and cinematic quads, built around an STM32F722 processor and an ICM-42688-P gyro.

Key features

• Built-in Bluetooth for changing settings from a phone through the SpeedyBee app, with no USB cable needed at the field.

• 128 MB blackbox flash for logging flights and tuning filters.

• Dual BEC: 5 V 2 A plus 10 V 1.5 A, with pad-selectable 5 V or 10 V for the camera and VTX.

• Six UARTs and eight motor outputs, enough for GPS, receiver, digital VTX and X8 layouts.

• Barometer and AT7456E OSD on board, with HD OSD support for digital video systems.

Specifications

• MCU: STM32F722

• Gyro: ICM-42688-P (SPI)

• Barometer: built in

• OSD: AT7456E analogue, HD OSD supported

• Blackbox: 128 MB

• Input voltage: 3–6S (12–27 V)

• BEC: 5 V 2 A, 10 V 1.5 A

• UARTs: 6

• Motor outputs: 8

• USB: Type-C

• Mounting: 30.5 × 30.5 mm

• Dimensions: 37.5 × 40 × 6.4 mm

• Weight: 9 g

• Firmware: Betaflight

For a complete stack, pair it with the V50A SE ESC. It also works with other 30.5 mm 4-in-1 ESCs, provided you check the ESC plug pin-out against the board before connecting.
