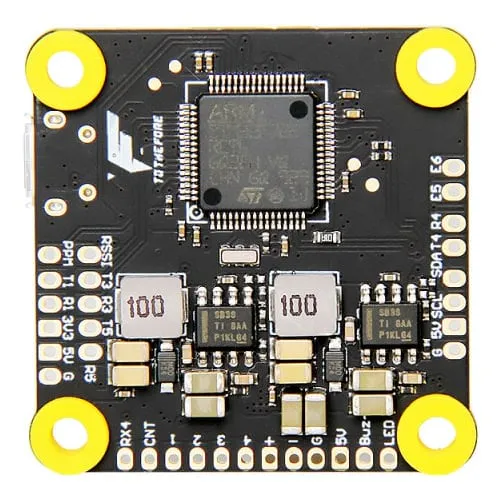

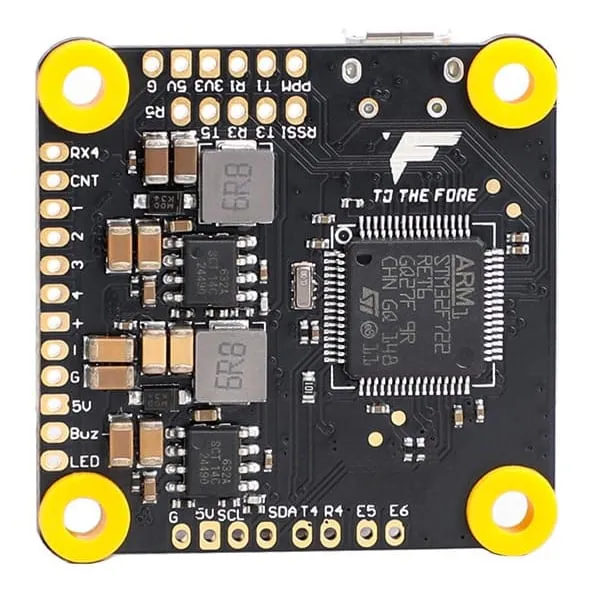

T-Motor F7 HD 30.5x30.5 2-6S Flight Controller
SKU TM-F7-HD-3030-2-6S
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

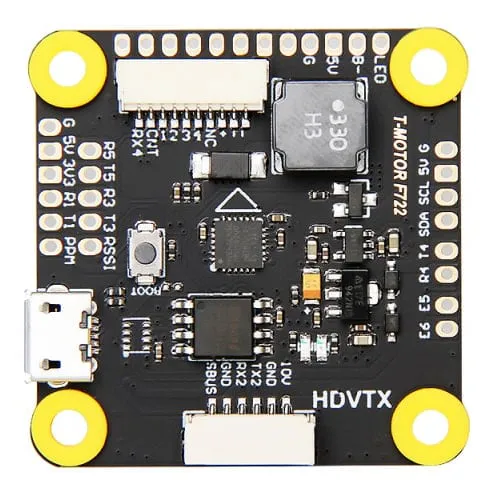

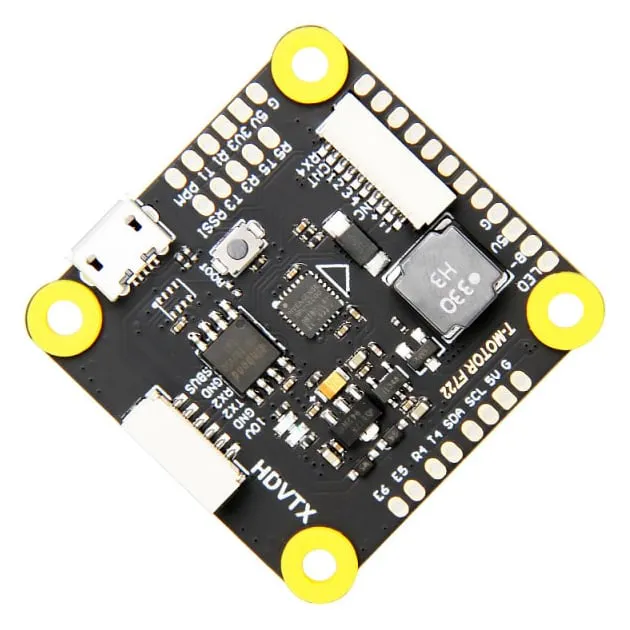

The T-Motor F7 HD is a premium 30.5x30.5mm flight controller designed specifically to streamline digital FPV builds. Built around the STM32F722 MCU, it features a dedicated plug-and-play port for direct connection to HD video transmitters like the DJI O3, Walksnail, or Vista, eliminating unnecessary soldering while natively handling 2-6S LiPo input.
Key features

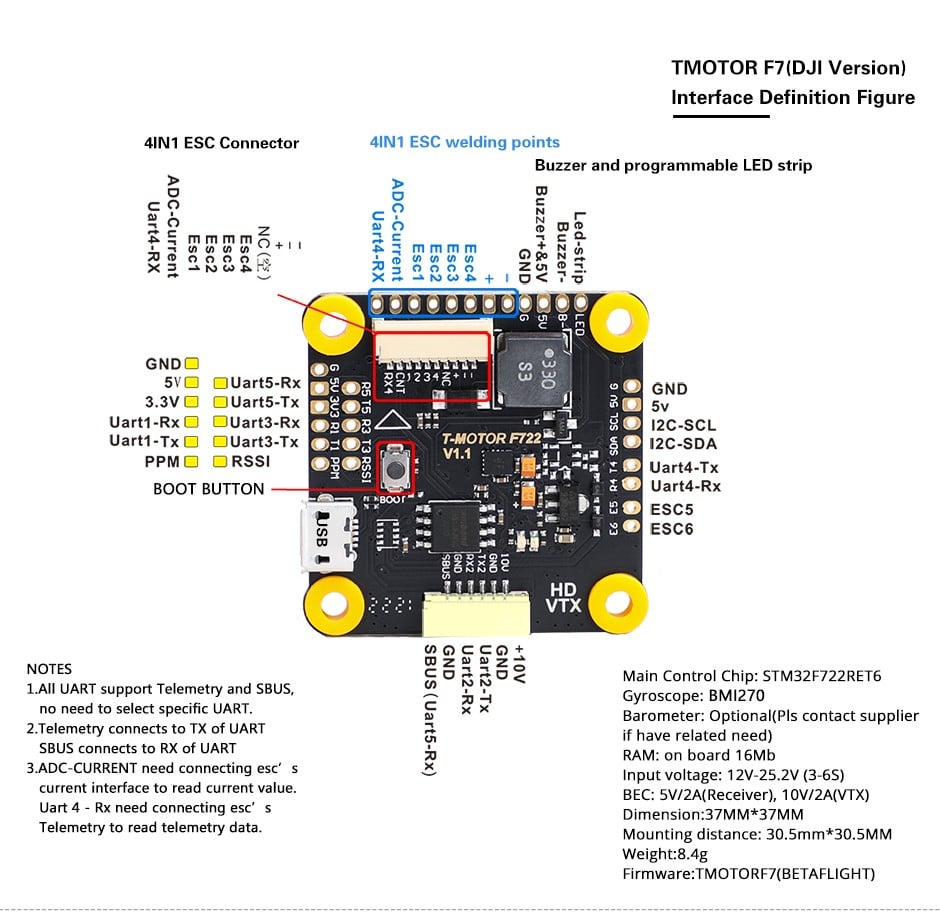

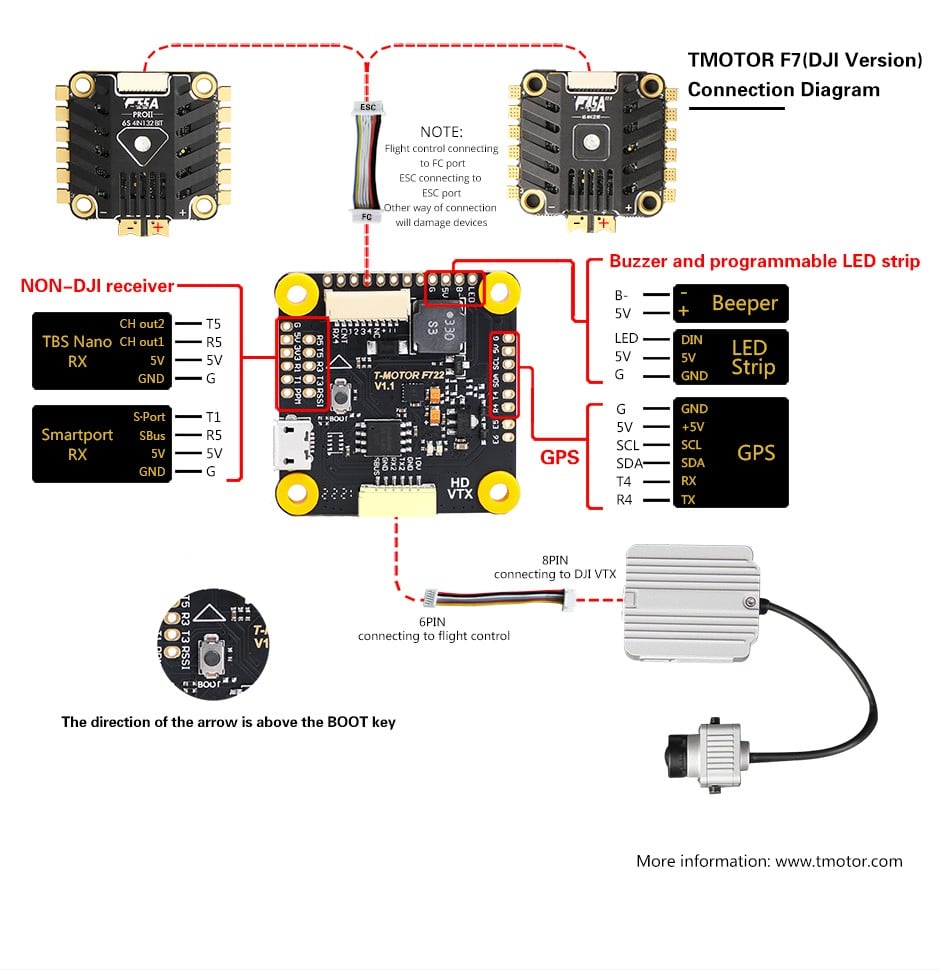

Dedicated 6-pin connector for plug-and-play HD VTX integration
Dual BECs (5V and 10V) for clean peripheral and digital video power
16MB onboard flash memory for Blackbox flight logging and tuning
6 hardware UARTs for flexible receiver, GPS, and telemetry routing
Specifications

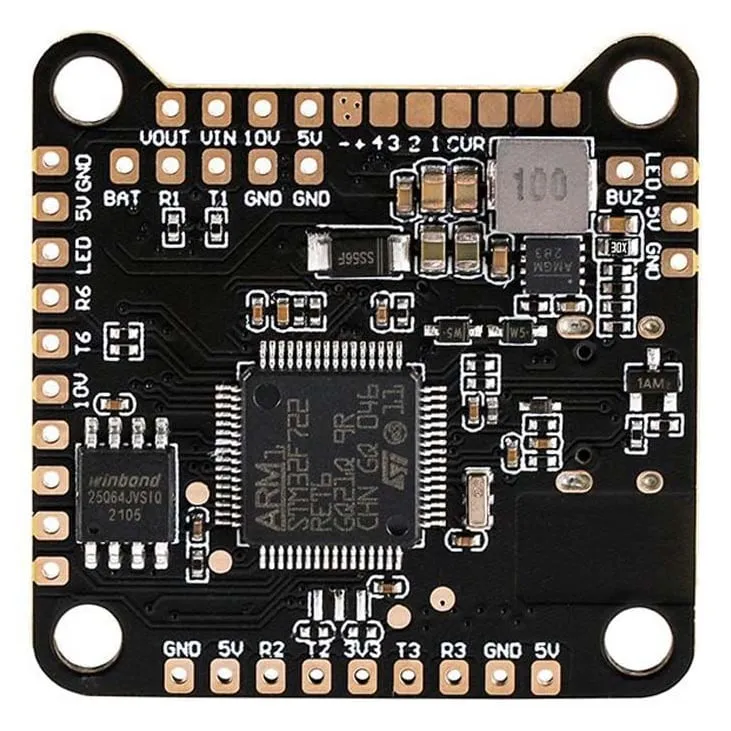

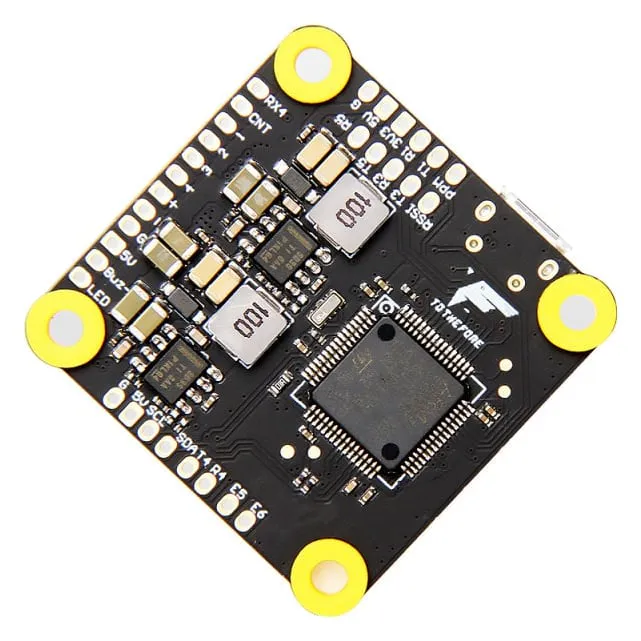

MCU: STM32F722RET6
Input Voltage: 2-6S LiPo
BEC Output: 5V/2A, 10V/2A
UARTs: 6
Blackbox: 16MB Flash
Mounting Size: 30.5x30.5mm
Weight: 7g
Supported Firmware: Betaflight

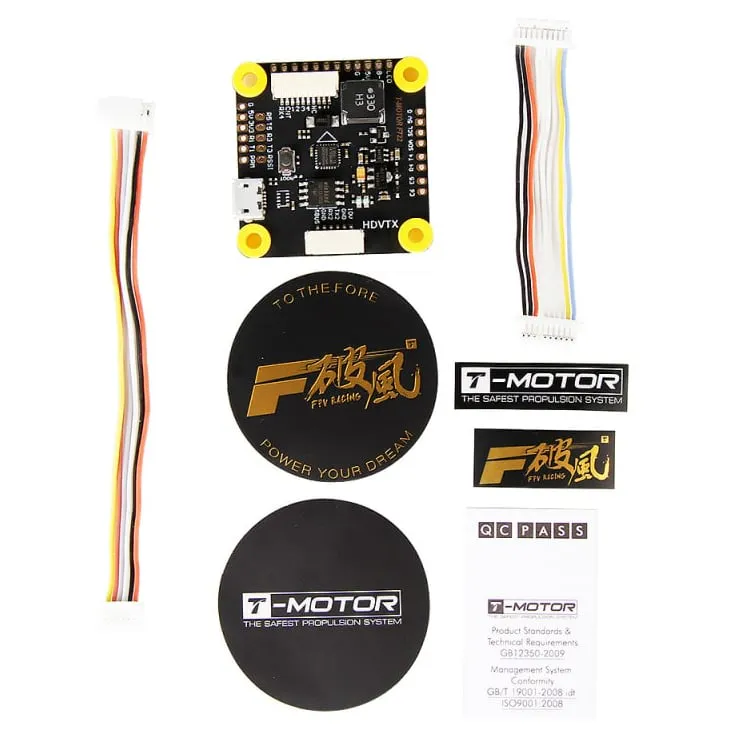

This controller includes silicone vibration-damping grommets to isolate the board from mechanical noise, making it an excellent core for 5-inch freestyle quads, long-range cruisers, and heavy-lift cinelifters relying on digital video.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | F722, F7 |
| Gyro | BMI270 |
| Input Voltage | 2–6S |
| Made in India | No |
| Brand | T-Motor |
| Supported Firmware | Betaflight |
| Barometer | No |
| UARTs | 6 |
| Weight | 7 g |
| Motor Outputs | 8 |
