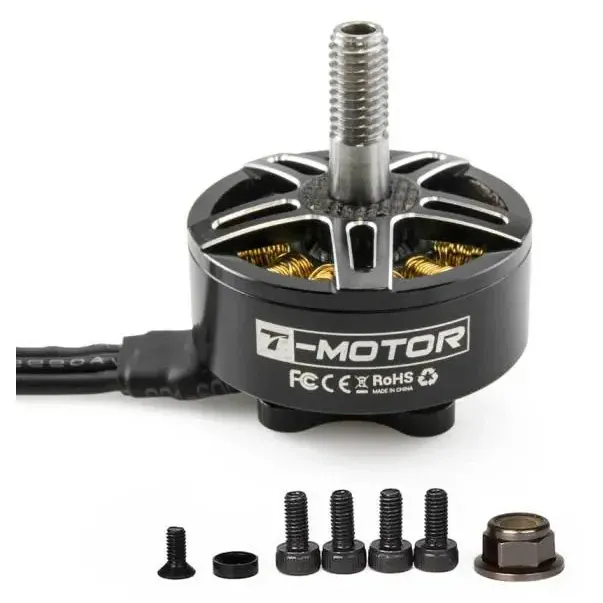

T-Motor F80 PRO Brushless FPV Motor

The T-Motor F80 PRO is a 2408 brushless motor for 5-inch racing and freestyle quads, offered in 1900KV, 2200KV and 2500KV. Its 24 × 8 mm stator has more volume than a 2207 or 2306, giving extra torque to hold RPM through hard punch-outs and heavier props.

Key features

• 12N14P motor with a 4 mm shaft and M5 prop thread, so it takes standard 5-inch props and nuts.

• 16 × 16 mm M3 mounting, the usual bolt pattern on 5-inch racing and freestyle arms.

• High peak output: up to 1122 W and 49.16 A on the 1900KV version.

• 150 mm silicone motor leads.

• Choose the KV by battery: 1900KV is rated to 6S, 2200KV to 5S and 2500KV to 4S.

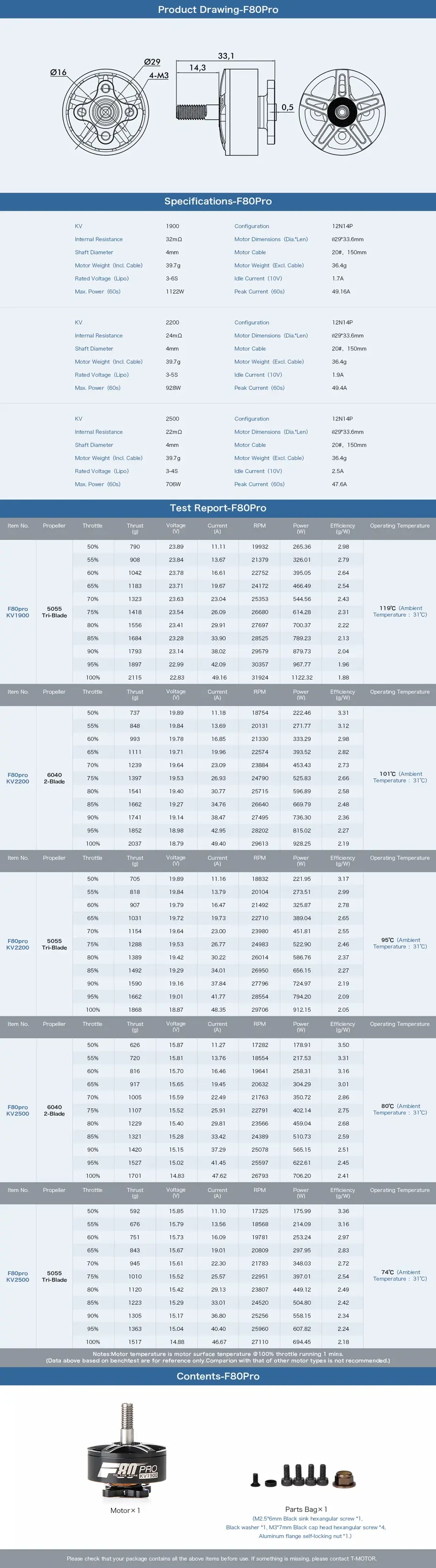

Specifications

• Stator: 2408 (24 × 8 mm)

• KV options: 1900KV, 2200KV, 2500KV

• Configuration: 12N14P

• Rated voltage: 3–6S (1900KV), 3–5S (2200KV), 3–4S (2500KV)

• Shaft: 4 mm, M5 prop thread

• Mounting: 16 × 16 mm, M3

• Dimensions: 29 × 33.6 mm

• Weight: 39.7 g with leads, 36.4 g without

• Motor leads: 150 mm

• Peak current: 49.16 A (1900KV), 49.4 A (2200KV), 47.6 A (2500KV)

• Peak power (60 s): 1122 W (1900KV), 928 W (2200KV), 706 W (2500KV)

• In the box: 1 × motor, parts bag

Pick 1900KV for 6S freestyle and heavier HD builds, 2200KV for 5S or punchy 4S, and 2500KV for light 4S racing. Size the 4-in-1 ESC for the roughly 49 A peak draw, and order four motors for a quad, as each is sold singly.
