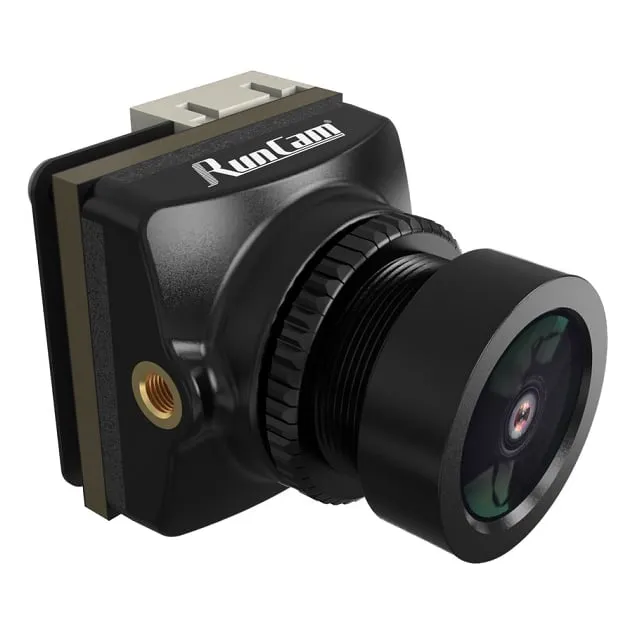

RunCam Phoenix 2 SP V3 Analog Camera

The RunCam Phoenix 2 SP V3 is a micro analog FPV camera designed to deliver vibrant, high-contrast video across rapidly shifting lighting conditions. Built around a sensitive starlight CMOS sensor and featuring global Wide Dynamic Range (WDR), it excels in freestyle quads and fixed-wing builds where pilots frequently transition between bright sunlight and deep shadows. The V3 iteration features an upgraded 1500TVL resolution for sharper image fidelity on analog feeds.

Key features

• High-resolution 1500TVL output for crisp analog video feeds
• Starlight CMOS sensor paired with a large f/2.0 aperture for superior low-light visibility
• OSD menu joystick support for quick on-field picture tuning
• Flexible power management running directly off 5V to 36V DC inputs

Specifications

• Image Sensor: 1/2.8" Starlight CMOS
• Horizontal Resolution: 1500TVL
• Aspect Ratio: 4:3 / 16:9 (switchable)
• Signal System: PAL / NTSC (switchable)
• Lens: FOV 122° Horizontal / 155° Diagonal
• Input Voltage: 5-36V DC
• Current Draw: 120 mA at 5 V
• Shutter: Rolling shutter
• Dimensions: 19x19x21mm
• Weight: 7.5g

With its standard 19mm micro-sized housing, the Phoenix 2 SP V3 mounts effortlessly into most modern 3-inch to 7-inch frames, providing a straightforward drop-in upgrade for existing analog setups.
