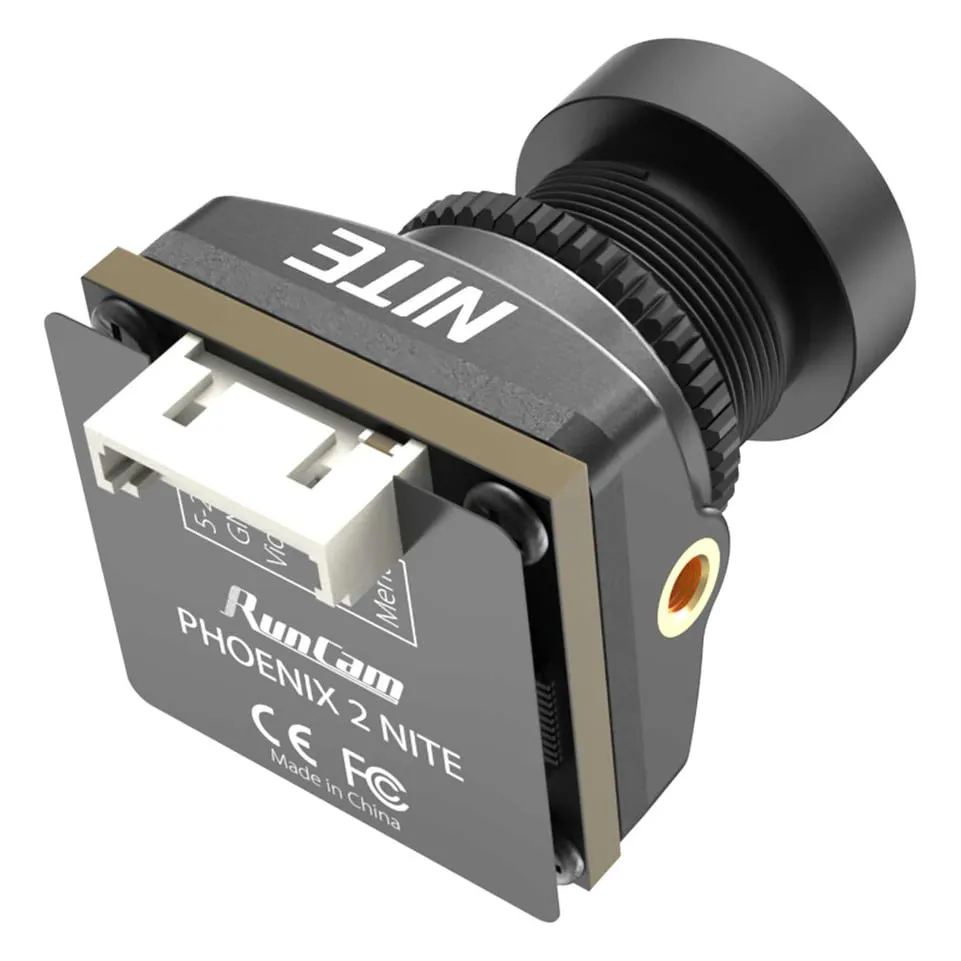

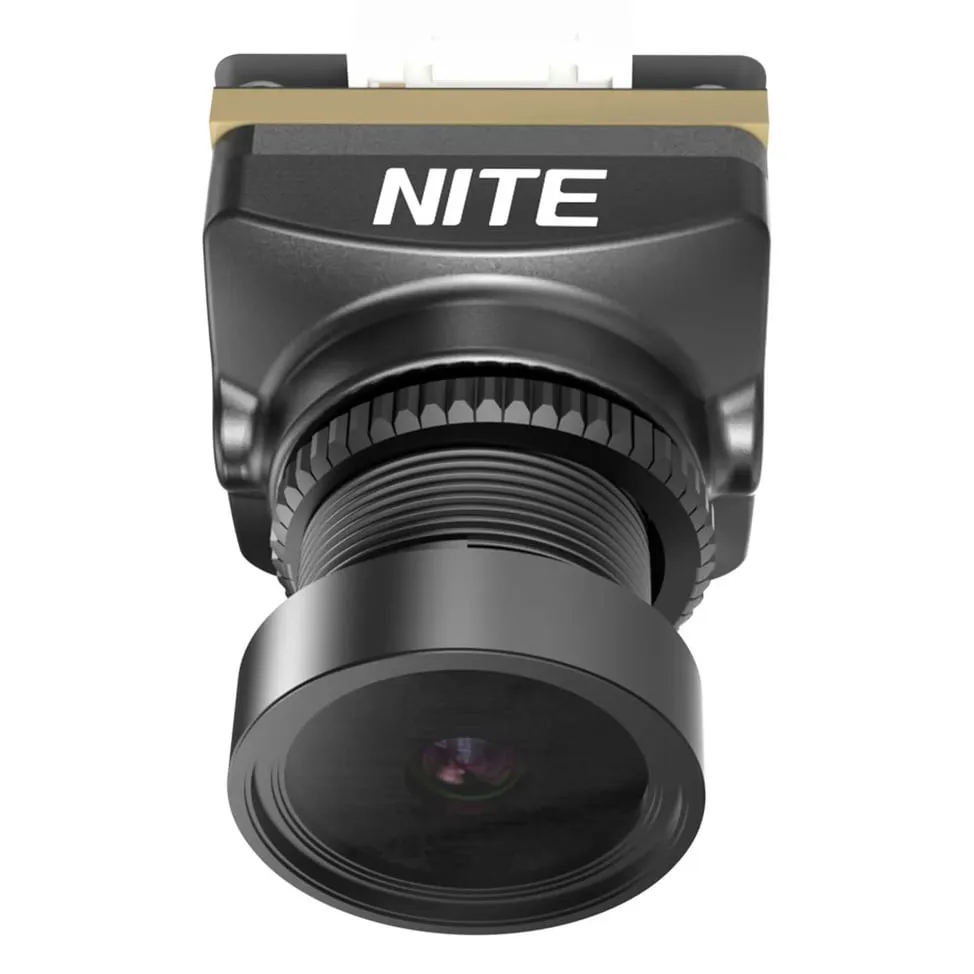

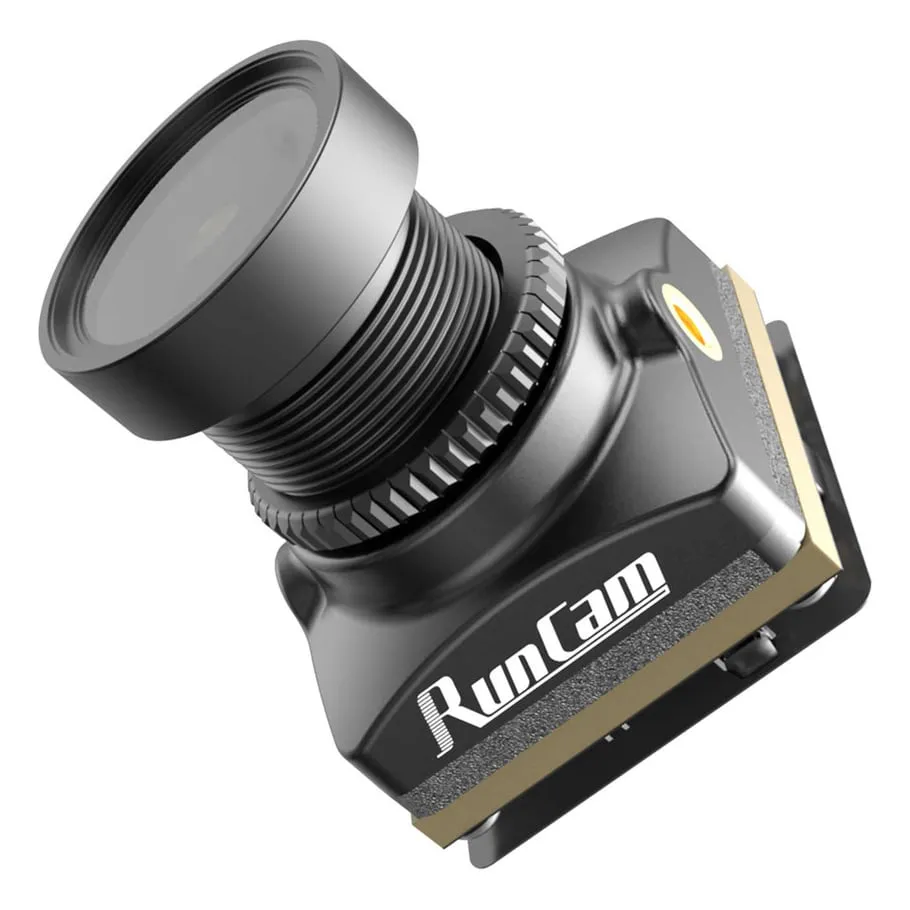

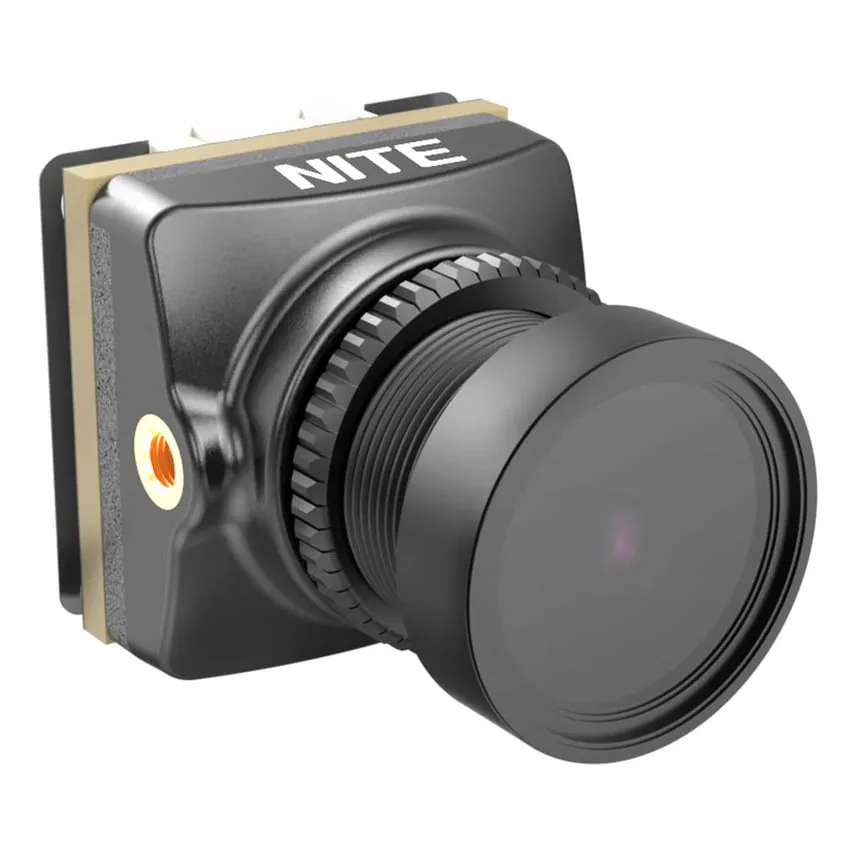

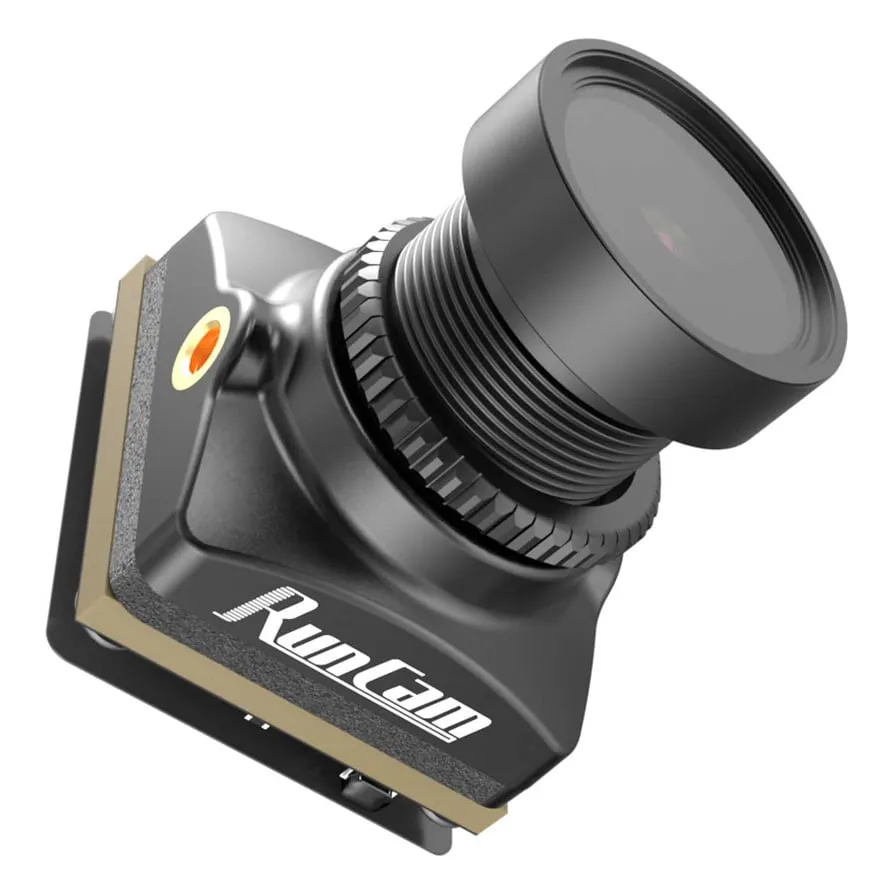

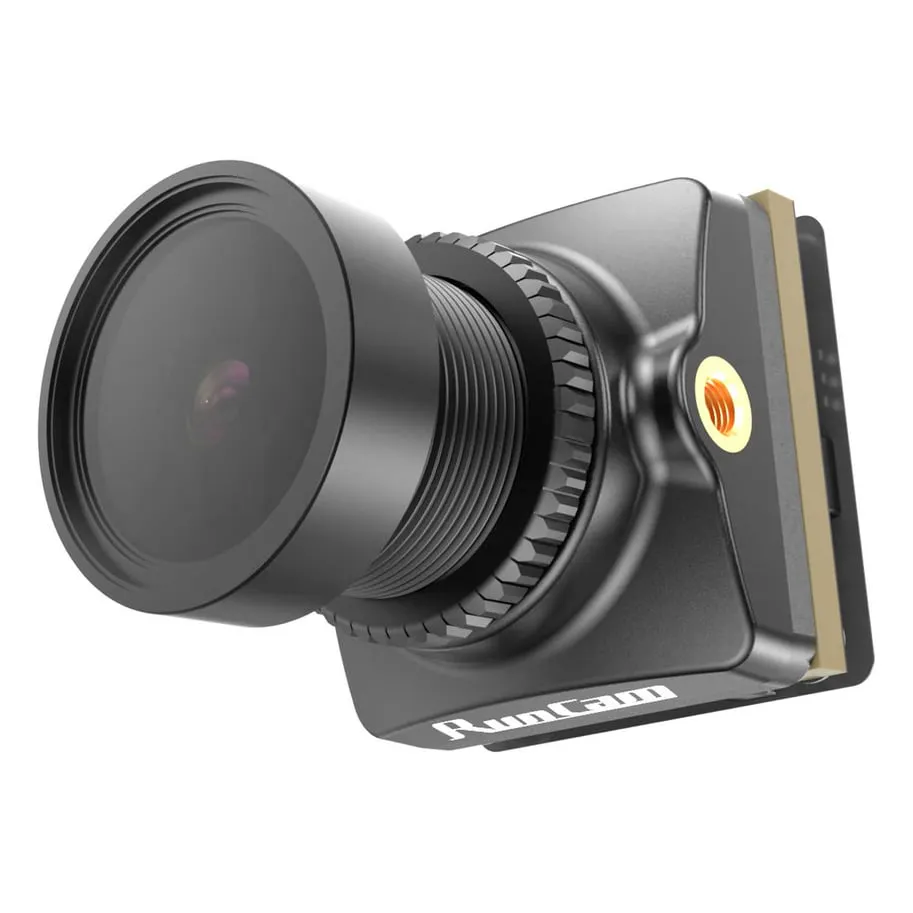

RunCam Phoenix 2 Nite FPV Camera

The RunCam Phoenix 2 Nite is an analog micro FPV camera engineered for high visibility across shifting lighting conditions. Built around a large 1/2-inch CMOS sensor, it captures rich colour detail in bright daylight and maintains clear image quality during low-light dusk or night flights. It is well-suited for freestyle quads and fixed-wing builds requiring adaptable analog vision without the digital latency.

Key features

• Large 1/2-inch image sensor provides a wide dynamic range and superior low-light sensitivity.
• Global WDR prevents image blowouts when transitioning quickly between bright skies and deep shadows.
• Integrated camera OSD system allows direct tuning of image settings in the field.
• Broad 5-36V input range allows for direct powering from your VTX, BEC, or directly from main battery voltage.

Specifications

• Sensor: 1/2" CMOS
• Resolution: 1000TVL
• Lens: 2.1mm M12 (155° FOV)
• Aspect Ratio: 4:3 / 16:9 (Switchable)
• Video Format: PAL / NTSC (Switchable)
• Minimum Illumination: 0.001Lux at f/1.2
• Input Voltage: 5-36V DC
• Current Draw: 200mA at 5V / 85mA at 12V
• Dimensions: 19x19x20 mm
• Weight: 9g

With its standard 19mm micro form factor, the camera mounts directly into the vast majority of modern 5-inch freestyle, racing, and long-range frames.
