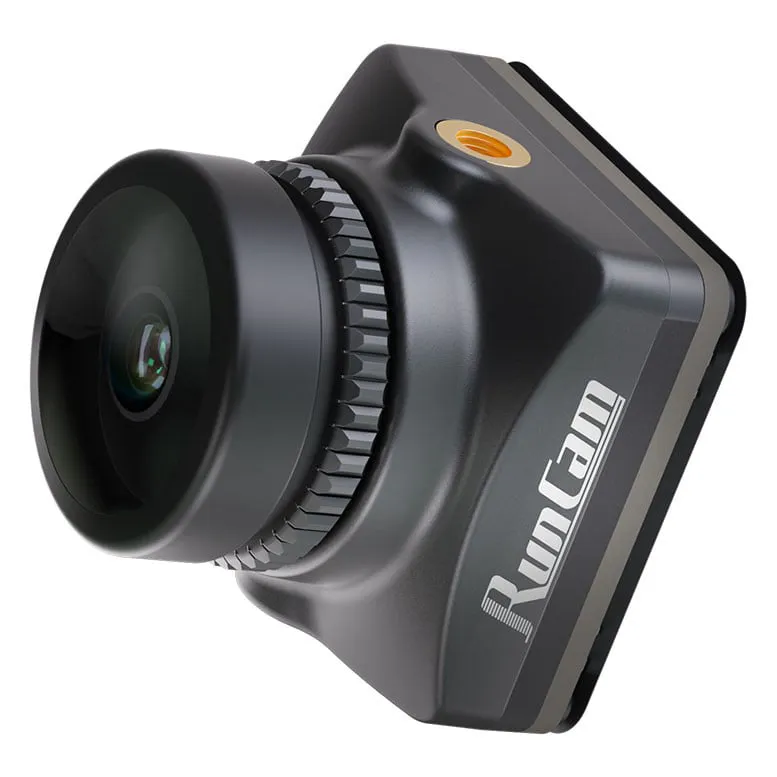

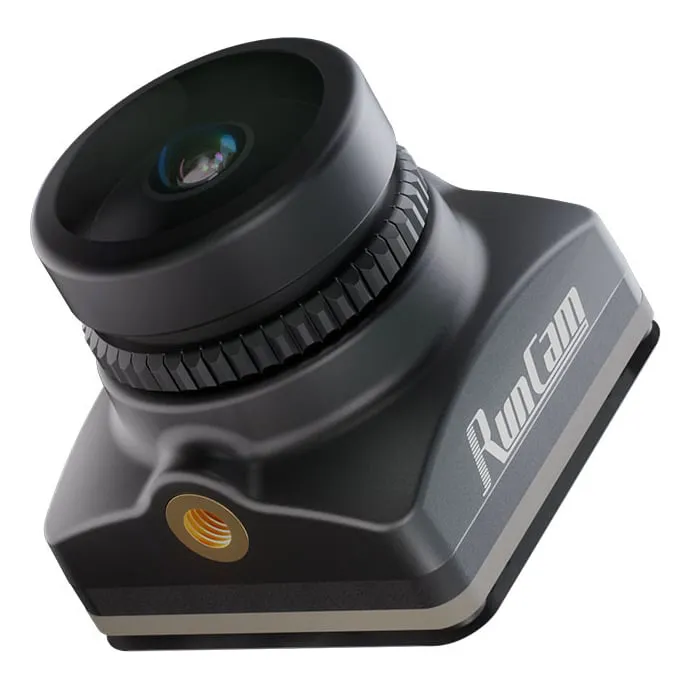

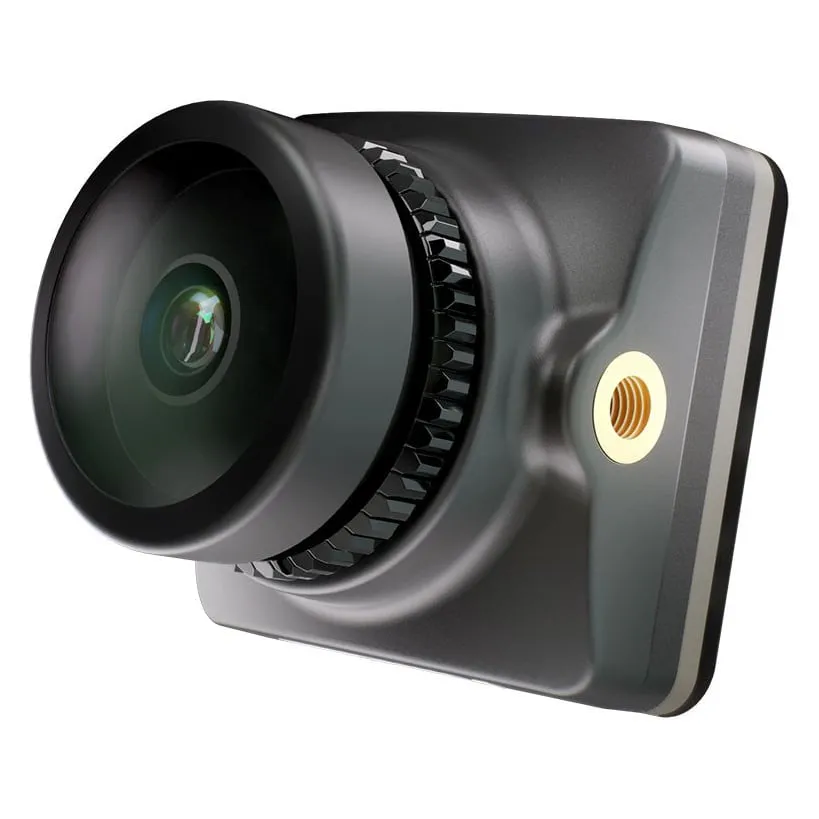

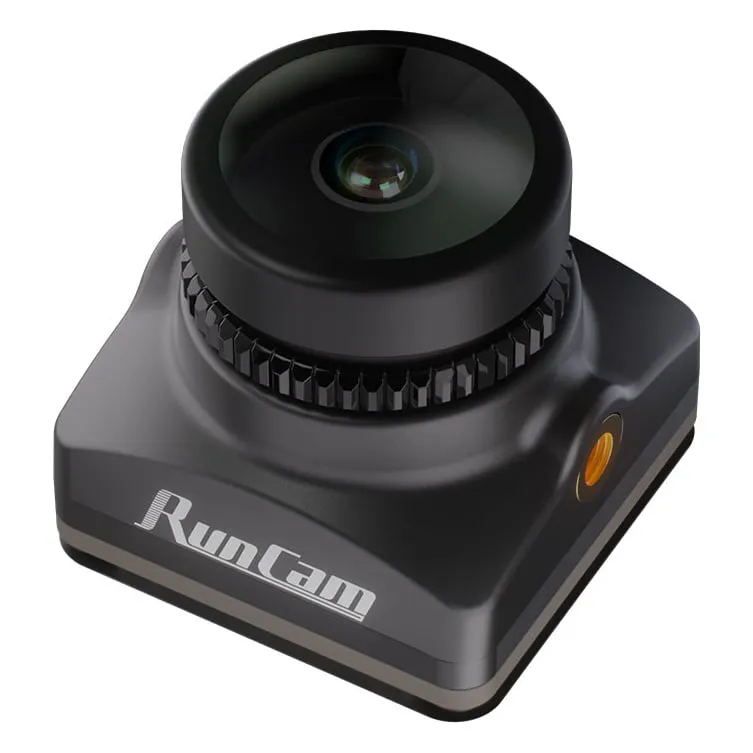

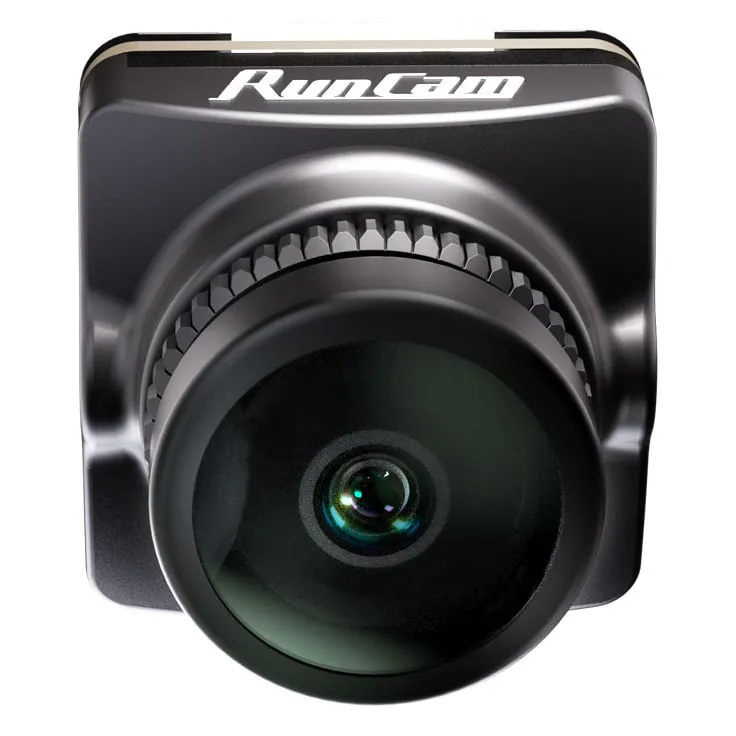

RunCam Phoenix 2 SP V5 Analog Camera

The RunCam Phoenix 2 SP V5 is a compact micro analogue FPV camera built around a 1/3-inch BSI CMOS sensor, giving usable colour and low-light performance for pilots flying an analogue video link.

Key features

• 1200TVL horizontal resolution for a sharp analogue FPV image.

• Switchable 4:3 and 16:9 screen format to match the goggles or monitor in use.

• Global WDR and a Day/Night colour mode handle changing light without washing out the picture.

• NTSC/PAL selectable output with menu control over the video cable.

• Wide 5-36V power input suits most FPV power rails without a separate regulator.

• Compact 19x19x19mm ABS housing on an M2 screw mount keeps weight low at 7.5g.

Specifications

• Sensor: 1/3-inch BSI CMOS

• Resolution: 1200TVL

• Field of view (4:3): 155° D / 123° H / 96° V

• Field of view (16:9): 140° D / 123° H / 74° V

• Aspect ratio: 4:3 / 16:9 switchable

• Video output: NTSC/PAL, CVBS

• Power input: DC 5-36V

• Current draw: 95 mA at 5 V, 45 mA at 12 V

• Weight: 7.5g (without cable)

• Dimensions: 19 x 19 x 19mm, M2 screw mount

Pair it with a compatible analogue VTX and confirm the camera bay depth and M2 mounting holes before installation.
