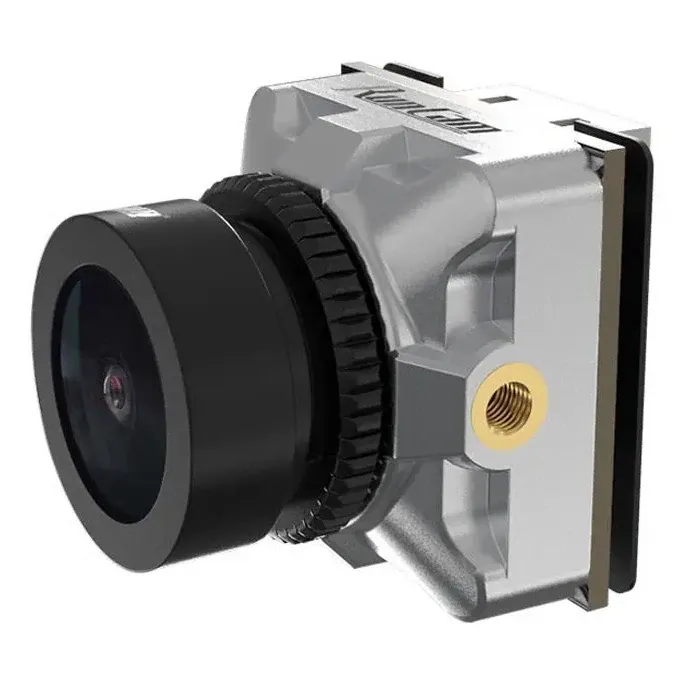

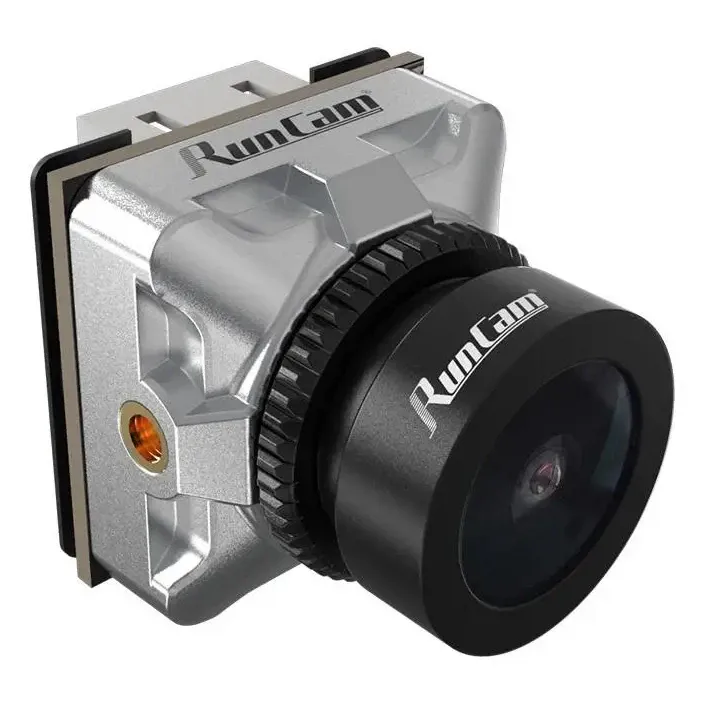

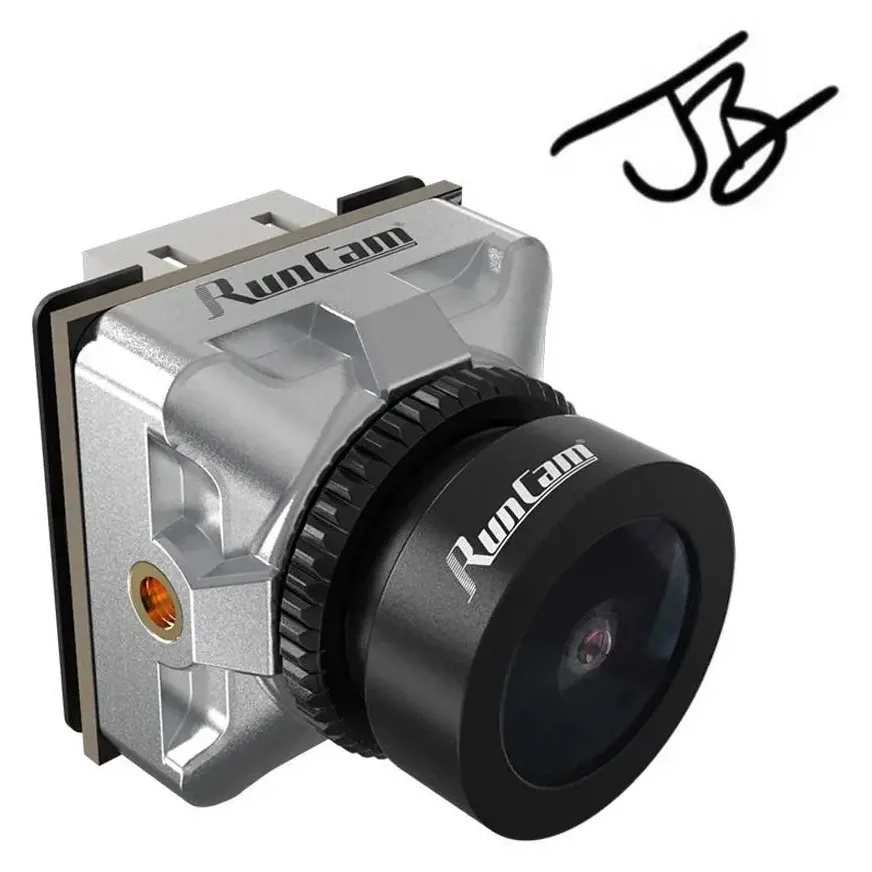

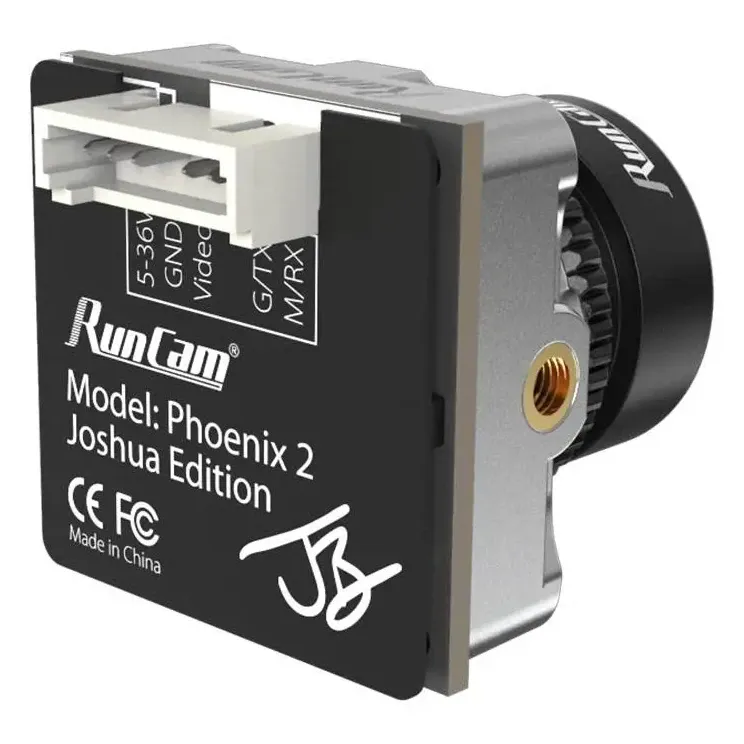

RunCam Phoenix 2 1000TVL 2.1mm FPV Camera – Joshua Bardwell Edition

The RunCam Phoenix 2 Joshua Bardwell Edition is a high-performance analogue micro FPV camera tailored for freestyle and racing drones. Built around a large 1/2-inch CMOS sensor, this signature edition comes pre-configured with Joshua Bardwell's personal image profile, delivering optimal colour saturation, contrast, and Global WDR performance straight out of the box without requiring tedious OSD menu adjustments.

Key features

• Custom image tuning by Joshua Bardwell for excellent daylight colour and dynamic range.
• Large 1/2-inch image sensor improves low-light visibility and reduces digital noise.
• Wide 155-degree field of view via the 2.1mm M12 lens with minimal edge distortion.
• User-switchable between 4:3 and 16:9 aspect ratios, as well as PAL and NTSC formats.

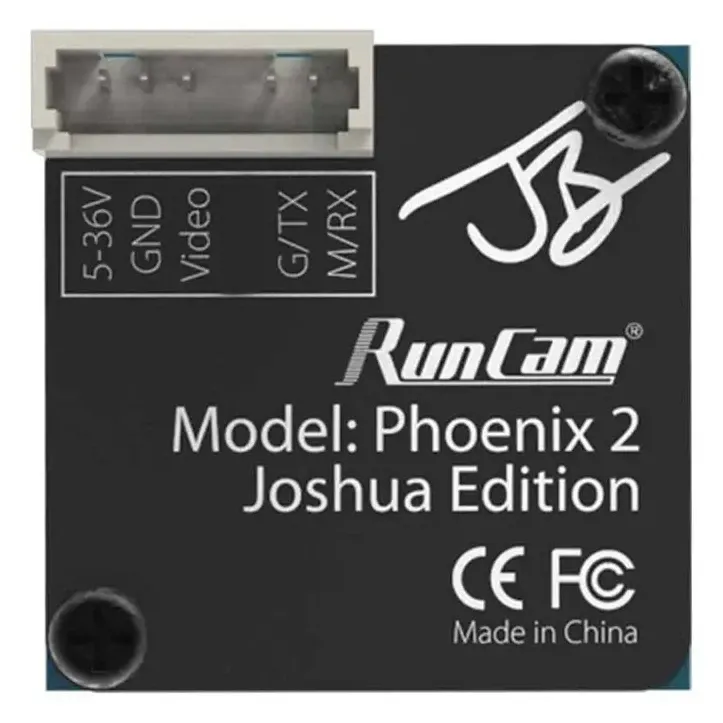

• Integrated UART control enables direct camera menu adjustments through your flight controller.

Specifications

• Image Sensor: 1/2" CMOS
• Horizontal Resolution: 1000TVL
• Lens: 2.1mm (M12) f/2.0
• Field of View: 155° (at 4:3)
• Aspect Ratio: 4:3 / 16:9 (Switchable)
• Signal System: PAL / NTSC (Switchable)
• Minimum Illumination: 0.001 lux at F1.2
• Input Voltage: DC 5-36V
• Current Draw: 200 mA at 5 V, 85 mA at 12 V
• Dimensions: 19x19x20mm
• Weight: 9g
• In the Box: camera, 6-pin silicone cable, screw set, manual

With its standard 19mm micro mounting footprint and wide voltage tolerance, this camera integrates seamlessly into any standard freestyle or racing build running an analogue VTX.
