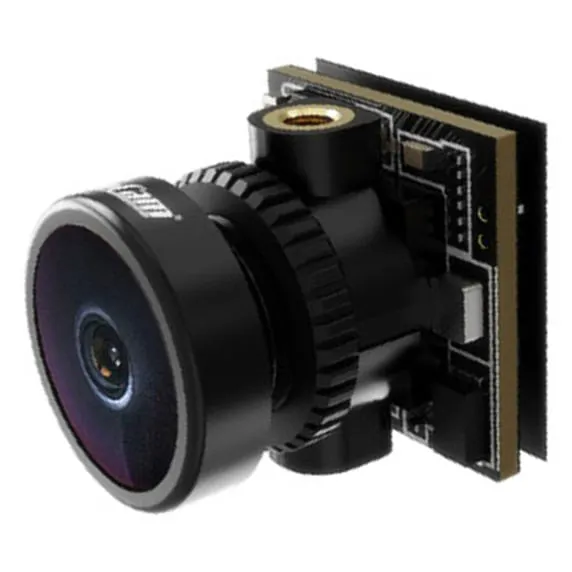

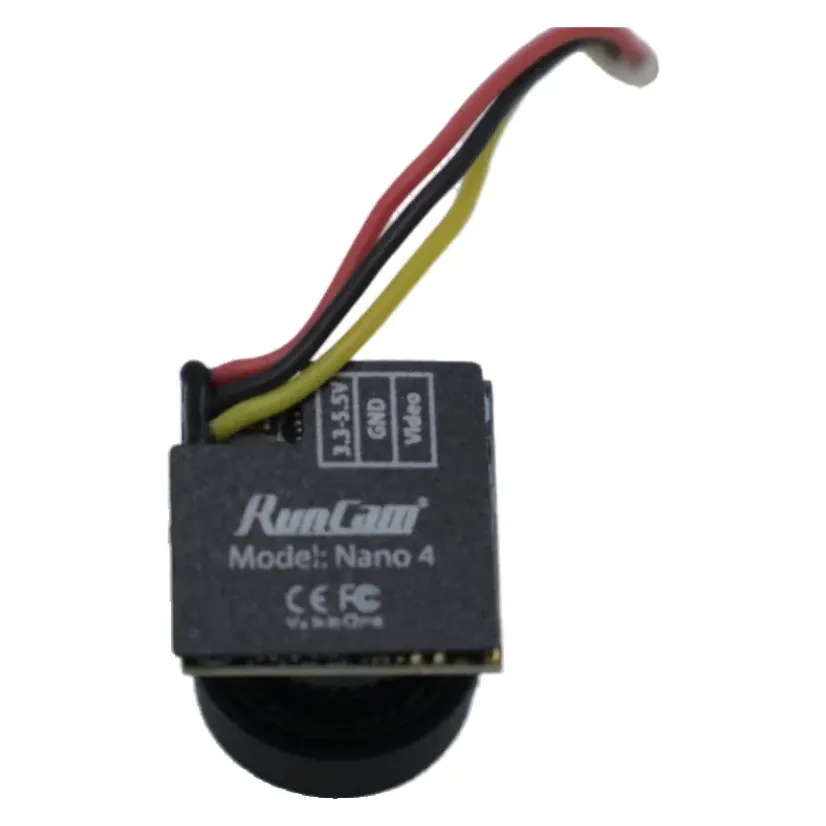

RunCam Nano 4 FPV Camera

RunCam Nano 4 is a compact analog FPV camera for tight whoop and micro drone builds. Its nano form factor suits frames where a full-size camera cannot be installed.

Key features

• Analog video system for low-latency FPV viewing.

• Nano form factor for constrained whoop and micro-frame installations.

• 1/3" CMOS sensor with 800TVL horizontal resolution.

• 2.1mm M8 lens with a 155° field of view.

• Check the frame camera mount and wiring path before ordering.

• Confirm that the flight controller or video transmitter accepts the camera's analogue video signal.

Specifications

• Sensor: 1/3" CMOS

• Resolution: 800TVL

• Lens: 2.1mm (M8), 155° FOV

• Signal system: NTSC

• Minimum illumination: 0.01 lux at F1.2

• Input voltage: DC 3.3-5.5V

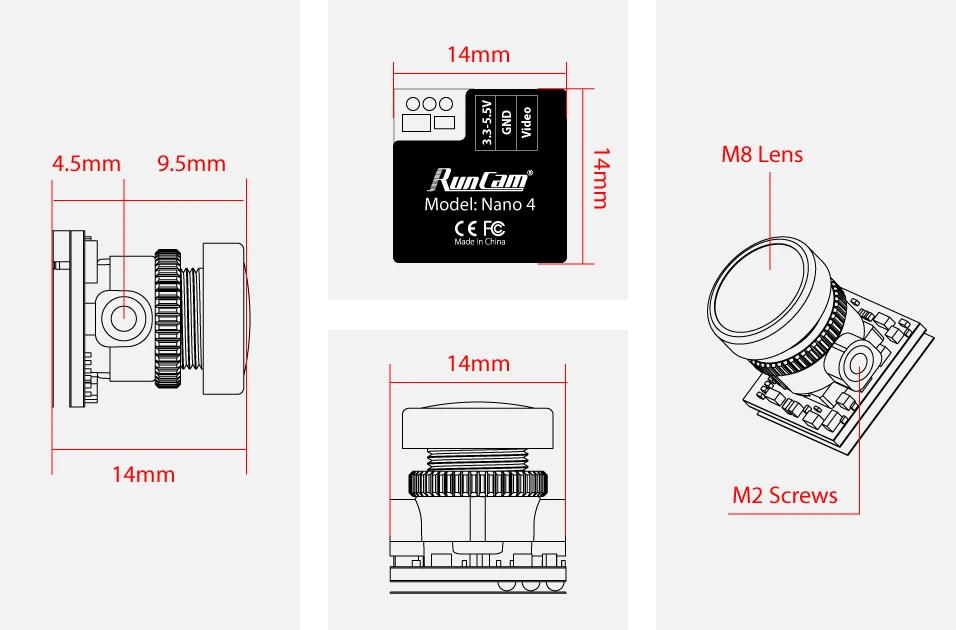

• Dimensions: 14 x 14 x 14 mm

• Weight: 2.9 g

• Housing: ABS
