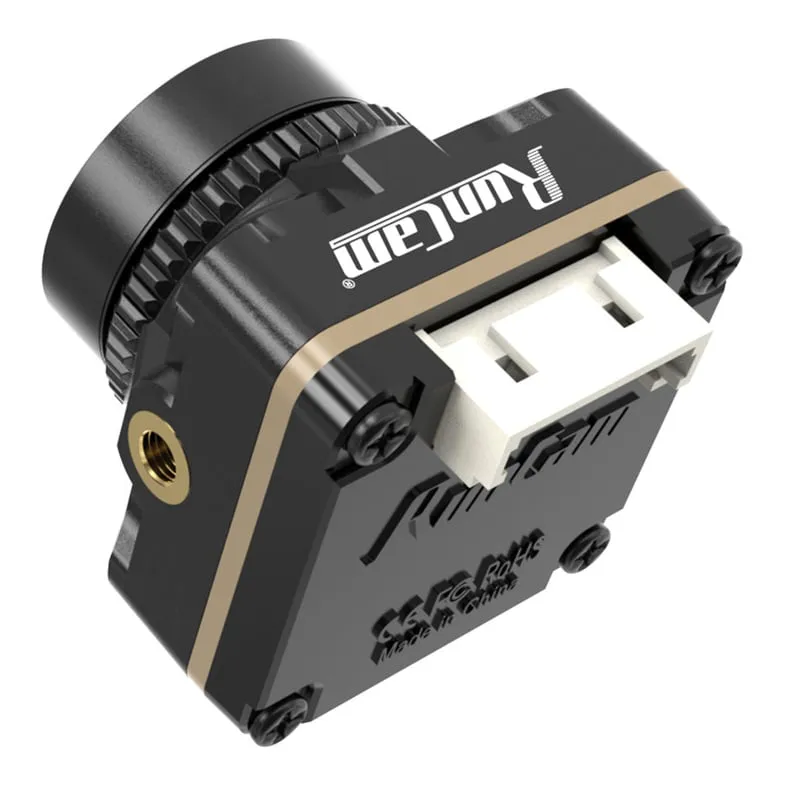

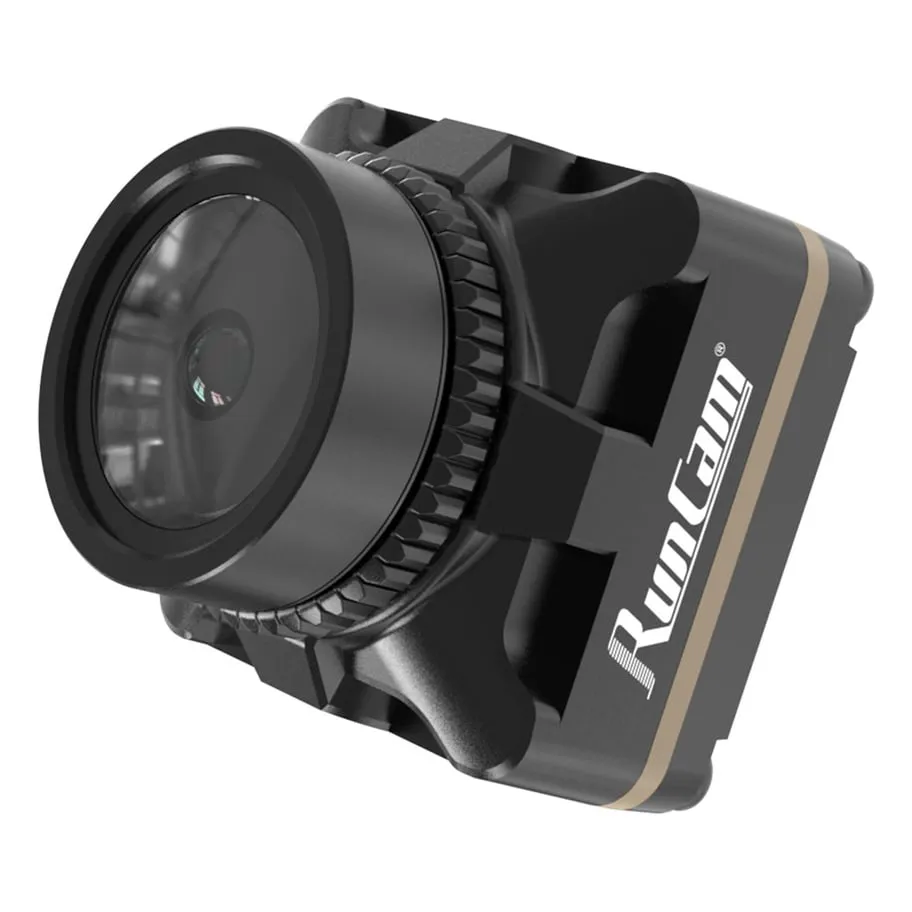

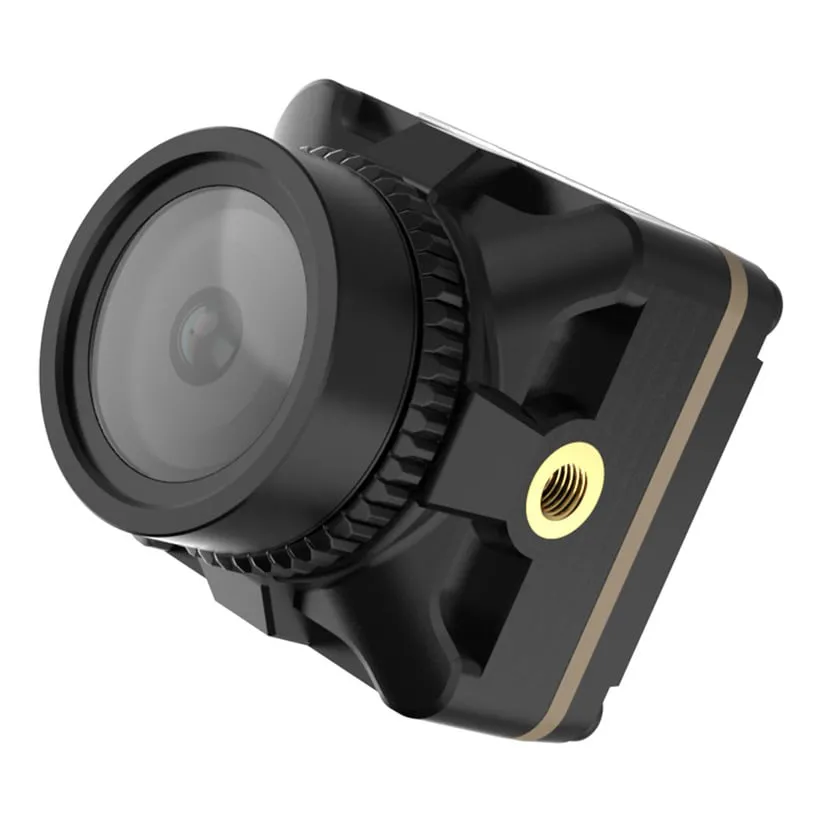

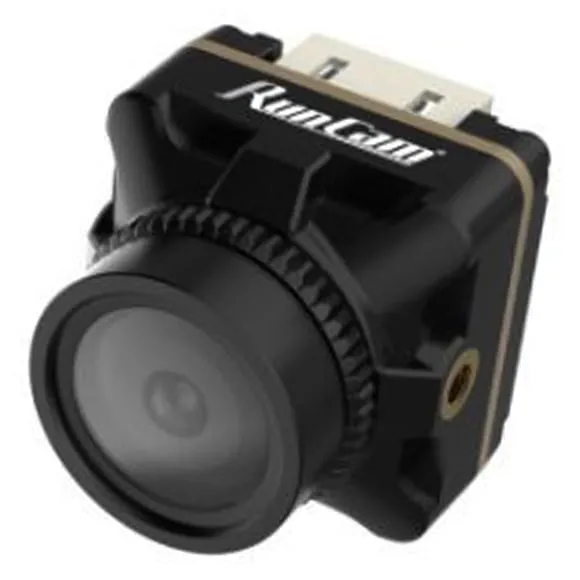

RunCam Robin 3 1200TVL Analog FPV Camera

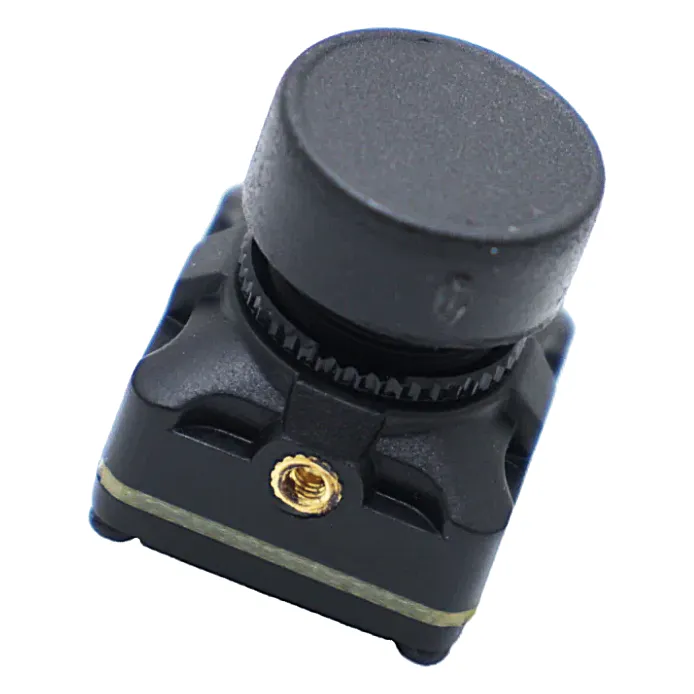

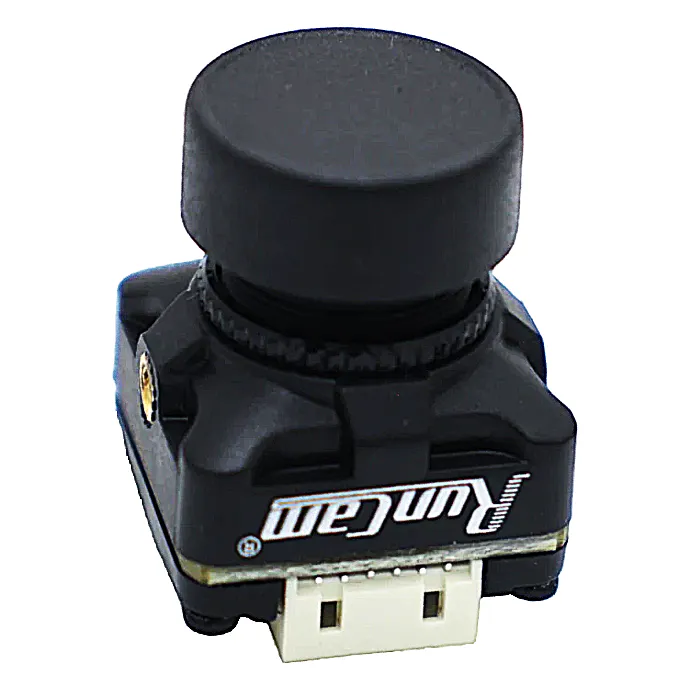

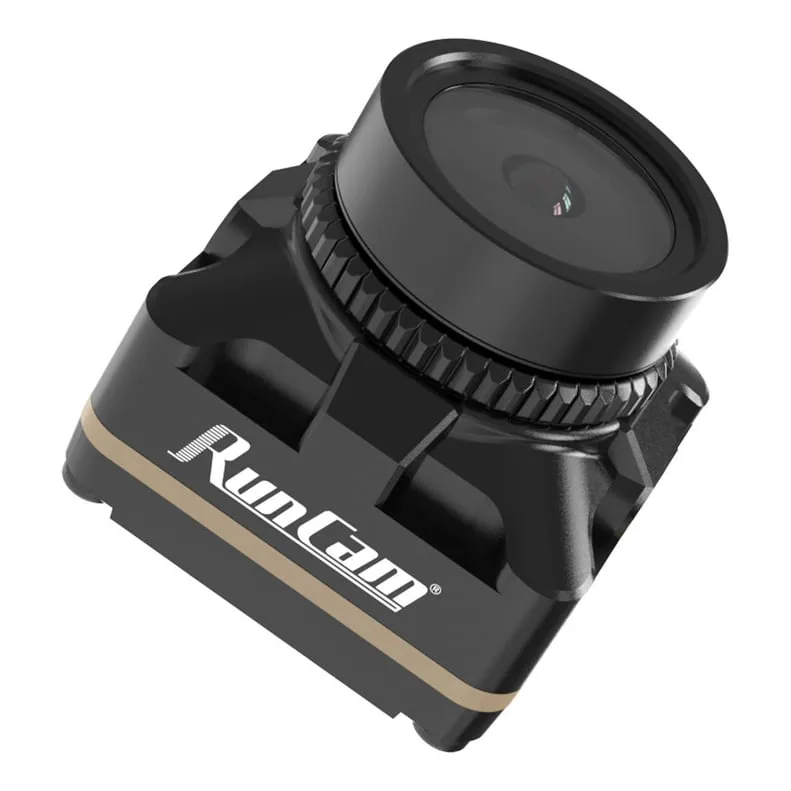

The RunCam Robin 3 is a 19 mm micro analog FPV camera with a 1200TVL 1/3" CMOS sensor, built for freestyle and racing quads that take a standard micro camera mount. It weighs 5.3 g and accepts 5-23 V, so it can run from a regulated pad or straight from a 2S-5S battery.

Key features

• 1200TVL resolution in a 4:3 format for a sharp analog image

• Wide lens: 150° diagonal, 120° horizontal and 87° vertical field of view

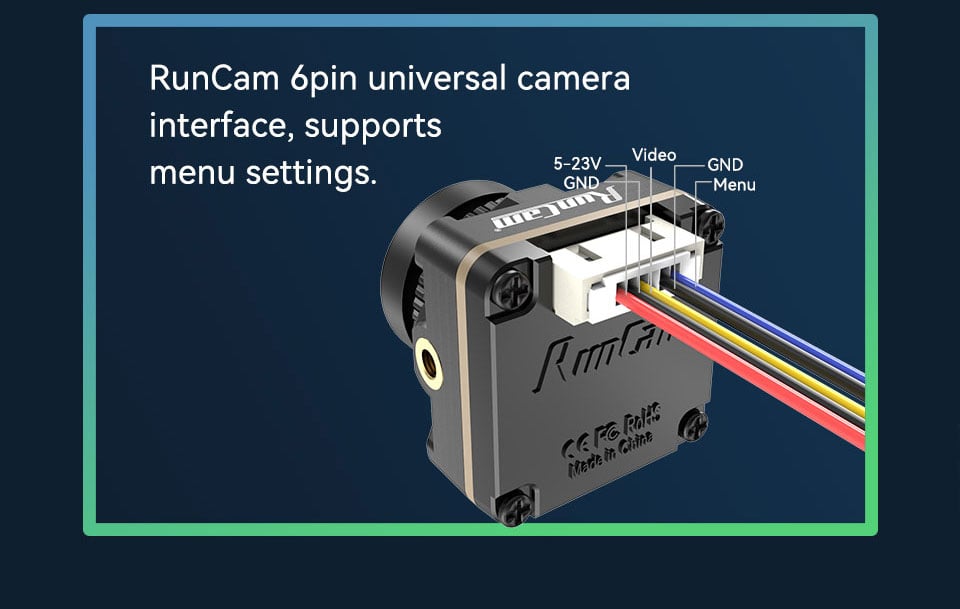

• Exposure, white balance and brightness adjustable through a cable-controlled menu

• Colour or black-and-white day/night mode, plus mirror and flip for any mounting orientation

• Low current draw: 120 mA at 5 V, 60 mA at 12 V

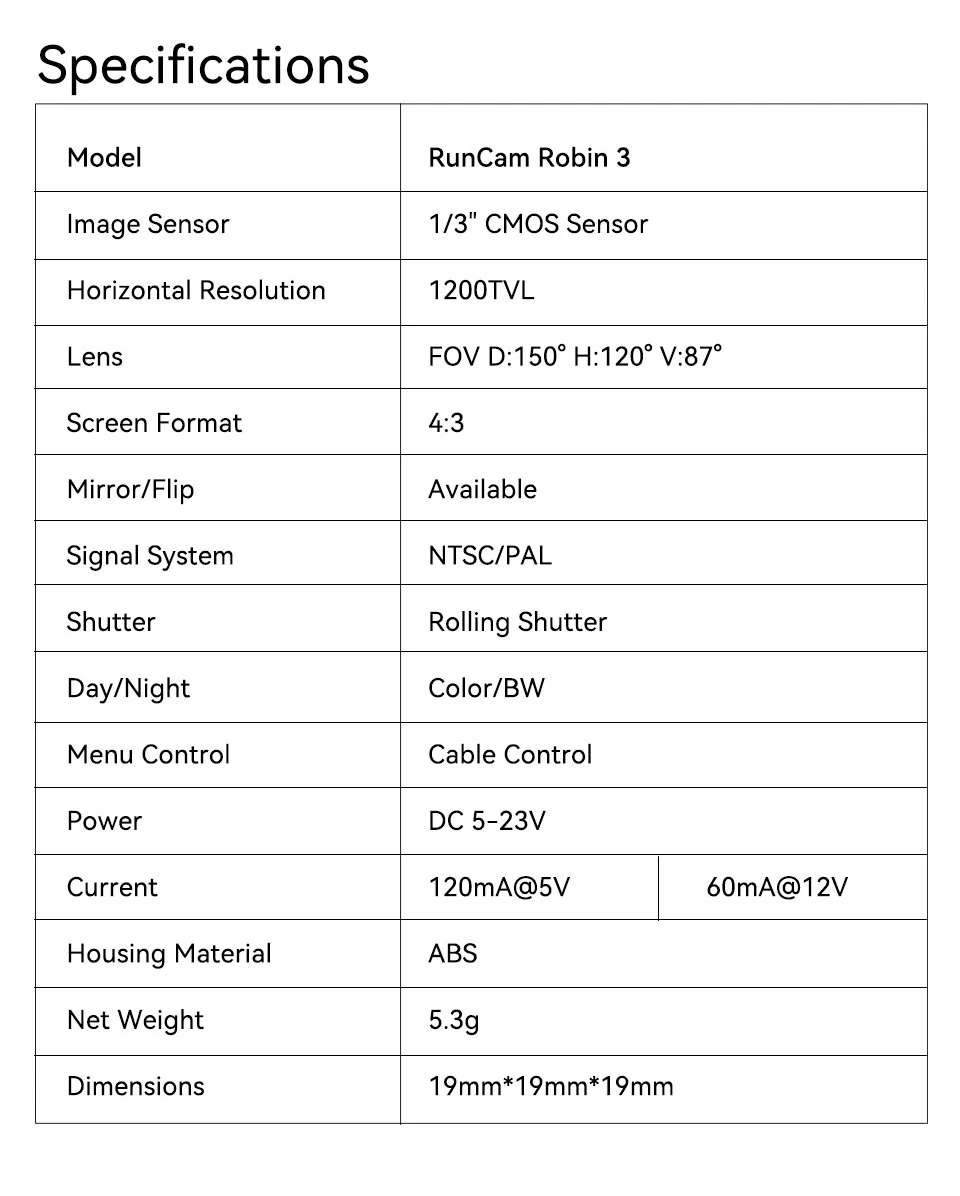

Specifications

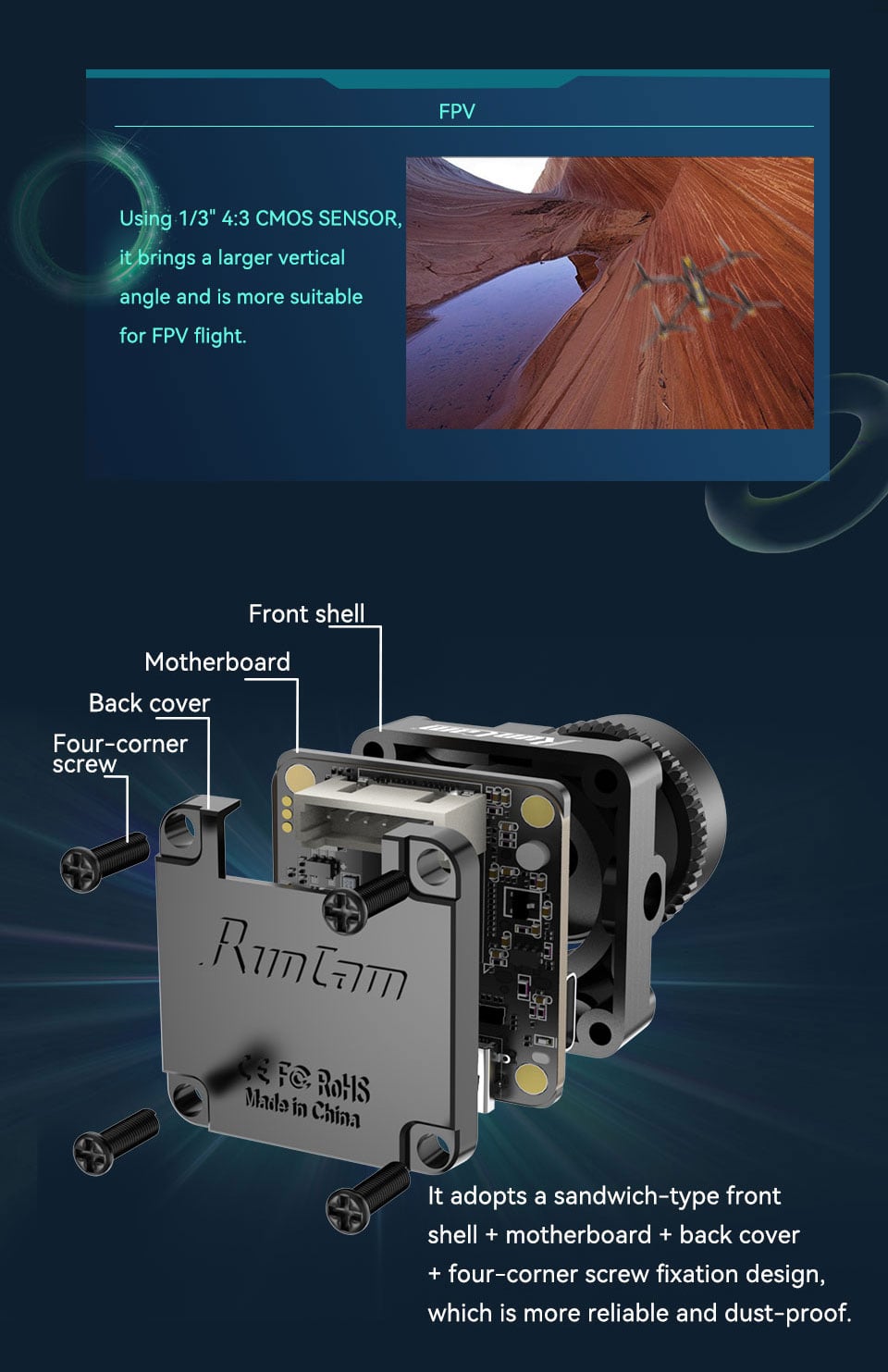

• Image sensor: 1/3" CMOS

• Horizontal resolution: 1200TVL

• Field of view: D 150°, H 120°, V 87°

• Aspect ratio: 4:3

• Signal system: NTSC/PAL

• Shutter: Rolling

• Power: DC 5-23 V

• Current: 120 mA @ 5 V, 60 mA @ 12 V

• Dimensions: 19 x 19 x 19 mm

• Weight: 5.3 g

• Housing: ABS

Do not wire it straight to a 6S pack: a fully charged 6S battery (25.2 V) exceeds the 23 V limit, so take power from a 5 V, 9 V or 12 V regulated pad instead. It pairs with any analog VTX and fits frames with a 19 mm micro camera cage.
