Caddx Ratel2 Analog FPV Camera

The Caddx Ratel 2 is a highly regarded 1200TVL micro analog camera, built for freestyle, racing, and long-range pilots who demand excellent visibility across varying lighting conditions. Equipped with a large 1/1.8-inch Starlight CMOS sensor, it delivers clear, natural colours during the day and outstanding brightness in low-light environments.

Key features

• Large 1/1.8" Starlight CMOS sensor for superior low-light performance (0.0001 LUX).

• Super WDR ensures balanced exposures when flying through rapidly shifting shadows and bright sunlight.

• Rugged magnesium-aluminium alloy casing protects internal components from harsh impacts and dust.

• Wide 5-40V input range allows direct power from a flight controller BEC or up to an 8S LiPo battery.

Specifications

• Resolution: 1200TVL

• Sensor: 1/1.8" Starlight CMOS

• Lens: 2.1mm (165° FOV)

• Aspect Ratio: 4:3 and 16:9 (switchable)

• TV System: NTSC and PAL (switchable)

• Latency: 8ms

• Input Voltage: 5-40V

• Dimensions: 19x19x20 mm

• Weight: 5.9 g

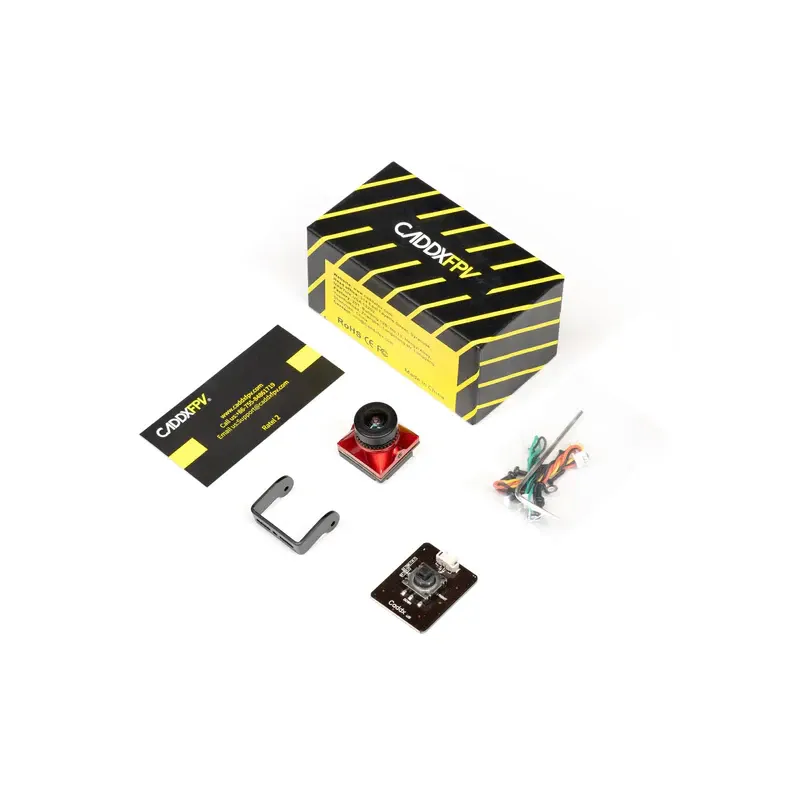

• In the Box: camera, 5D OSD menu board, 2-pin and 3-pin silicone cables, 1.5mm Allen key

Featuring a standard 19x19mm micro form factor, the Ratel 2 mounts seamlessly into modern analog frames. Its included on-screen display (OSD) keypad makes it easy to switch between aspect ratios and TV systems, adapting perfectly to your specific analog goggles or DVR setup.
