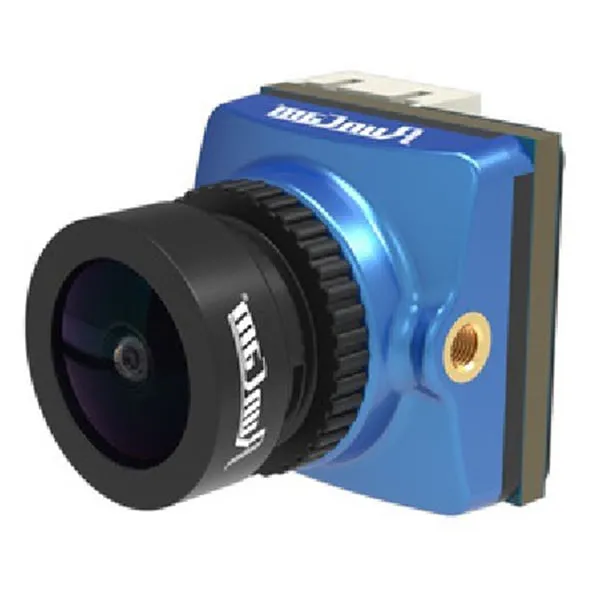

RunCam Phoenix 2 Micro FPV Camera

The RunCam Phoenix 2 is an analogue micro FPV camera built around a large 1/2-inch CMOS sensor for strong low-light performance and natural colour reproduction. Its 1000TVL image and f/2.0 lens make it a solid all-rounder for freestyle quads and fixed-wing builds.

Key features

• Large 1/2-inch global WDR sensor with an f/2.0, six-element glass lens for good low-light sensitivity and reduced red lens flare.
• Switchable 4:3 and 16:9 aspect ratio, plus PAL/NTSC signal switching, via the on-screen menu.
• Colour, black-and-white, external and auto day/night modes for different lighting conditions.
• Wide 5-36V input lets it run directly from a flight controller, BEC or VTX rail.

Specifications

• Sensor: 1/2" CMOS
• Horizontal resolution: 1000TVL
• Lens: 2.1mm (M12), f/2.0, 155° FOV
• Aspect ratio: 4:3 / 16:9 (switchable)
• Signal system: PAL / NTSC (switchable)
• Input voltage: 5-36V
• Dimensions: 19 x 19 x 19mm
• Weight: 9 g

Its standard 19mm mounting bolts directly into most modern 5-inch frames, and the wide input-voltage range means it can run straight off a flight controller or video transmitter without a separate regulator.
