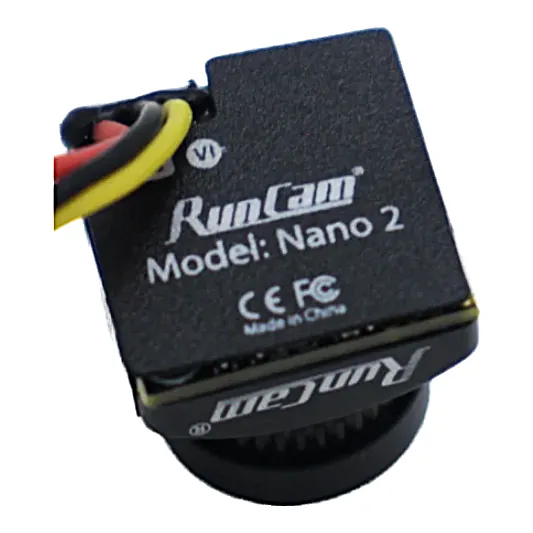

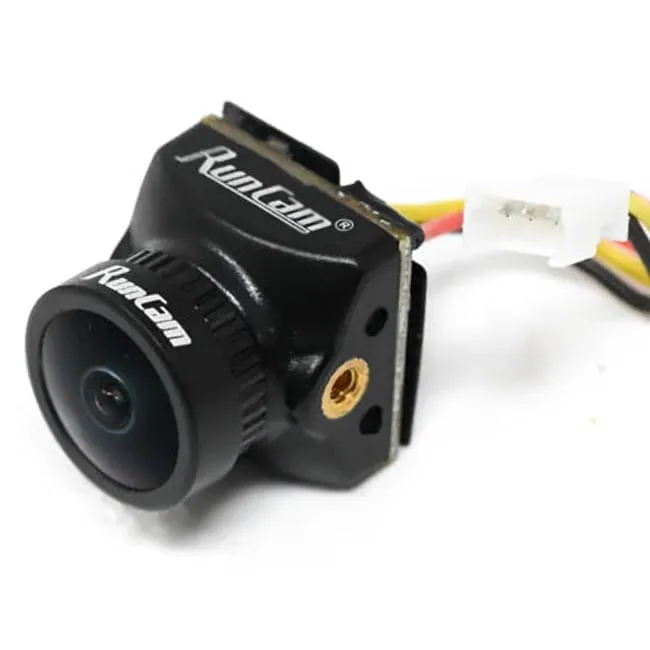

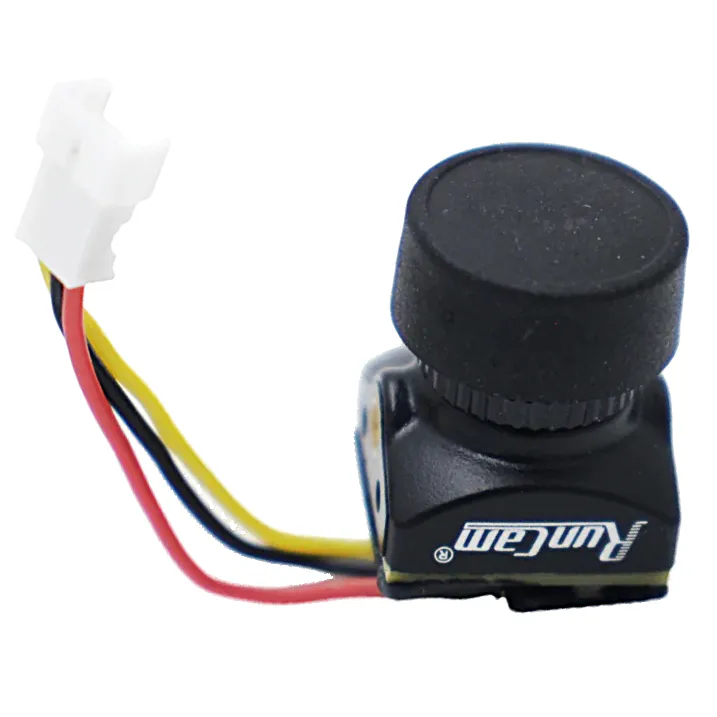

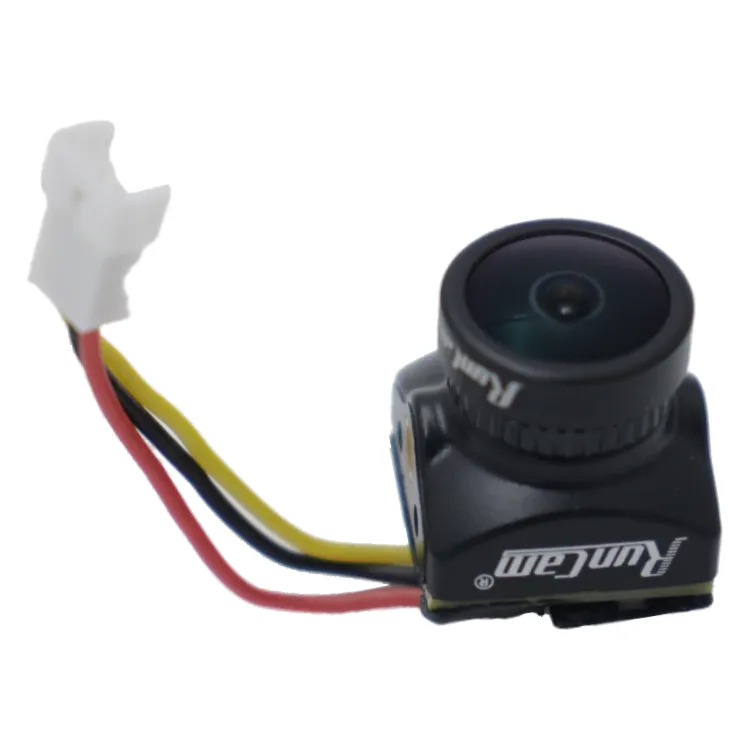

RunCam Nano 2 700TVL FPV Camera (2.1mm Lens)

The RunCam Nano 2 is a 14 mm nano-format analog FPV camera for tiny whoops, toothpicks and other micro quads where weight and space are tight. This version carries the 2.1 mm lens with a 155° field of view and weighs just 3.2 g.

Key features

• 1/3" CMOS sensor with super WDR, automatic shutter and automatic gain for changing light
• Low-light sensitivity down to 0.01 lux at F1.2
• 3-5.5 V input, so it runs straight off a 1S battery rail or a 5 V pad on the flight controller
• Image mirror function for cameras mounted upside down
• Supplied with a 14-to-19 mm ABS adapter bracket, so it also fits frames built for micro cameras

Specifications

• Image sensor: 1/3" CMOS
• Horizontal resolution: 700TVL
• Lens: 2.1 mm (M8), 155° FOV
• Signal system: PAL or NTSC, fixed (not switchable)
• Minimum illumination: 0.01 lux @ F1.2
• S/N ratio: above 50 dB
• Power: DC 3-5.5 V, 110 mA @ 5 V
• Dimensions: 14 x 14 x 16 mm
• Weight: 3.2 g
• Housing: ABS

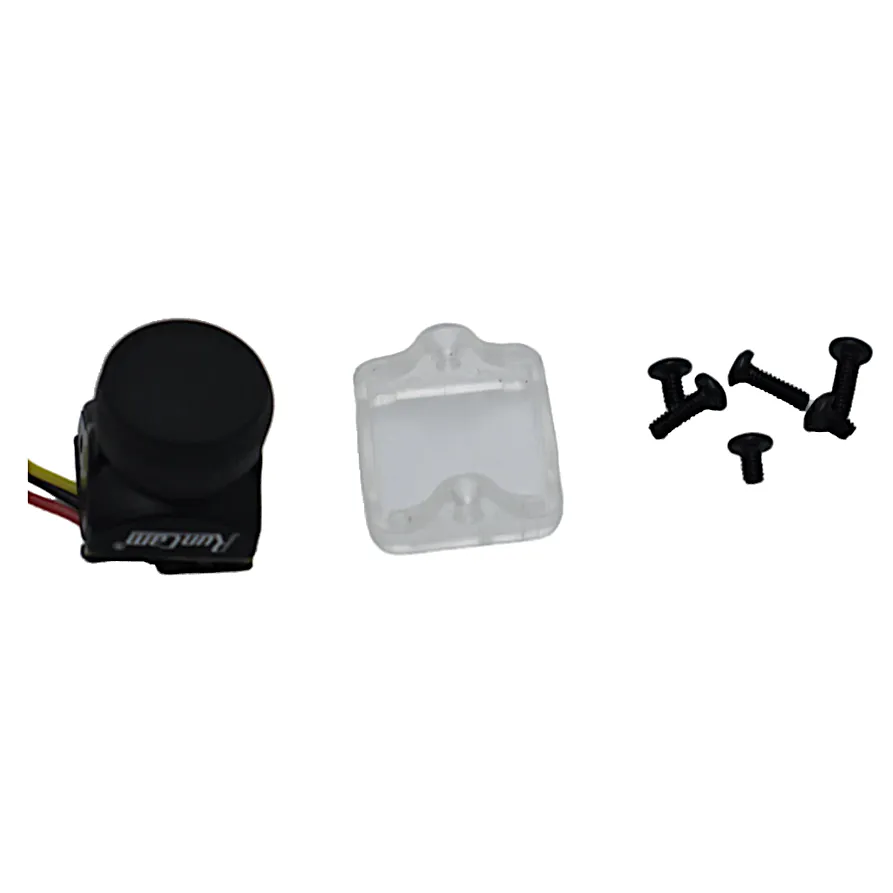

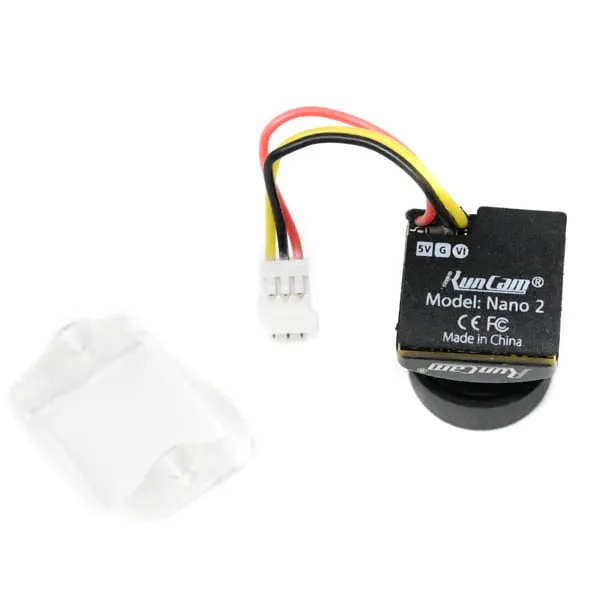

• In the box: camera, 1419 ABS bracket, screw set

Pair it with any analog VTX on a whoop or micro build. The video standard cannot be changed from a menu, so make sure your goggles or monitor accept both PAL and NTSC.
