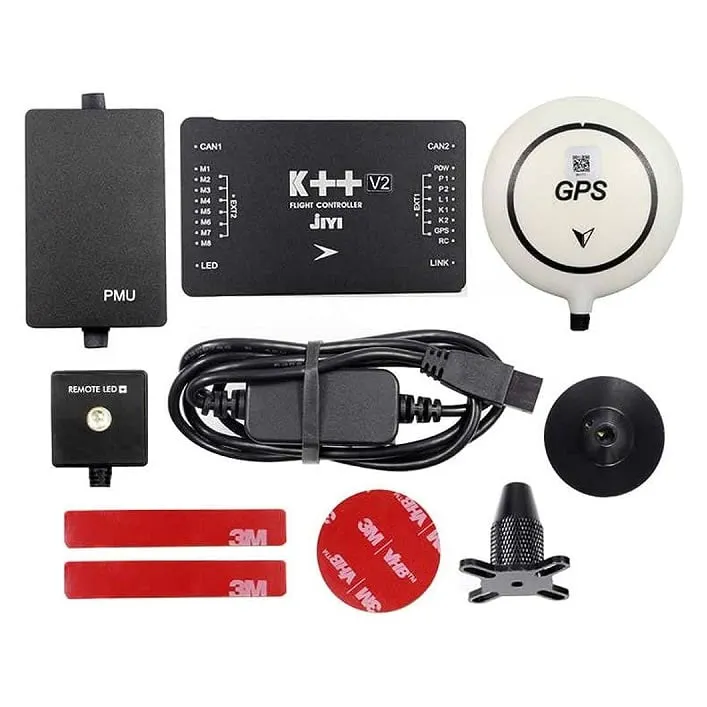

JIYI K++ V2 Agricultural Flight Controller Kit

The Jiyi K++ V2 is an industrial-grade flight control system engineered specifically for agricultural spraying multirotors and heavy-lift platforms. Building on the reliability of the original K++, the V2 introduces triple IMU redundancy and dual redundant barometers to ensure maximum flight safety during low-altitude crop dusting and complex autonomous missions.

Key features

• Triple redundant IMU sensors and dual barometers with active fault diagnosis for uninterrupted flight control.

• Built-in hardware shock absorption eliminates the need for external dampening frames on high-vibration airframes.

• Extensive agricultural peripheral support, including obstacle avoidance radar, terrain-following radar, flow meters, and liquid level sensors.

• Intelligent flight modes featuring AB point routing, fully autonomous waypoint navigation, and precise altitude hold.

• Spray functions include dual-pump mode, pump switch and linkage control, breakpoint resume (continues spraying from the point a mission was interrupted) and one-key return.

Specifications

• Supported airframes: Quadcopter (+, X), Hexacopter (+, X, IY, YI), Octocopter (+, X, V)

• Sensors: 3x IMU, 2x Barometer

• Receiver support: SBUS

• Operating voltage (FC): 4.8V – 5.3V (powered via included PMU)

• Battery input (PMU): 3S-12S LiPo (11.1-50 V), 5 V / 3 A output

• Hover accuracy: +/-1.5 m horizontal, +/-0.5 m vertical

• Maximum tilt angle: 30°

• Maximum yaw rate: 150 deg/s

• Maximum vertical speed: 6 m/s

• Maximum wind resistance: ≤ 8 m/s

• Power consumption: under 5 W

• Configuration software: Windows 7/8/10 (32/64-bit)

Ideal for commercial builders constructing large-scale agricultural drones, the K++ V2 kit delivers highly automated flight control with comprehensive environmental sensing and payload management capabilities.
