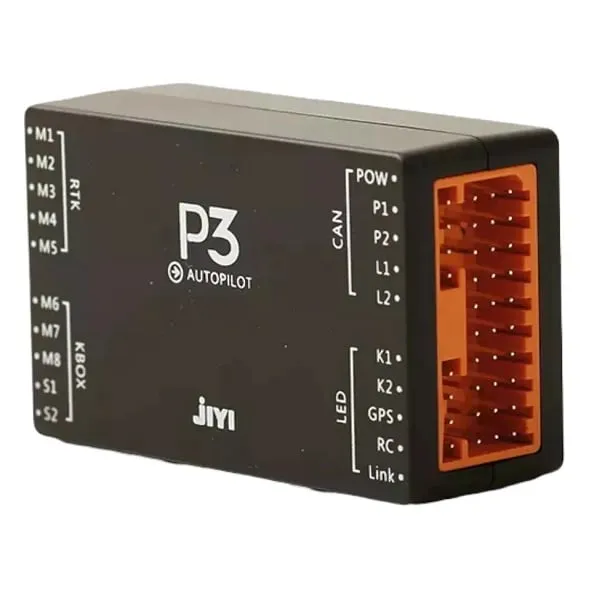

JIYI P3 Flight Controller Kit

The Jiyi P3 Flight Controller Kit is an industrial-grade flight management system built for agriculture spraying and heavy-lift multirotors. It gives operators precise AB point navigation, autonomous route planning, and terrain-following when paired with compatible external radar modules.

Key features

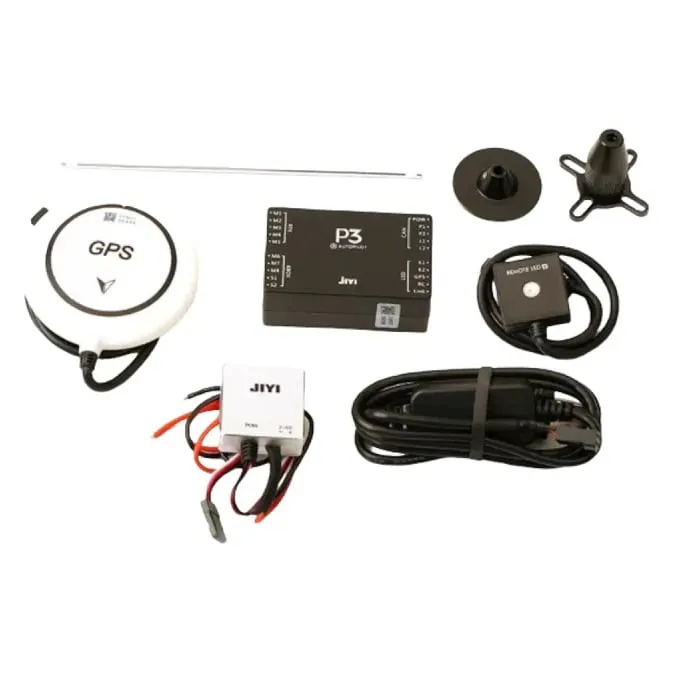

• Complete package: main flight controller, GPS/compass module, Power Management Unit (PMU), and a high-visibility LED module, totalling 114g
• Dual IMU redundancy keeps flight stable on high-vibration agricultural builds
• Dedicated AB point flying and autonomous route execution configured via the smartphone companion app
• Direct integration with agricultural payload hardware, including liquid flow meters and pump controllers
• Holds hover position to within ±1.5m horizontally and ±0.5m vertically, and tolerates gusts up to Level 5

Specifications

• Supported frames: Quadcopter (I4, X4), hexacopter (I6, IY6, Y6, V6), octocopter (I8, X8, V8)
• Recommended battery: 4S-12S LiPo
• Flight controller input: 4.8 V DC (supplied by the PMU)
• Main controller size: 57 x 36 x 22 mm
• Supported receiver: SBUS
• Flight modes: GPS, Attitude, AB Point, Autonomous Route
• Sensors: Dual IMU, Barometer
• Expansion: obstacle-avoidance radar, RTK positioning, CANHUB extension module, digital video link and 4G video transmission supported
• Configuration software: Windows 7/8/10 (32/64-bit)
• Weight: 114 g total (FC 55g, GPS 45g, LED 14g), excluding accessories
• Working temperature: -10°C to 60°C

This kit fits custom agricultural drone builds or upgrades for older spraying platforms that need a dedicated, commercial-grade navigation system.
