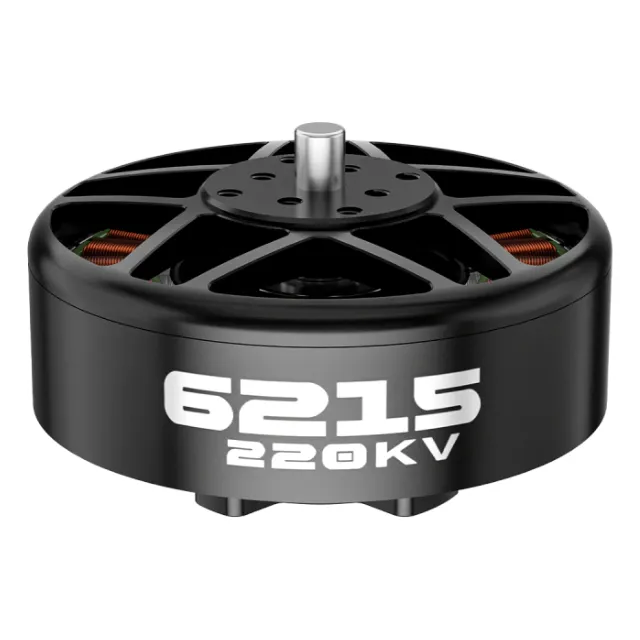

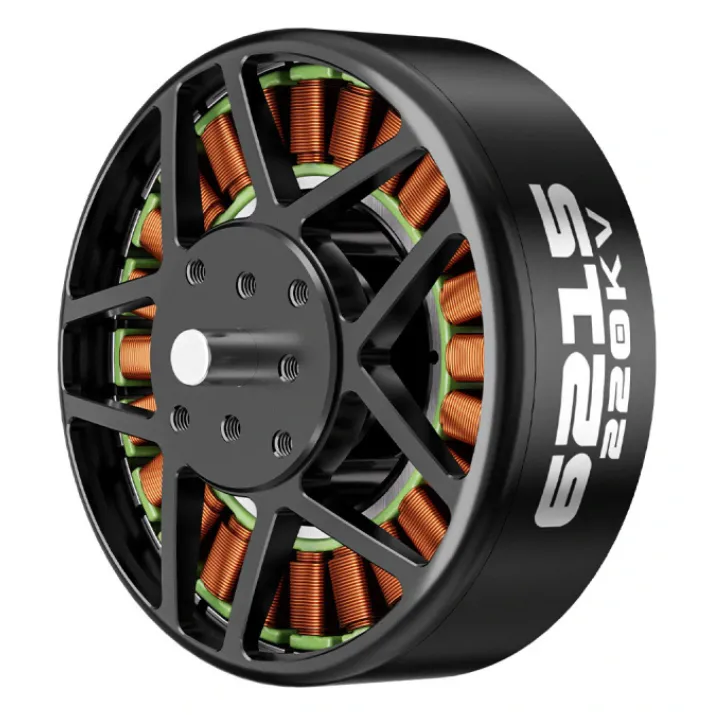

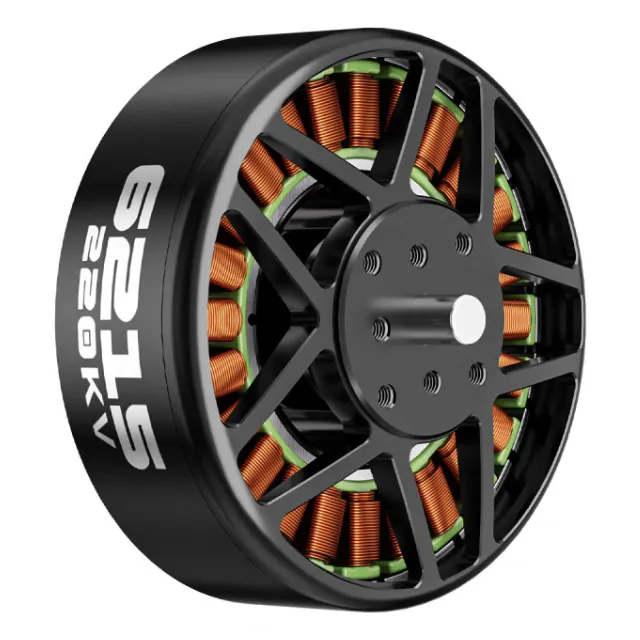

Axisflying AZ6215 220KV 12S Brushless Motor

The Axisflying AZ6215 is a 220KV brushless motor from the AZ heavy-load series, rated for 12S LiPo and sized for 15-17 inch propellers. Axisflying aims it at long-range, heavy-lift and cinematic drones; the low KV on a 12S pack suits industrial quads and hexacopters that lift cameras, sensors or delivery payloads.

Key features

• 6215 stator (62 mm diameter, 15 mm height) for steady torque on large props

• 220KV on 12S (44.4 V nominal) gives about 9,800 rpm unloaded, a good match for 15-17 inch props

• 12S operation draws less current than a 6S or 8S setup of the same power, so wiring and ESCs run cooler

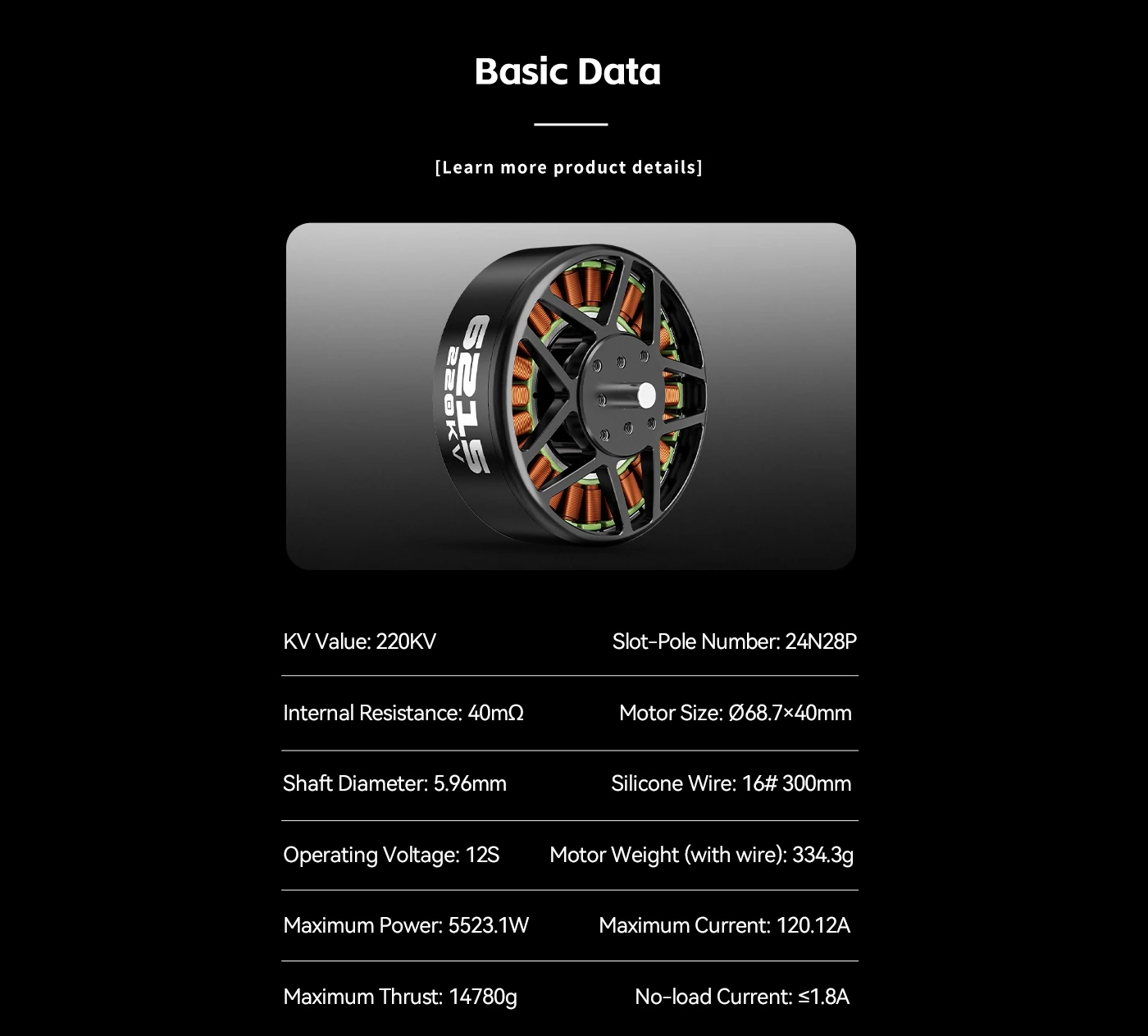

Specifications

• Model: AZ6215

• KV: 220KV

• Rated voltage: 12S LiPo (44.4 V nominal, 50.4 V fully charged)

• Stator: 62 × 15 mm

• Recommended props: 15-17 inch

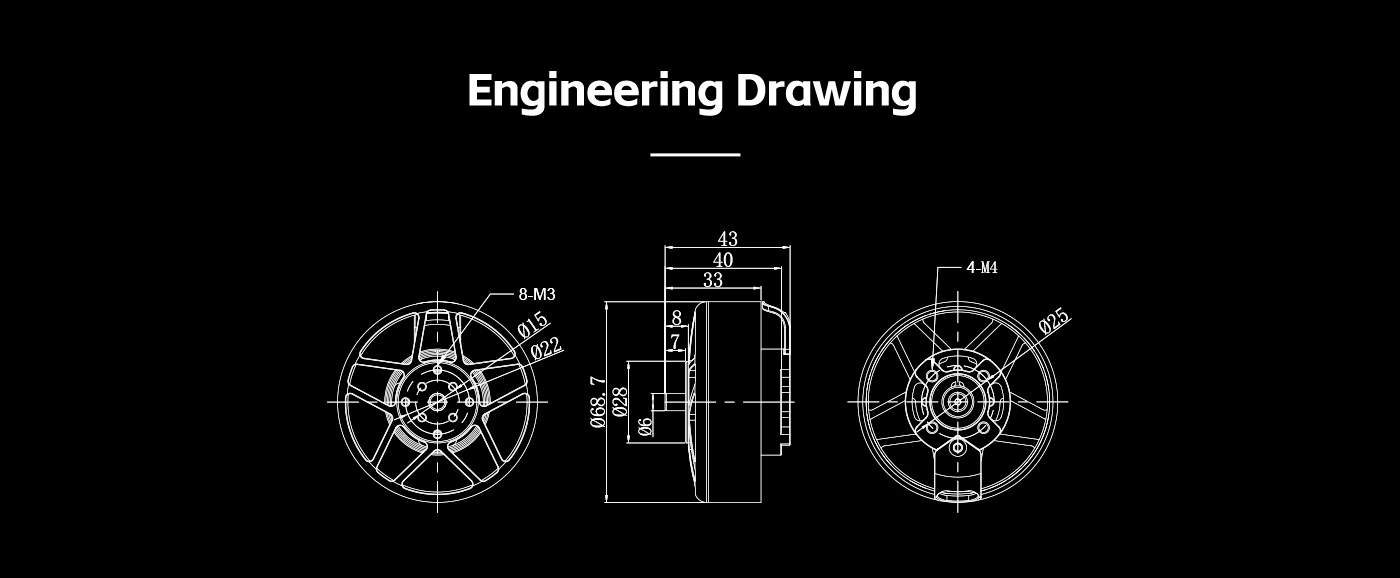

Pair it with ESCs rated comfortably above 50.4 V for fully charged 12S packs, and check the motor base hole pattern against your arm mounts before ordering. Start with a moderate-pitch prop and watch motor temperature on the first flights at full payload.
