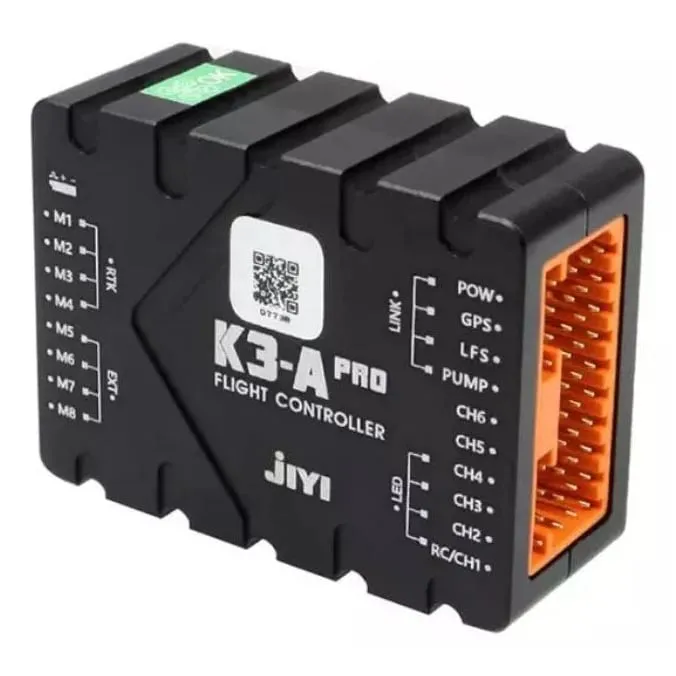

Jiyi K3-A Pro Flight Controller Kit

The Jiyi K3-A Pro is a specialised flight controller kit designed exclusively for agricultural spraying drones and heavy-lift industrial multirotors. Built to manage complex fluid-dispensing systems, this closed-ecosystem controller provides precise autonomous flight capabilities and extensive peripheral compatibility out of the box.

Key features

• Dual IMU redundancy ensures flight stability and fail-safe operation during heavy-lift payload shifts.

• Direct integration with agricultural peripherals, including flow meters, liquid level sensors, terrain-following radar, and obstacle avoidance radar.

• Supports multiple intelligent flight modes, including A-B point routing, fully autonomous waypoint missions, and manual precision spraying.

• Compatible with a wide array of airframes, from standard quadcopters up to heavy-lift octocopters.

Specifications

• Supported airframes: Quadcopter (+, X), Hexacopter (+, X, IY, YI), Octocopter (+, X, V)

• Input voltage (PMU): 3-12S LiPo

• Receiver support: SBUS

• Hovering accuracy: ±1.5m horizontal, ±0.5m vertical

• Max tilt angle: 30°

• Operating temperature: -10°C to 55°C

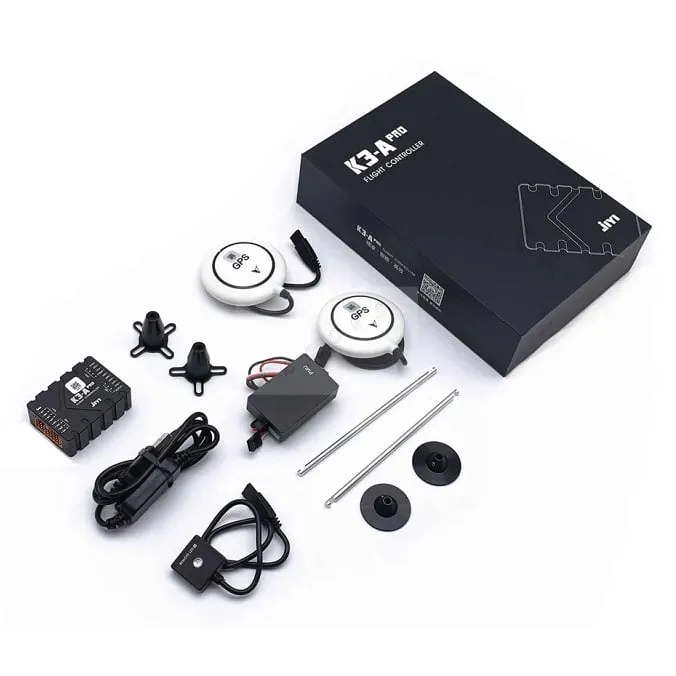

The complete kit includes the main K3-A Pro flight controller module, a Power Management Unit (PMU), a standard GPS/compass module, and a high-visibility external LED module for status monitoring.
