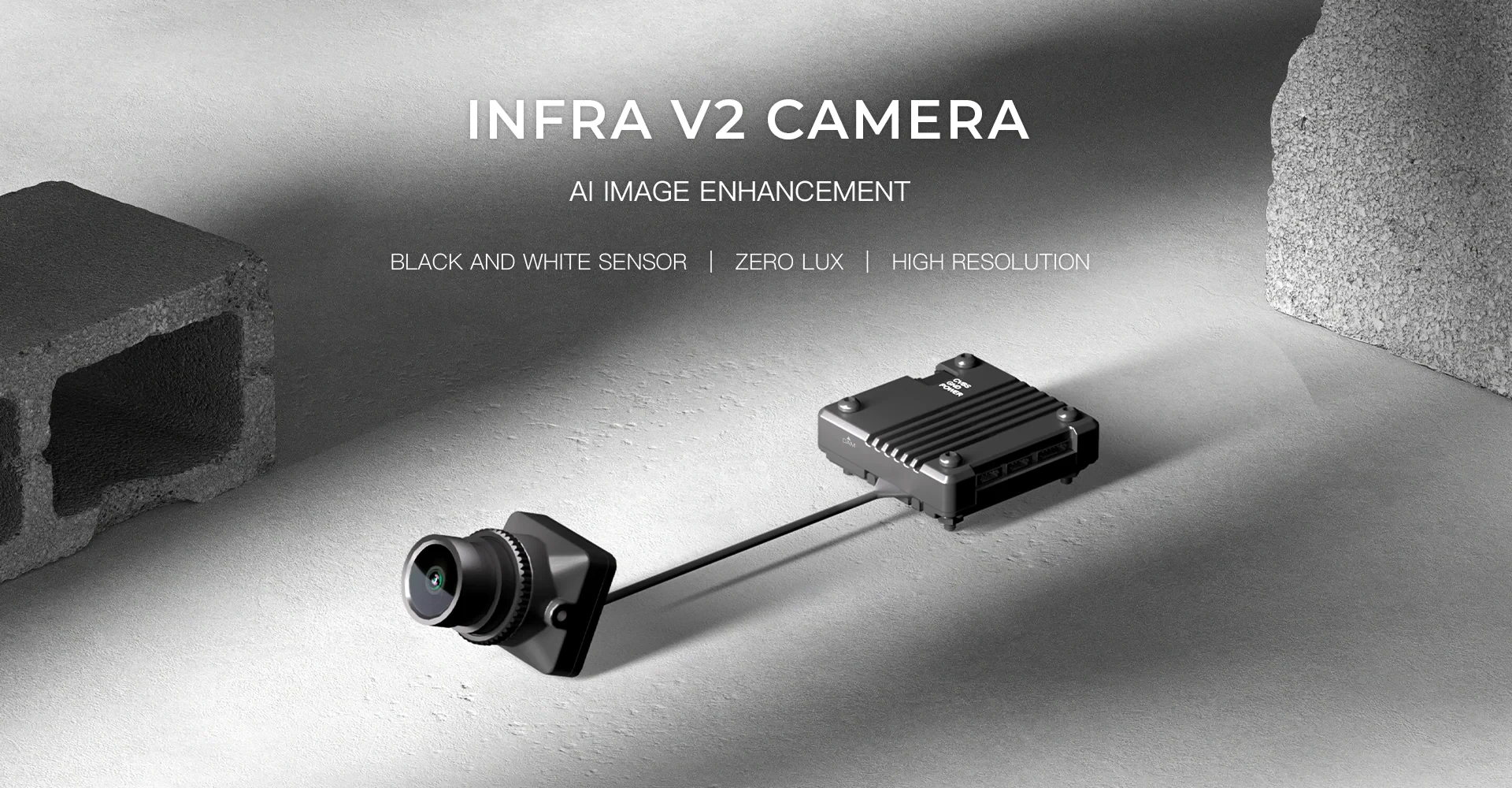

Caddx Infra V2 IR FPV Camera

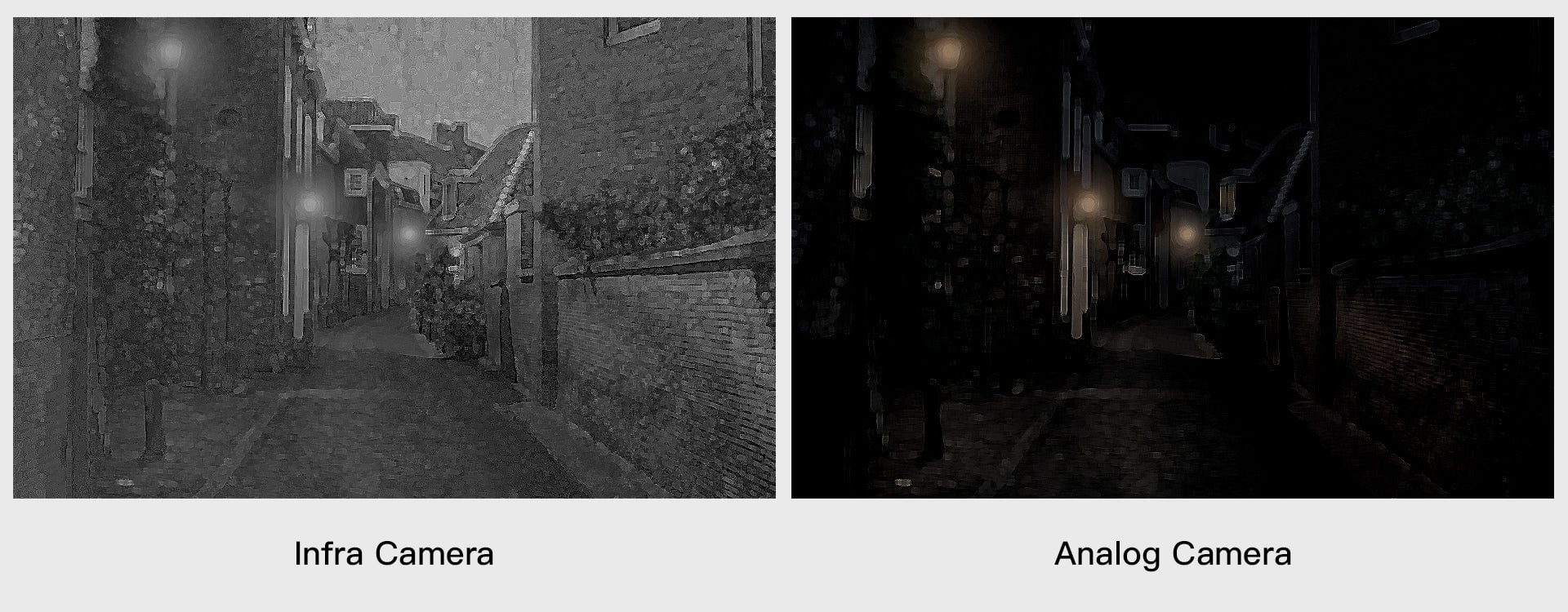

The Caddx Infra V2 is a dedicated infrared FPV camera built for low-light and night-flying operations. Unlike standard daytime FPV sensors that actively filter out infrared wavelengths, this black-and-white sensor captures them, using AI image enhancement to lift low-light clarity by over 30% in genuinely dark environments.

Key features

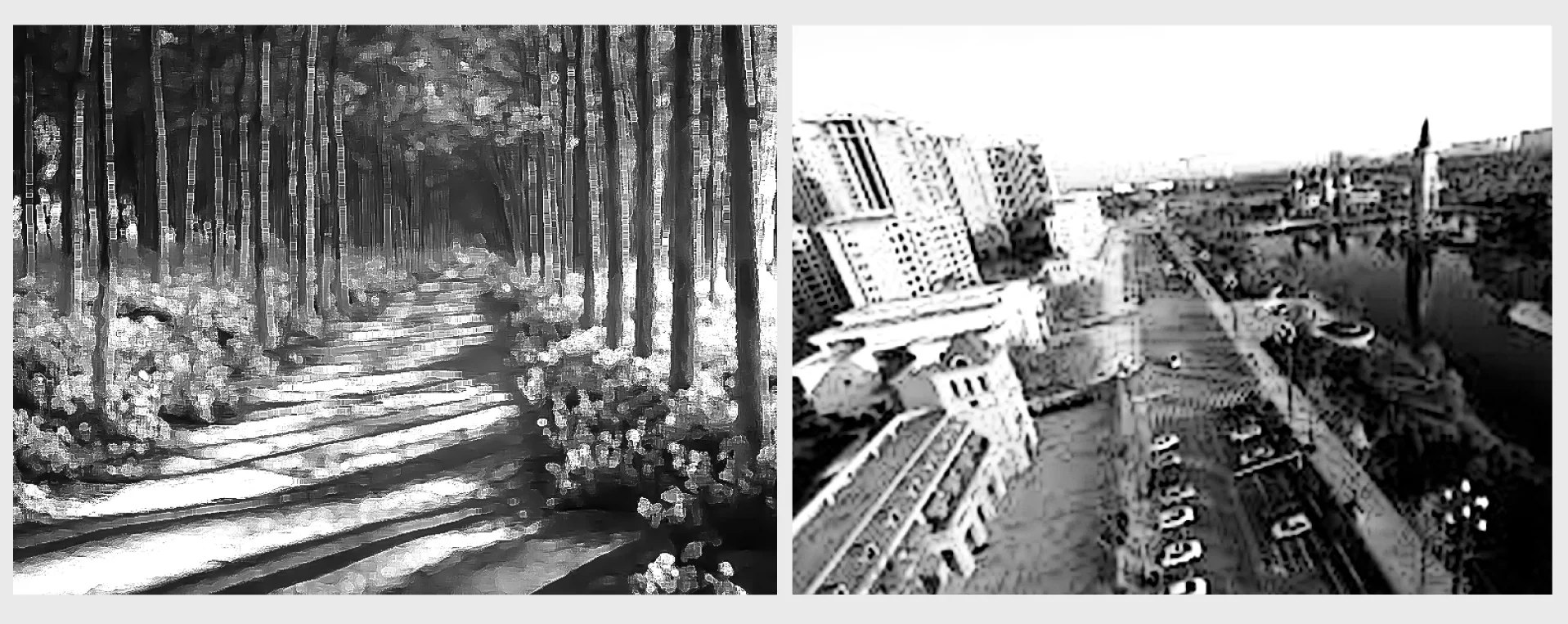

• 1/1.8-inch black-and-white sensor with AI multi-frame processing boosts night visibility and suppresses over/under-exposure in backlit scenes.

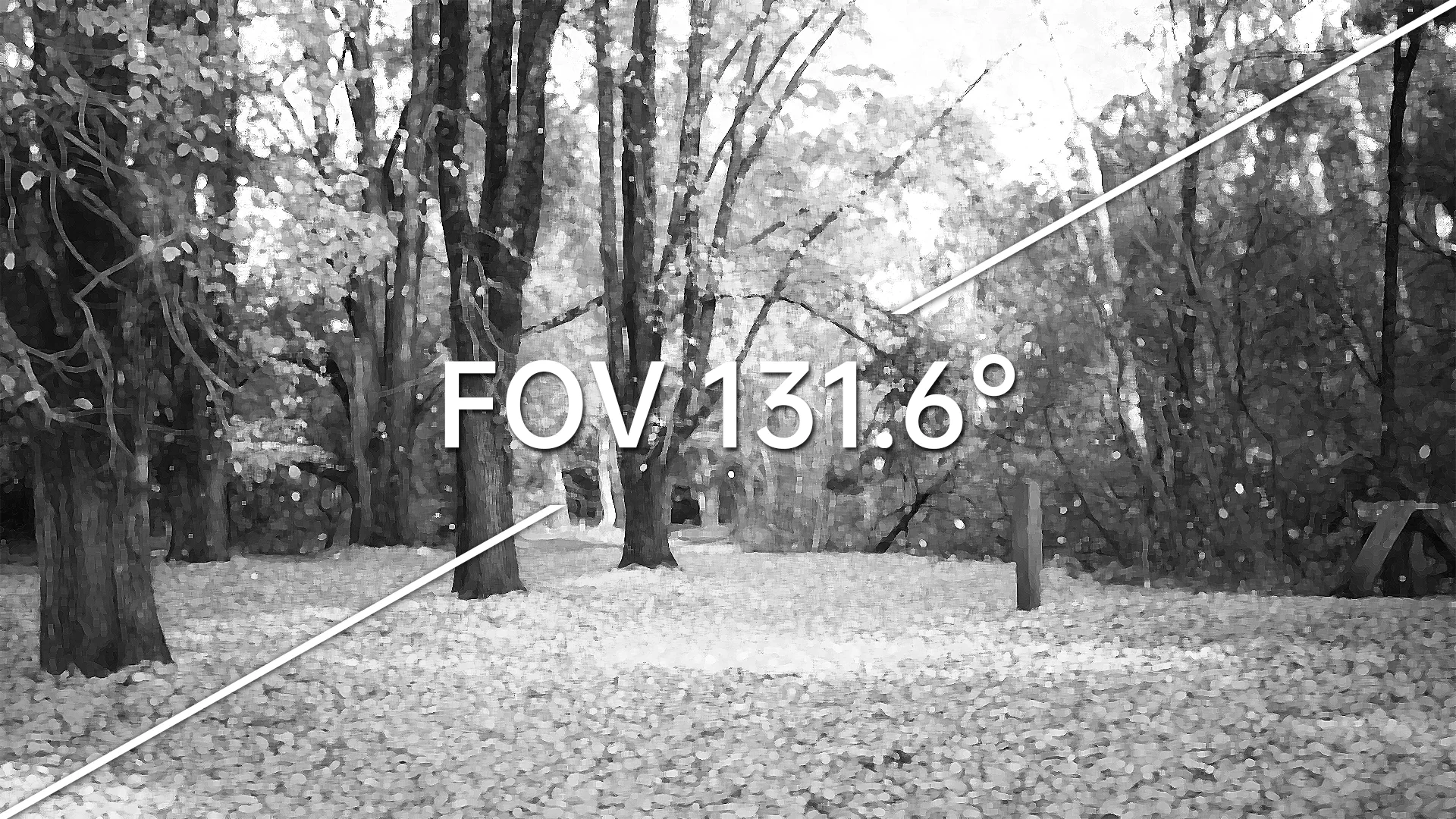

• Ultra-wide 131.6° (diagonal) field of view and an F1.0, 2.8mm lens maximise light intake and situational awareness in the dark.

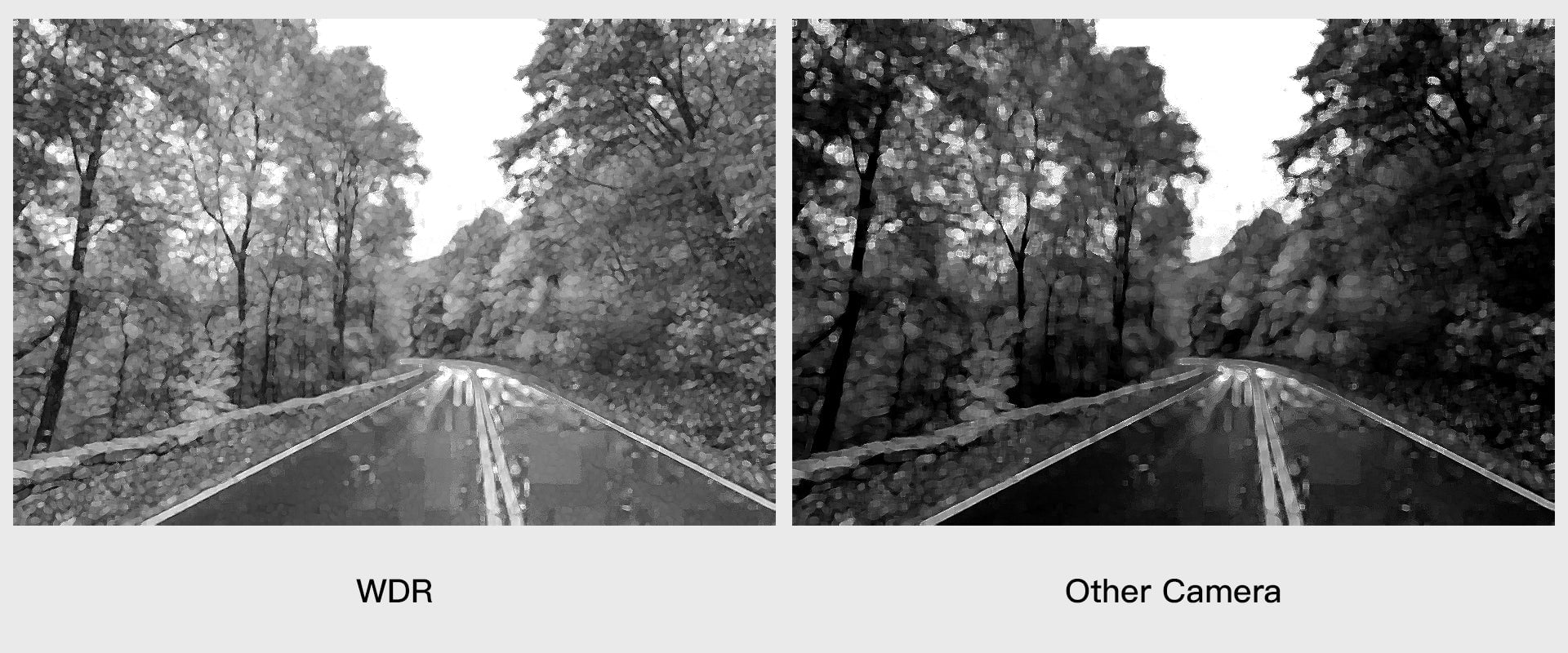

• Outputs a sharp 1500TVL, native 4:3 CVBS PAL signal at 50fps, with WDR support for balanced exposure.

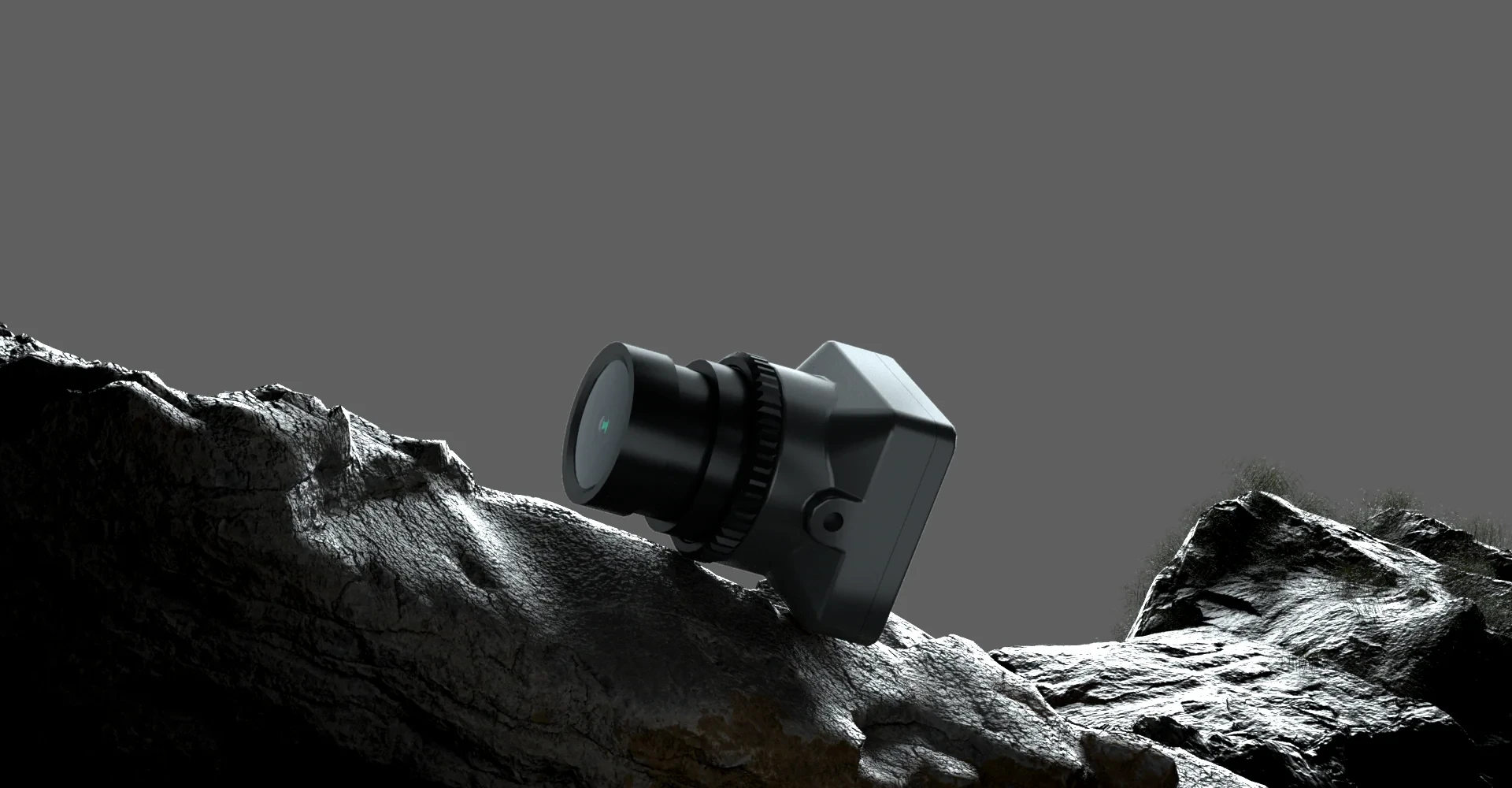

• Compact metal housing improves heat dissipation and durability, in a similar footprint to the original Infra camera.

Specifications

• Image sensor: 1/1.8 inch, black & white, 8 µm pixel size
• Resolution: 1500TVL
• Lens: 2.8mm, F1.0, 131.6° FOV
• Output: CVBS PAL, 50fps, 4:3
• Supply voltage: 9–24V
• Power consumption: under 1.2W

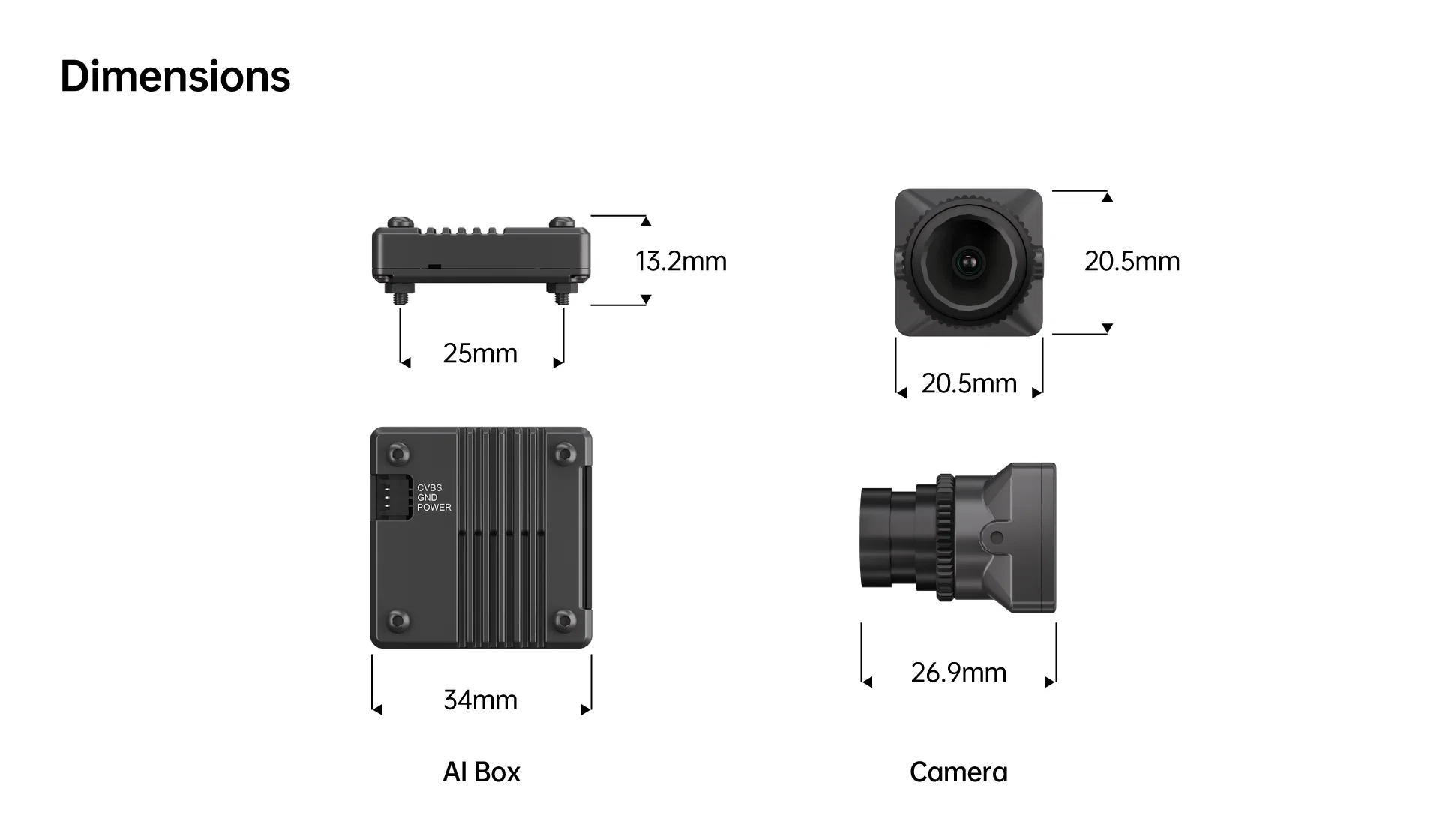

• Camera dimensions: 20.5 x 20.5 x 26.9 mm

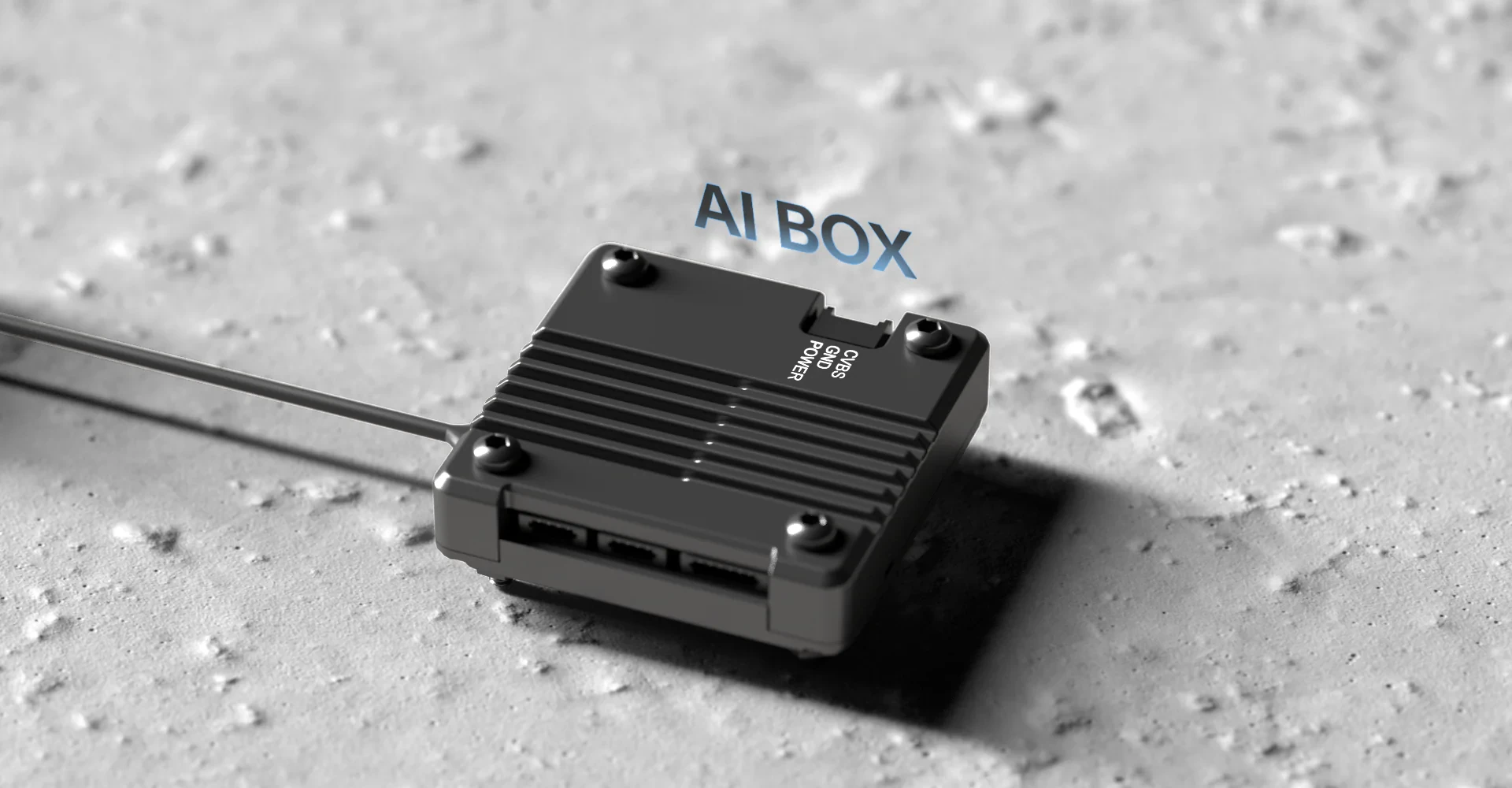

• AI box dimensions: 34 x 34 x 13.2 mm
• Weight: 44 g

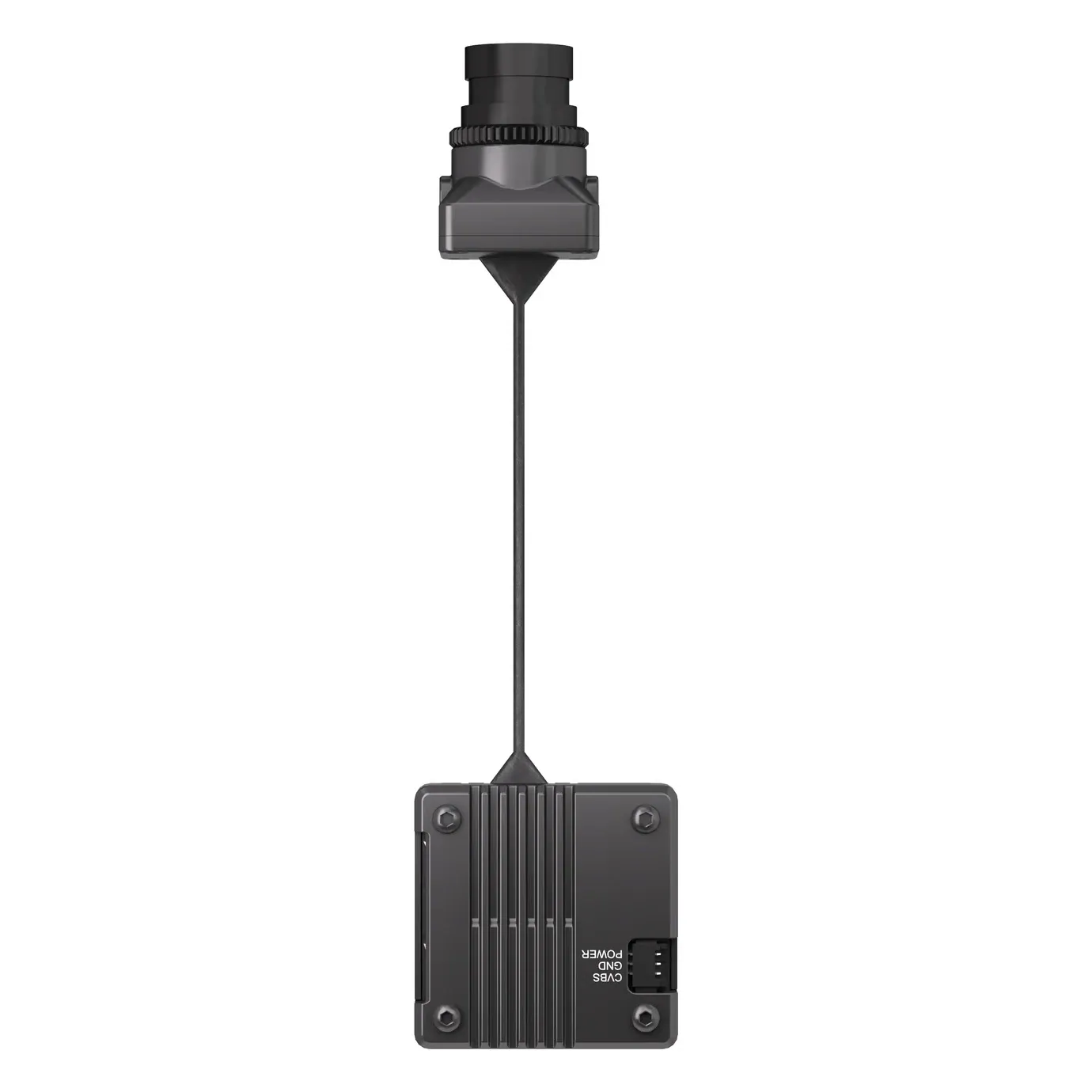

• In the box: camera with AI box, 3-pin silicone cable, operation guide

Built for dedicated night FPV rigs, security platforms, and after-dusk flying, the Infra V2 turns near-total darkness into a navigable, clearly visible scene when paired with a compatible IR-transparent build.
