ReadyToSky 1000TVL 90 Degree CMOS FPV Camera

The ReadyToSky 1000TVL is a compact analog FPV camera with a 1/3-inch CMOS sensor and a 90-degree field of view for FPV aircraft and quad builds. A switch on the body toggles between PAL and NTSC output to match your video transmitter and goggles.

Key features

• 1000TVL horizontal resolution from a 1280 x 720 pixel sensor

• Minimum illumination of 0.05 lux at F1.2 for usable images in dull light

• Automatic white balance, gain and backlight compensation, with 2D digital noise reduction

• Runs from a 5 V supply (4.5–6 V range) and draws about 135 mA

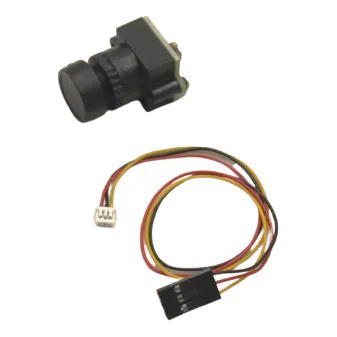

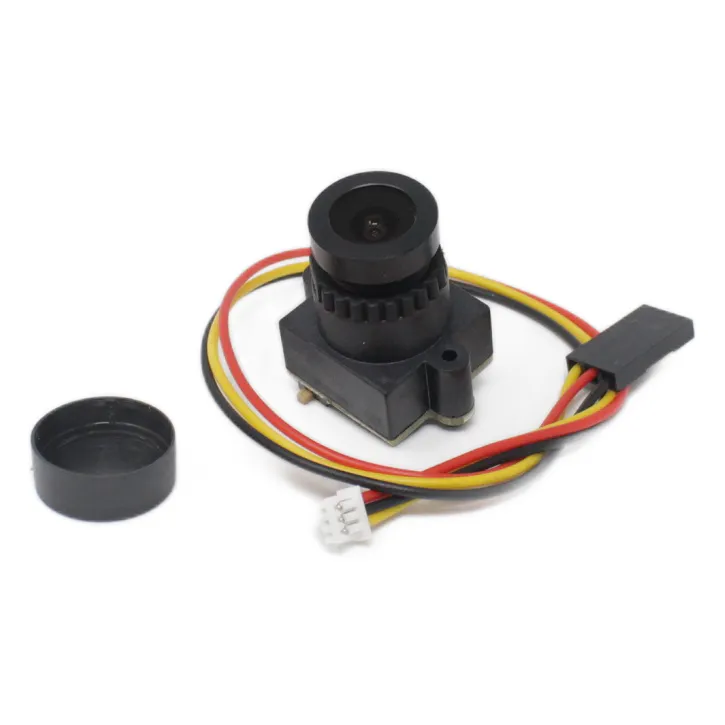

• Connecting cable included

Specifications

• Image sensor: 1/3" CMOS

• Resolution: 1000TVL, 1280 x 720 pixels

• Field of view: 90 degrees

• Video system: PAL / NTSC, switchable

• Video output: 1.0 Vp-p, 75 ohm

• Working voltage: 4.5–6 V DC

• Working current: 135 ± 5 mA

• Minimum illumination: 0.05 lux / F1.2

• S/N ratio: 50 dB or better

• Gamma correction: 0.45

• Dimensions: 15 x 15 x 22 mm

• Weight: 18 g

Power it from a regulated 5 V output on the flight controller or VTX, never straight from the flight battery. The 15 x 15 mm body is not a standard nano or micro camera size, so check the mounting space on your frame before ordering.
