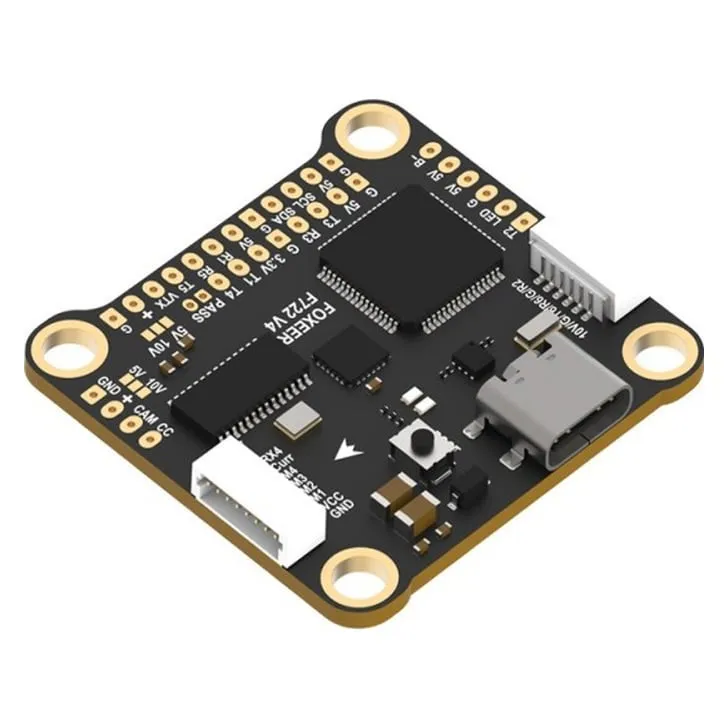

Foxeer F722 V4 30x30 Flight Controller (MPU6000, 8S Dual BEC, Barometer, X8)

The Foxeer F722 V4 is a full-size 30.5 x 30.5 mm flight controller pairing an STM32F722 processor with the MPU6000 gyro. It runs straight from 4-8S, carries dual BECs and a barometer, and can drive eight motors, so it suits 7-inch long-range rigs, 8S freestyle builds and X8 cinelifters. For a 20 x 20 mm stack, choose the F722 V4 Mini instead.

Key features

• 4-8S LiPo input with separate 5 V / 2 A and 10 V / 2 A BECs, the 10 V rail ready for a digital air unit or analog VTX

• DPS310 barometer for altitude hold in INAV

• X8 support for eight-motor coaxial frames, enabled through the CLI in Betaflight or the dedicated INAV X8 target

• Five UARTs plus RX4 for ESC telemetry, leaving room for a receiver, GPS and VTX control

• Plug-in DJI/HDZero connector, SmartAudio, buzzer and WS2812 LED pads, 16M blackbox flash and Betaflight OSD

• USB-C port and 4 mm mounting holes with rubber grommets for soft-mounting

Specifications

• MCU: STM32F722RET6

• Gyro: MPU6000

• Barometer: DPS310

• Input: 4-8S LiPo

• BECs: 5 V / 2 A and 10 V / 2 A

• OSD: Betaflight OSD

• Blackbox: 16M flash

• UARTs: 5 + RX4 (ESC telemetry)

• Motor outputs: 8 (X8 via CLI)

• USB: Type-C

• Firmware targets: Betaflight FOXEERF722V4; INAV FOXEERF722V4 / FOXEERF722V4_X8

• Board size: 37 x 37 mm

• Mounting: 30.5 x 30.5 mm, 4 mm holes

• Weight: 7.7 g

• In the box: flight controller, 4 rubber grommets, 1 cable

X8 in Betaflight needs a CLI resource remap before the first flight; INAV users can flash the FOXEERF722V4_X8 target instead.
