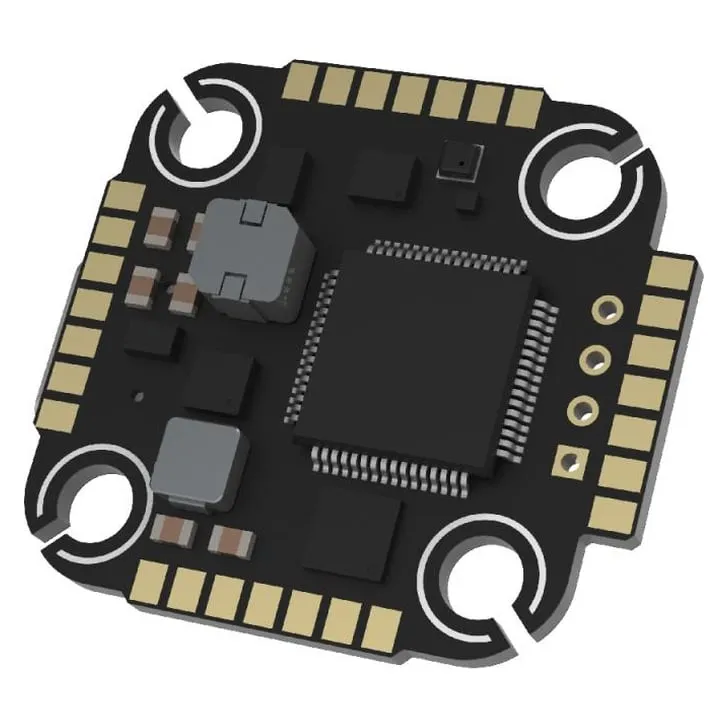

TBS Lucid FC Pro 20x20 Flight Controller (MPU6000)

The TBS Lucid FC Pro is a 20x20 mm flight controller for 3-6S racing and freestyle quads, built around a 288 MHz AT32F435 processor and the MPU6000 gyro. Plug-and-play leads for a 4-in-1 ESC and the DJI O3 Air Unit make it a quick fit for HD builds, while the onboard OSD covers analog setups.

Key features

• MPU6000 gyro: the Pro version's IMU, paired with an AT32F435RMT7 MCU at 288 MHz.
• Six UARTs: room for a receiver, GPS, VTX control and digital video without juggling ports.
• Dual BEC: 9 V at 2.5 A for a digital HD system and 5 V at 2 A for the receiver and peripherals.
• Analog OSD and blackbox: AT7456E OSD chip and 8 MB of onboard flash for logging and tuning.
• Plug-and-play wiring: ESC and DJI O3 connectors follow the Betaflight connector standard; works with TBS Crossfire, Tracer or any other receiver.

Specifications

• MCU: AT32F435RMT7, 288 MHz
• Gyro: MPU6000
• OSD: AT7456E
• Blackbox: 8 MB flash
• UARTs: 6
• Motor outputs: 4, with ESC telemetry and current sensor input
• BEC: 9 V / 2.5 A and 5 V / 2 A
• Input: 3-6S LiPo
• Board size: 31 x 29 mm
• Mounting: 20 x 20 mm
• Weight: 4.51 g
• In the box: flight controller, FC-to-ESC cable, DJI O3 cable, 4 M3 rubber dampers, 4 M3 x 8 mm screws

Pair it with a 20x20 4-in-1 ESC that uses the Betaflight connector pinout so the supplied lead plugs straight in, and check the pinout before connecting any other ESC. Receiver, ESC and video system are sold separately.
