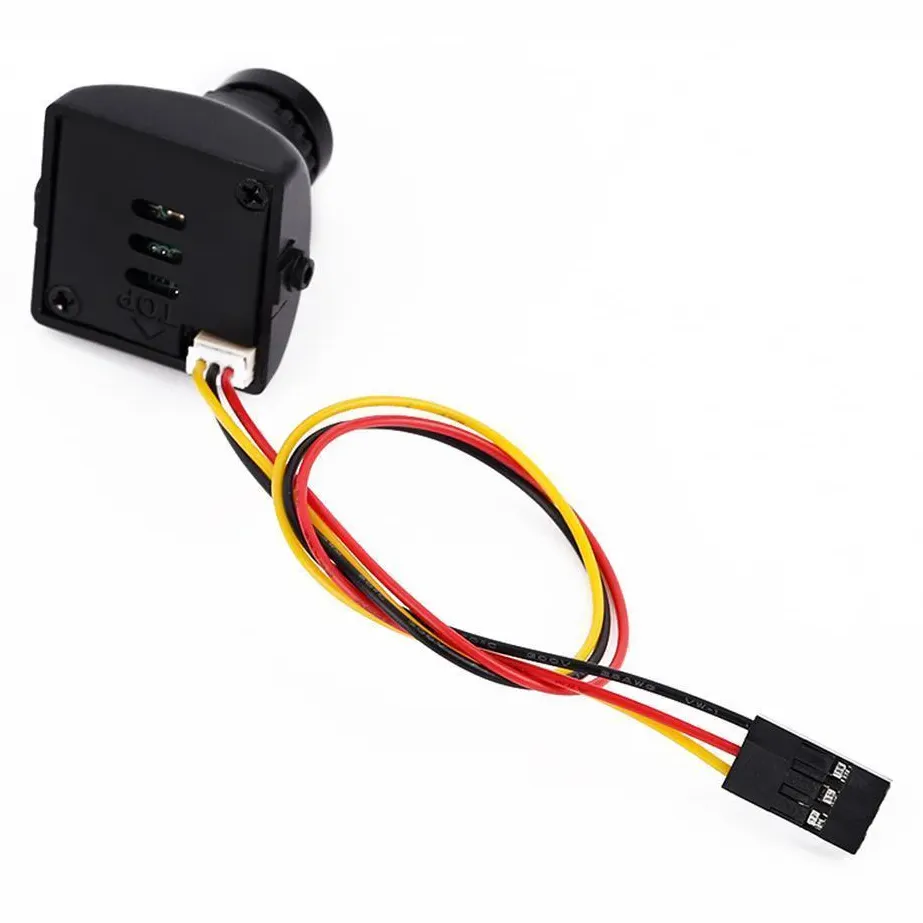

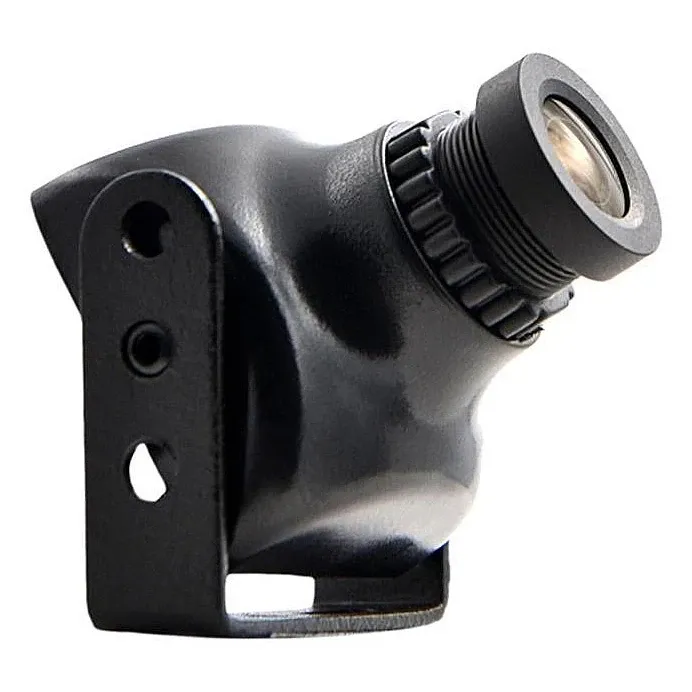

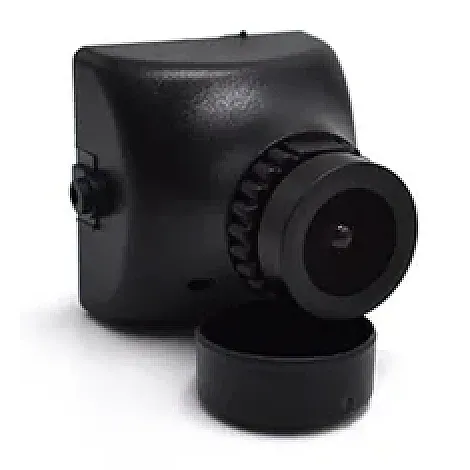

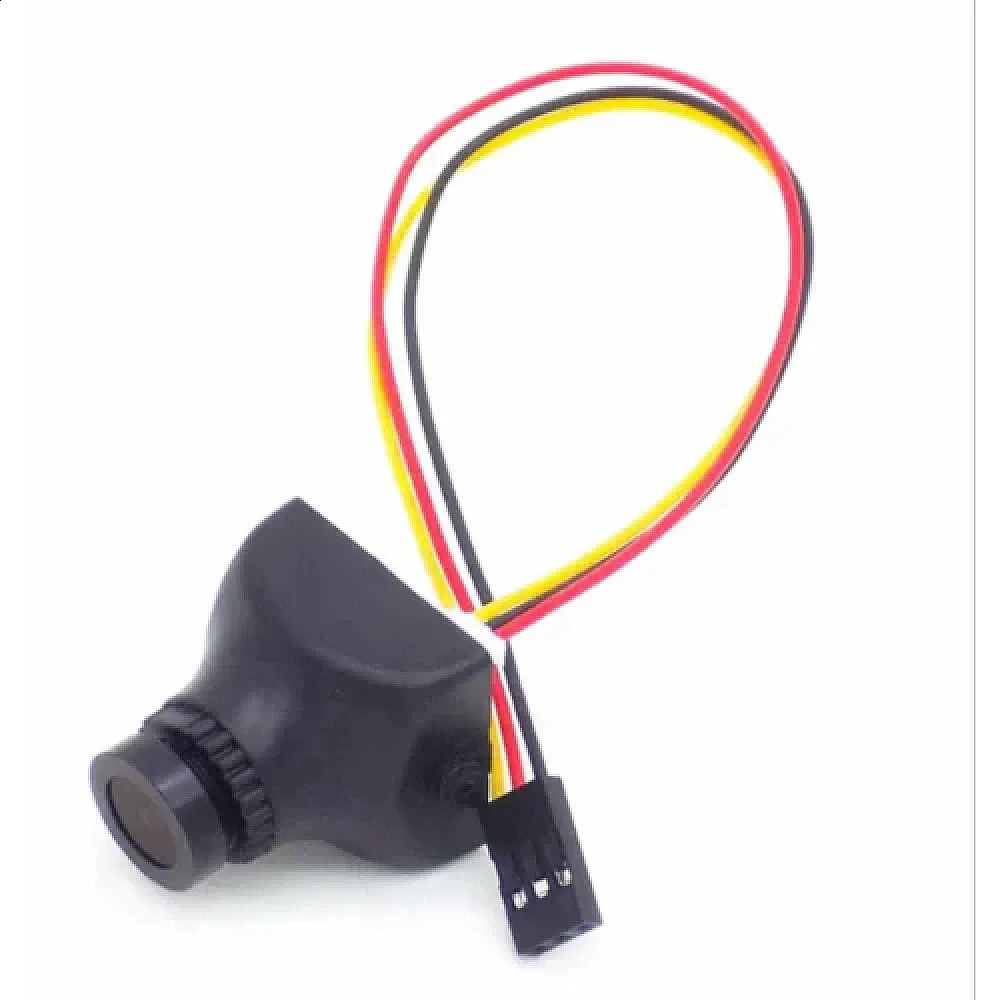

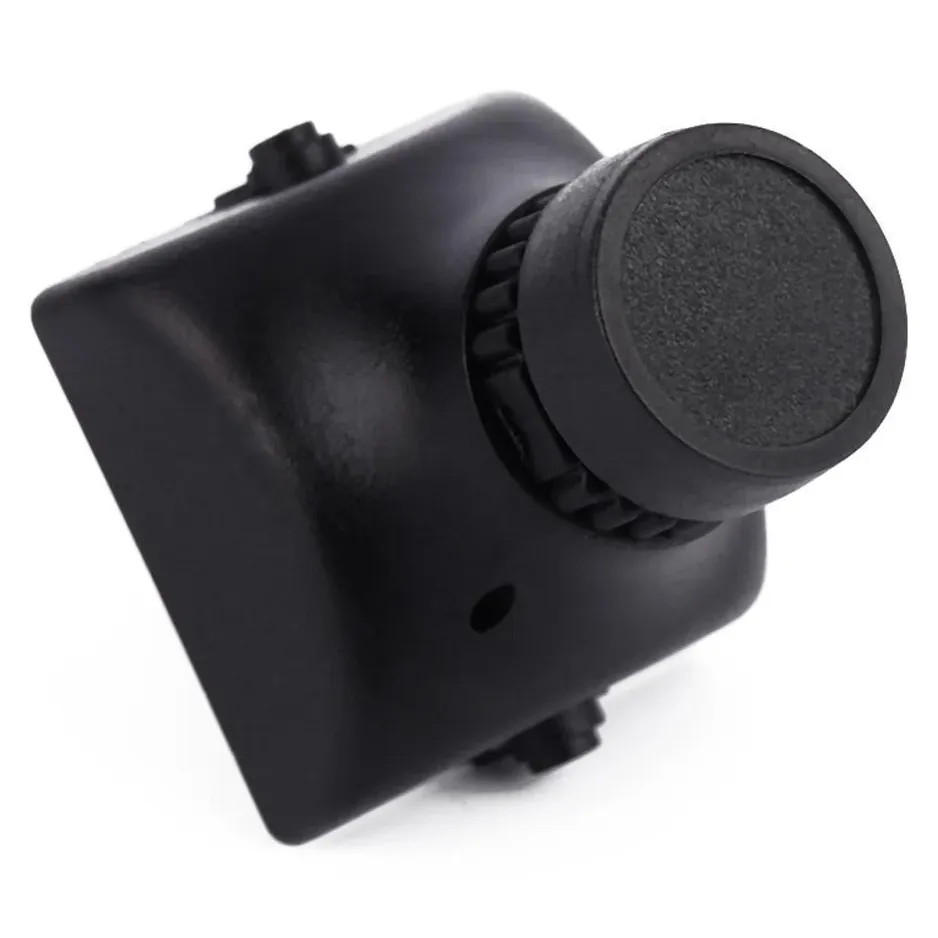

ReadyToSky 700TVL 2.8mm Wide Angle CMOS FPV Camera

The ReadyToSky 700TVL is an analog FPV camera with a 1/4-inch CMOS sensor and a 2.8 mm wide-angle lens. Its lightweight plastic case matches the size of older FPV cameras, so it drops into existing mounts on QAV180, QAV210 and QAV250-class quads and fixed-wing models, and it outputs composite video to any analog VTX.

Key features

• 2.8 mm lens gives about a 90° field of view with low distortion
• Switchable PAL or NTSC video format
• Automatic gain and auto white balance, each switchable on or off
• 0.1 lux minimum illumination at F1.2, tuned for both day and dusk flying

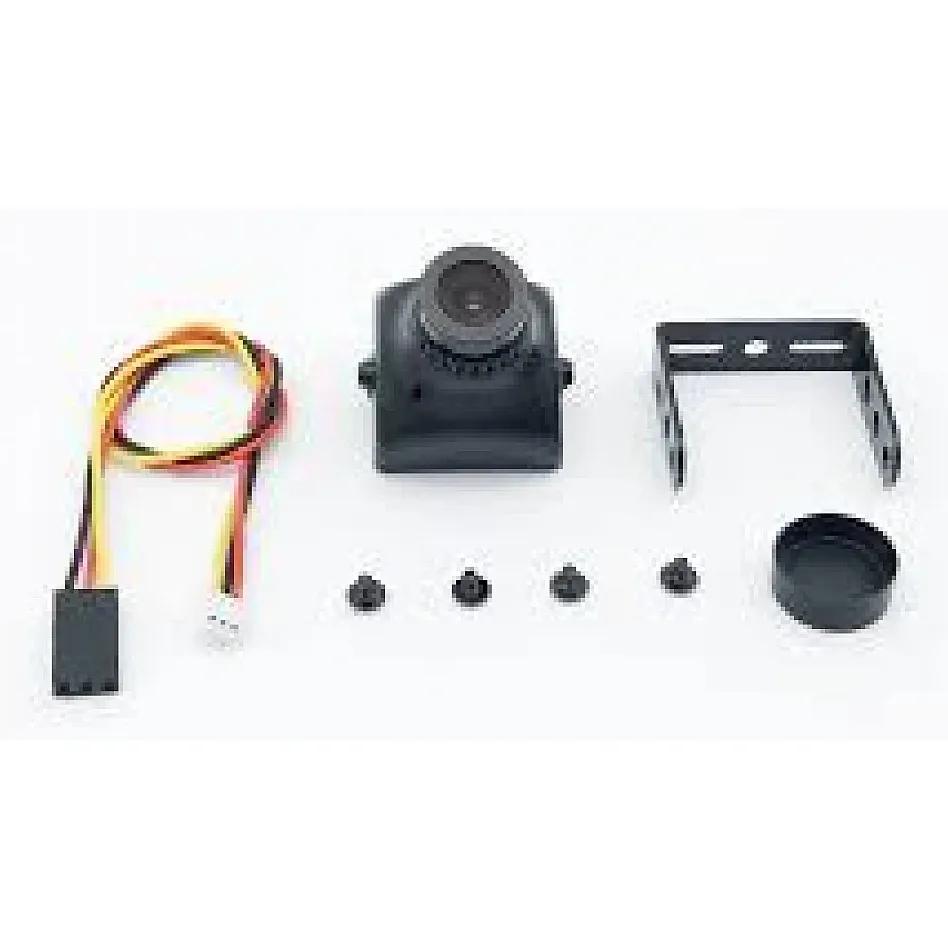

• Supplied with a camera mount and cable

Specifications

• Model: MS-700
• Resolution: 700TVL
• Image sensor: 1/4-inch CMOS
• Lens: 2.8 mm, approx. 90° FOV
• Electronic shutter: 1/50 to 1/100,000 s (PAL), 1/60 to 1/120,000 s (NTSC)
• Minimum illumination: 0.1 lux (F1.2)
• Gamma: 0.45
• Power input: 12 V DC nominal
• Weight: 12 g camera, 20 g with mount and cable
• Dimensions: 30 x 25 x 25 mm (camera)

Run it from a regulated 12 V rail, such as a PDB or flight-controller 12 V output, rather than directly from the flight pack. The 30 x 25 mm body is larger than 19 mm micro cameras, so check your frame's camera bay before ordering.
