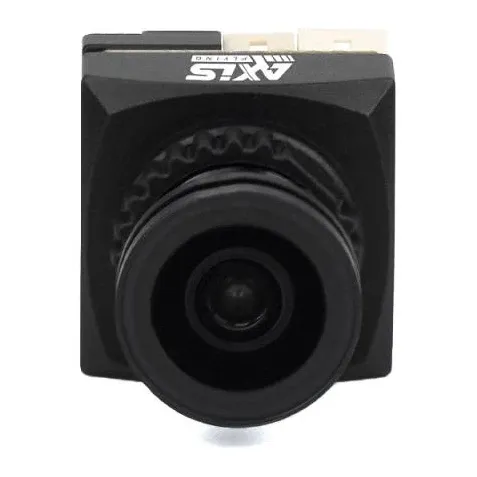

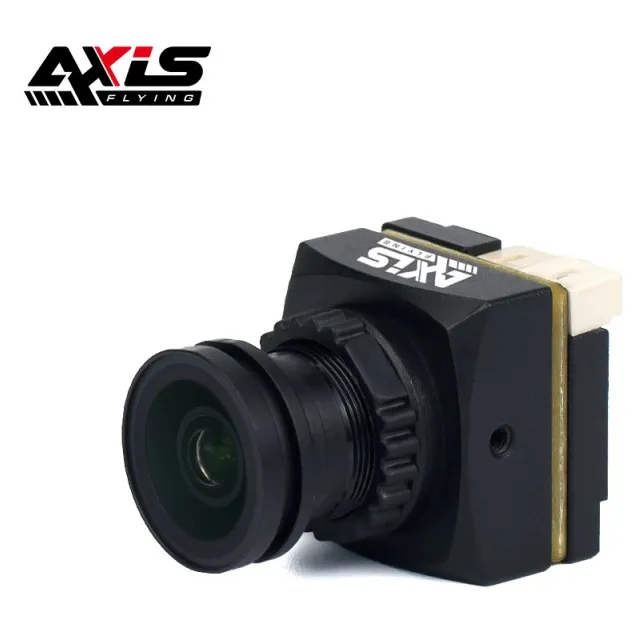

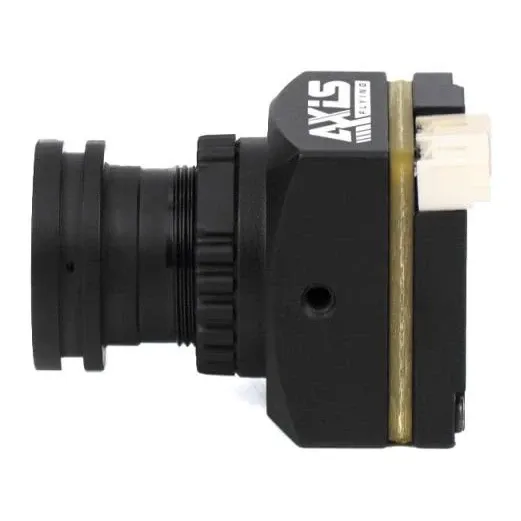

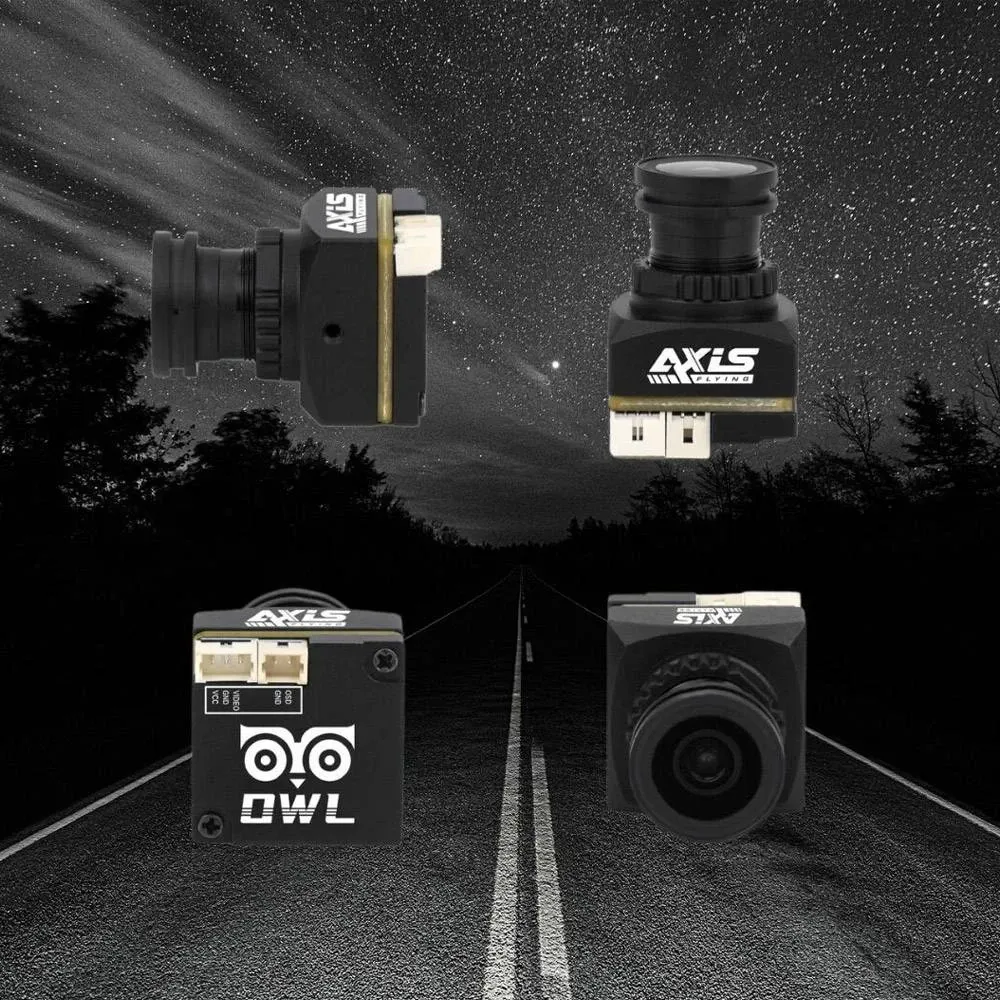

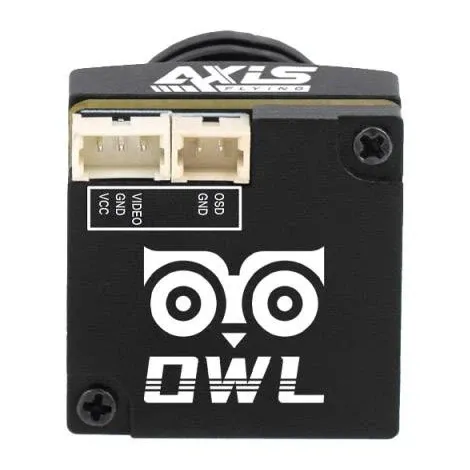

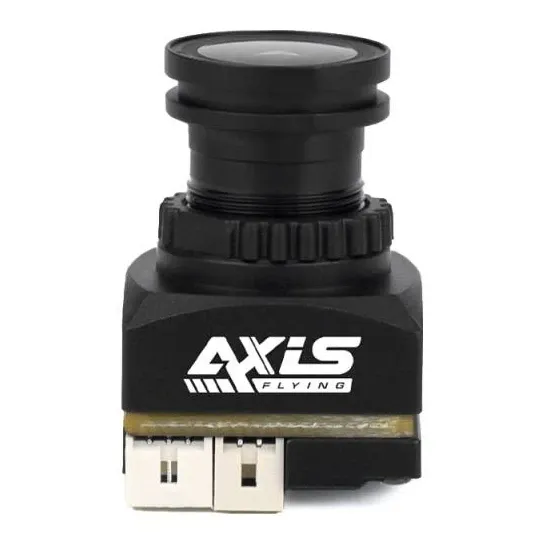

Axisflying OWL Black Light CVBS FPV Camera for Night Flying

The Axisflying OWL Black Light is an analog FPV camera built for flying after dark, pairing a 1/2.7" sensor with a minimum illumination rating of 0.00001 lux. It outputs standard CVBS video in PAL or NTSC, so it drops into any analog VTX on freestyle, long-range or surveillance builds that fly at dusk and night.

Key features

• Night-vision mode that relies on sensor sensitivity — infrared illumination is not supported
• Day/night control set to external by default, with auto, colour and black-and-white modes
• Bright F1.1, 3.3 mm lens (2G5P) with a 101° horizontal field of view
• 4.5–42 V input, drawing about 80 mA at 12 V
• OSD menu for contrast, sharpness, saturation, noise reduction, mirroring, brightness, exposure, gain, digital WDR and white balance, in 14 languages

Specifications

• Sensor: 1/2.7", 1928 × 1088 effective pixels, 3.0 µm pixels
• Frame rate: 1080P @ 60fps
• Minimum illumination: 0.00001 lux
• Dynamic range: 72 dB
• Signal-to-noise ratio: 40 dB
• Video output: CVBS, PAL/NTSC
• Lens: 3.3 mm, F1.1, 101° horizontal FOV
• Power: 4.5–42 V, 80 mA @ 12 V
• Dimensions: 19.6 × 19.6 mm
• Operating temperature: −40 °C to 75 °C

The body measures 19.6 mm square, slightly wider than a standard 19 mm micro camera, so check the clearance in your frame's camera mount before ordering.
