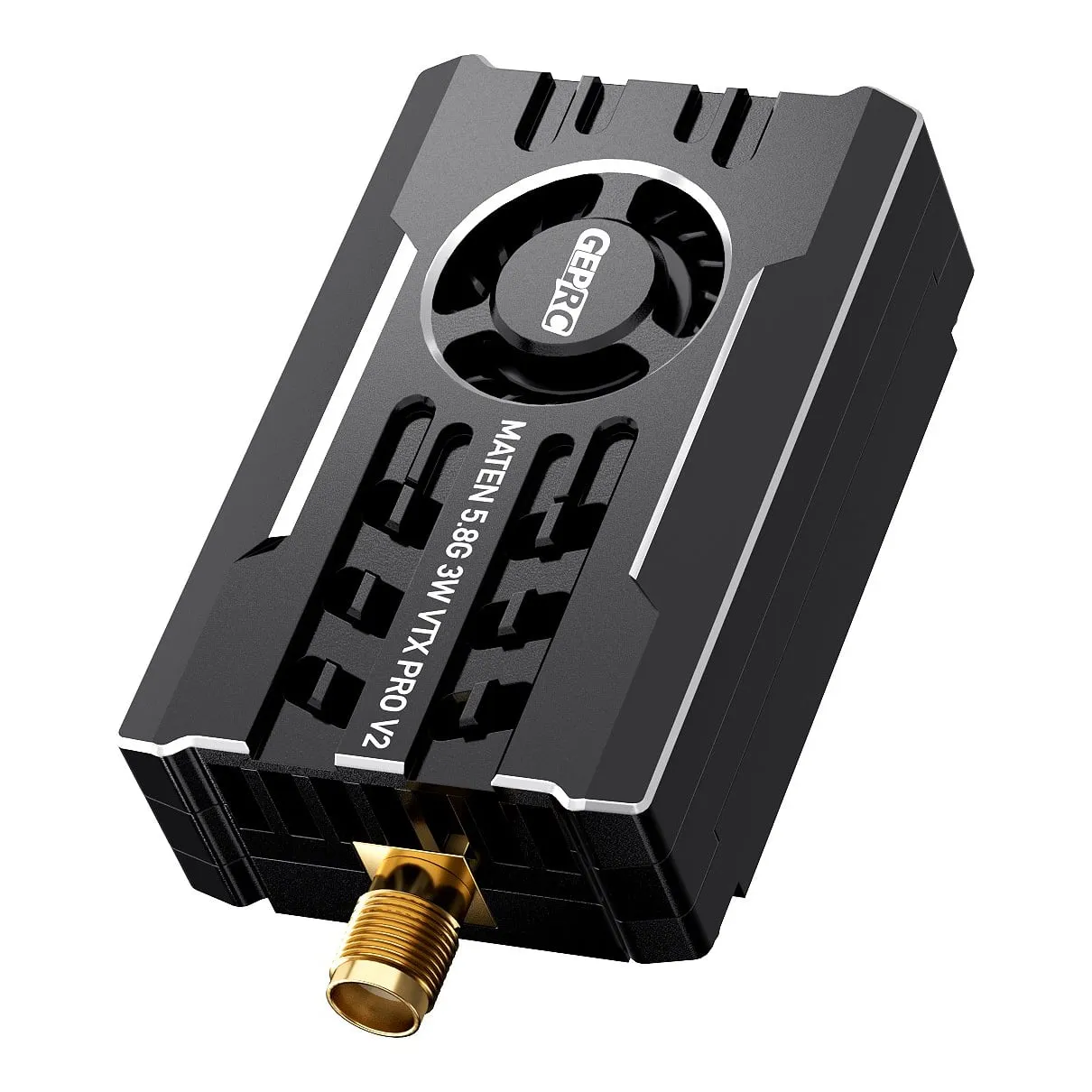

GEPRC Maten 5.8G 3W VTX Pro V2 (MMCX)

The GEPRC Maten 5.8G 3W VTX Pro V2 is a high-power analog video transmitter for long-range and heavy-lift FPV builds that need video penetration at distance. This is the MMCX-connector version, 50 mm long, in a CNC aluminium-alloy shell with a built-in micro cooling fan.

Key features

• Five power levels of 25, 200, 600, 1600 and 3000 mW, plus pit mode for bench work
• 104 channels across 4884 to 6184 MHz, with direct frequency entry from the configurator
• IRC Tramp control: change channel and power from your flight controller OSD
• Wide 7 to 36 V input (2-8S) with a 5 V camera power output
• Temperature protection, one function button and three status LEDs
• Fits 20x20 mm and 25.5x25.5 mm (M2) mounting patterns

Specifications

• Output power: 25/200/600/1600/3000 mW, pit mode
• Frequency range: 4884-6184 MHz, 104 channels
• Input voltage: 7-36 V (2-8S)
• Camera output: 5 V
• Antenna connector: MMCX
• Control protocol: IRC Tramp

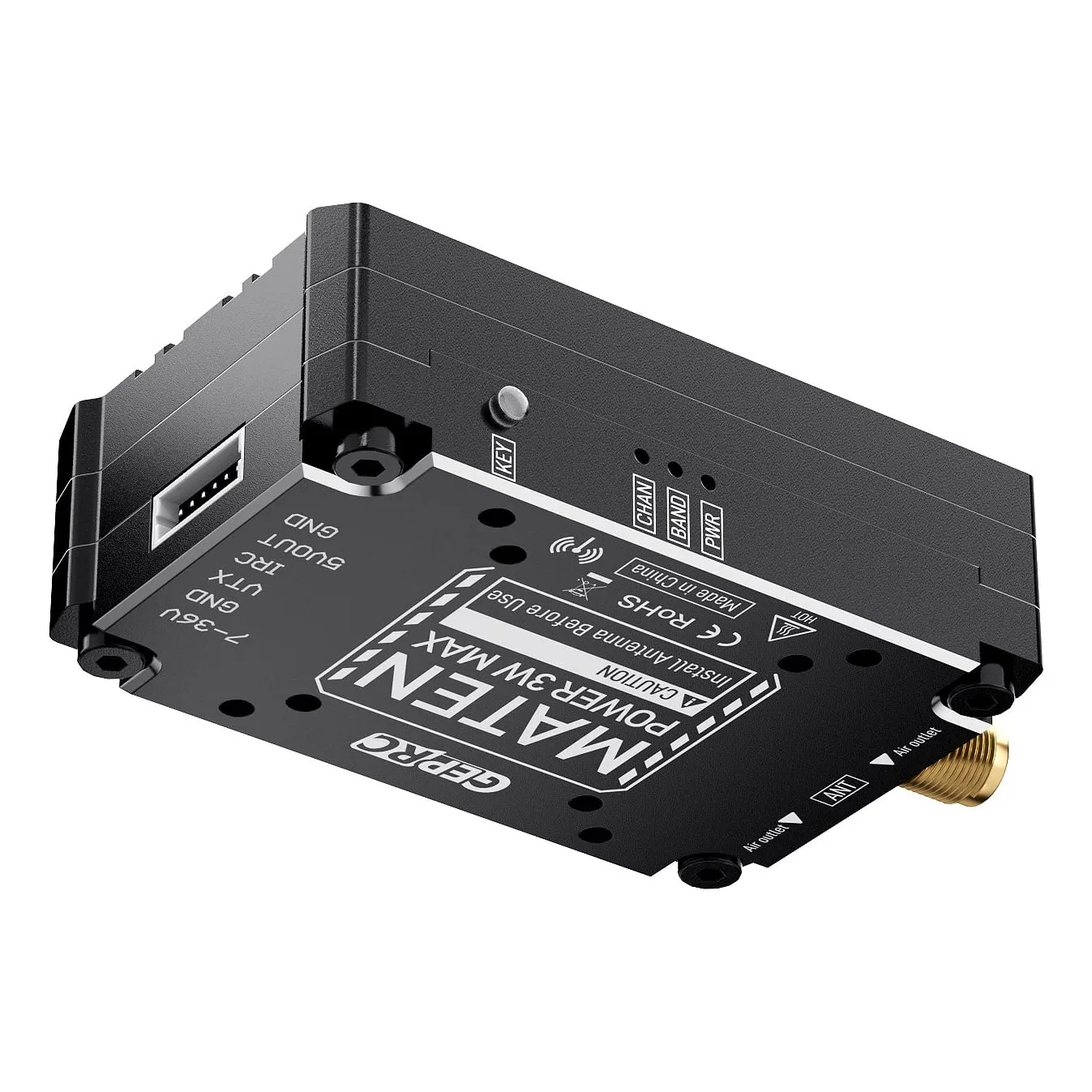

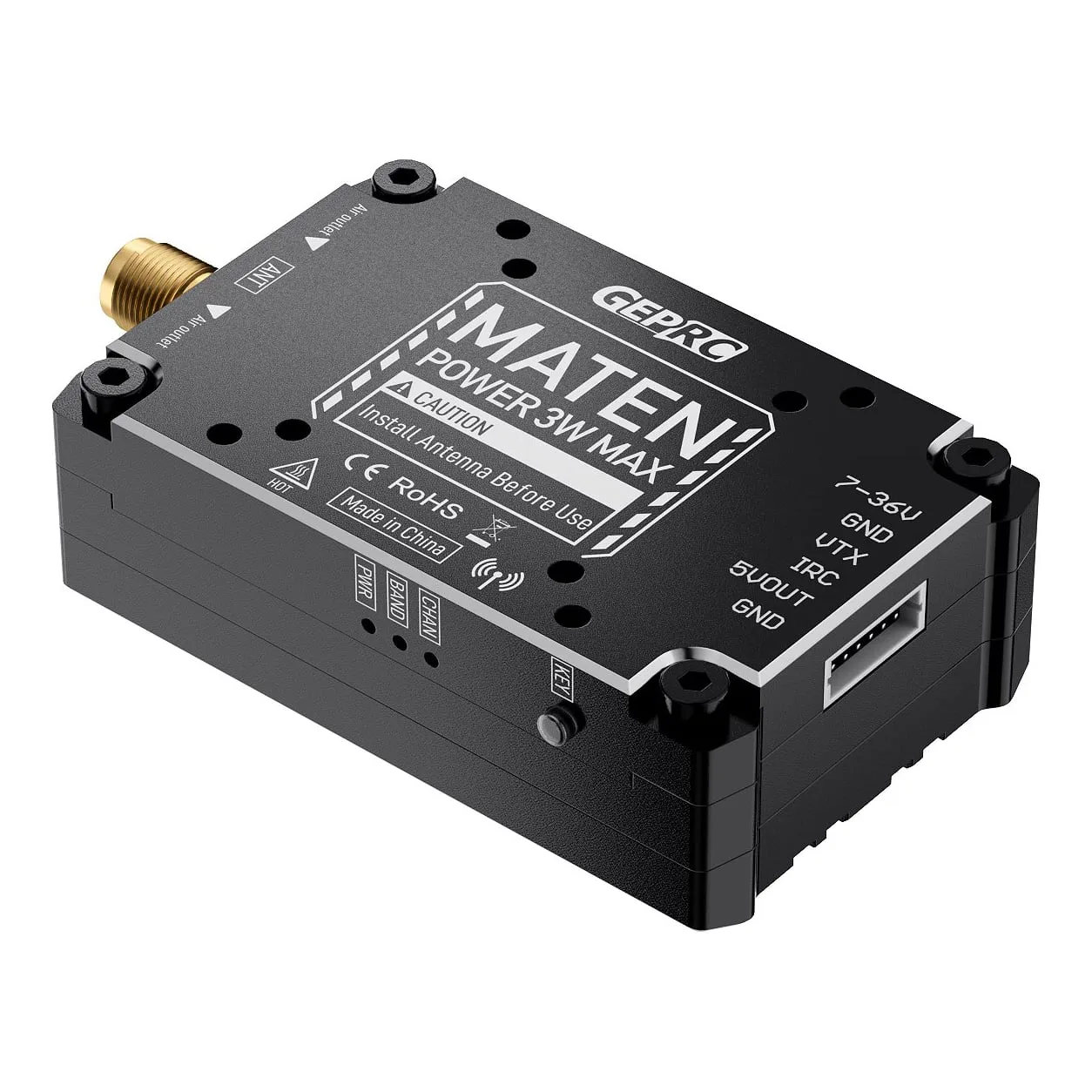

• Cable connector: SH1.0 6-pin
• Dimensions: 50 × 31.5 × 17.5 mm
• Mounting: 20x20 mm and 25.5x25.5 mm (M2)
• Weight: 35.6 g (VTX only)
• In the box: VTX, SH1.0 6-pin connection cable (150 mm), user manual

Always fit an antenna before powering the VTX, as running it without one can damage the output stage. The MMCX port takes an MMCX antenna or an MMCX-to-SMA pigtail, and your goggles or ground receiver must work on the same 5.8 GHz band and channel.
