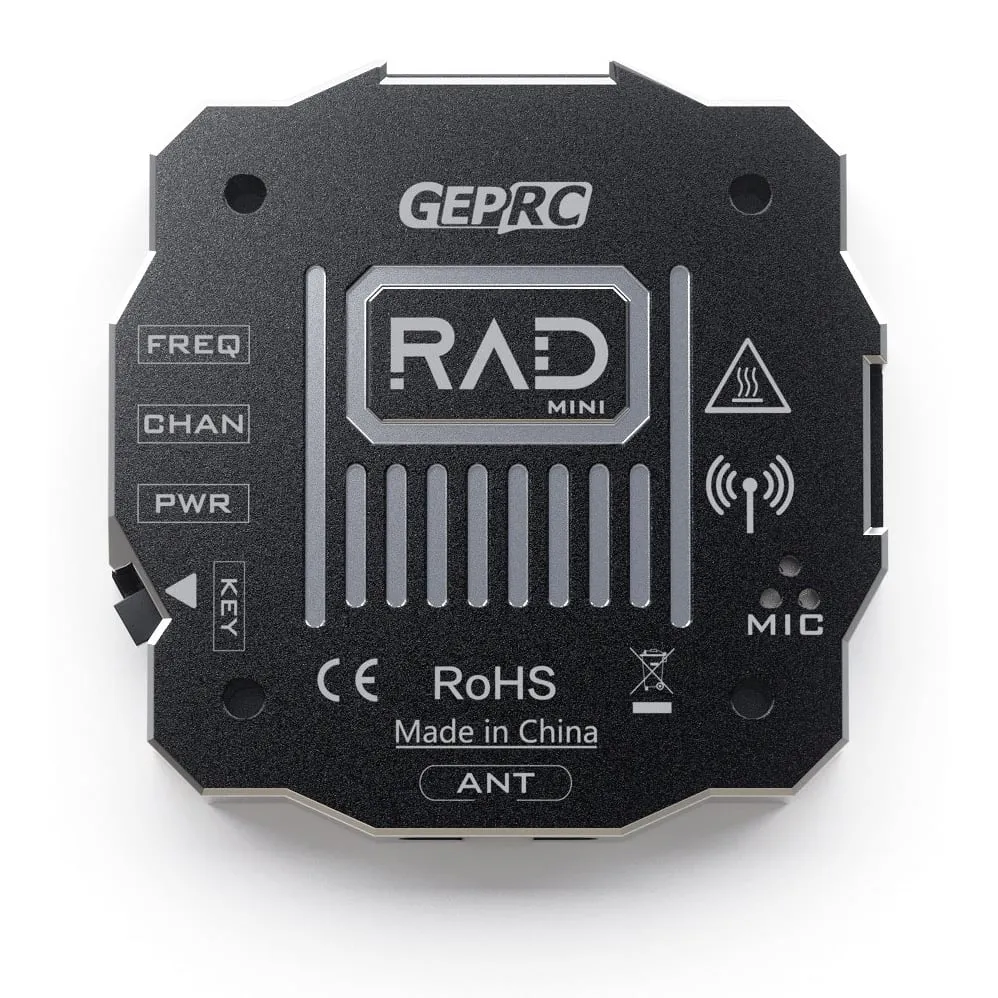

GEPRC RAD Mini 5.8GHz 1W VTX

The GEPRC RAD Mini is a compact, high-output analog video transmitter designed to deliver reliable 5.8GHz video for freestyle, long-range and bando builds. Packing up to 1000mW of RF power into a 20x20 footprint, it provides the signal penetration needed to push through concrete walls or dense foliage while keeping your quad's overall weight down.

Key features

• Five adjustable power levels (Pit, 25mW, 200mW, 500mW and 1000mW) to suit tight racing limits or long-range flights.
• Built-in 5V/600mA BEC to supply clean power directly to your analog FPV camera.
• Integrated temperature control protection lowers output power if airflow is insufficient, preventing thermal damage.

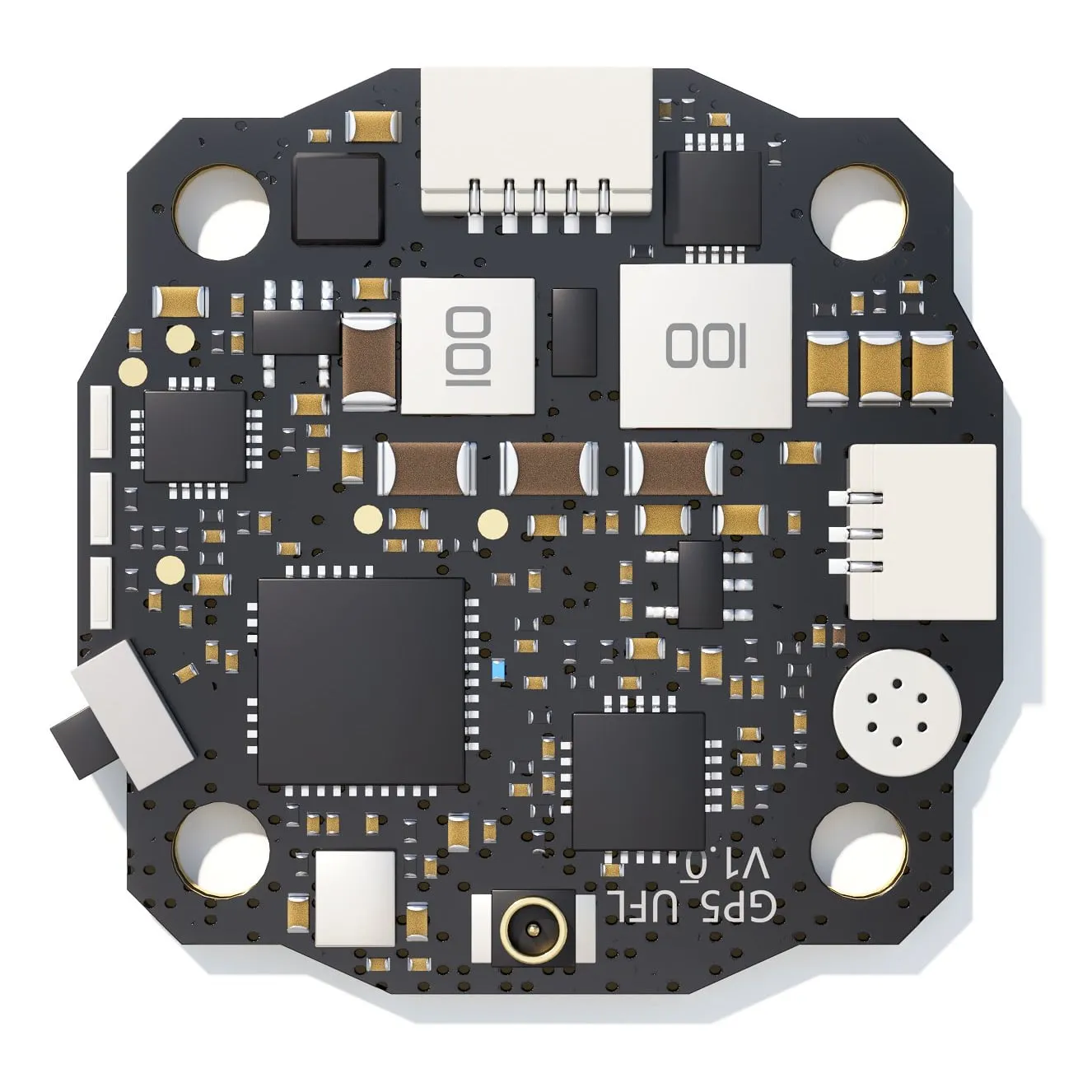

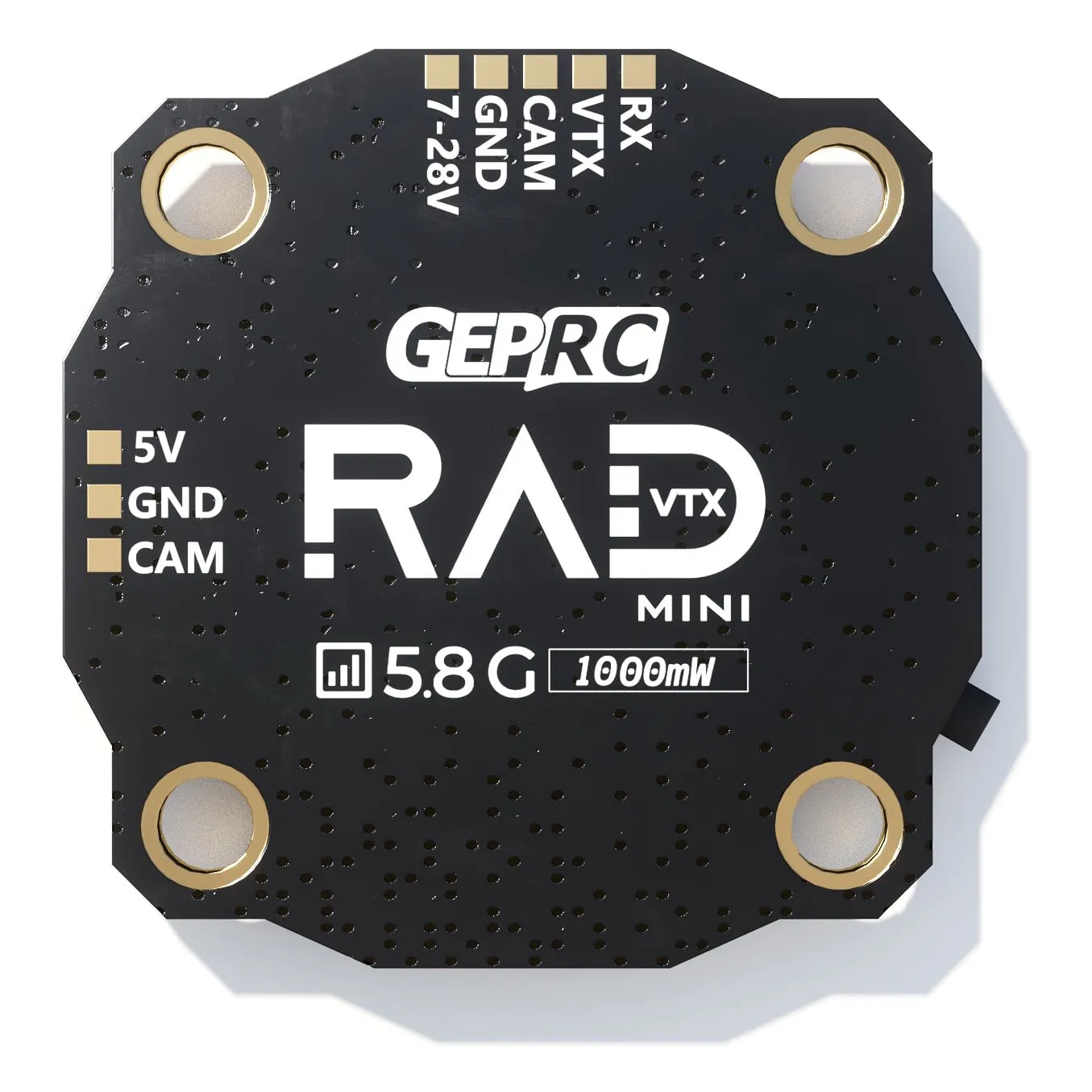

• Dual connection options featuring an SH1.0 5-pin plug for quick builds and direct solder pads for maximum durability.

Specifications

• Input voltage: 2-6S
• Output power: Pit / 25 / 200 / 500 / 1000mW
• Control protocol: IRC Tramp
• Antenna connector: U.FL
• Mounting pattern: 20x20
• Dimensions: 25 x 25 x 5.5 mm
• Weight: 4.5g

Designed for a standard 20x20 stack, this VTX is a drop-in upgrade for 3-inch or 4-inch frames as well as full-size 5-inch builds. As with all high-power transmitters, ensure the antenna is securely attached before powering on and mount the unit where it receives adequate in-flight airflow.
