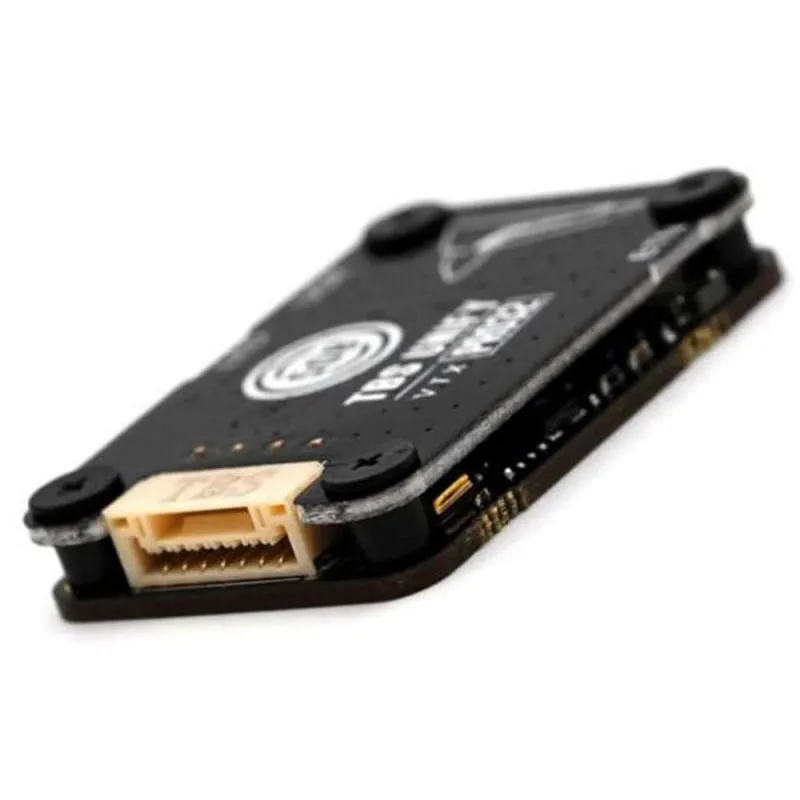

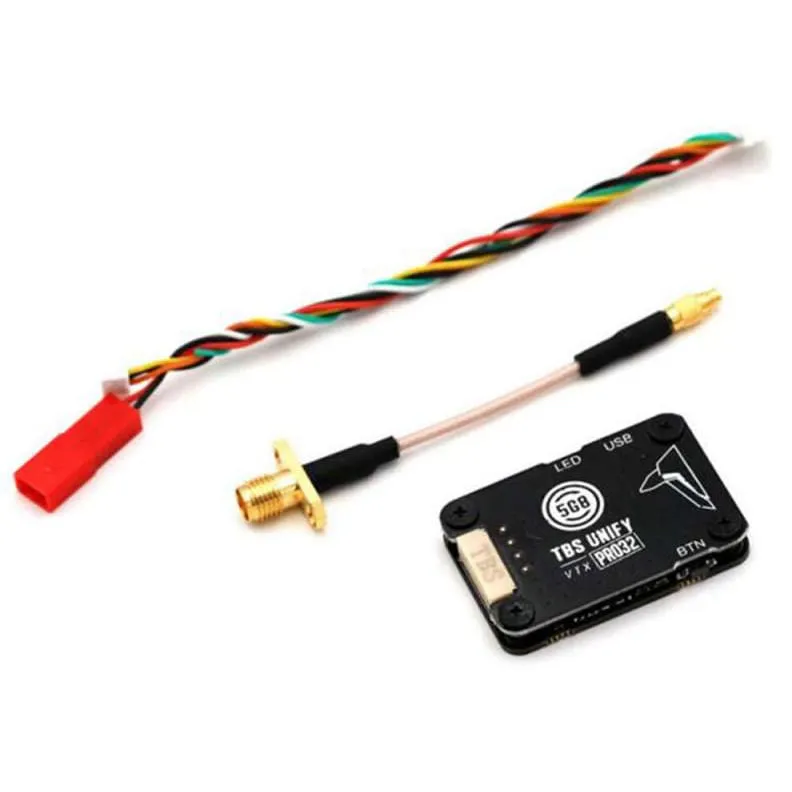

TBS Unify Pro32 HV 5.8GHz VTX (MMCX)

The TBS Unify Pro32 HV is a premium 5.8GHz analog video transmitter designed for high-performance freestyle, racing, and long-range FPV builds. Engineered with a dual-noise filtering power supply, this VTX handles extreme voltage spikes while drawing power directly from a 2S to 6S LiPo battery. It delivers a robust, scalable output signal reaching well beyond 1000mW, ensuring reliable video penetration through dense foliage and out over long distances.

Key features

• Scalable transmission power ranging from 25mW to 1000mW+ for demanding long-range environments.

• Advanced dual-noise filtering allows direct battery connection without degrading video quality or requiring external BECs.

• CleanSwitch technology ensures interference-free powering on and channel switching without disrupting other pilots in the air.

• Integrated SmartAudio V2.1 allows complete VTX configuration directly via Betaflight OSD or your RC transmitter.

• Built-in microphone provides real-time onboard audio transmission to your goggles.

Specifications

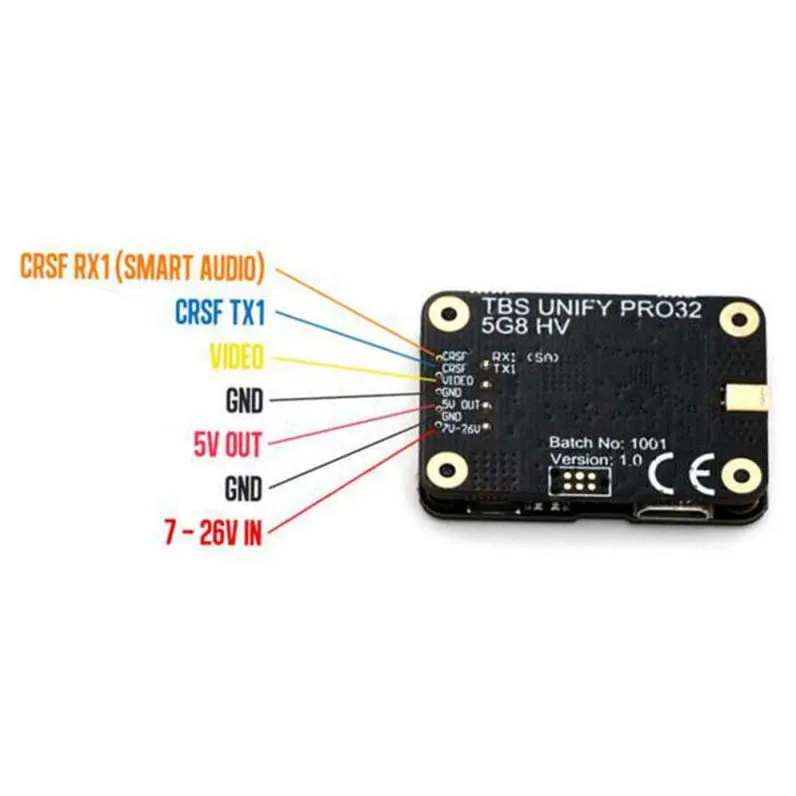

• Operating voltage: 6–25V (2–6S LiPo)

• Output power: 14dBm (25mW) / 20dBm (100mW) / 26dBm (400mW) / 30dBm+ (1000mW+)

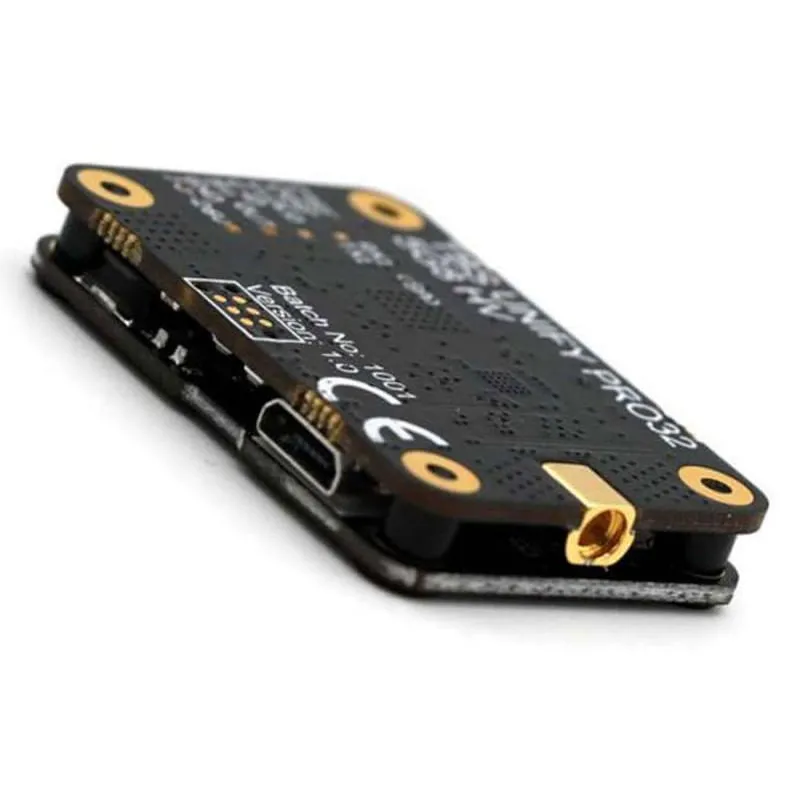

• Antenna connector: MMCX

• Control protocol: SmartAudio V2.1 (CRSF RX/TX)

• Video format: NTSC / PAL

• Dimensions: 37 x 25 x 5.8 mm

• Weight: 8.7 g (without antenna)

Because of its high output capacity, this module requires adequate airflow during flight. It is highly recommended for 5-inch freestyle quads and heavy-lift or 7-inch long-range chassis where maximum signal stability is critical.
