Hawkeye Captain X 10.2" FPV Monitor

The Hawkeye Captain X is a 10.2-inch FPV monitor with two built-in analog receivers and a DVR, made for ground stations where the pilot, spotters or spectators watch the same feed. HDMI and AV inputs let it double as a large display for other compatible video sources.

Key features

• 1024 × 600 native resolution on a 16:9 LED-backlit panel, rated at 1000 lux, with a 10 ms response time
• Dual receivers with 96 preset channels across 4.9, 5.8 and 6 GHz, eight programmable channels and a tracking mode
• Built-in DVR records to a TF card (up to 64 GB) in D1, VGA or QVGA

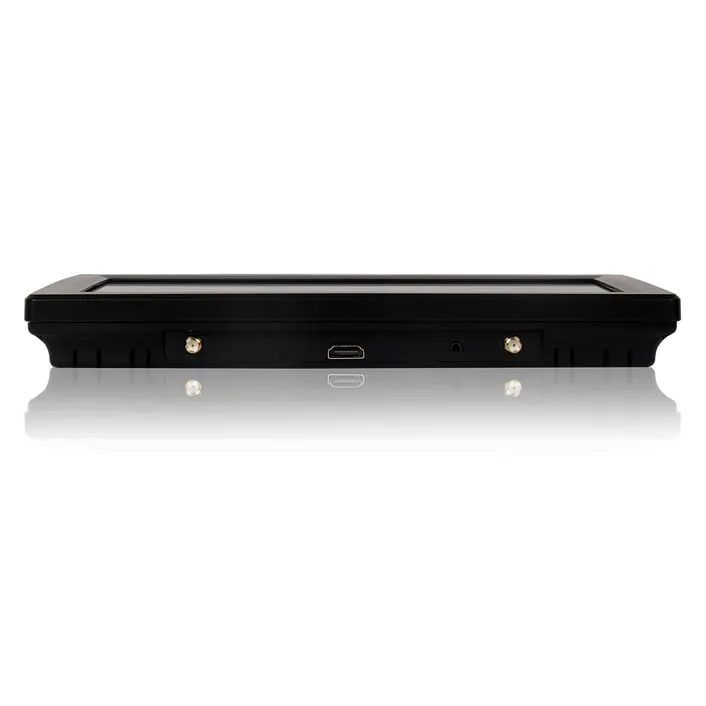

• HDMI in, AV in and AV out
• Powered from a 3–6S pack, drawing about 1 A at 3S, through the supplied XT60-to-DC lead
• Mounting bracket included

Specifications

• Screen: 10.2 in, 16:9, LED backlight
• Resolution: 1024 × 600
• Brightness: 1000 lux
• Response time: 10 ms
• Receivers: dual, 4.9 / 5.8 / 6 GHz, 96 channels
• Antenna connector: SMA
• Video standard: PAL / NTSC
• Power input: 3–6S LiPo, about 1 A at 3S
• DVR: D1 / VGA / QVGA to TF card, up to 64 GB
• Dimensions: 265 × 170 × 31 mm

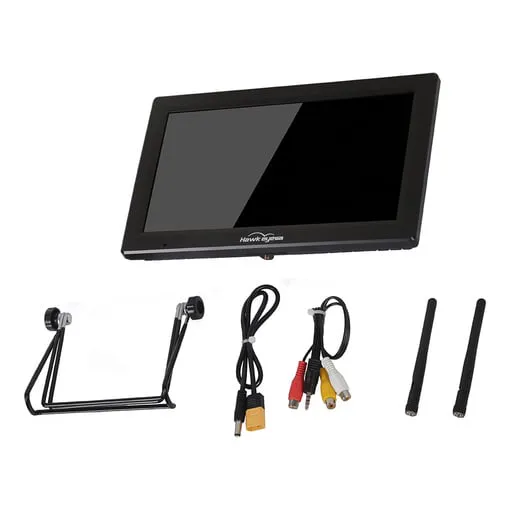

• In the box: monitor, 2 × 5.8 GHz antennas, XT60 female to DC power cable, 3.5 mm cable, bracket

Battery and TF card are not included. The built-in receivers decode analog video only, so a digital FPV feed has to come in through the HDMI input from a device that outputs it.
