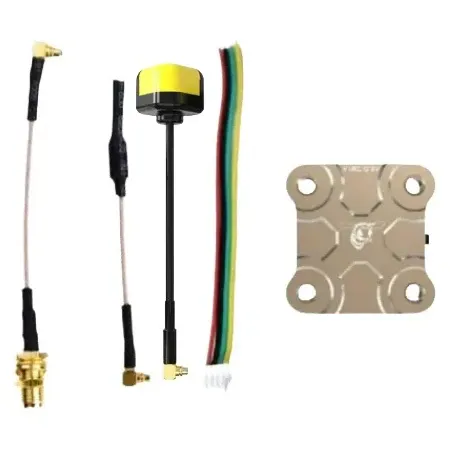

SpeedyBee TX800 5.8GHz VTX with 2.8dBi V2 Antenna

The SpeedyBee TX800 is a 5.8 GHz analog video transmitter that steps from pit mode up to 800 mW, supplied with SpeedyBee's 5.8 GHz 2.8 dBi V2 antenna. It suits 20x20 freestyle, racing, cinewhoop and longer-range analog builds that need one VTX for both bench work and long-range punch-through.

Key features

• Five output levels: PIT, 25, 200, 400 and 800 mW
• 48 channels across 6 bands, including Raceband and Low Race
• IRC Tramp control, so band, channel and power can be changed from the flight controller OSD
• Runs on 3.7-5.5 V from the flight controller's 5 V pad, not directly from the flight battery
• Removable aluminium heatsink on a 28 x 28 mm board with 20x20 mm M3 mounting
• Available in MMCX 90° or SMA connector versions

Specifications

• Frequency: 5.8 GHz, 48 channels (6 bands)
• Output power: PIT / 25 / 200 / 400 / 800 mW
• Input voltage: 3.7-5.5 V
• Control protocol: IRC Tramp
• Mounting: 20 x 20 mm, M3
• Board size: 28 x 28 mm
• Weight: 5.6 g with heatsink, without antenna
• Antenna: SpeedyBee 5.8 GHz 2.8 dBi V2 (included)
• Microphone: None

Choose the connector version that matches your frame's antenna mount. Keep the heatsink fitted and the quad moving when running 800 mW, and use pit mode or 25 mW on the bench.
