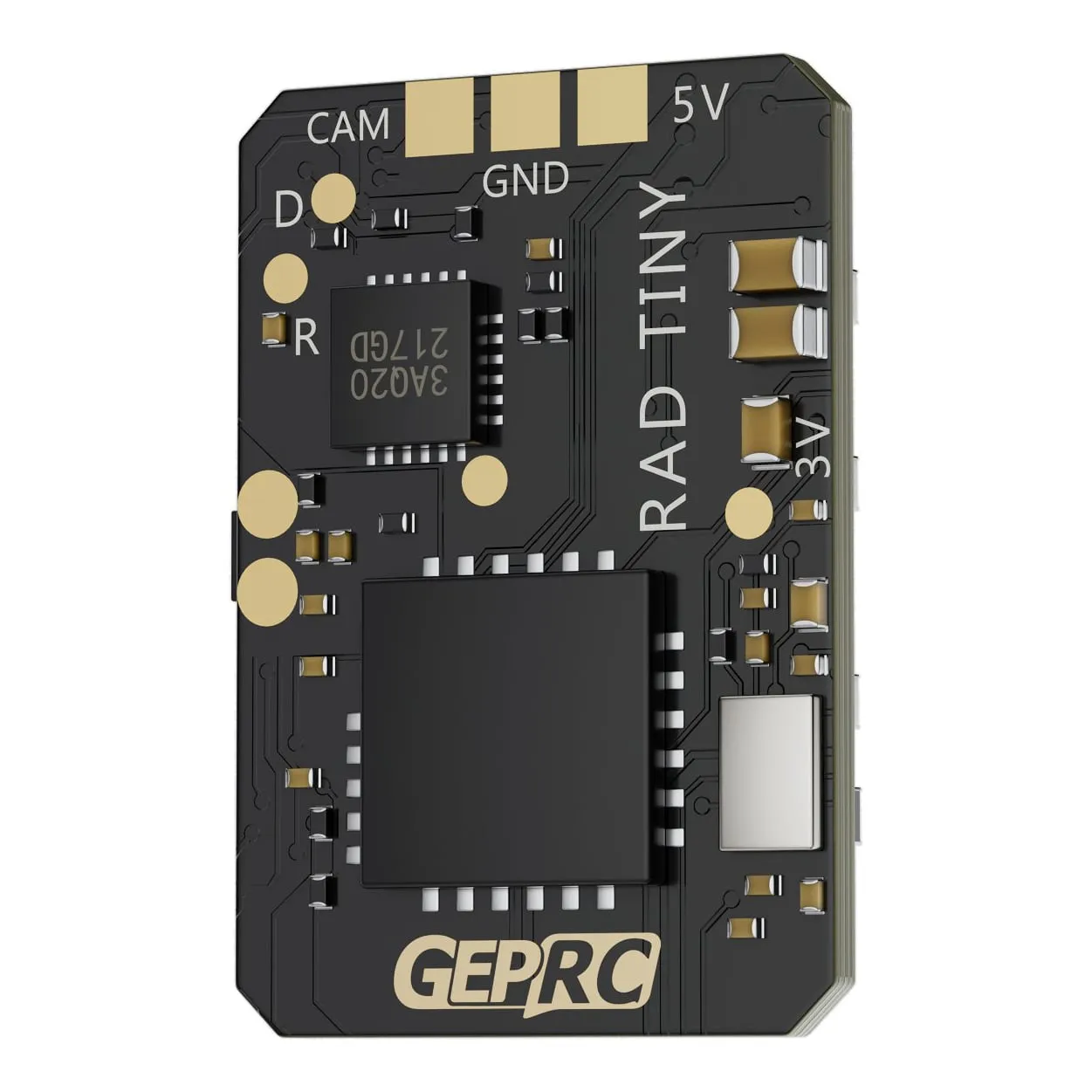

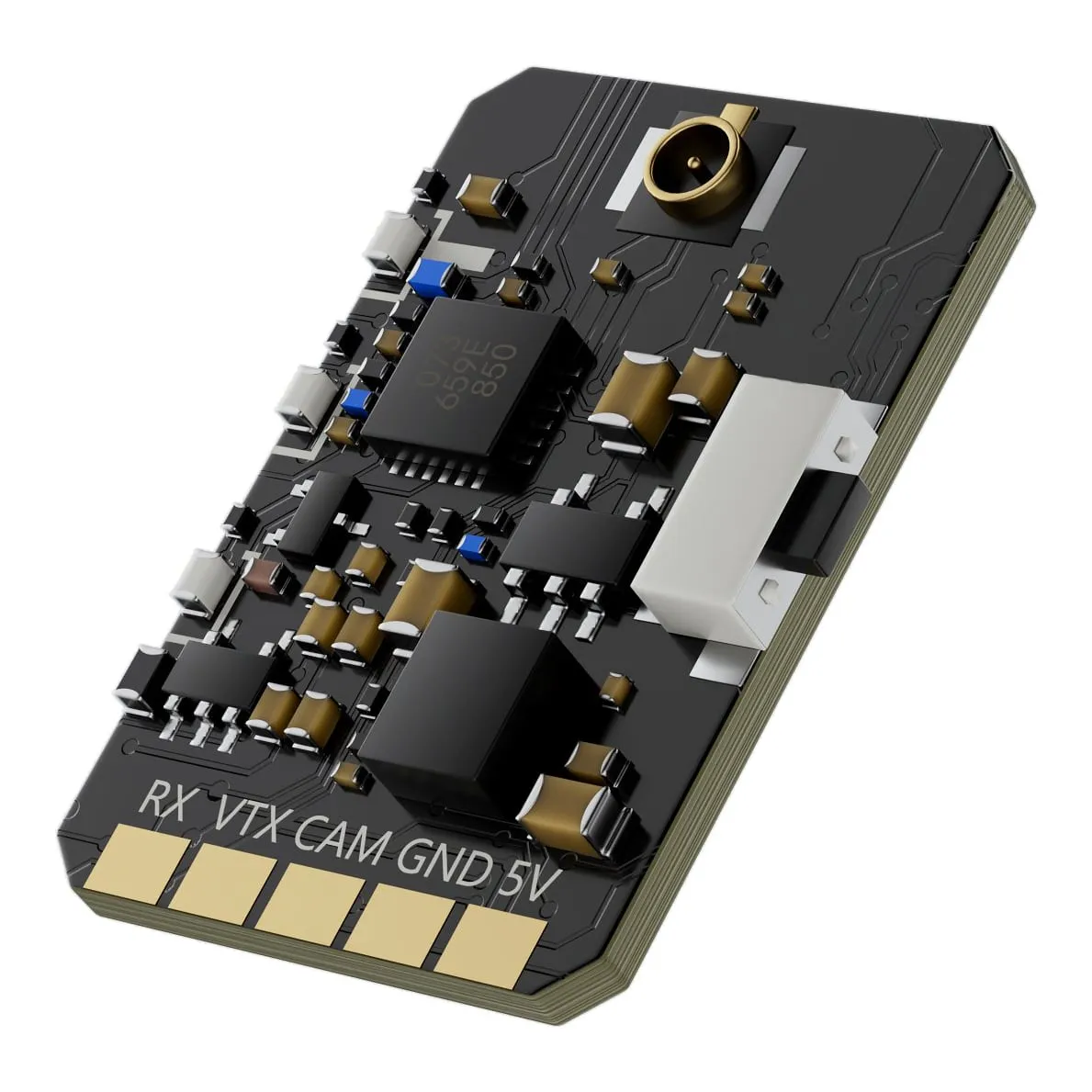

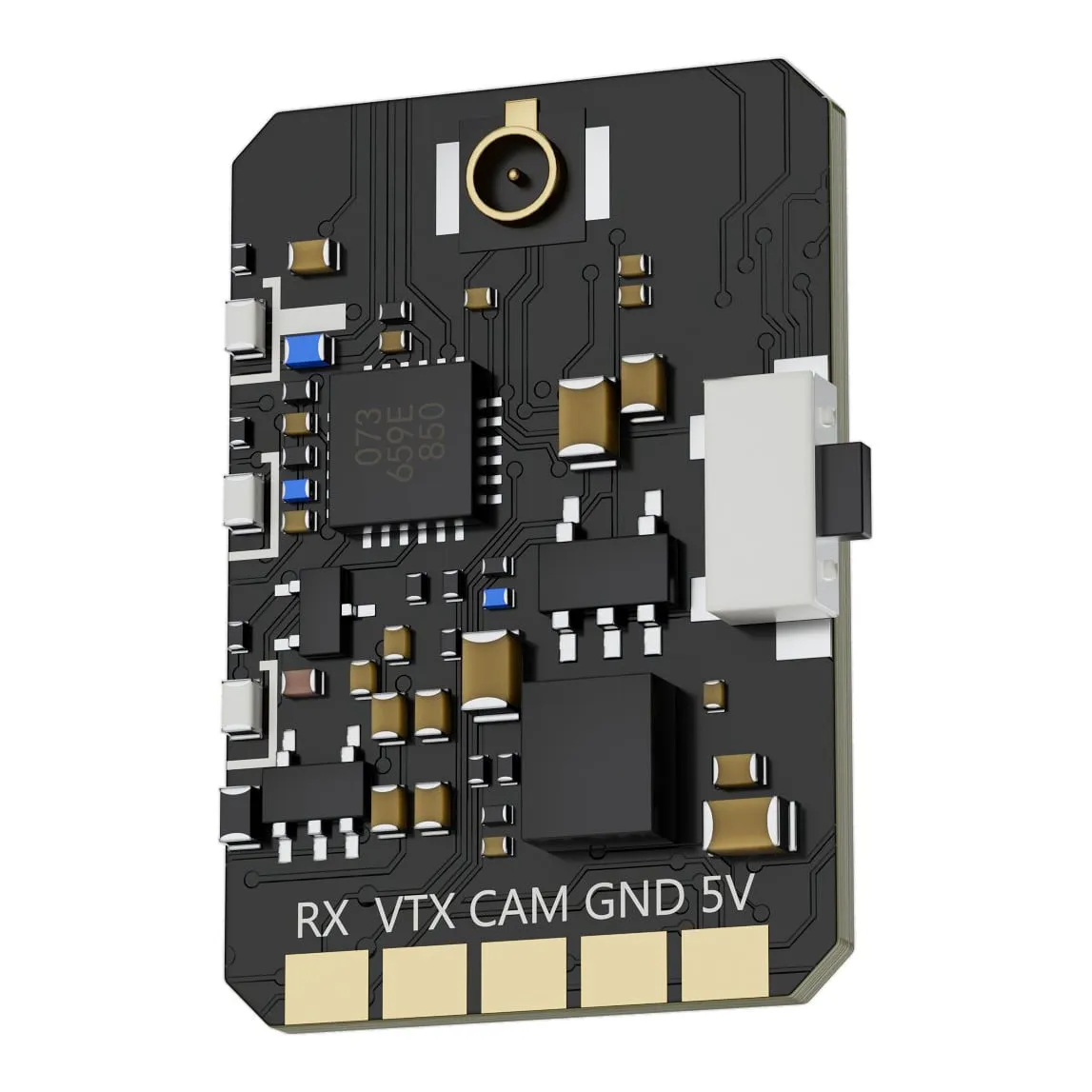

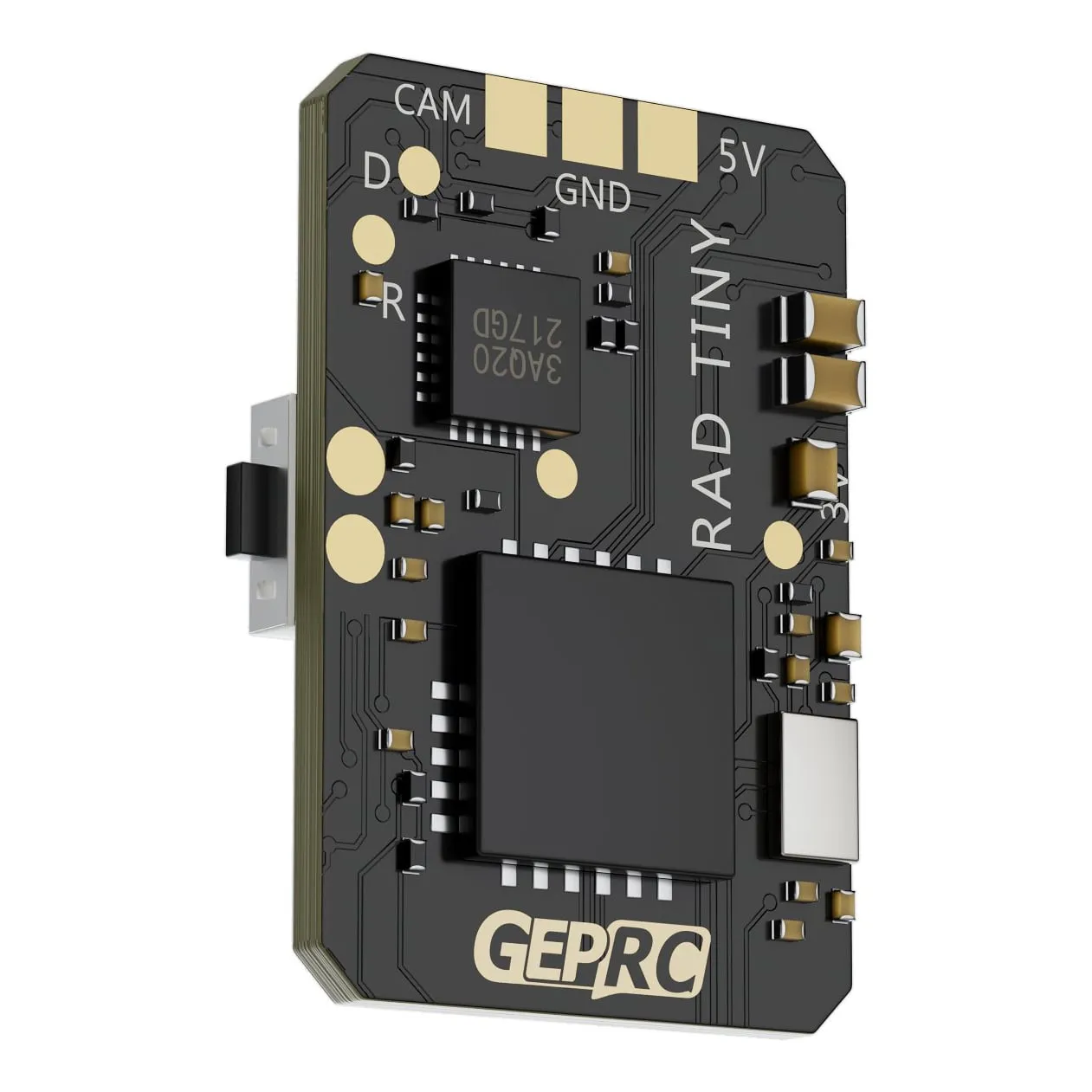

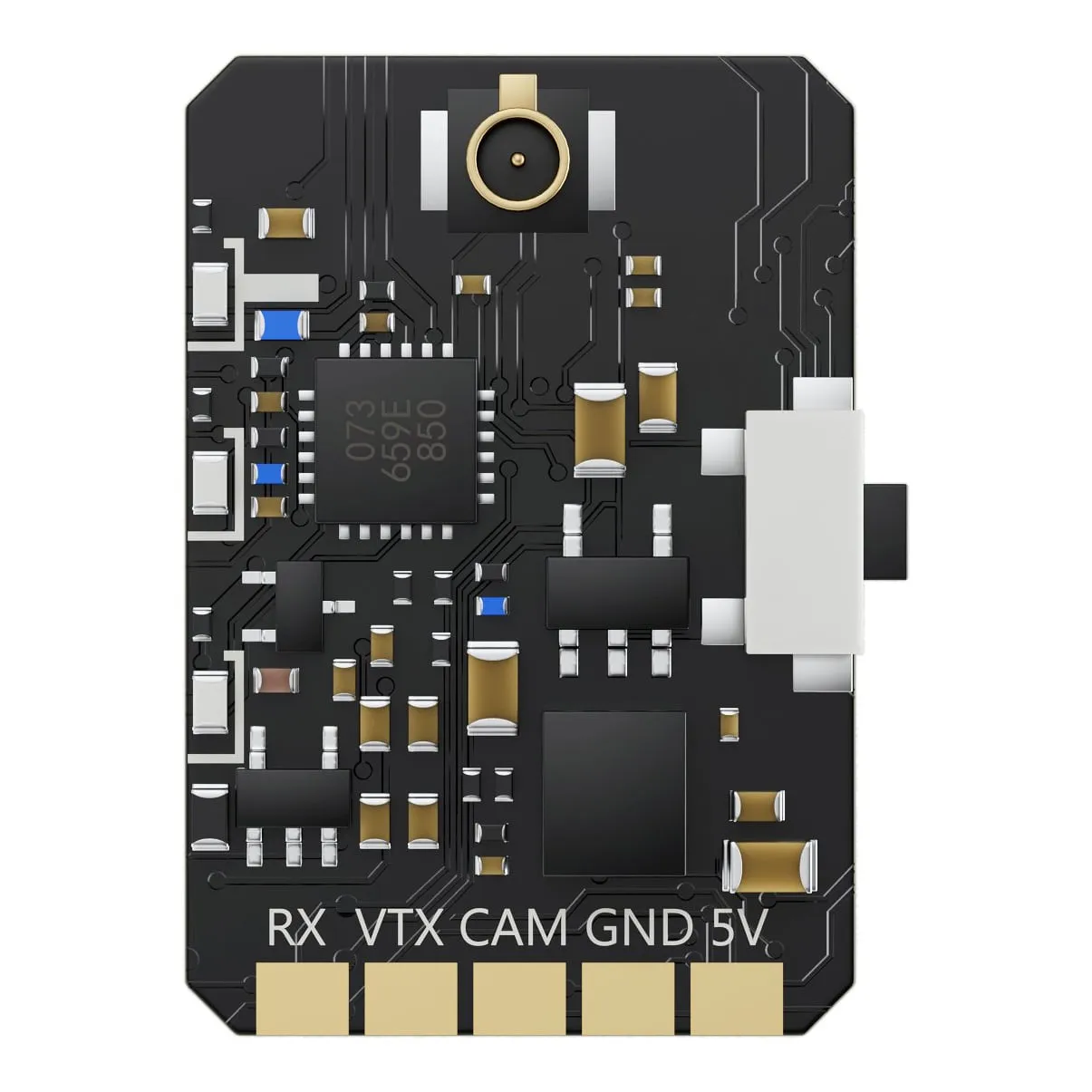

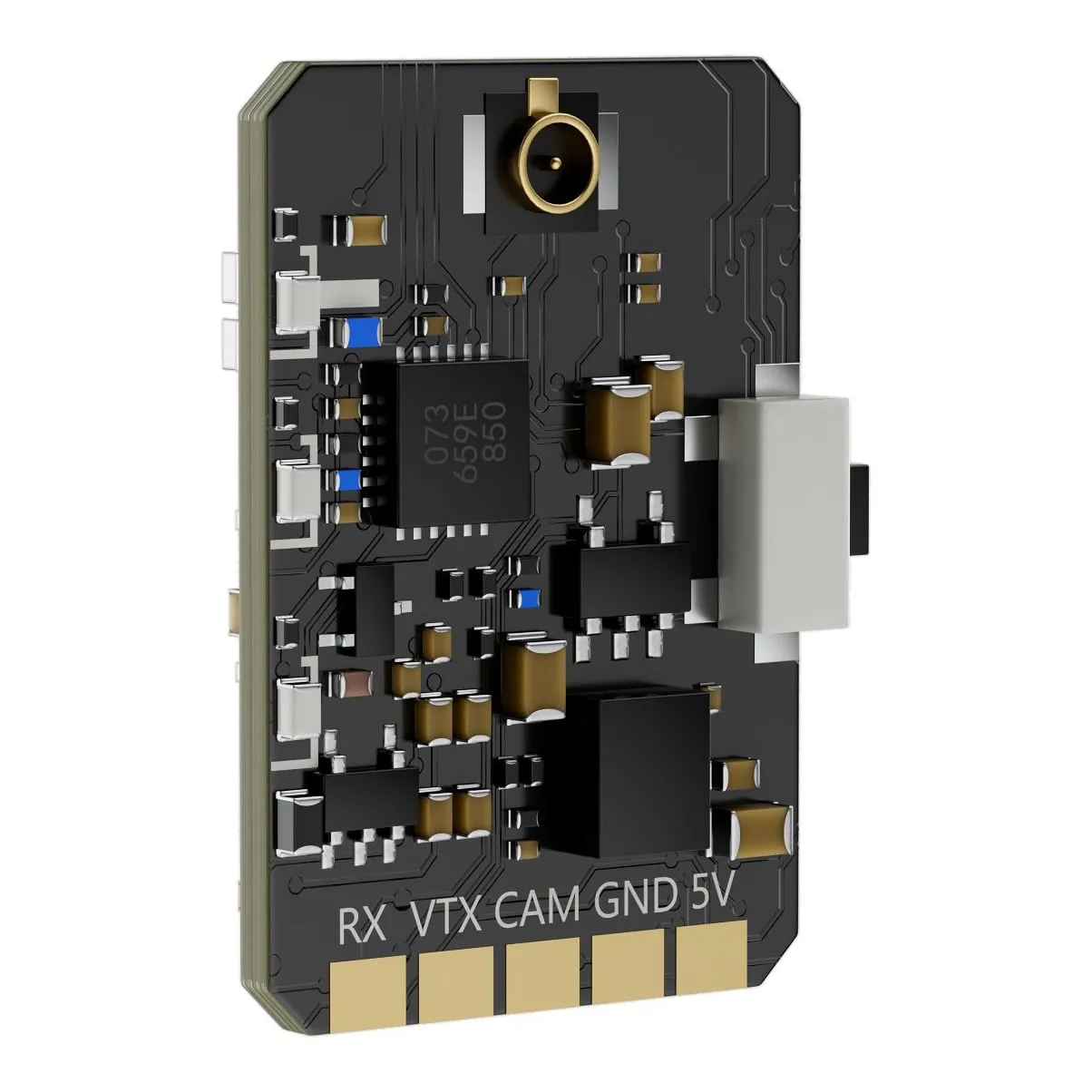

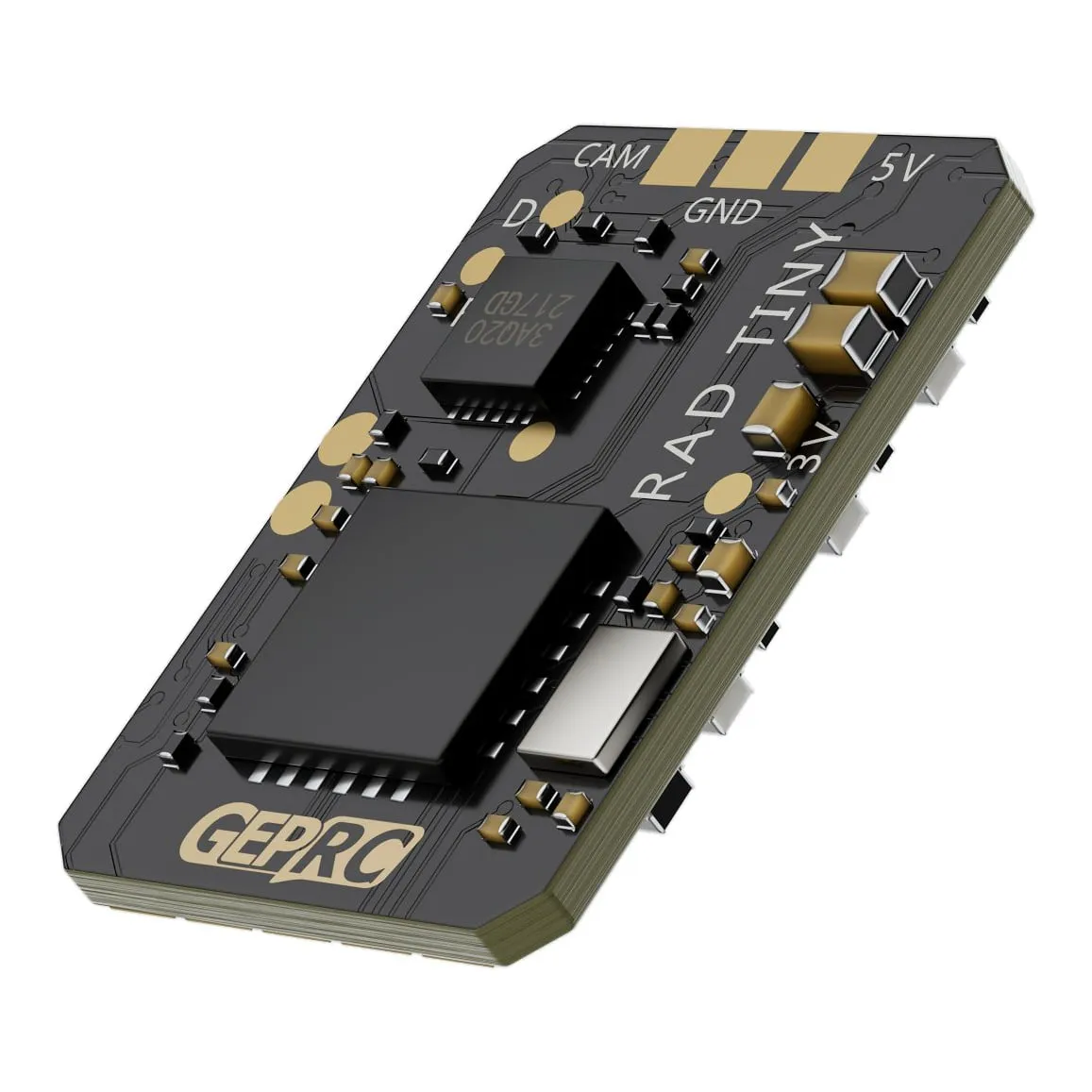

GEPRC RAD Tiny 5.8G 400mW VTX

The GEPRC RAD Tiny is an ultra-lightweight 5.8GHz analog video transmitter engineered for micro drones, whoops, and toothpick builds. Weighing just 1.1g, it scales up to 400mW of output power, giving pilots stronger video penetration through indoor walls or outdoor foliage than standard 25mW micro transmitters.

Key features

• Four adjustable power levels ranging from Pit mode up to 400mW
• Configurable via Betaflight OSD using the IRC Tramp control protocol
• Standard U.FL connector allows for easy whip or polarised antenna replacements
• Bare-board micro form factor designed to slip into tight whoop canopies

Specifications

• Input voltage: 5V
• Output power: Pit / 25mW / 200mW / 400mW
• Bands/Channels: 5.8GHz, 48CH
• Control protocol: IRC Tramp
• Antenna connector: U.FL
• Dimensions: 14x15x3 mm
• Weight: 1.1g

The RAD Tiny requires a clean 5V power supply from your flight controller's BEC to prevent video noise and sustain output at 400mW. Lacking standard mounting holes, it is best installed using double-sided tape or heat shrink tubing directly above an AIO board.
