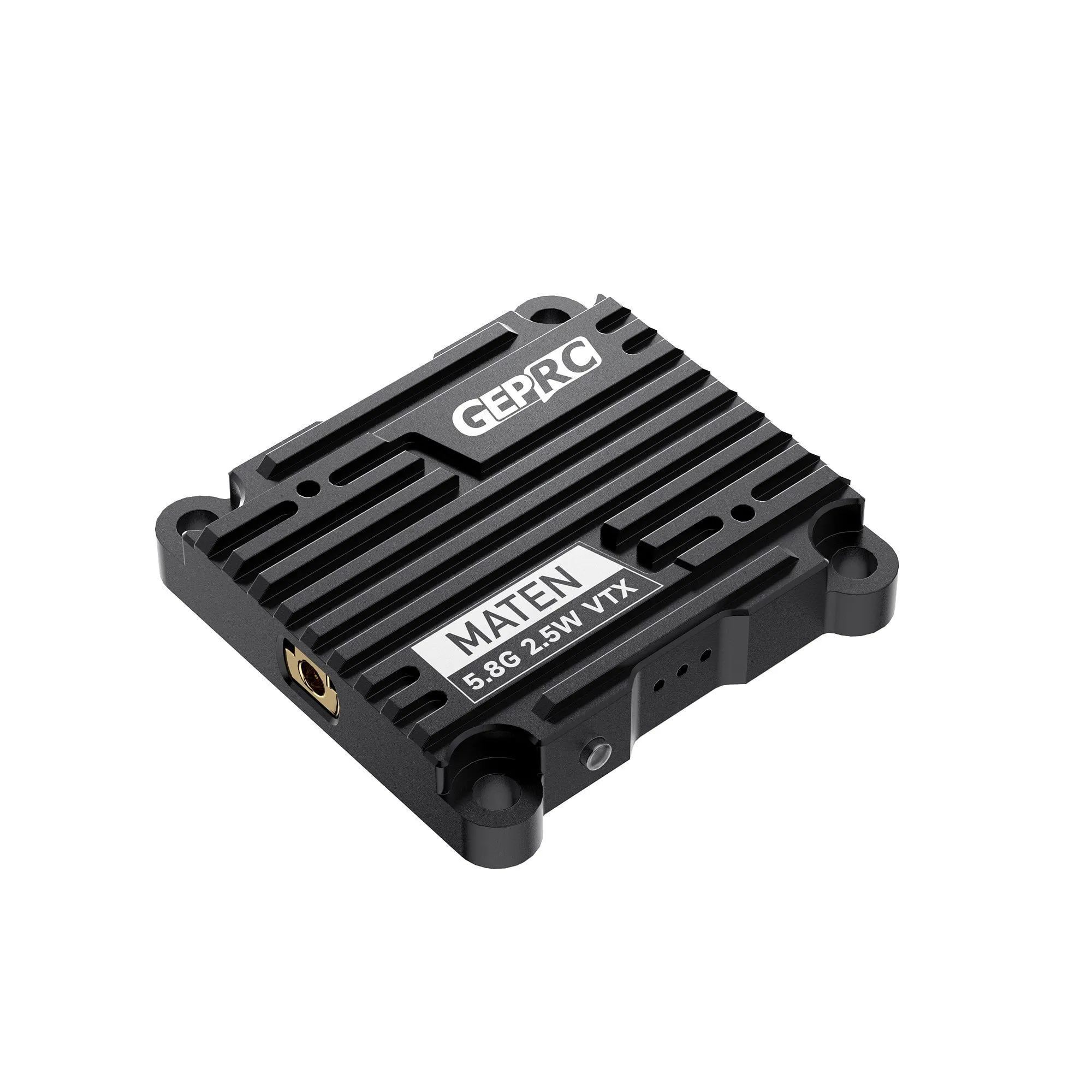

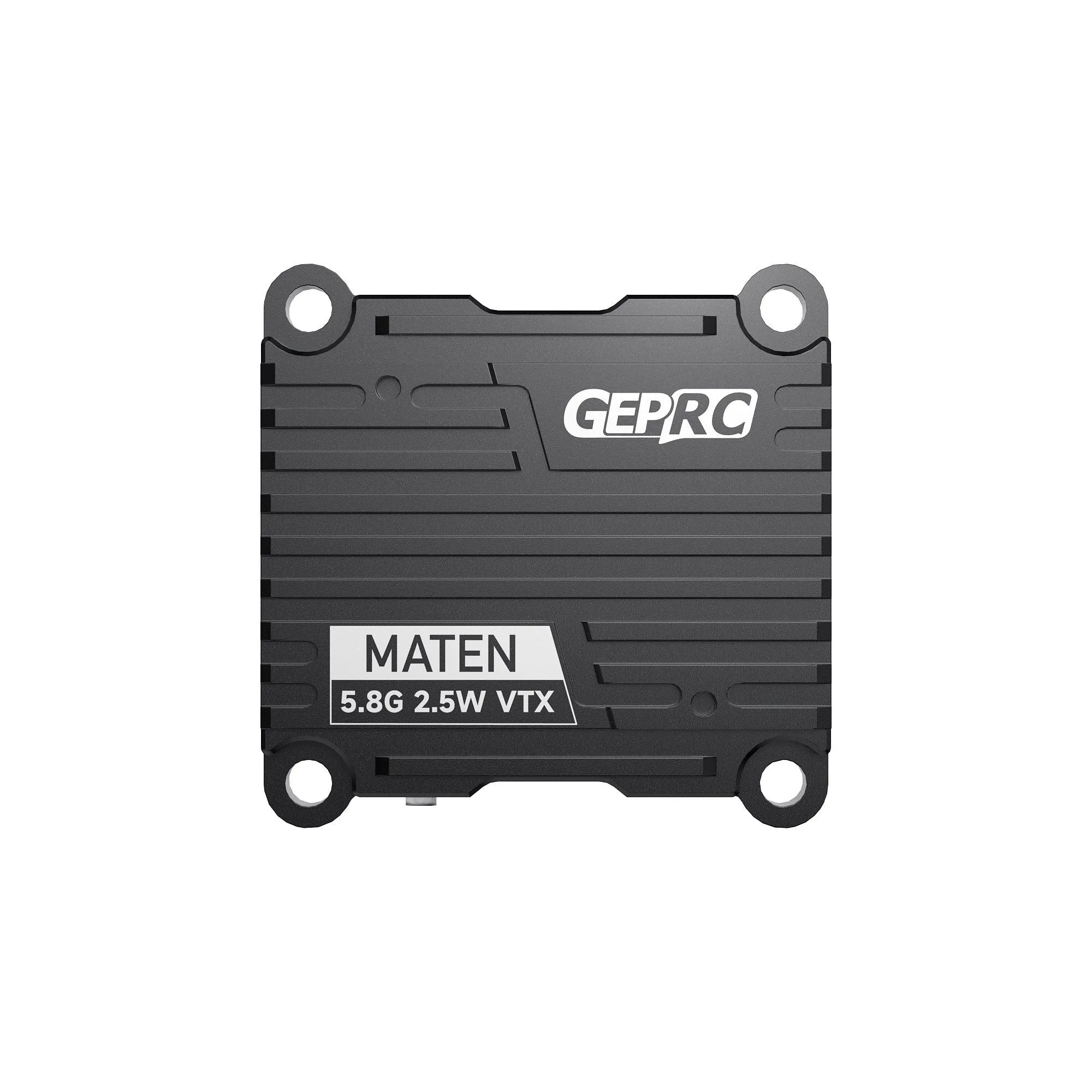

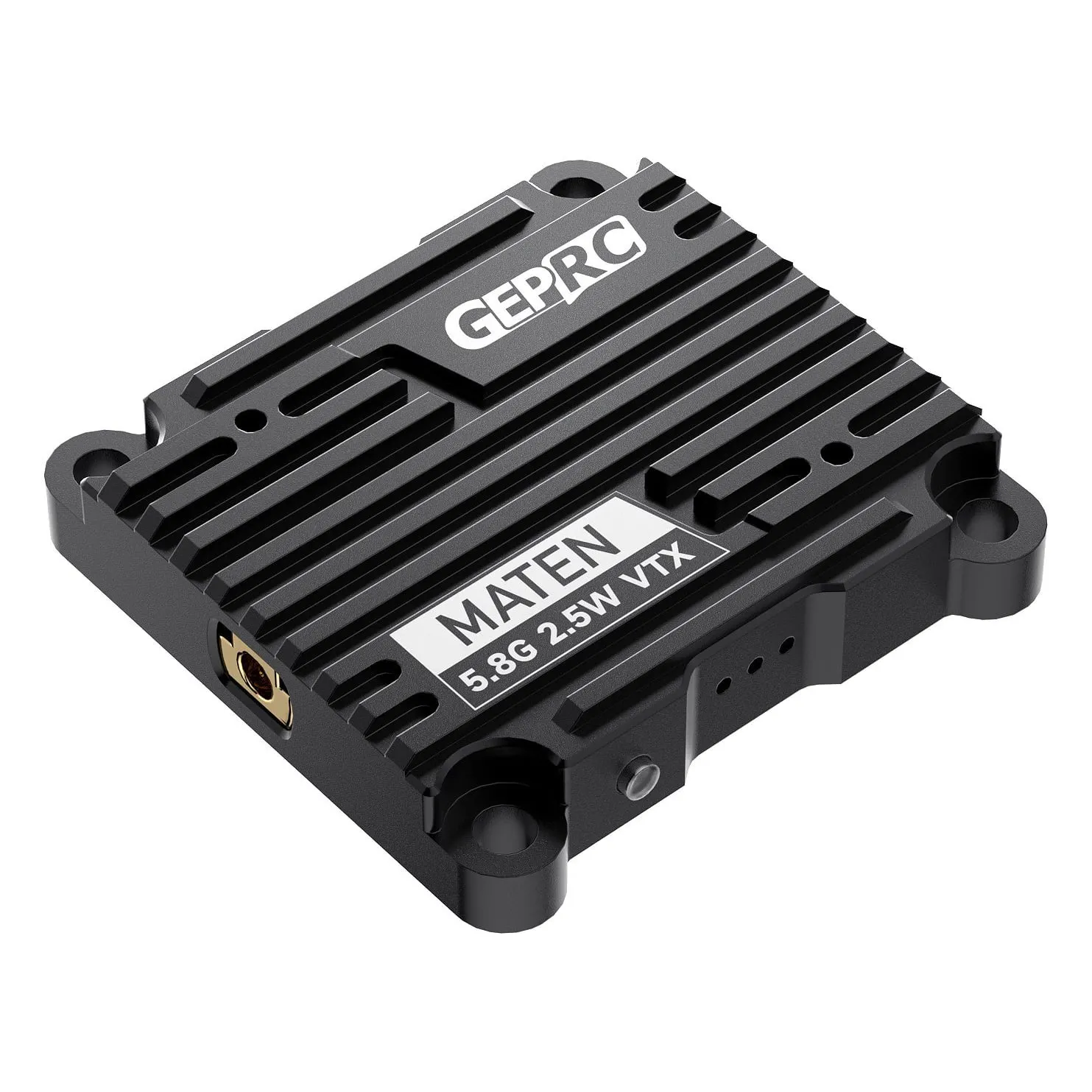

GEPRC Maten 5.8GHz 2.5W Analog VTX

The GEPRC Maten 5.8GHz 2.5W is the standard version of GEPRC's high-power analogue video transmitter for long-range and heavy-lift builds. Output is adjustable across five power levels up to 2500mW, so the same unit covers bench testing and full-range flying without swapping hardware.

Key features

• Five switchable power levels — 25mW, 200mW, 600mW, 1600mW and 2500mW — plus a pit mode
• IRC Tramp protocol support lets the flight controller's OSD adjust power and channel without touching the VTX itself
• High-strength aluminium-alloy CNC shell aids heat dissipation and adds impact resistance over a plastic case
• Wide 7–36V (2–8S) input range with temperature-control protection against overheating
• Built-in microphone for real-time audio alongside the video feed
• 72 transmission channels across the 5.8GHz band

Specifications

• Output power: Pit mode / 25 / 200 / 600 / 1600 / 2500mW
• Input voltage: DC 7–36V (2–8S)
• BEC output: 5 V, 600 mA (camera or cooling fan only)
• Mounting: 30.5 × 30.5mm (M3)
• Antenna connector: MMCX
• Cable connector: SH1.0 6-pin
• Protocol: IRC Tramp
• Video format: PAL / NTSC
• Dimensions: 36.4 x 36.4 x 7.9 mm
• Weight: 18g

This is the standard version, without the CNC heatsink and cooling fan of the Maten 2.5W VTX Pro, so it suits builds that already have good airflow over the VTX bay.
