Product details

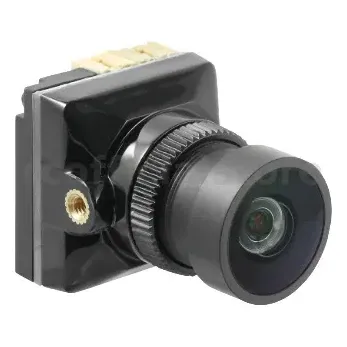

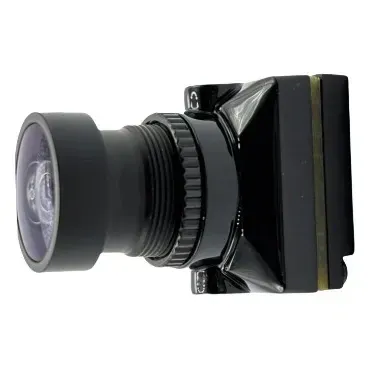

The JINJIEAN B19 Pro MAX-2 is the updated B19 Pro MAX: a 1800TVL analog FPV camera with an enhanced 1/2.8-inch starlight sensor and revised image processing for better clarity, contrast and colour in poor light. The 19 x 19 mm micro body fits standard camera mounts on racing, freestyle and long-range quads, as well as RC cars and robots.
Key features
- Enhanced starlight sensor aimed at night flying and dim indoor spaces
- Switchable CVBS or AHD output, in PAL or NTSC
- Digital WDR and 3DNR for high-contrast and low-light scenes
- DC 5-30 V input: runs from a 5 V BEC or directly from packs up to 6S without an extra regulator
- Rated for -20 °C to +70 °C operation
- About 6 g, with OSD control of brightness, contrast, WDR and exposure
Specifications
- Sensor: 1/2.8" starlight (enhanced version)
- Resolution: 1800TVL
- Lens: 2.1 mm wide-angle
- Video output: CVBS / AHD
- Video standard: PAL / NTSC switchable
- Power input: DC 5-30 V
- Operating temperature: -20 to +70 °C
- Size: 19 x 19 mm
- Weight: approx. 6 g
Use CVBS output with a normal analog VTX and goggles; AHD is for a wired AHD recorder or monitor. Choose the MAX-2 over the original Pro MAX for the newer sensor revision; both share the same 19 mm mounting.
| Camera Size | 19mm |
|---|---|
| FPV System | Analog |
| Made in India | No |
| Brand | JINJIEAN |
| Sensor Size | 1/2.8" |
| Weight | 6 g |
