AtomRC High-Resolution Digital Wide Angle Range Gimbal (3D Printed)

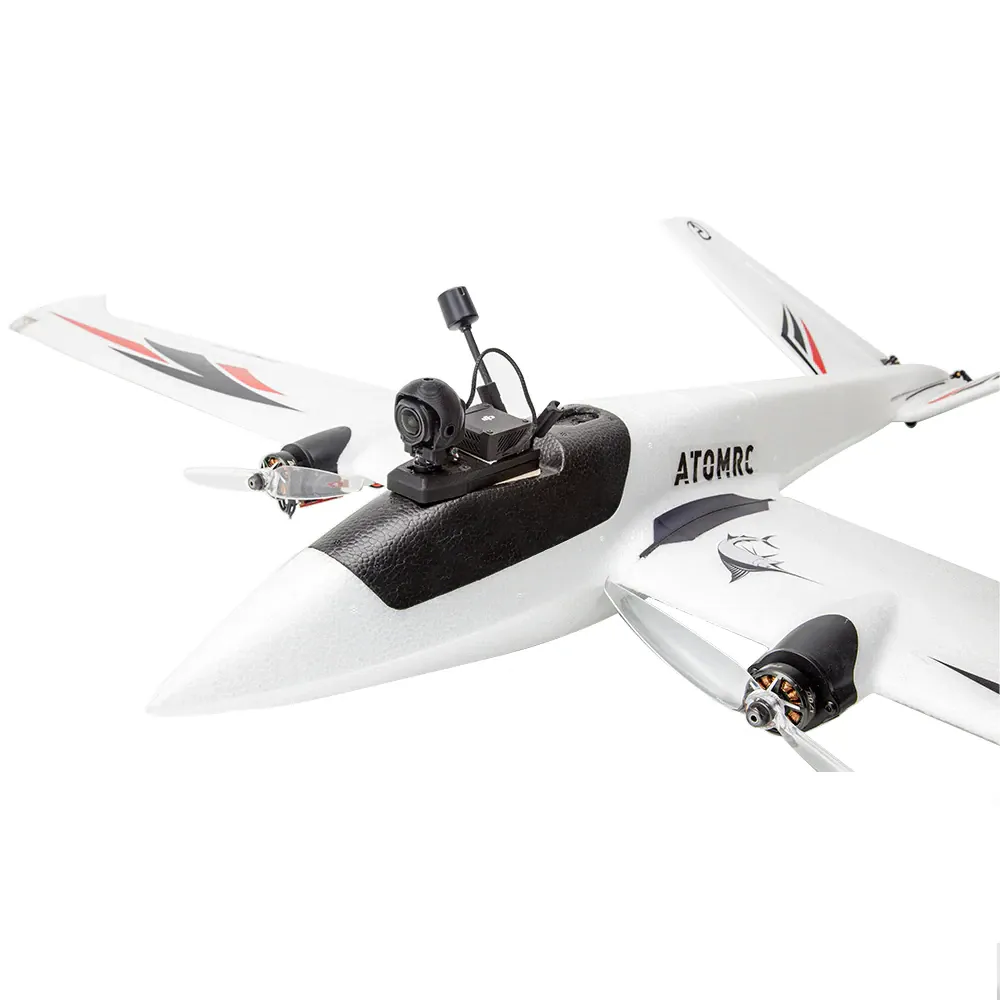

The ATOMRC 3D-Printed Digital Gimbal brings immersive head-tracking capabilities to fixed-wing FPV aircraft. Built around high-resolution digital servos, this mount ensures smooth, jitter-free camera movement, giving pilots a sweeping view of their surroundings without stepping or twitching the footage. It is tailored for modern digital FPV camera formats and mounts directly to standard plane canopies or payload hatches.

Key features

• Available in single-axis (Pan) or dual-axis (Pan + Tilt) configurations to match your head-tracking radio capabilities.

• Driven by high-resolution digital servos for precise, wide-angle camera articulation.

• Lightweight 3D-printed housing adds minimal weight and aerodynamic drag to your aircraft's nose.

• Designed to accommodate and securely grip standard micro-sized digital FPV cameras.

Specifications

• Housing material: 3D-printed thermoplastic

• Servo type: High-resolution digital

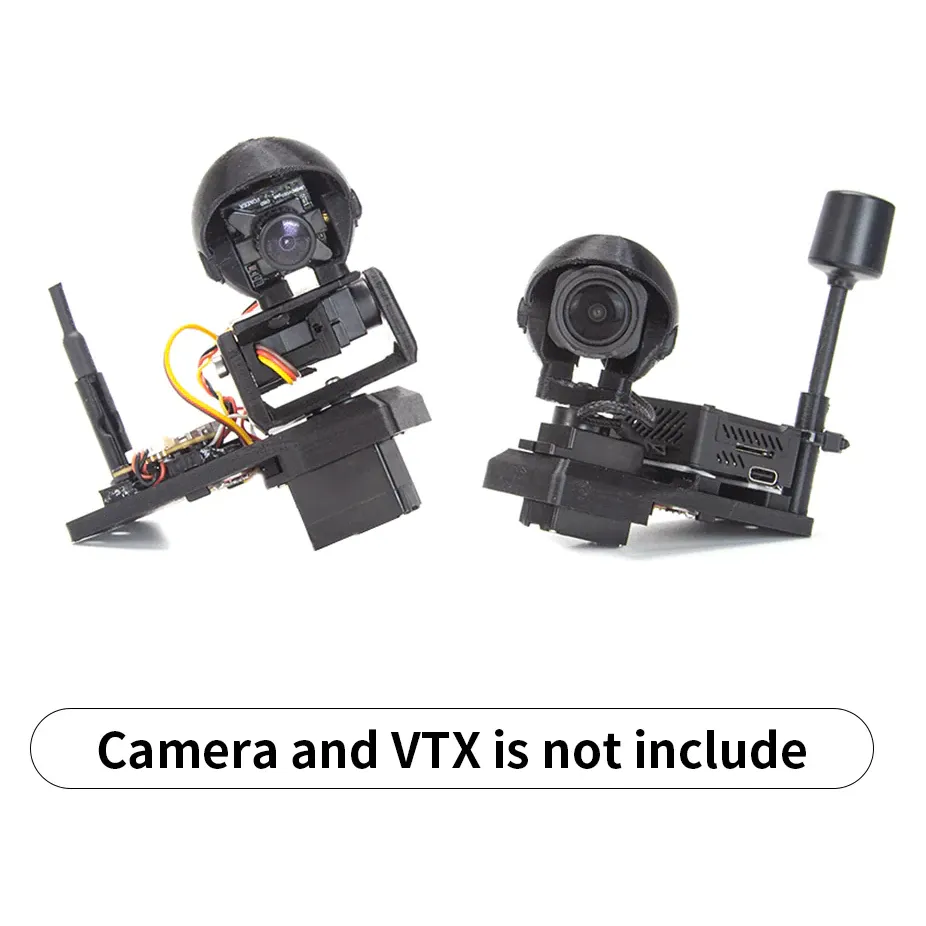

• Configurations: Pan (1-axis) / Pan+Tilt (2-axis)

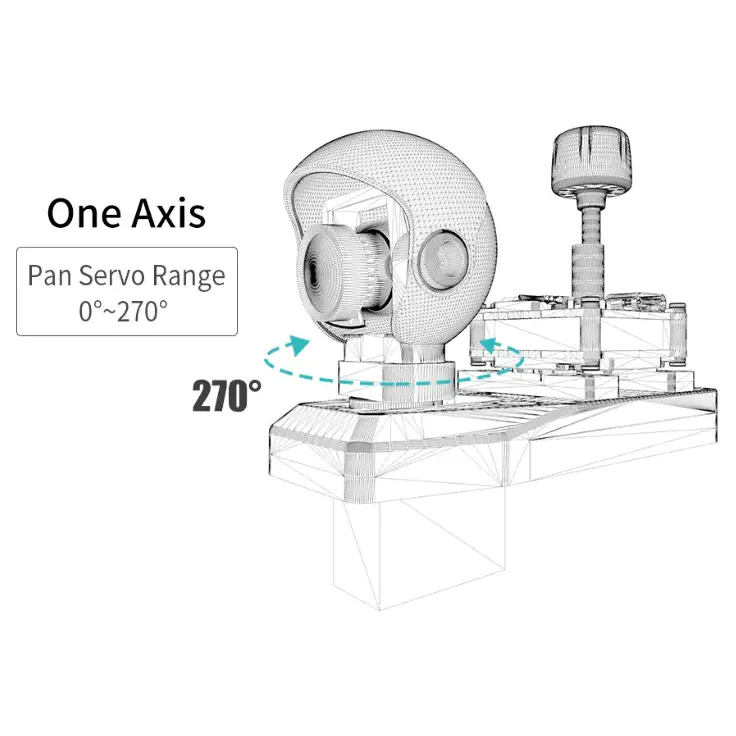

• Pan servo: ATOMRC S09P 9 g servo, 270-degree travel

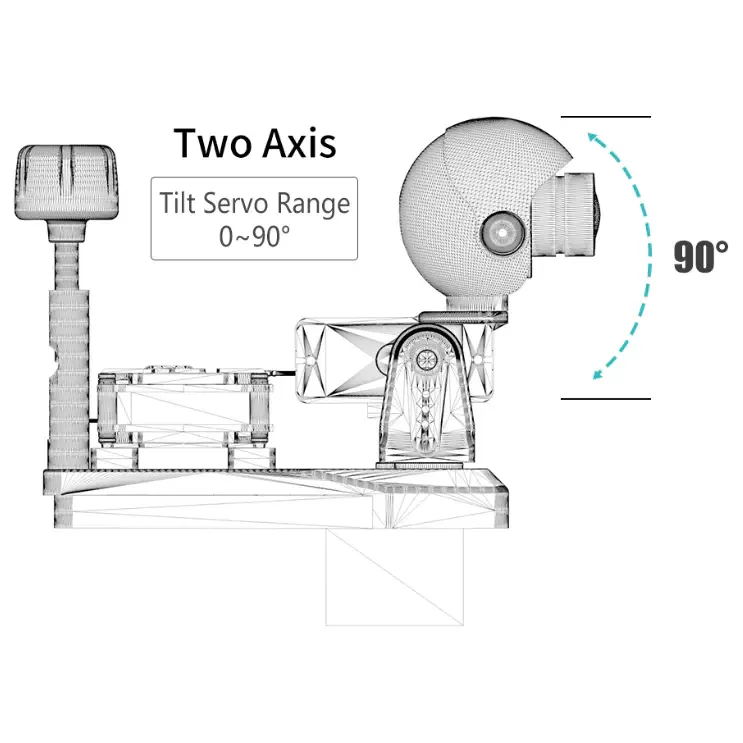

• Tilt servo (2-axis version): ATOMRC S09P 9 g servo, 90-degree travel

• Mounting: quick-release design with two bottom bases, so one gimbal and air unit can move between aircraft

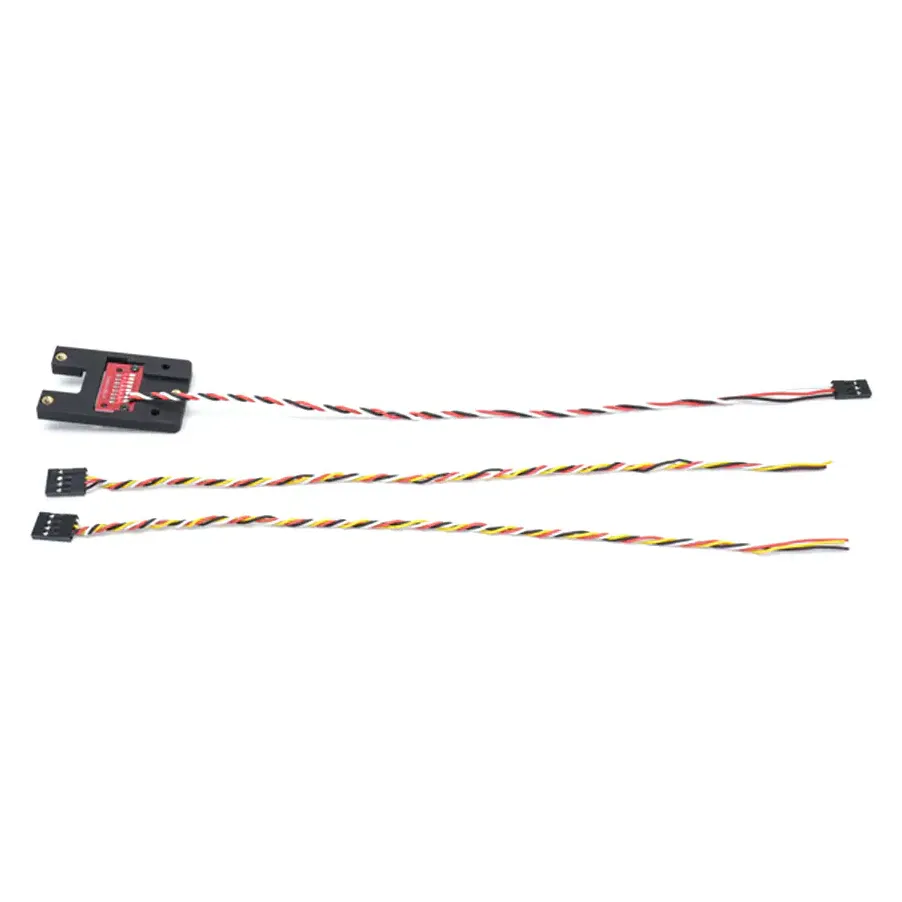

• In the box: 3D-printed gimbal, 2 bottom bases, screw set, servo(s), 2 x 4-pin DuPont cables, 2 x 3-pin DuPont cables (3 on the 2-axis version)

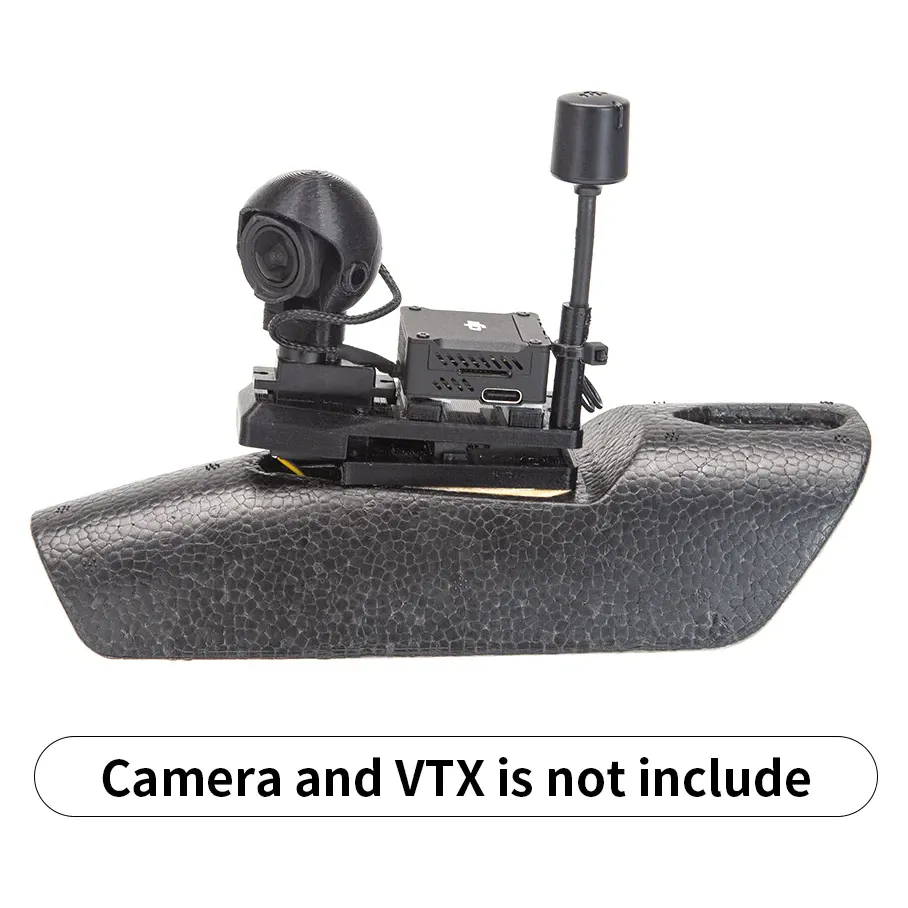

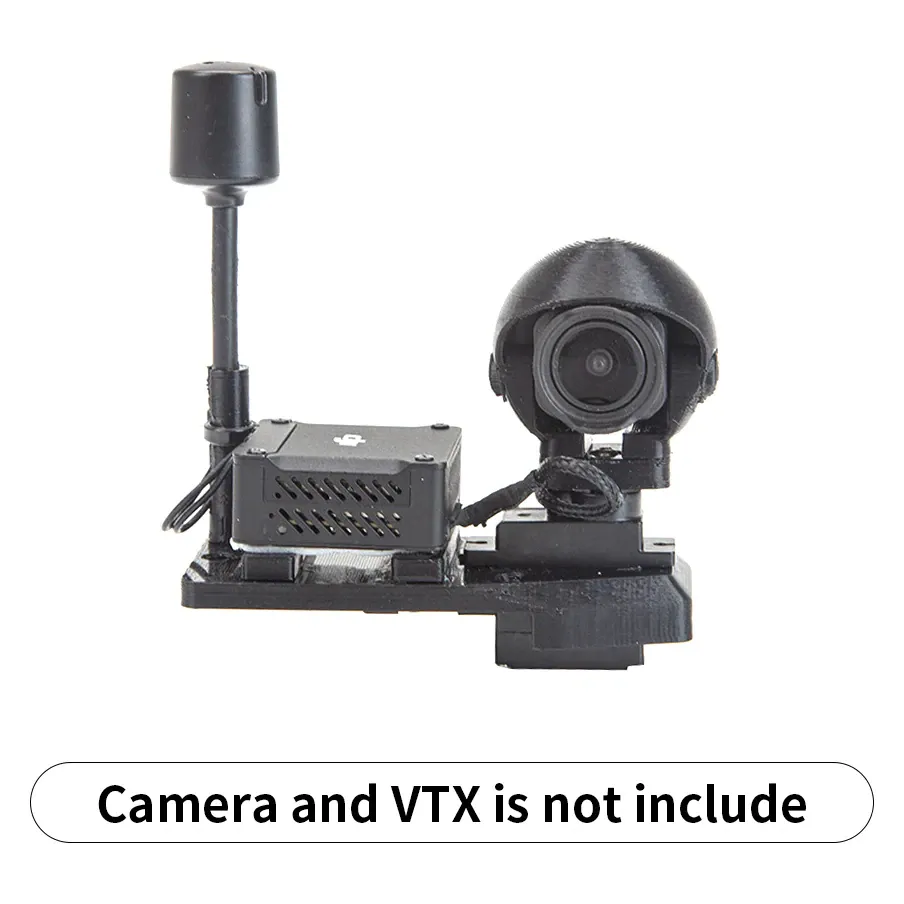

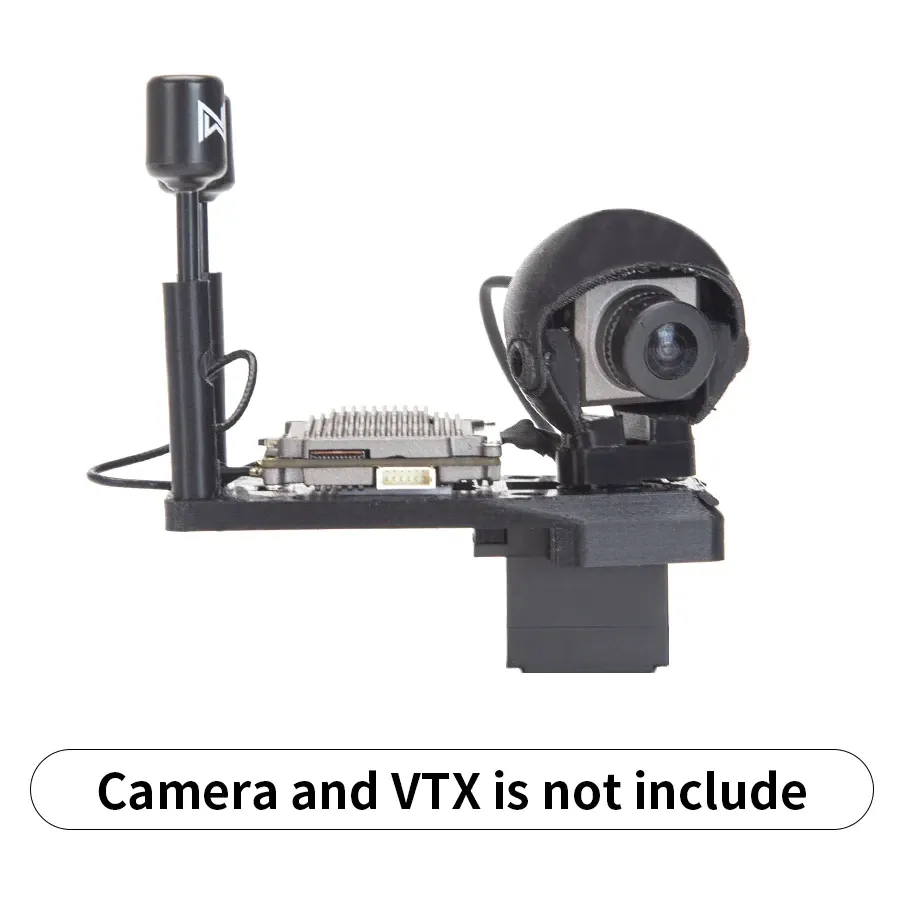

• Not included: digital air unit (camera and VTX) and aircraft

Pair this gimbal with a head-tracking capable radio and FPV goggles to drastically improve situational awareness during proximity fixed-wing flights.
