20A 3.0V-30V PWM Remote Control Electronic Switch

₹469Incl. GST

SKU GEN-PWM-SWITCH-20A-30V

Made in India: NoBrand: GenericProduct Type: SwitchWeight: 5 g
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

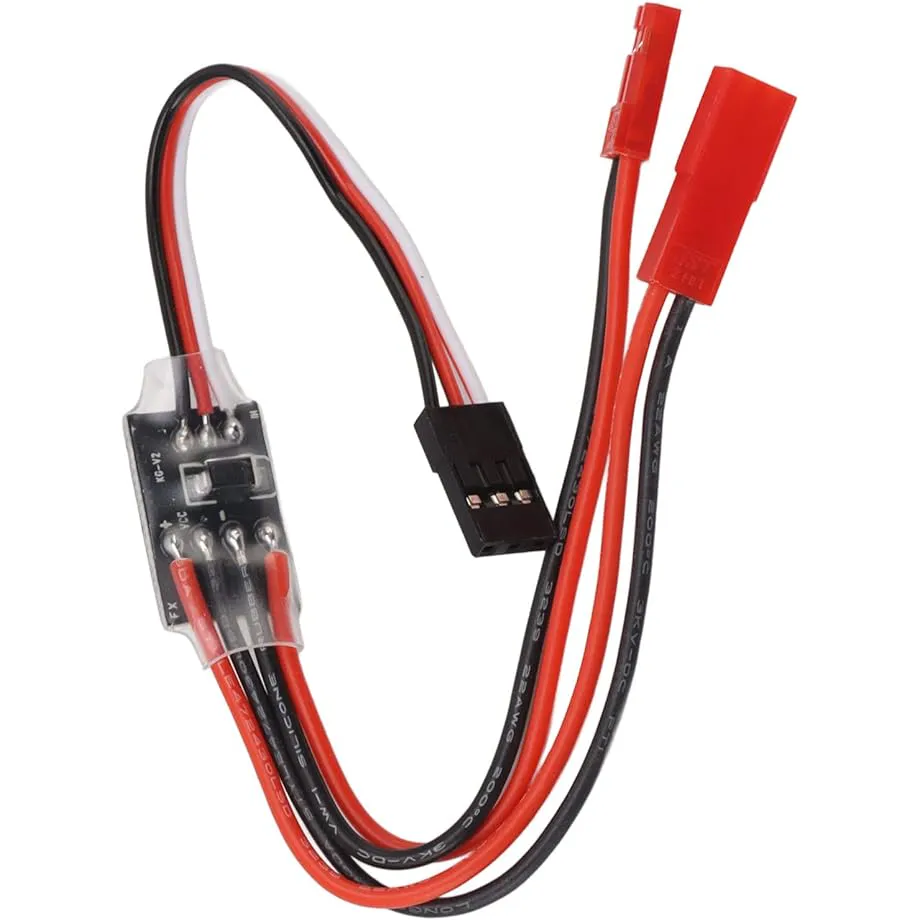

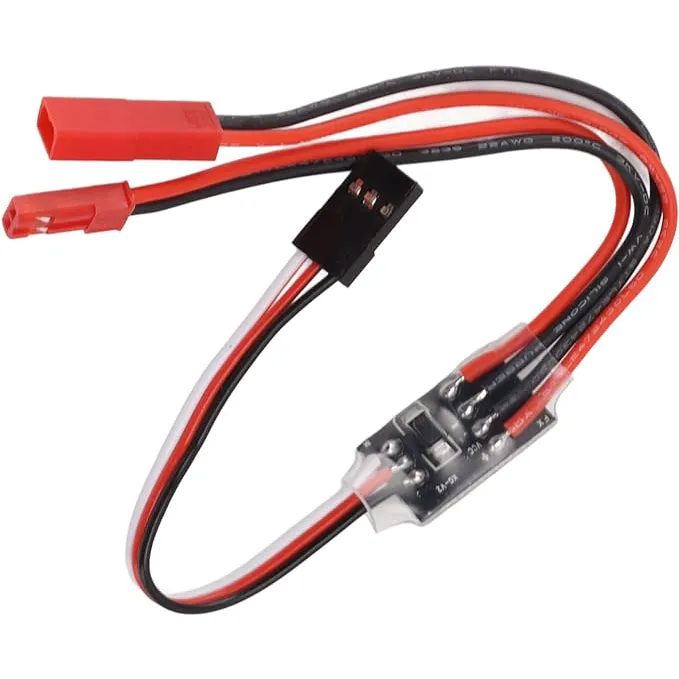

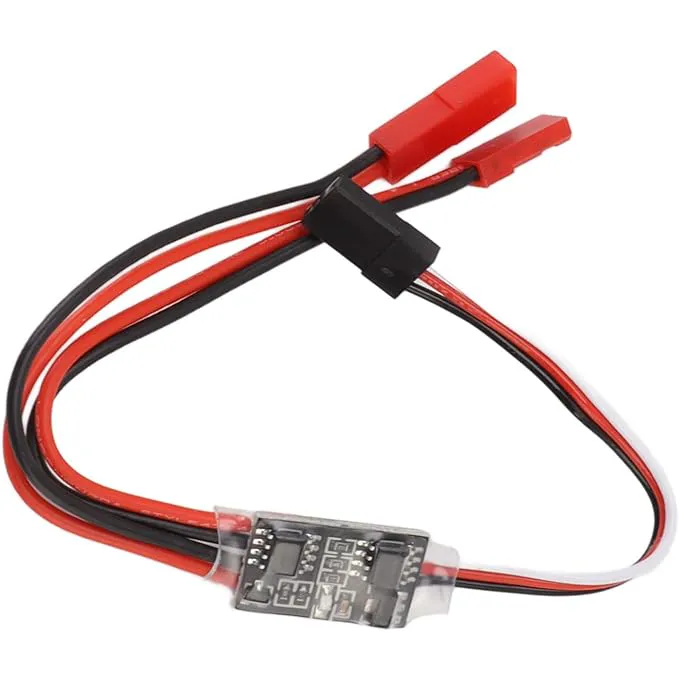

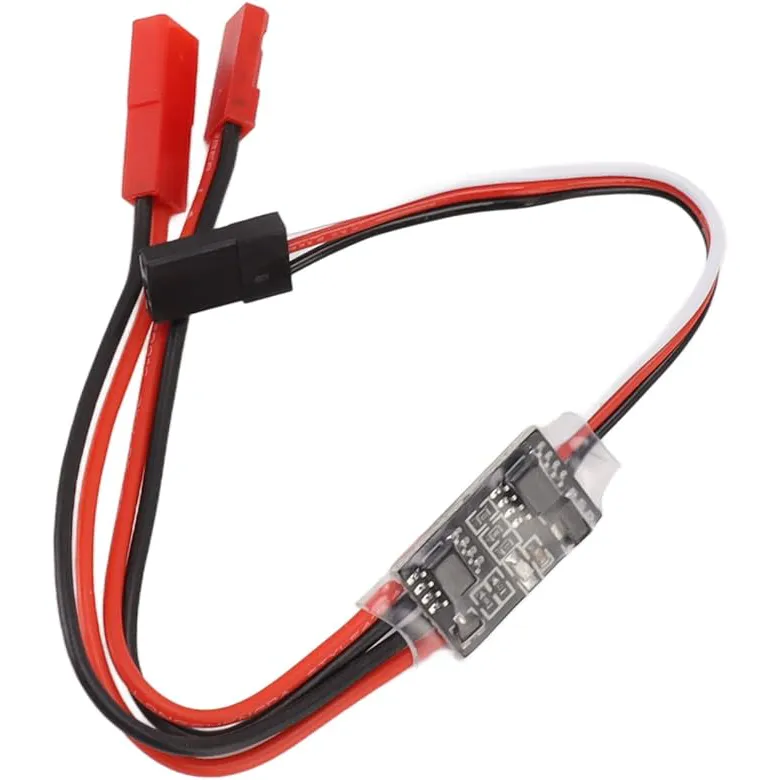

A tiny PWM-triggered electronic switch that turns a 3–30 V load on and off from a spare receiver channel. Plug it into the receiver, assign that channel to a two-position switch on your transmitter, and it can fire lights, pumps, buzzers, release mechanisms and other payload electronics on drones, planes and plant-protection rigs.

Key features

  • Switches loads up to 20 A across a 3–30 V supply, so it runs straight off 2S to 6S packs
  • Positive-side switching: output on above a 1.5 ms pulse, off below
  • No calibration; works with standard PWM receiver channels across radio brands
  • Status LED: slow flash means output off, steady light means output on
  • About 5 g, small enough to tuck in beside the receiver

Specifications

  • Operating voltage: 3.0–30 V DC
  • Output current: 20 A
  • Control signal: PWM — on above 1.5 ms, off below 1.5 ms
  • Switching: positive (high side)
  • Indicator: LED, slow flash off / steady on
  • Weight: approx. 5 g (7 g packed)

It needs a PWM signal, so with an SBUS or CRSF receiver use a free PWM output or a flight-controller servo output. For loads near the 20 A limit, use wiring and connectors rated for that current.
