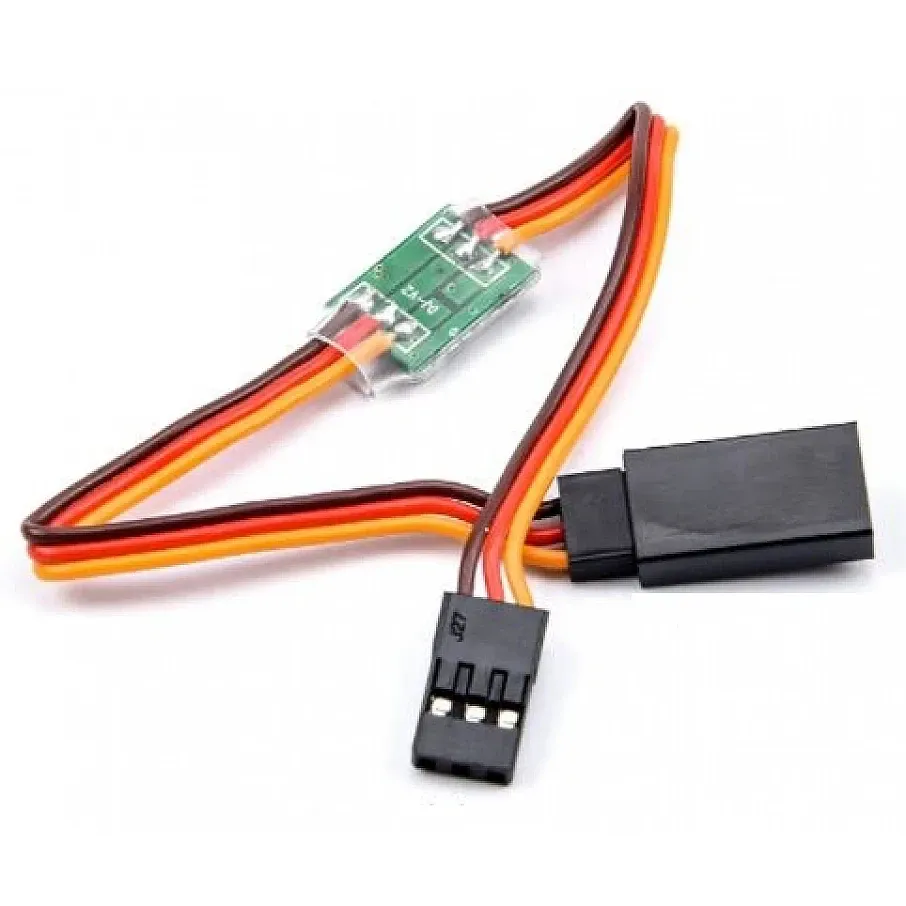

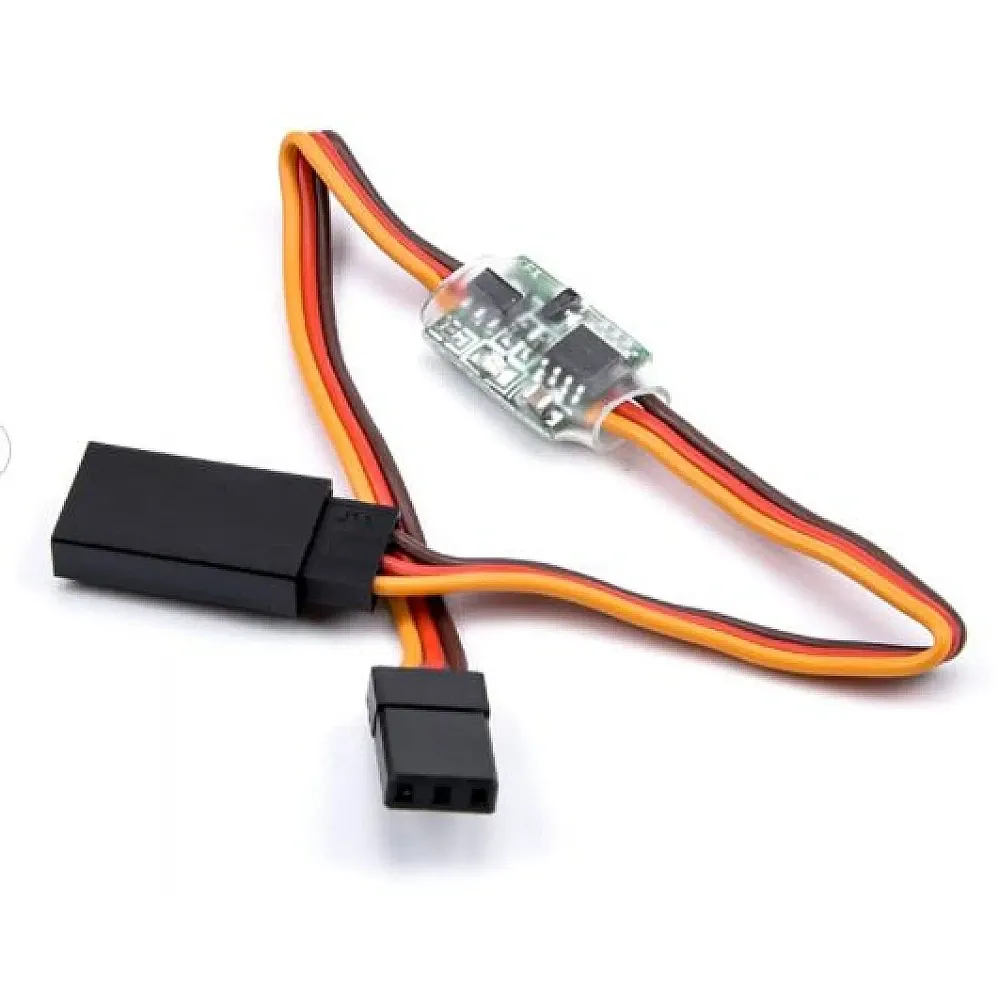

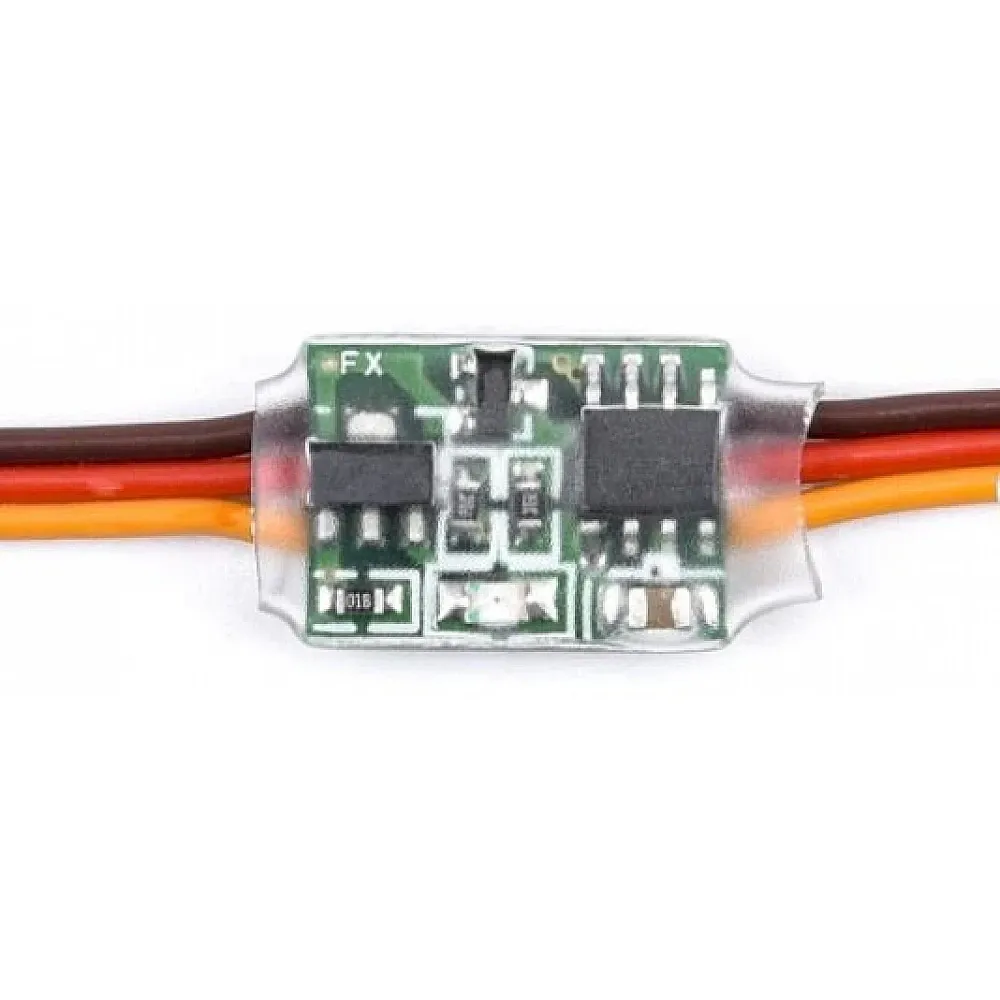

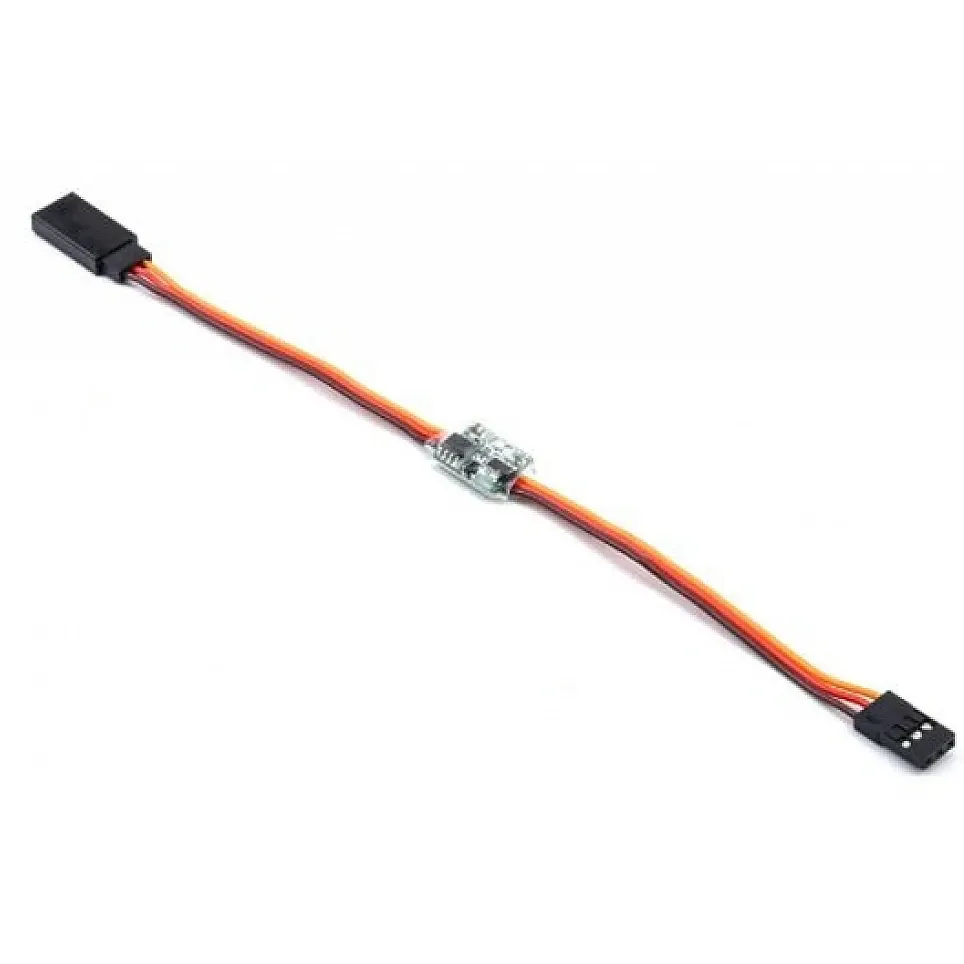

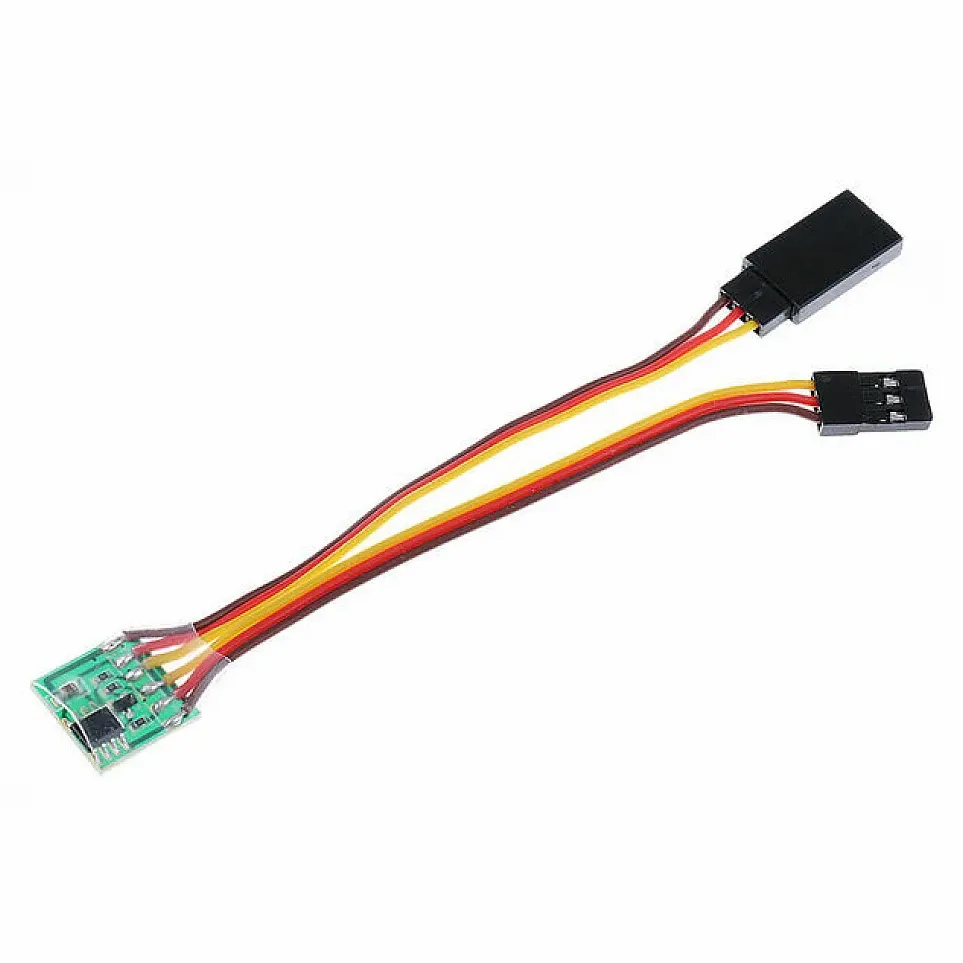

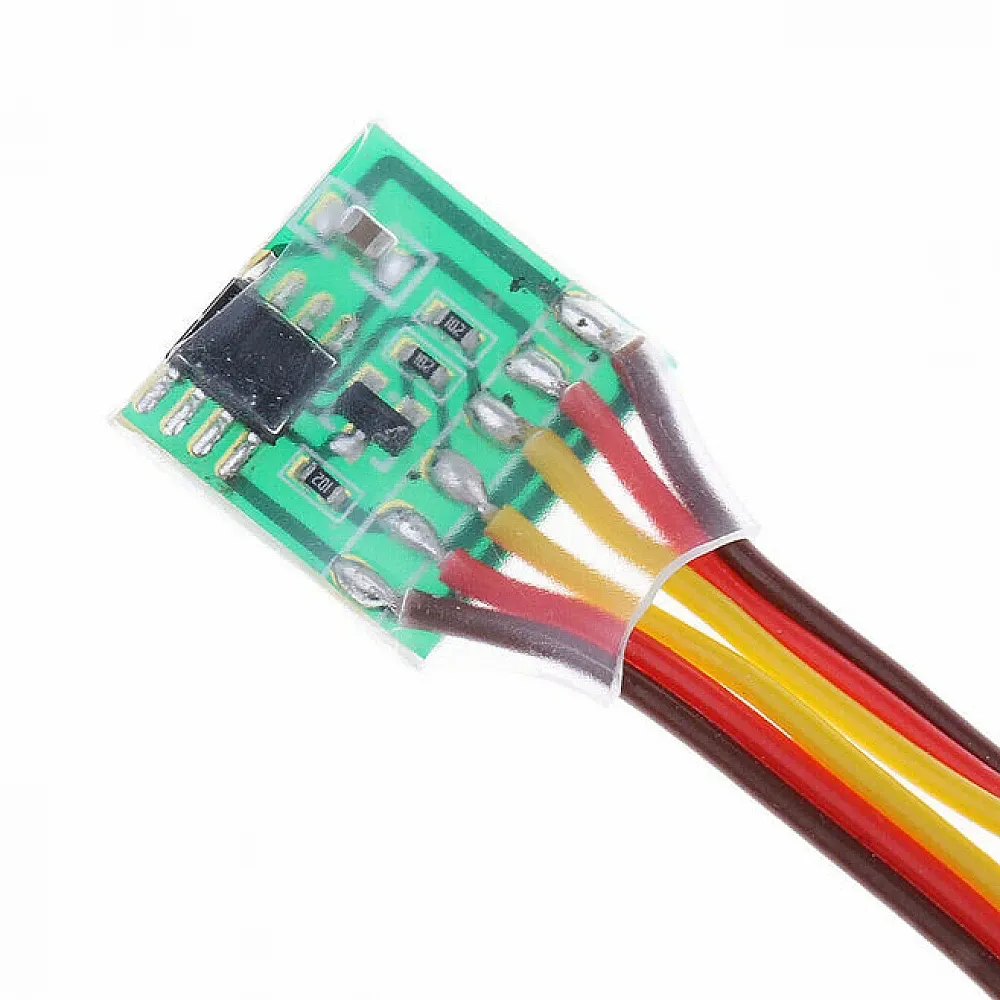

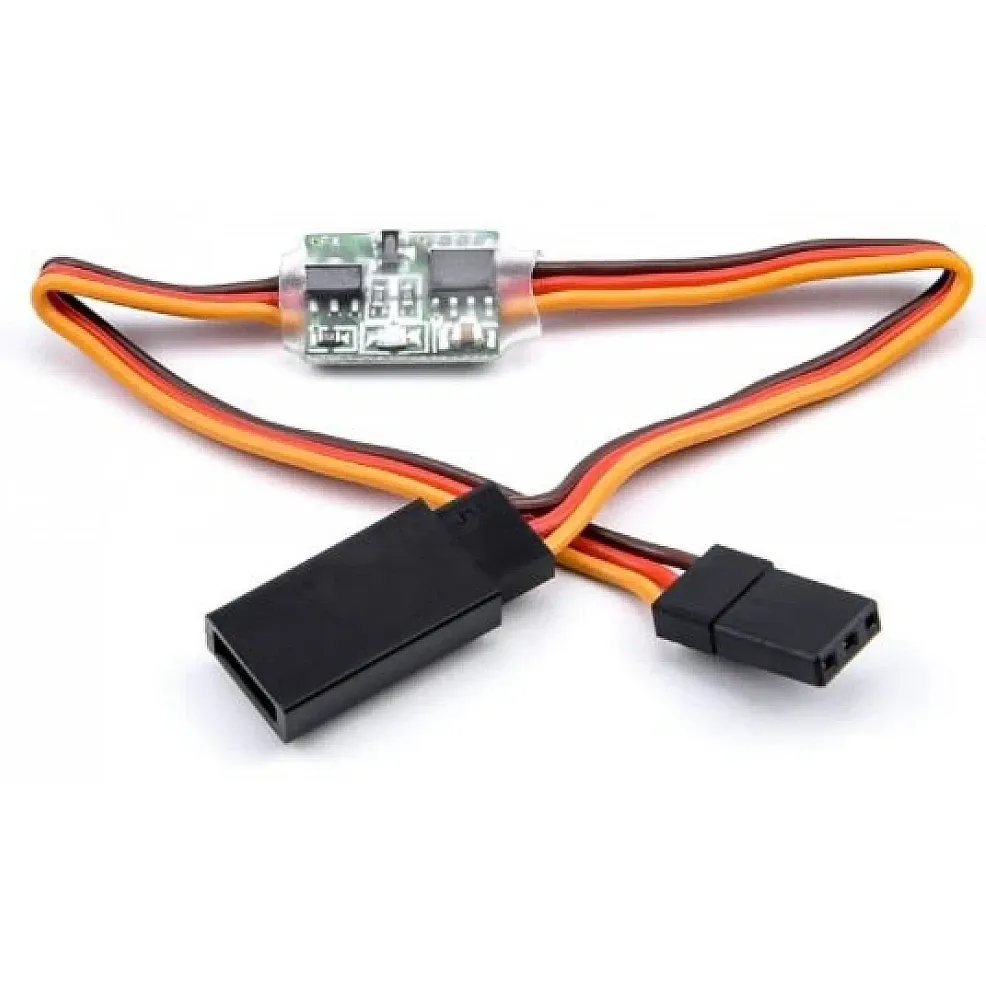

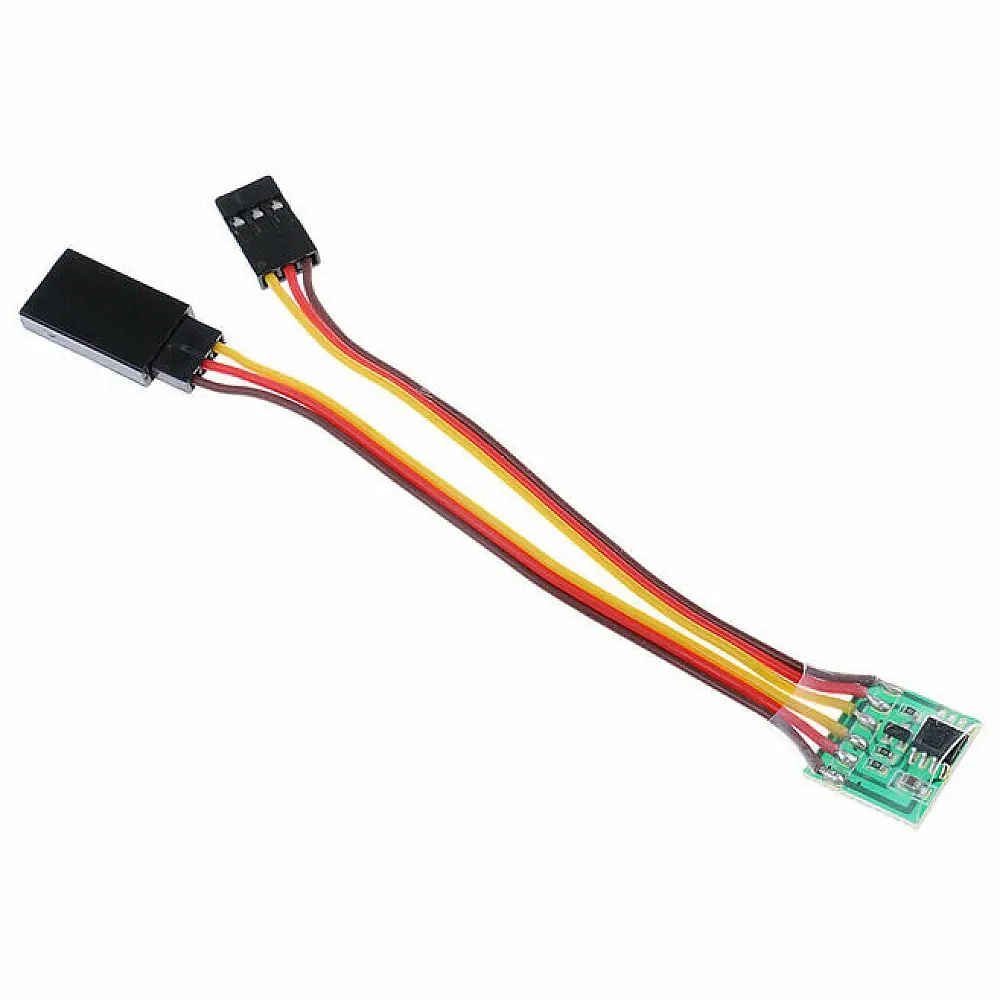

Inline Servo Signal Reverser (High/
SKU GEN-SERVO-REVERSER-LV
Version: Low Voltage
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
An inline servo signal reverser that makes a servo turn the opposite way without touching transmitter or flight controller settings. It plugs in between the receiver or FC output and the servo, which makes it the fix for two servos on a Y-lead where one has to run mirrored, such as flaps or ailerons sharing a channel, and for radios or controllers with no reverse option.
Key features
- Reverses servo direction in hardware, independent of any radio or FC setting
- Connects in series with JR male and female servo plugs, so no soldering or re-pinning is needed
- Offered in two versions: High Voltage for 3.6–24V systems rated 5A, and Low Voltage for 4–6V receiver supplies rated 2A
Specifications
- High Voltage version: 3.6–24V, 5A
- Low Voltage version: 4–6V, 2A
- Connectors: JR servo plug, male and female
Choose the Low Voltage version for a standard 4.8–6V receiver bus. Pick the High Voltage version when the servo rail runs above 6V, for example HV servos powered at 7.4V.
| Brand | Generic |
|---|---|
| Made in India | No |
