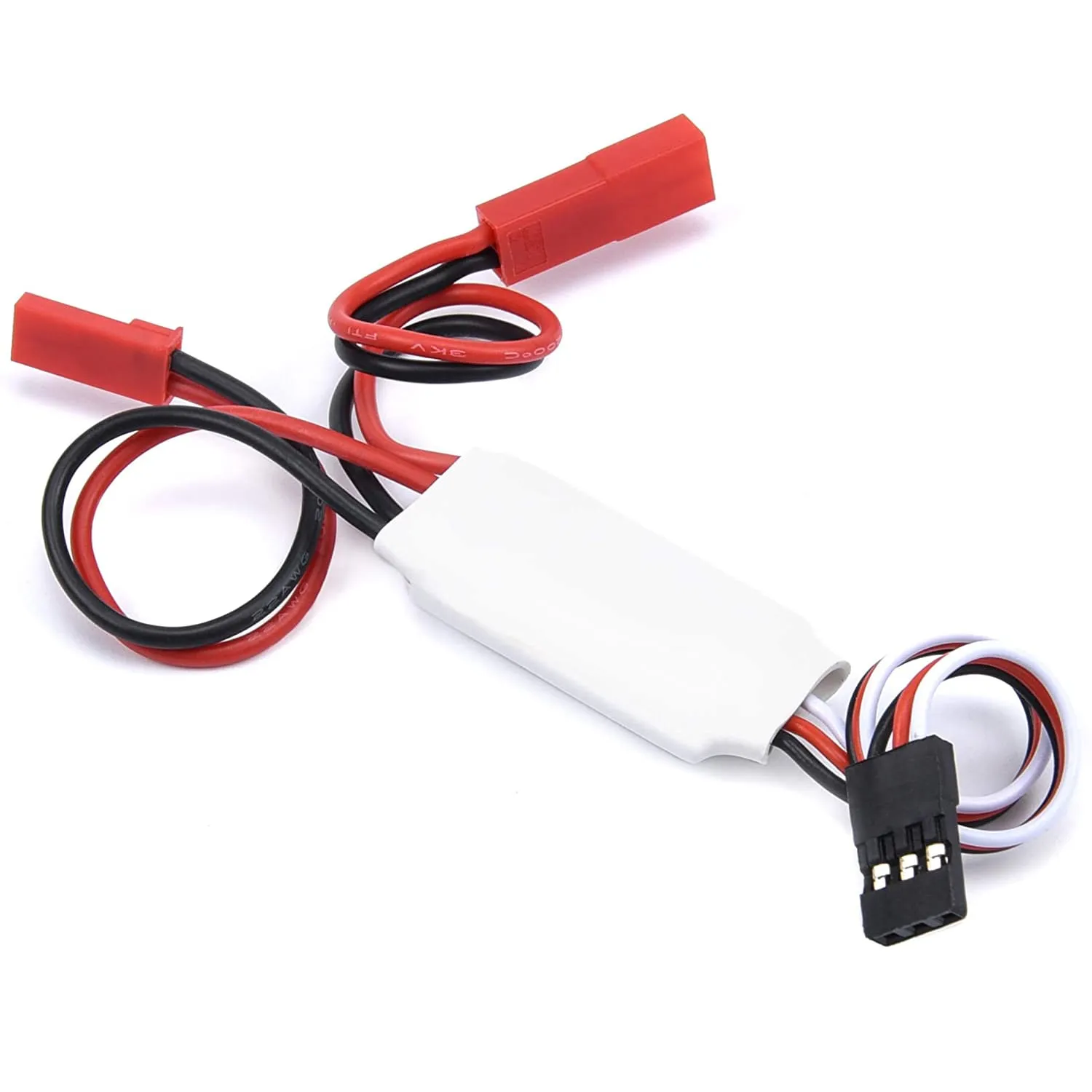

5A RC TX-Controlled Relay Switch with PWM Receiver
SKU RC-5A-PWM-RELAY
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
This 5A relay switch lets a spare auxiliary channel on your RC receiver turn a connected circuit on or off, ideal for switching lights, sound modules or a spray pump from the transmitter.
Key features
Switches on above a 1800µs input pulse and off below 1200µs, reading pulses from 400µs to 2600µs.
Built-in safe-protection mode opens the switch and blinks its LED if the signal is lost for 500ms or stays high at power-up.
Runs from a 5V receiver supply; higher voltages are not supported.
Needs a transmitter with at least 3 channels, with one spare channel driving the switch.
Specifications
Switching element: MOSFET
Load current: 5 A continuous (DC)
Switched supply: 5-28 V DC
Signal input: RC PWM, 400-2600 us

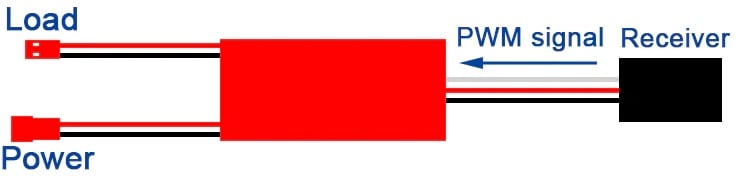

Leads: 100 mm RX signal lead, 100 mm power-in and power-out leads
Wire the switched load within the 5A relay rating, and confirm your receiver channel outputs a matching PWM signal before connecting.
| Brand | Generic |
|---|
