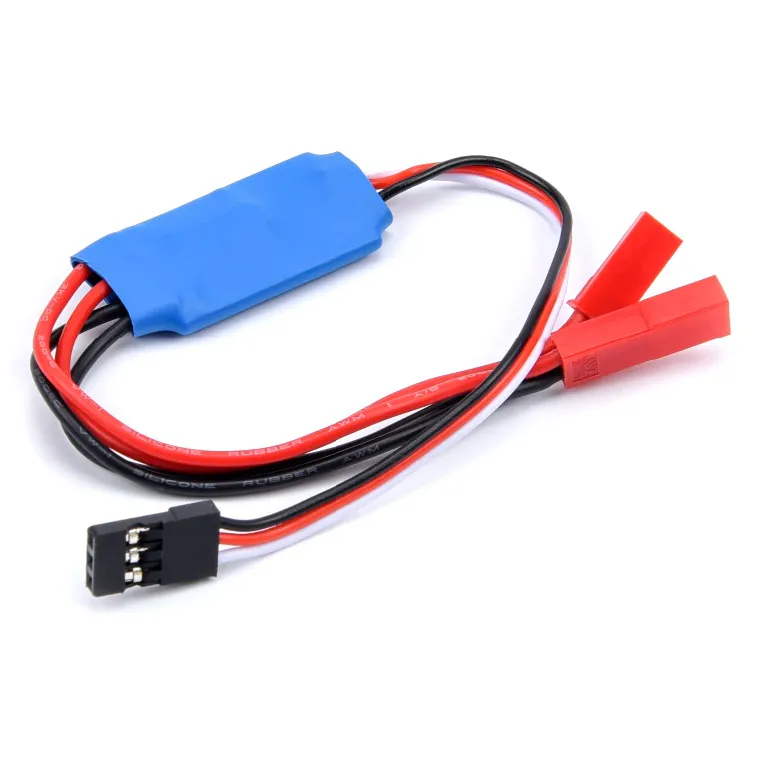

10A RC PWM Relay Switch Receiver
SKU PWM-RELAY-SWITCH-10A
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

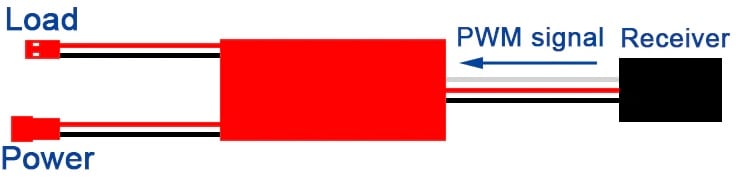

This 10A PWM relay switch lets a spare receiver channel switch an accessory or payload-release mechanism on and off, for drone, rover and other RC builds.
Key features
Reads a PWM pulse width from 400 to 2600 microseconds on the input channel.
Switch closes above roughly 1800 microseconds and opens below roughly 1200 microseconds, matching a standard transmitter switch position.
Safe-protection mode holds the switch open and blinks its LED if the channel reads on at power-up, or if the signal drops out for 500 milliseconds.
Onboard LED shows switch state at a glance, and blinks fast while safe-protection mode is active.
Needs a 5V supply to the receiver and a transmitter with at least 3 channels.
Check the connected accessory's voltage and current draw against the 10A rating before wiring it in; this module switches the load, it is not a flight controller or receiver.
| Brand | Generic |
|---|
