MATEKSYS CRSF-PWM Converter with Variometer CRSF-PWM-V10

The Mateksys CRSF-PWM-V10 is a dedicated 10-channel protocol converter with an onboard variometer, designed to translate digital CRSF receiver signals into standard PWM output for servos and ESCs. Ideal for fixed-wing gliders, scale aircraft, and custom builds that operate without a full flight controller, it connects modern TBS Crossfire, ExpressLRS (ELRS), or Tracer receivers directly to standard R/C hardware.

Key features

• 10 Configurable PWM Outputs: Delivers ten individual servo channels with adjustable update frequencies (from 50Hz up to 400Hz) tailored for both standard analog and high-speed digital servos.
• Integrated Barometer & Variometer: Features an onboard SPL06-001 high-precision pressure sensor that streams real-time altitude and vertical climb rate data directly back to your radio transmitter via telemetry.
• Wide Telemetry Expansion: Includes dedicated Vbat pads for direct battery voltage sensing up to 36V (8S LiPo), plus onboard UART connections to interface external GPS modules or current sensors.
• Direct CRSF Compatibility: Plug-and-play operation with any receiver outputting the standard CRSF serial protocol, eliminating the need for complex signal conversion adapters.
• Compact & Lightweight: Weighing just 3.4 grams and measuring 38mm x 16mm, the PCB fits comfortably into narrow glider fuselages and tight equipment bays.

Specifications

• Protocol: CRSF to PWM conversion
• PWM Channels: 10
• Onboard Barometer: SPL06-001 (Variometer)
• Input Voltage (V+): 4.5V to 9V DC
• Battery Voltage Sensing (Vbat): 0 to 36V DC (up to 8S LiPo)
• PWM Update Frequencies: 50Hz (default), 100Hz, 160Hz, 330Hz, 400Hz
• Dimensions: 38 x 16 x 5.4 mm
• Weight: 3.4 g

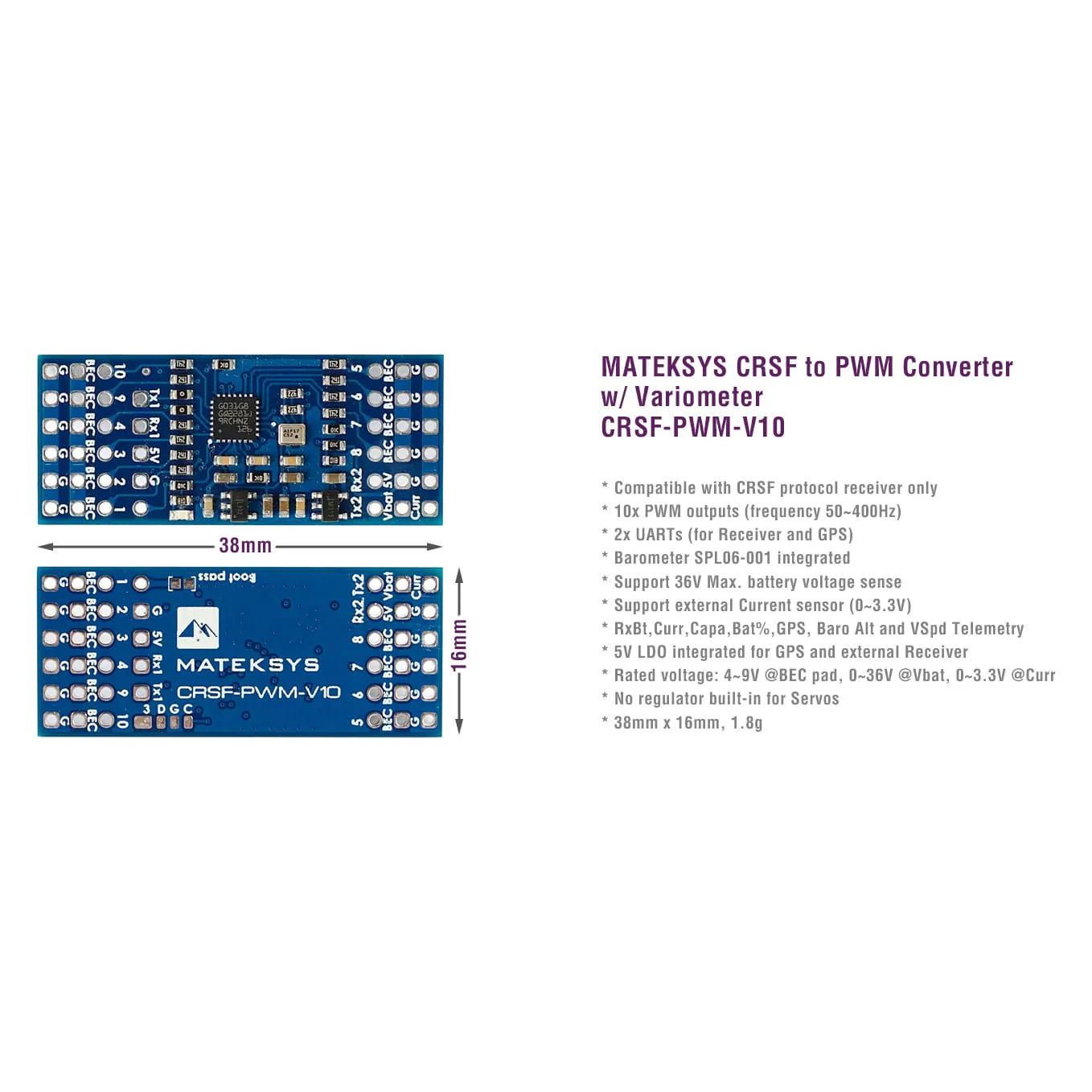

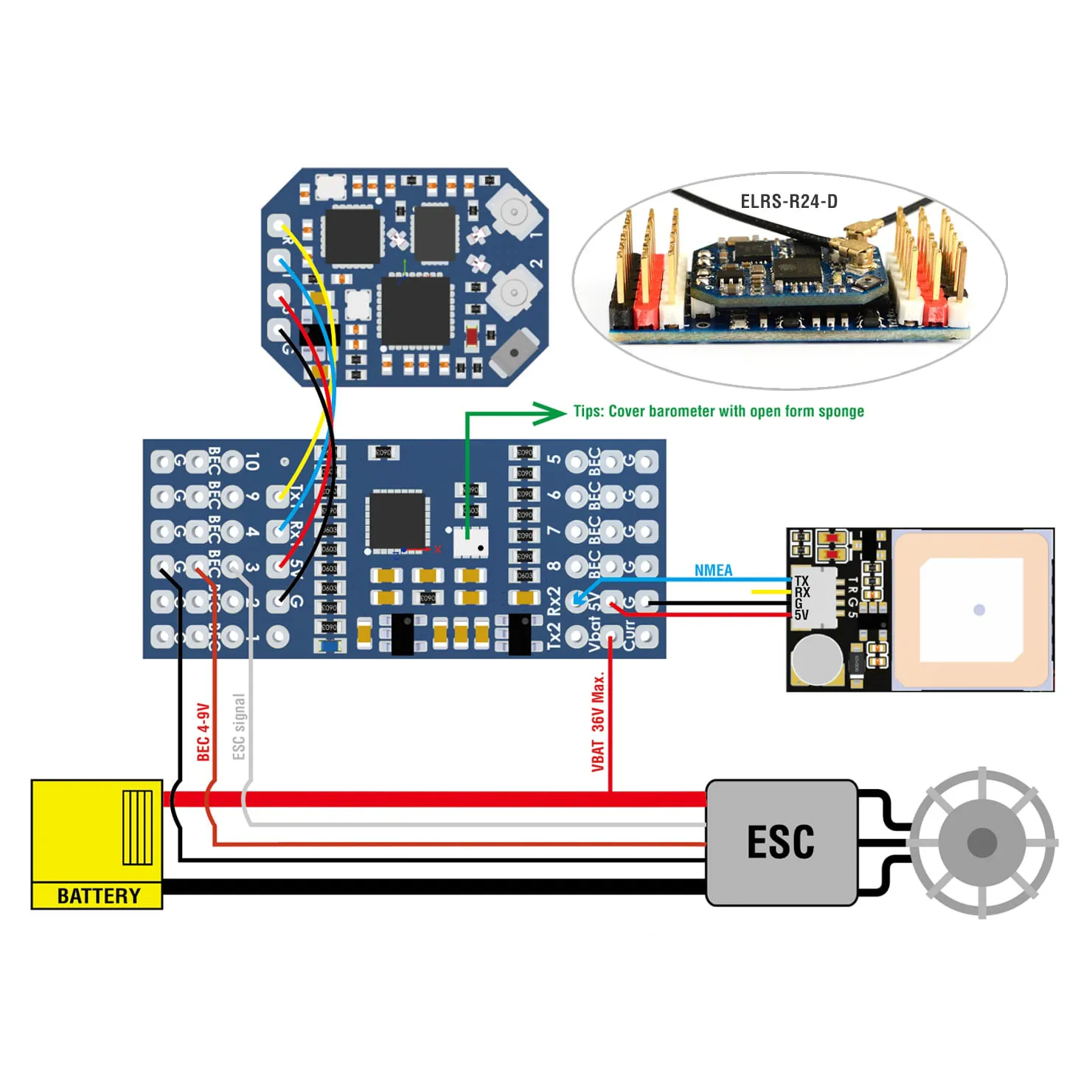

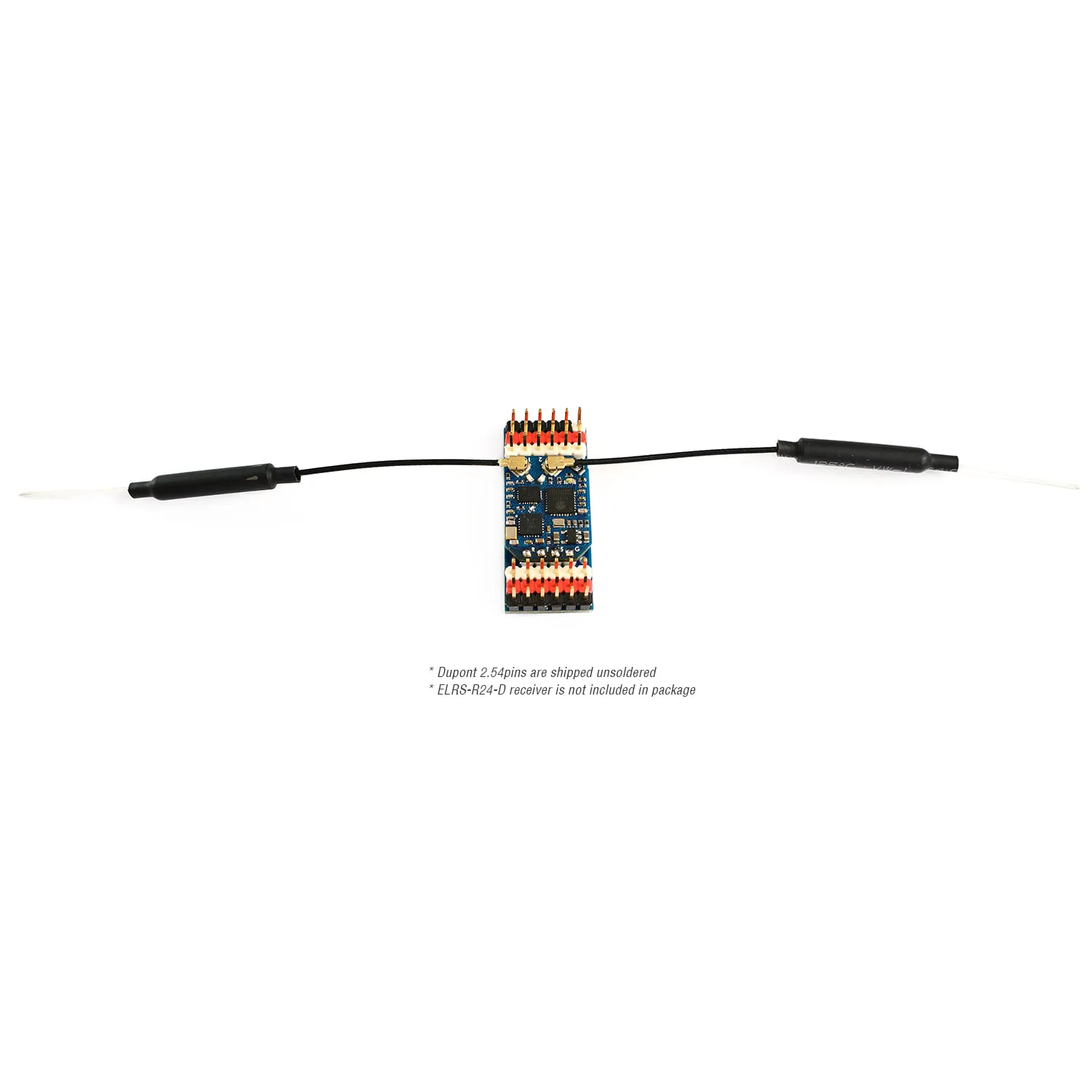

Configuration and firmware updates are managed via the Matek-Configurator PC tool or CLI over a standard USB-to-UART bridge. When wiring your setup, ensure the receiver's TX and RX lines are correctly crossed with the converter's UART pads to maintain a reliable, bidirectional telemetry link.
