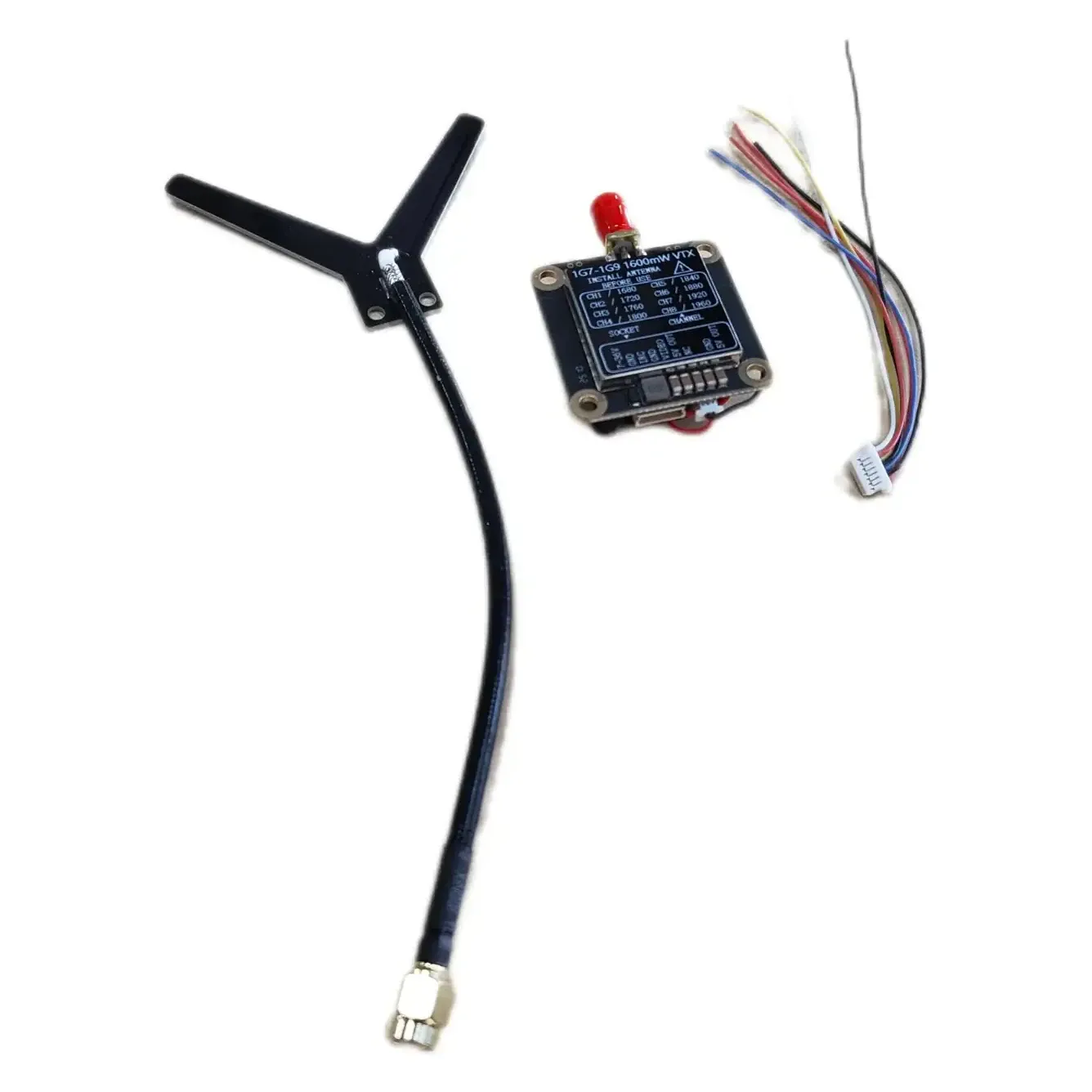

Tarot TL300N7-01 1.7G 8-Channel 1.6W Analog VTX

The Tarot TL300N7-01 is a 1.7 GHz analog video transmitter with up to 1.6 W of output, built for multirotors and FPV aircraft that fly long distances. It fits a standard 30.5 × 30.5 mm stack, runs straight from 2-8S and weighs 15.6 g without antenna.

Key features

• Four power levels: PIT mode, 25 mW, 200 mW and 1600 mW, switched with a button.
• Eight channels from 1680 to 1960 MHz; a green LED blinks one to eight times to show the active channel.
• IRC Tramp control for changing channel and power from the flight controller OSD.
• Wide 7-36 V input plus a 5 V / 0.5 A output to power the FPV camera.

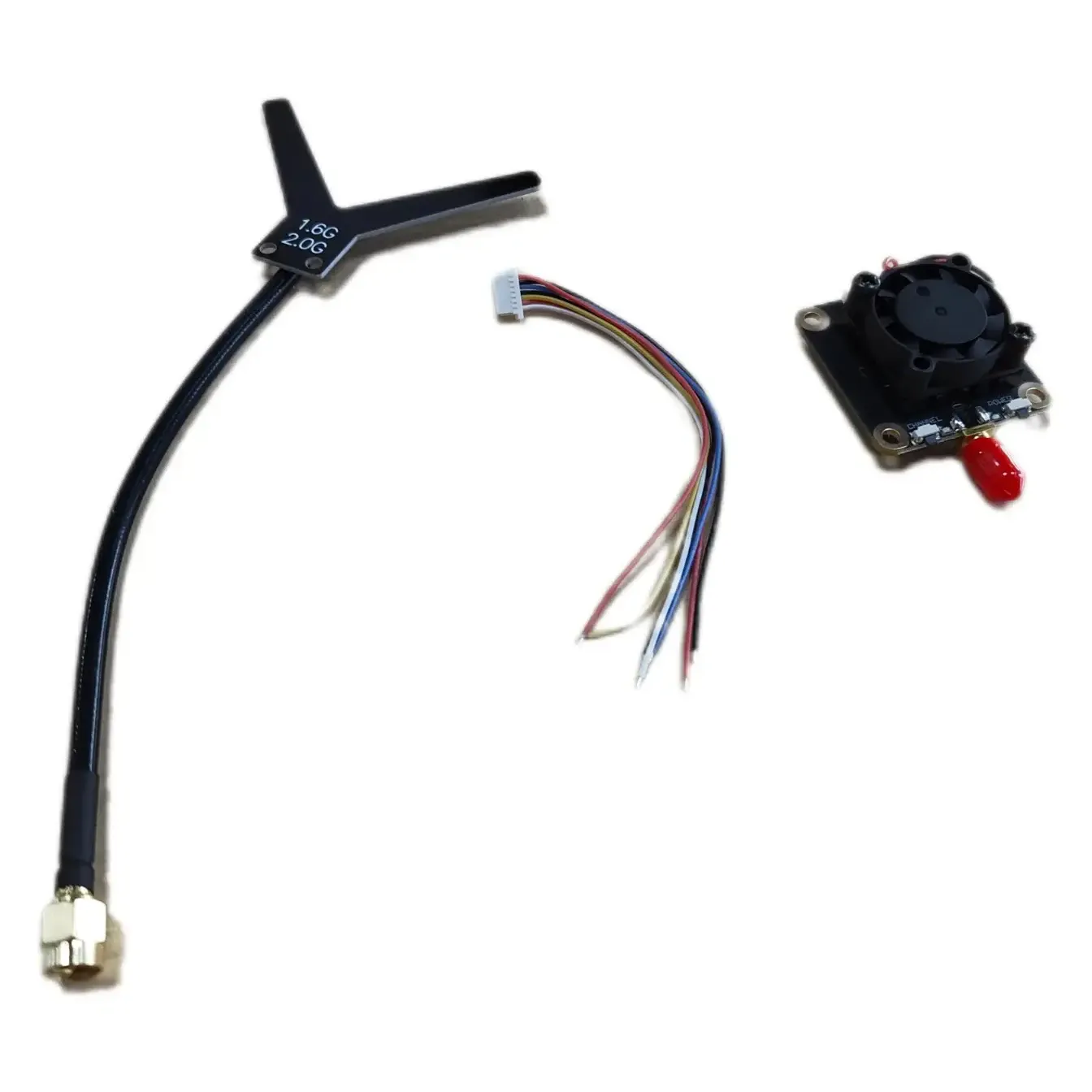

• Built-in cooling fan and an SMA antenna port.

Specifications

• Frequencies: 1680 / 1720 / 1760 / 1800 / 1840 / 1880 / 1920 / 1960 MHz
• Output power: PIT / 25 / 200 / 1600 mW (33 dBm ± 1 dBm max)
• Input voltage: 7-36 V DC (2-8S)
• Camera output: 5 V / 0.5 A
• Video format: PAL / NTSC
• Modulation: FM
• Antenna connector: SMA
• Mounting: 30.5 × 30.5 mm, M3
• Weight: 15.6 g without antenna
• Dimensions: 37 × 46 × 17.5 mm incl. SMA and fan

You need a matching 1.7 GHz receiver on the same channel, as standard 5.8 GHz goggles cannot pick it up. Always attach the antenna before powering the VTX, especially at 1600 mW.
