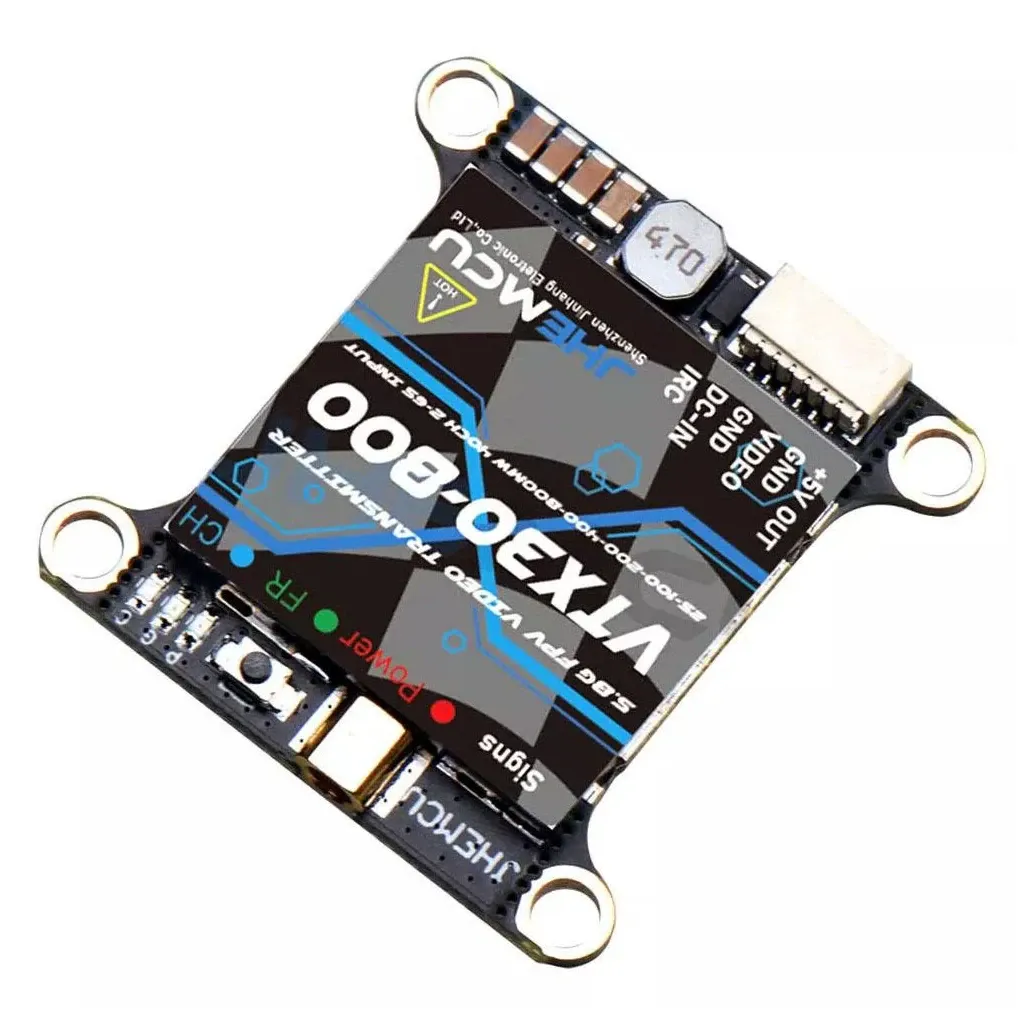

JHEMCU VTX30 25-800mW Analog VTX

The JHEMCU VTX30 is a high-output 5.8GHz analog video transmitter built for 5-inch freestyle quads, mid-range cruisers, and fixed-wing builds. Designed to stack cleanly above your flight controller, it features a standard 30.5x30.5mm footprint and delivers up to 800mW of transmission power for reliable video penetration through foliage and light obstacles.

Key features

• Six output power levels (PIT, 25mW, 100mW, 200mW, 400mW, 800mW) adapting easily to event rules or long-range flights.

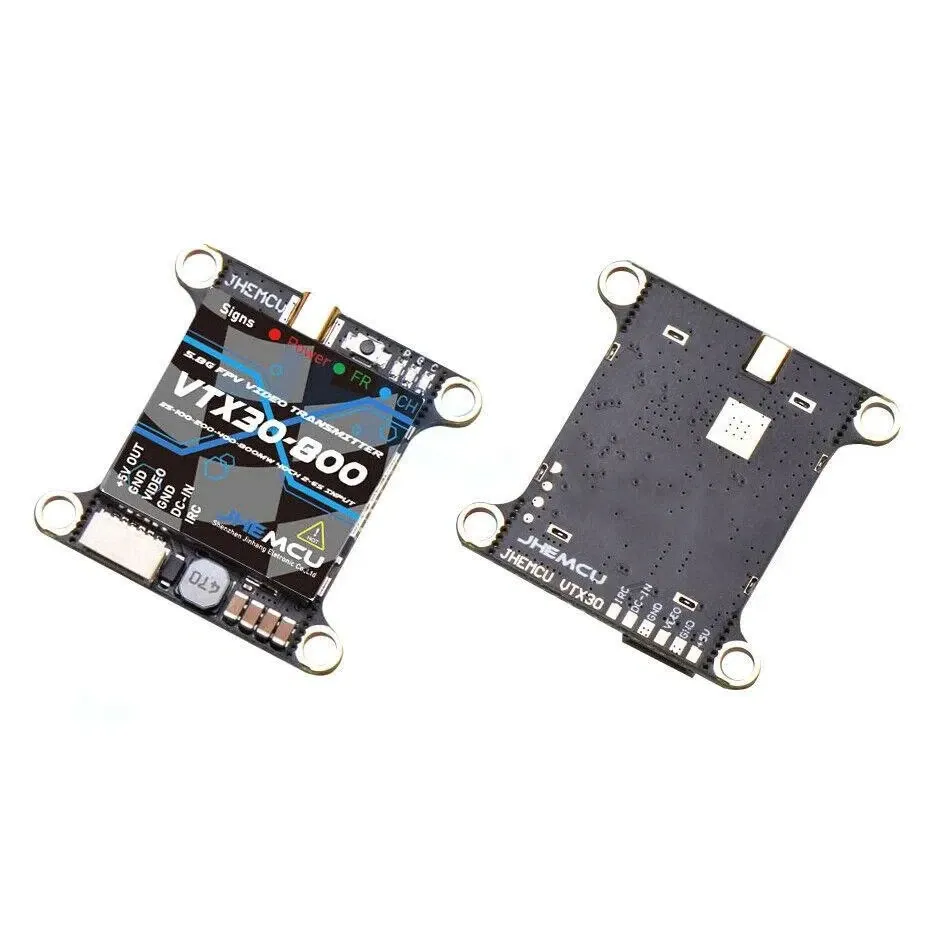

• Direct 30.5x30.5mm M3 mounting for seamless physical integration into full-sized electronic stacks.
• Full IRC Tramp protocol support allows rapid channel, band, and power adjustments directly through your Betaflight OSD.
• Dedicated 5V output pad provides clean power straight to your analog FPV camera.

Specifications

• Input voltage: 7–26V (2–6S LiPo)
• Output power: PIT / 25 / 100 / 200 / 400 / 800 mW
• Frequency: 5.8GHz (40 channels)
• Control protocol: IRC Tramp

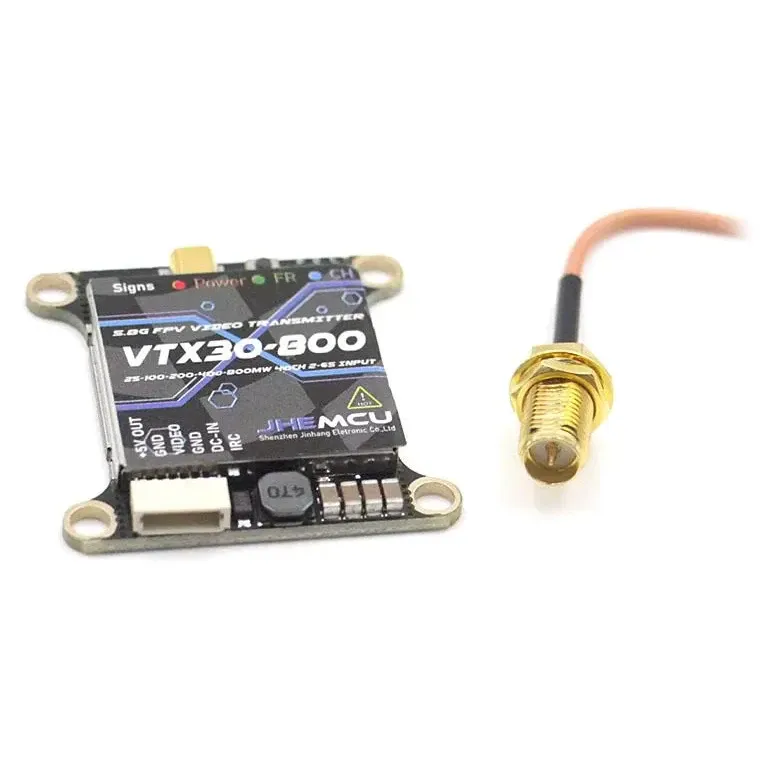

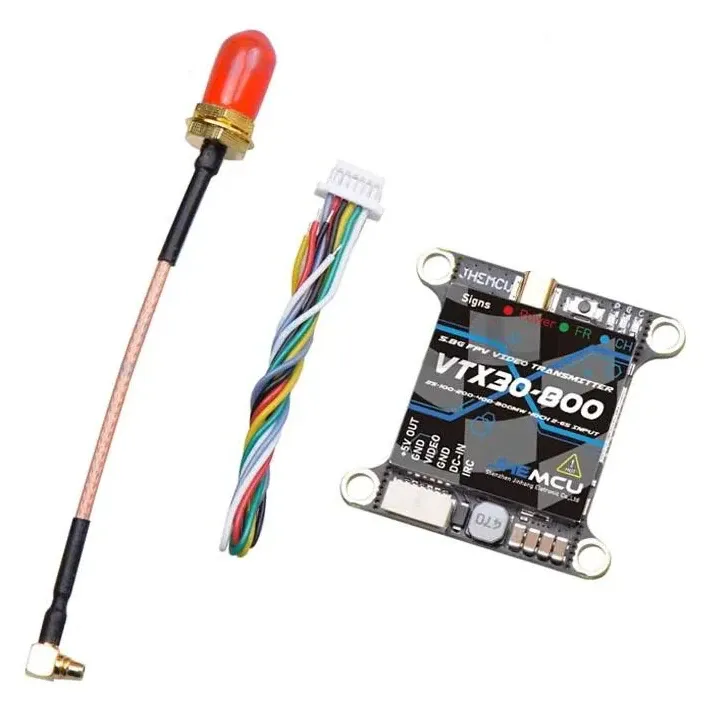

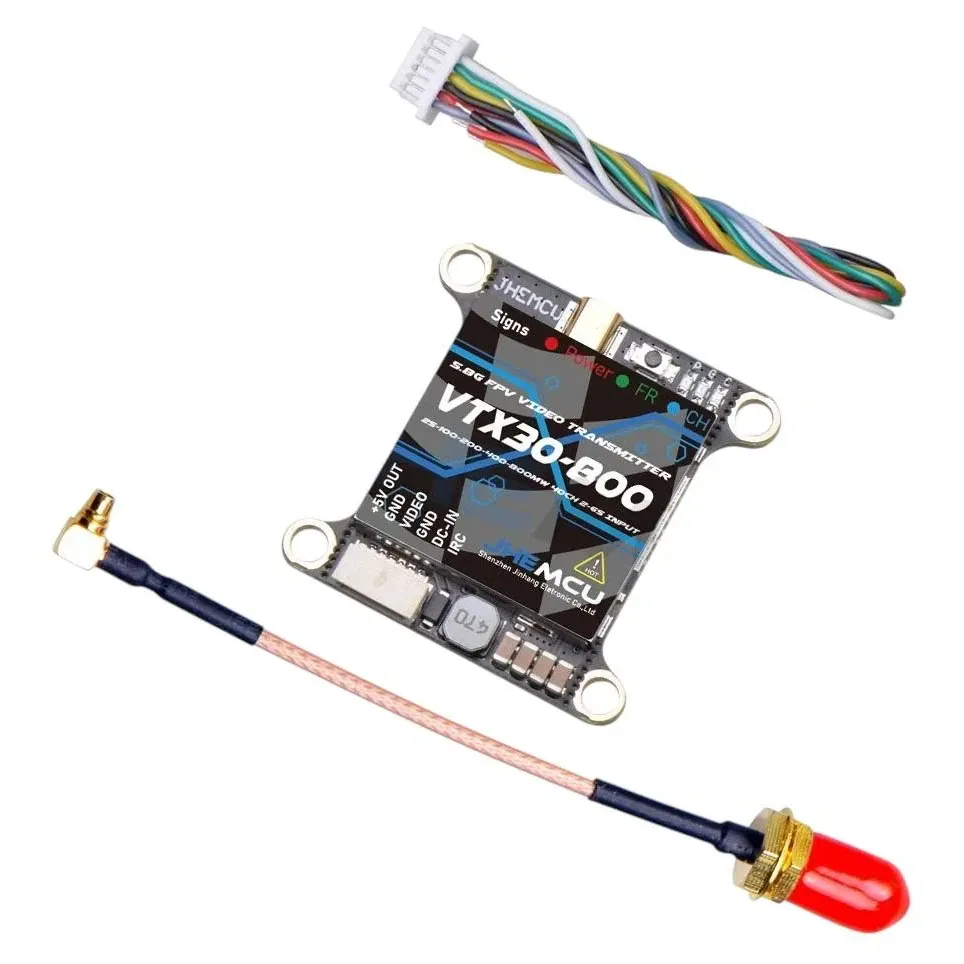

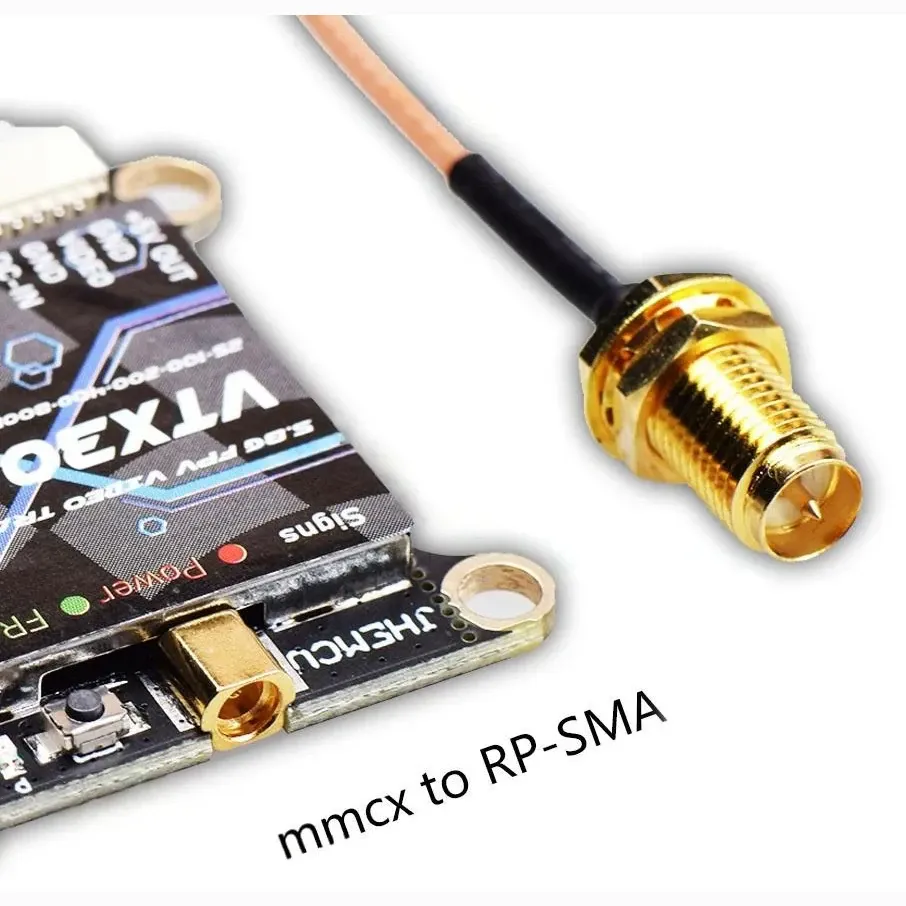

• Antenna connector: MMCX
• Mounting pattern: 30.5x30.5mm (M3)
• Dimensions: 36 x 36 mm
• Weight: 7.5 g

Note: Always ensure a 5.8GHz antenna is securely attached to the MMCX port before powering the quadcopter to prevent permanent damage to the RF amplifier.
