AKK TX3000AC Ultra Long Range 3W VTX (4.9–5.9G)

The AKK TX3000AC is an ultra long-range analog video transmitter engineered for extended-distance FPV flights, fixed-wing UAV platforms, and mountain-surfing builds. Delivering up to 3W of RF output across a wide 4.9–5.9 GHz frequency span, it allows pilots to operate on standard 5.8 GHz channels or drop down into the 4.9 GHz low band to bypass congested local spectrums.

Key features

• Up to 3000 mW output power for long-range signal penetration and reliable video reception at extreme distances
• Wideband 4.9–5.9 GHz frequency coverage supporting standard 5.8 GHz channels along with interference-free low-band frequencies

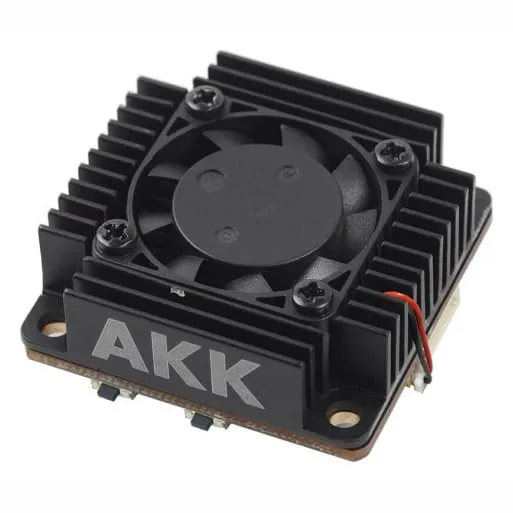

• Integrated aluminum heatsink and active micro cooling fan to maintain consistent thermal dissipation during sustained high-power transmission
• SmartAudio protocol support for convenient remote channel, band, and power selection directly through your flight controller OSD
• Built-in onboard microphone providing real-time audio feed to your FPV goggles

Specifications

• Brand: AKK
• Max Output Power: 3000 mW (3 W)
• Frequency Range: 4.9–5.9 GHz
• Control Protocol: SmartAudio / Push button
• Cooling System: Aluminum heatsink with active fan

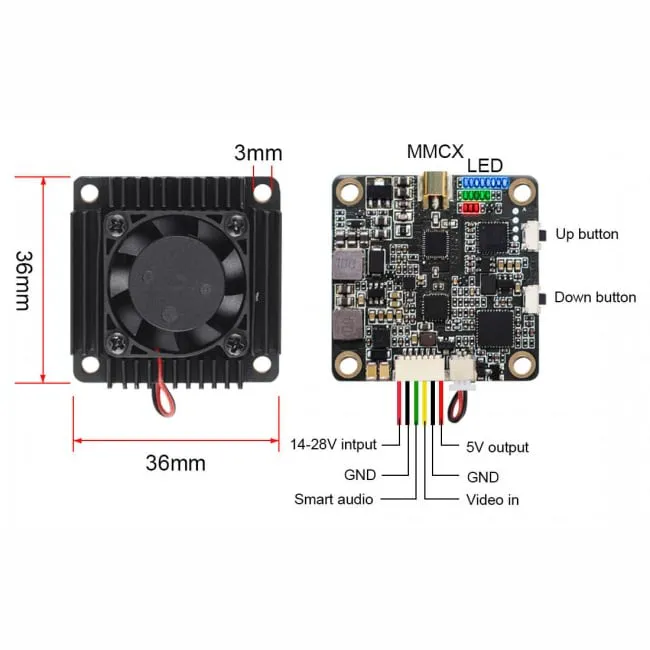

• Mounting Size: 30.5x30.5 mm

Always ensure a high-gain, properly tuned antenna is securely attached before applying power to prevent RF transmitter damage. While the integrated cooling fan mitigates heat build-up, placing the VTX in a well-ventilated section of your airframe is recommended when running at full 3000 mW output.
