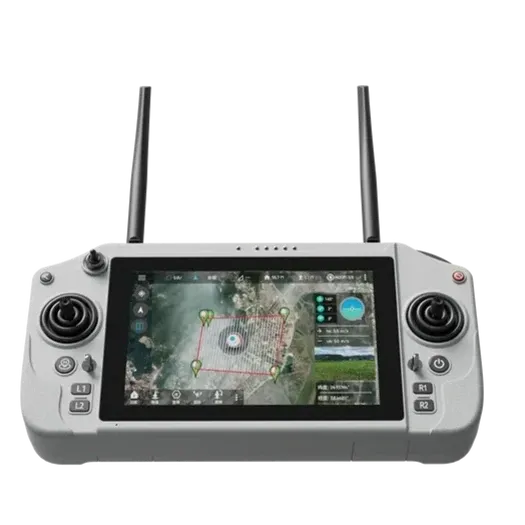

Skydroid G20 Remote Controller + GR01 Long-Range Bundle

The Skydroid G20 with GR01 is a long-range ground control station bundle built for professional UAV pilots requiring 30 km LOS video and command link. It blends a powerful remote controller (G20) with the GR01 digital receiver; suited to high-voltage builds (fixed wing, multirotor, VTOL) that need multiple telemetry/data channels and compatibility with gimbals, autopilots or industrial sensors.

Key features

• Dual-band 2.4 GHz / 5.8 GHz digital link with automatic switching and up to 30 km line-of-sight range for both control and video transmission, offering strong anti-interference resilience.

• GR01 receiver supports wide input voltage from 7.2 V to 72 V via XT30, suitable for 2- to 16-cell battery systems or high-voltage power rails.

• Multiple output interfaces: GR01 has SBUS (1 ch), PWM (3 ch), network (Ethernet), and serial ports; supports large-data channels and flexible flight controller integration.

• Controller built on Qualcomm 6 nm processor, Android 13, with a 7-inch 1920×1200 sunlight readable screen; includes SIM, Type-C, USB-A, network ports for versatile mission interfaces.

• Long endurance: 20,000 mAh battery for 6-8 hours continuous use, with 36 W PD fast charging to reduce field downtime.

• Rugged form-factor: operating temperature -10 °C to +55 °C (controller), -10 °C to +60 °C (receiver); compact receiver size (≈ 45.5×60×21.5 mm) and light weight (≈ 37 g) for space-constrained builds.

Specifications

• Brand: Skydroid

• Remote controller screen: 7-inch, 1920×1200 px, sunlight readable

• Screen brightness: 1500 nits

• Operating system: Android 13

• Processor: Qualcomm 6-nm

• Video decoding: H.264 / H.265 hardware decoding

• Battery capacity: 20,000 mAh

• Endurance: 6-8 hours

• Charging power: 36 W PD Fast Charge

• RC link frequency band: 2.4 GHz / 5.8 GHz

• Channels: 16

• Transmission range (LOS): up to 30 km

• RF output power: 23 dBm @ CE/FCC

• Controller dimensions: 277 x 138 x 96 mm

• Controller weight: 1.2 kg

• GR01 Input voltage: 7.2-72 V (XT30)

• GR01 Operating current: 12 V / 300 mA typical

• GR01 Interfaces: SBUS (1 ch), PWM (3 ch), Serial/UART, Ethernet

• GR01 Serial baud rates: 57600 / 115200 / 921600

• GR01 Channel bandwidth: 1.25 to 40 MHz, selectable

• GR01 Size: 45.5×60×21.5 mm

• GR01 Weight: ≈ 37 g

• Operating temperature (Controller): -10 °C to +55 °C

• Operating temperature (Receiver): -10 °C to +60 °C

• In the box: G20 controller, GR01 receiver, 2 detachable antennas, Type-C charger, cable set, fitting accessory set, neck strap

This bundle is especially useful for high-voltage setups (e.g. 6-16 S), where GR01 can be safely powered directly from battery rails, avoiding external BECs. The controller’s high-brightness screen and dual-band link make it ideal for BVLOS missions, inspection, mapping or long-range FPV where signal stability is critical. Be sure to check flight controller compatibility and interface pinouts before installation.
