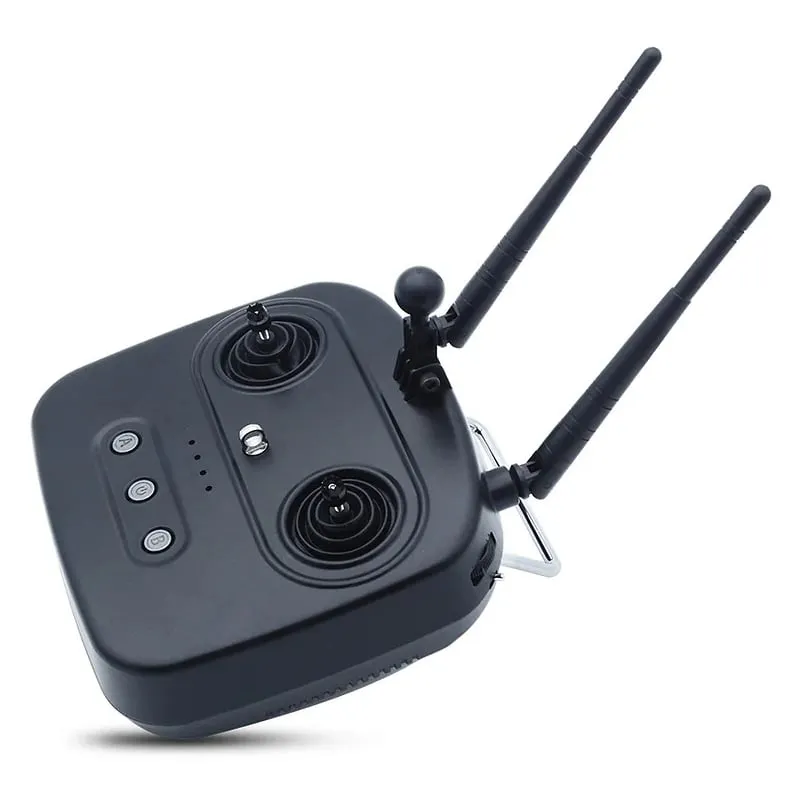

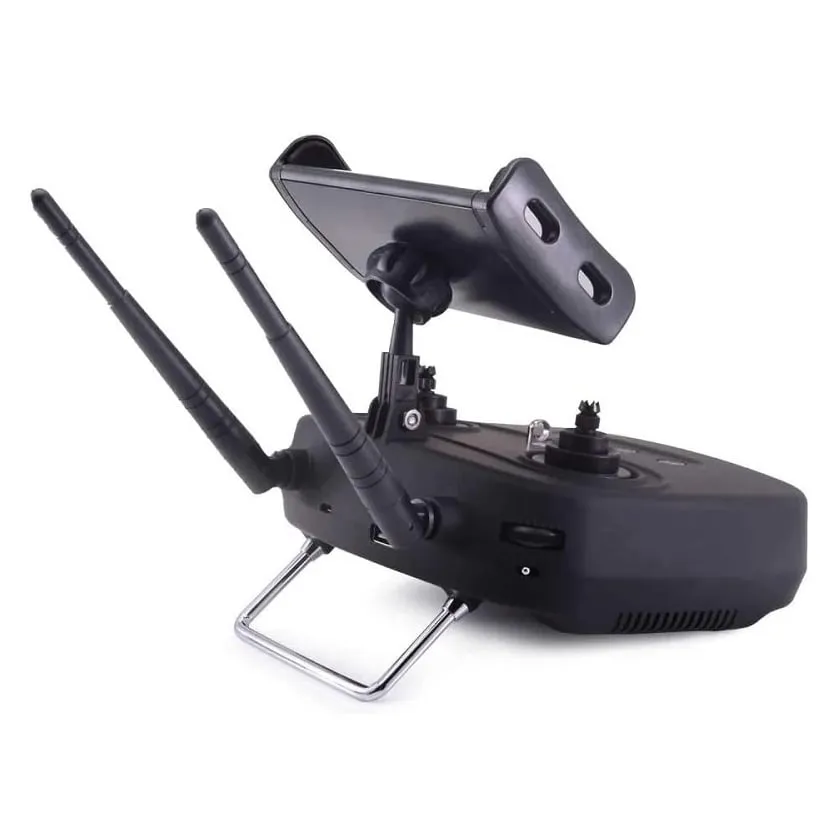

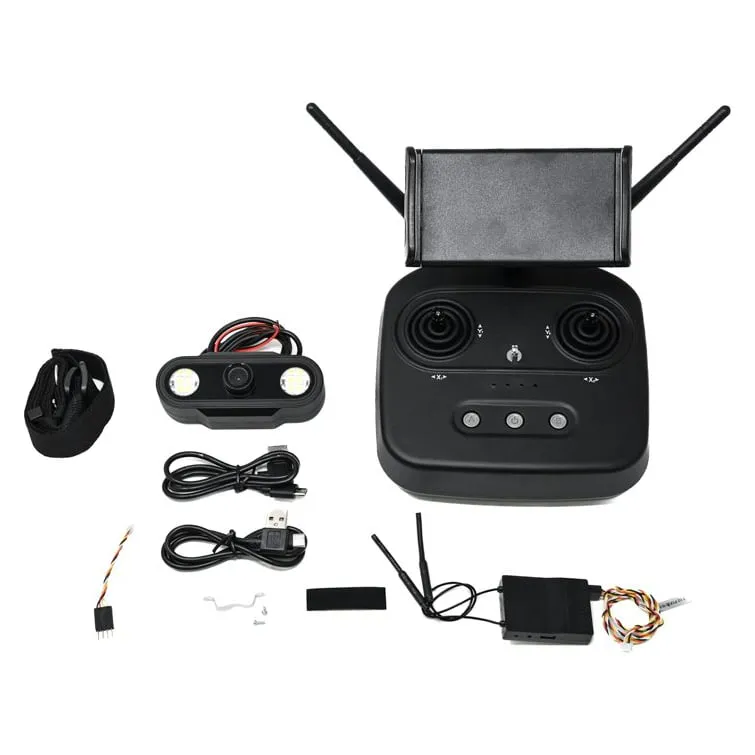

SKYDROID T10 2.4Ghz 10CH Remote Controller with T10 10-Channel Receiver and 3IN1 Camera

The Skydroid T10 is an integrated remote control, telemetry, and digital video transmission system engineered for agriculture drones, commercial UAVs, and long-range fixed-wing platforms. Operating on the 2.4GHz band, this 10-channel transmitter delivers a unified command link straight out of the box, bundled with an R10 receiver and a dedicated 3-in-1 camera payload.

Key features

• Combines RC control, digital video, and telemetry data links over a single 2.4GHz RF connection.

• Includes the 10-channel R10 receiver featuring standard PWM, SBUS, and UART telemetry outputs.

• Bundled 3-in-1 digital FPV camera plugs directly into the receiver, providing high-brightness dual LEDs for low-light operations.

• Connects to Android devices via Bluetooth or USB for seamless integration with QGroundControl, Mission Planner, and Skydroid Tower.

• Integrated dual 18650 batteries provide extended runtime without needing to swap cells in the field.

Specifications

• Channels: 10

• Operating frequency: 2.400–2.483GHz

• Receiver outputs: PWM, SBUS, UART

• Telemetry support: ArduPilot, PX4, INAV

• Transmitter battery: Dual 18650 (built-in)

• Receiver operating voltage: 4.5–5.5V

Ideal for heavy-lift enterprise builds running ArduPilot or PX4, the T10 combo eliminates the need for standalone video transmitters and telemetry radios, drastically streamlining your drone's wiring and reducing overall takeoff weight.
