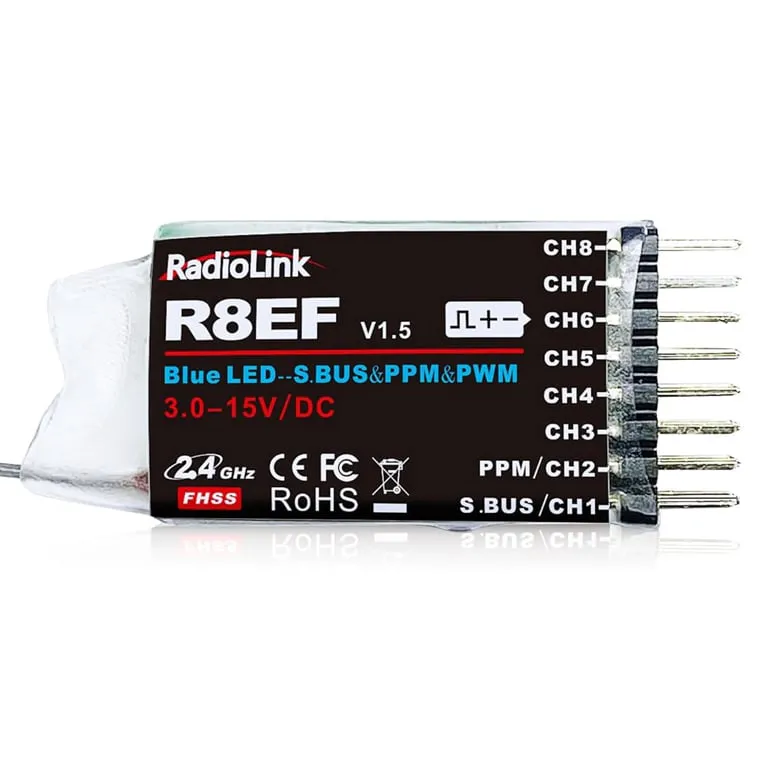

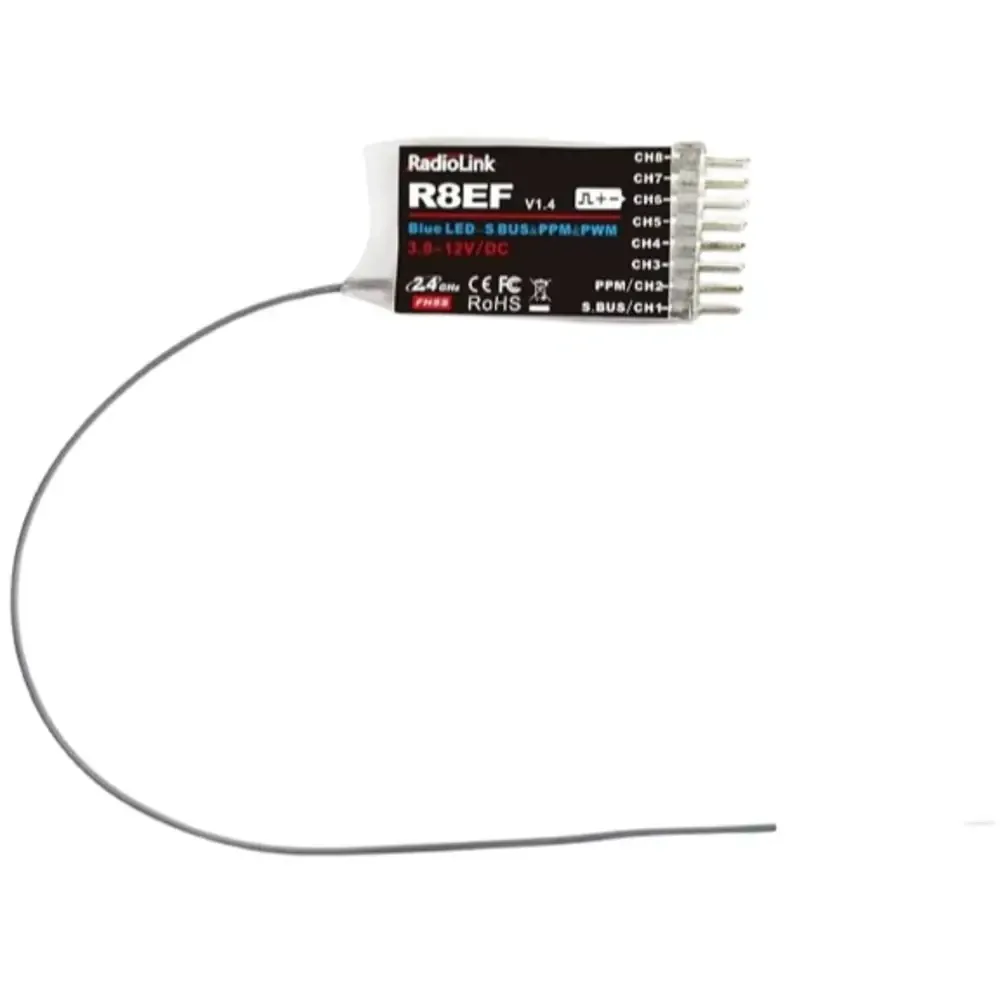

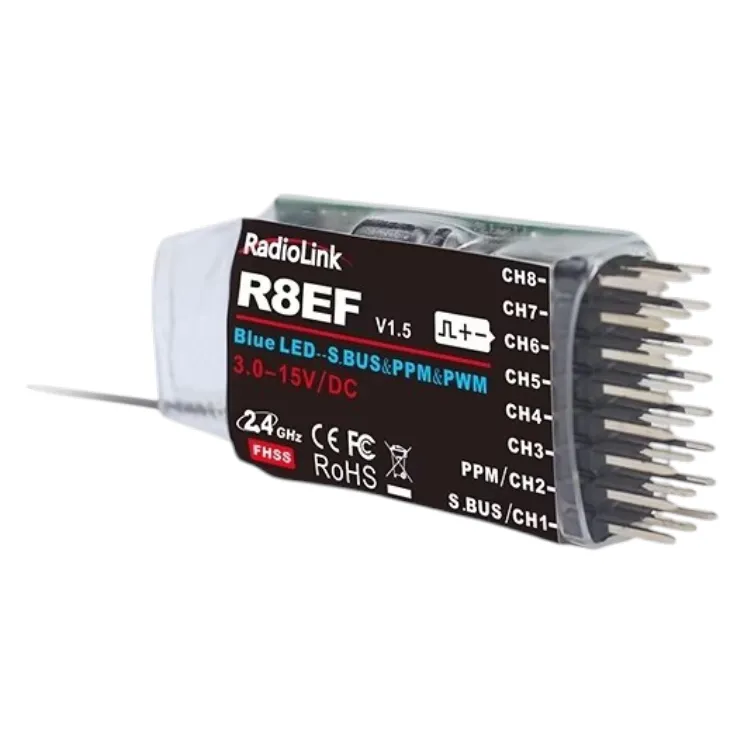

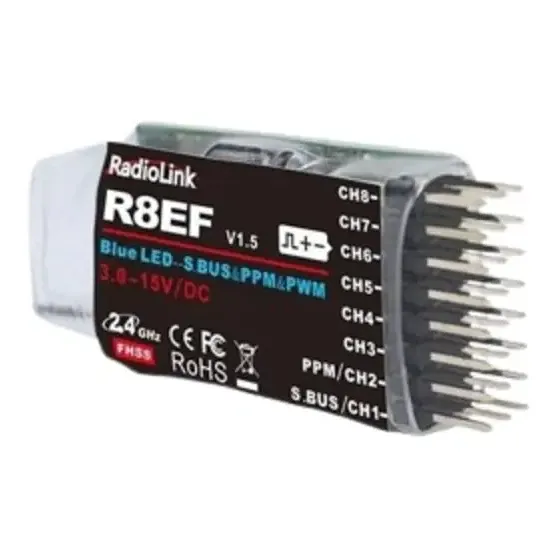

Radiolink R8EF 8-Channel 2.4GHz SBUS/PPM/PWM Receiver

₹2,099Incl. GST

SKU RADIOLINK-R8EF

RC Protocol: FHSSMade in India: NoBrand: RadiolinkFrequency: 2.4GHz
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The Radiolink R8EF is an 8-channel 2.4GHz receiver that outputs SBUS/PPM and PWM at the same time, so one unit can feed a flight controller over SBUS while still driving servos directly. It suits Radiolink transmitter owners building multirotors, fixed-wings, gliders, helicopters, cars, boats or robots.

Key features

  • Works with Radiolink's T16D, T12D, T8FB and T8S, plus the RC8P, RC8X and RC4GS/RC6GS series car and boat radios
  • FHSS spread spectrum with 67-channel pseudo-random frequency hopping, the same algorithm as the AT9S Pro
  • Rated control range of 2 km
  • 3-15 V operating range, so it runs from a standard BEC or a high-voltage servo supply
  • Low PWM jitter: 1.84 µs maximum, 0.25 µs standard deviation
  • Dual antennas and failsafe on signal loss

Specifications

  • Channels: 8
  • Outputs: SBUS/PPM and PWM, simultaneous
  • Frequency: 2.4GHz
  • Protocol: FHSS, 67-channel hopping
  • Operating voltage: 3-15 V
  • Range: 2 km

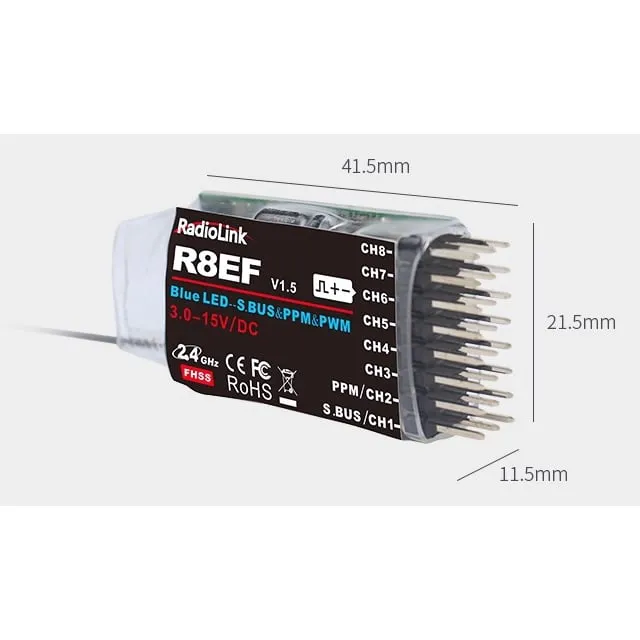

  • Dimensions: 41.5 x 21.5 x 11.5 mm
  • Weight: 7 g

It binds only to Radiolink transmitters using this protocol and will not pair with ELRS, FrSky or FlySky radios, so check that your transmitter is on the compatible list before ordering.
