Skydroid G11 Remote Controller + GR01 Receiver (20km HD Video)

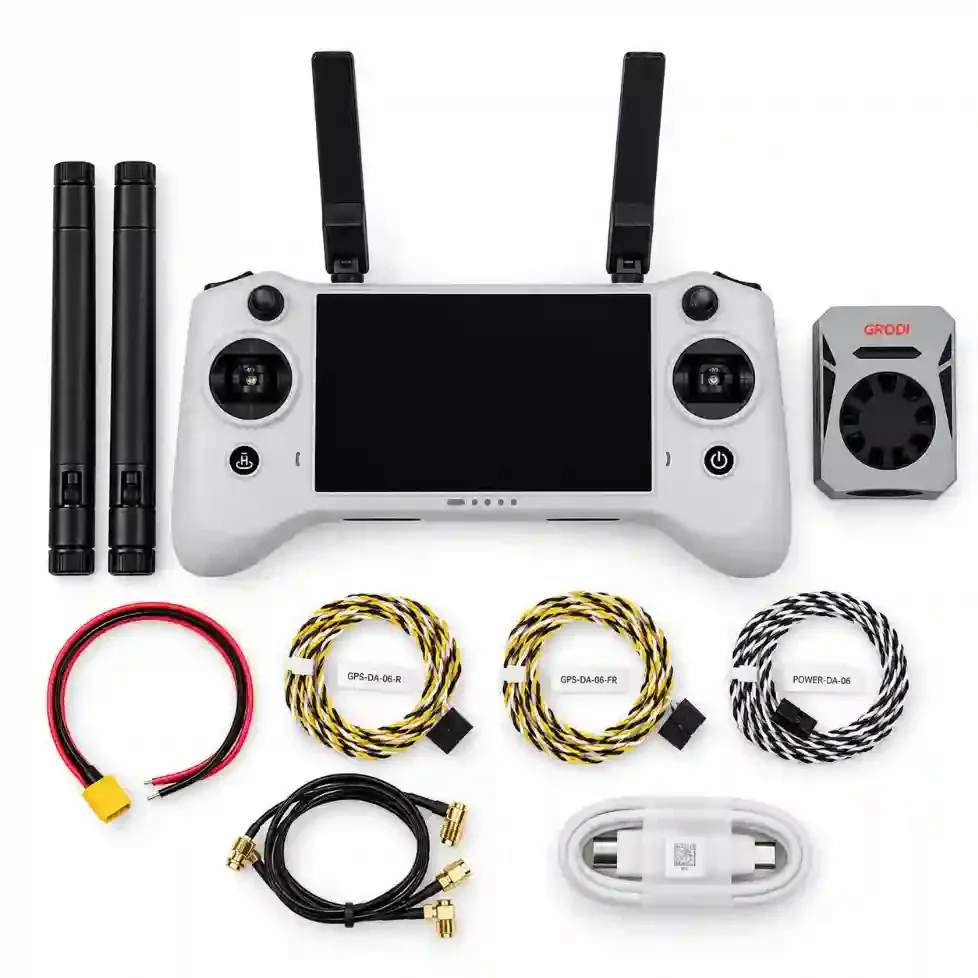

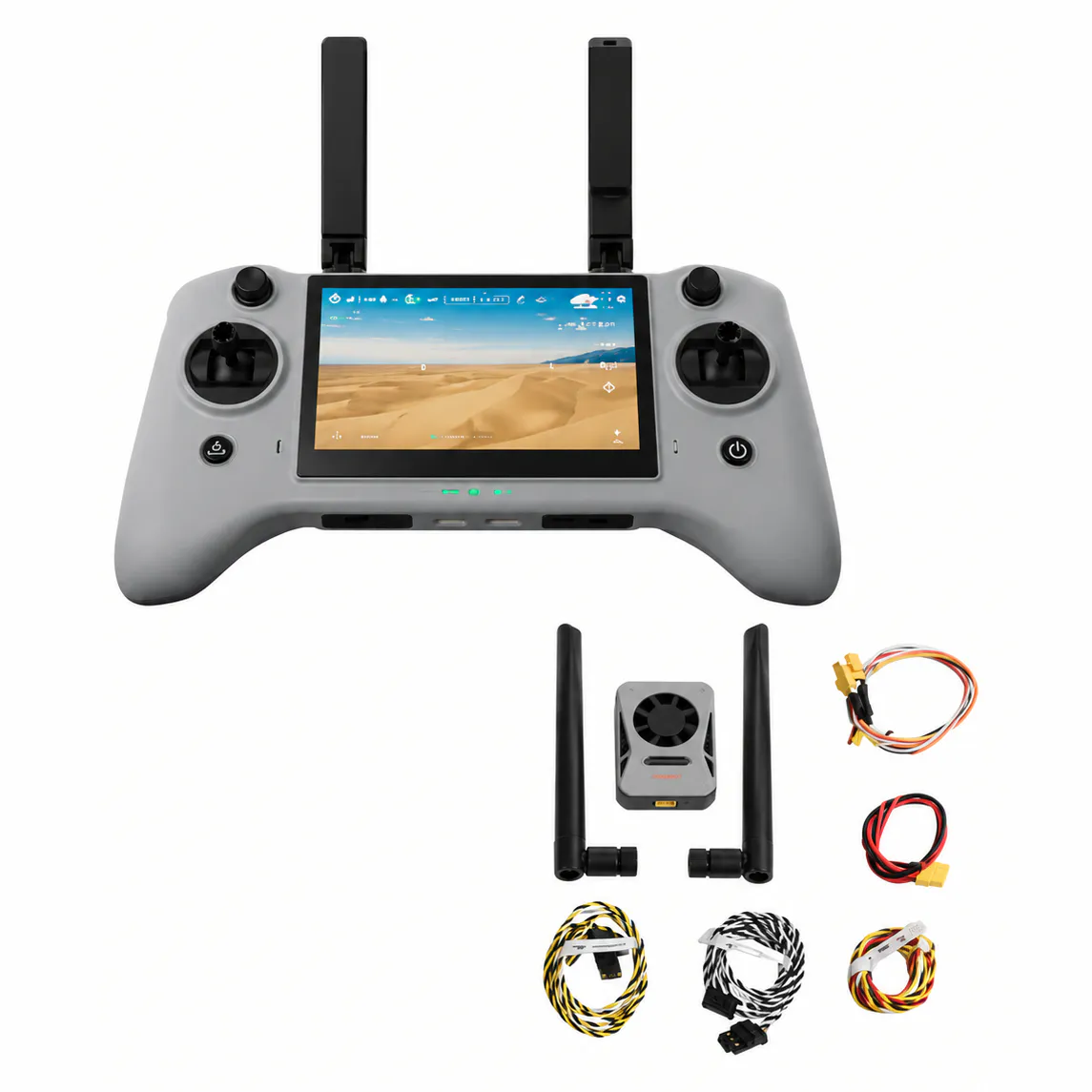

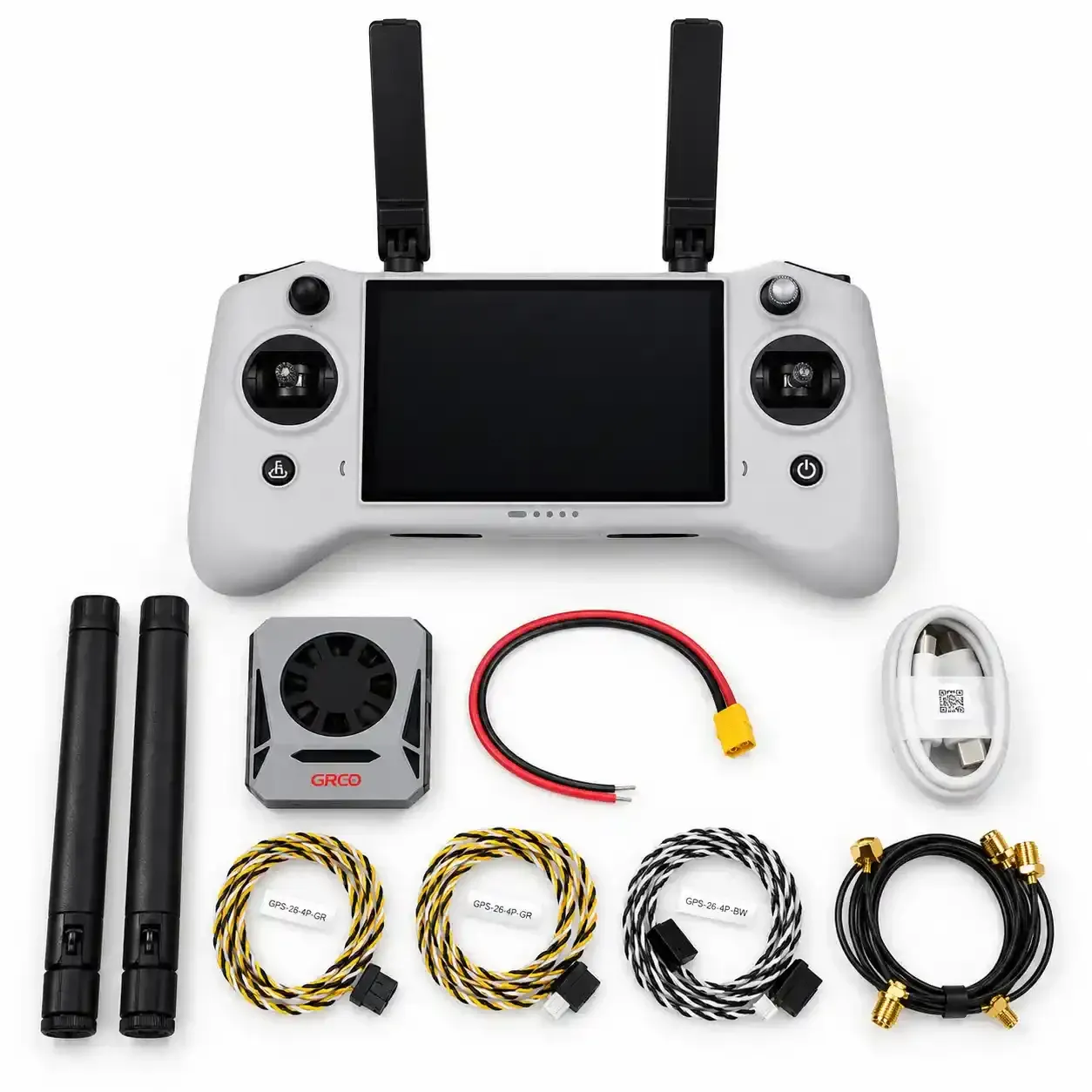

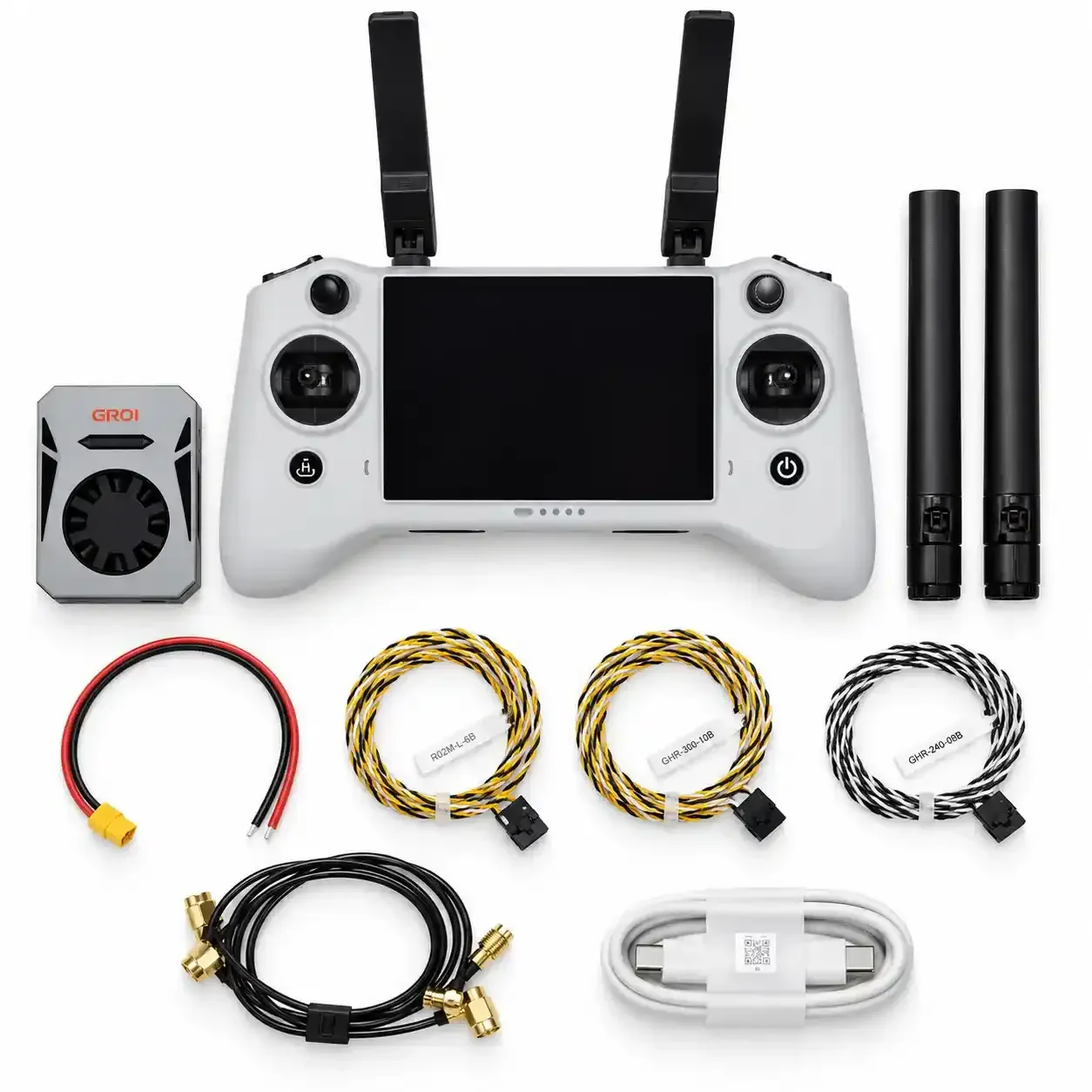

The Skydroid G11 is a compact ground-station remote for industrial drones, unmanned boats, ground vehicles and robots. One dual-band 2.4/5.8 GHz link carries control, telemetry and HD video up to 20 km ground-to-air line of sight, and the kit includes the matching GR01 receiver for the vehicle.

Key features

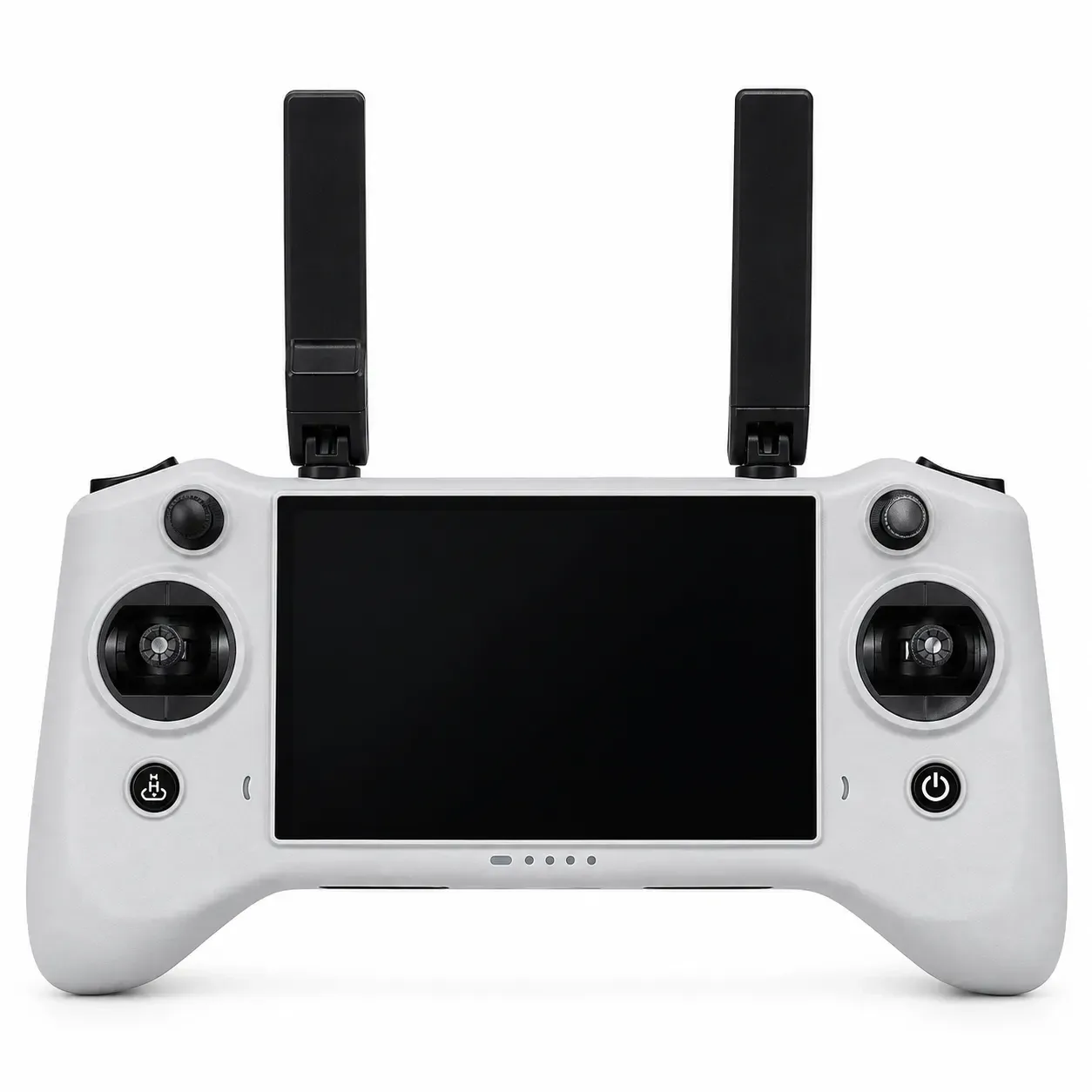

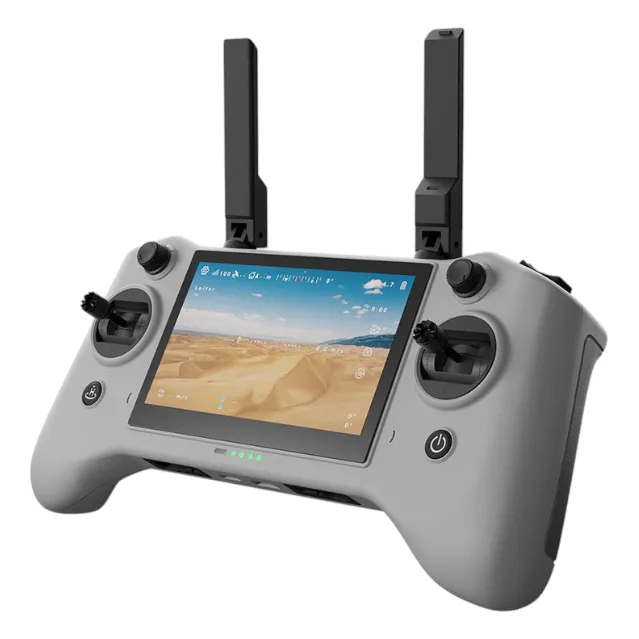

• 4.5-inch 1920 × 1080 touchscreen for live video, parameter changes and monitoring, on a customised Linux OS
• 11 control channels with automatic frequency hopping across 2.4 GHz and 5.8 GHz at 23 dBm
• Built-in 10,000 mAh battery for 5-6 hours of operation, charged over USB-C in about 3 hours
• GR01 receiver with SBUS output, three PWM outputs, a serial data port (57,600/115,200/921,600 baud) and a LAN port

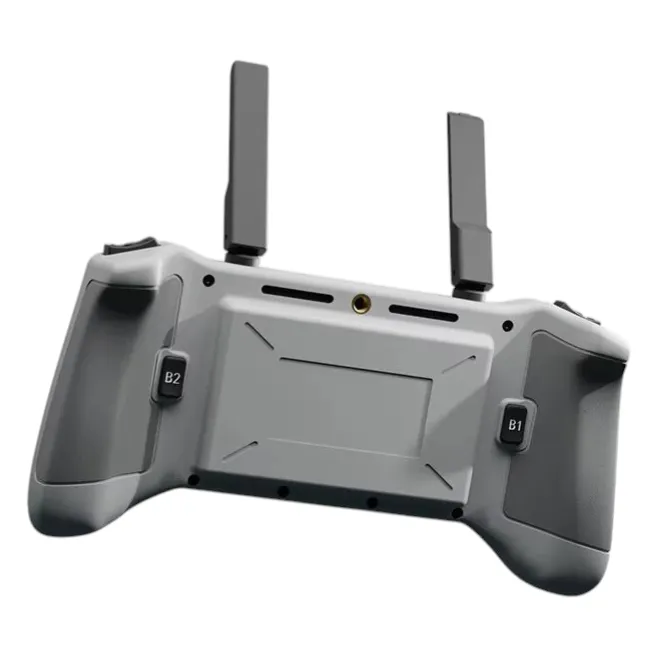

• 480 g remote with PPM, LAN and USB-C ports

Specifications

• Screen: 4.5 in touchscreen, 1920 × 1080
• Operating system: Customised Linux
• Frequency: 2.4 GHz / 5.8 GHz, automatic hopping
• RF power: 23 dBm (CE/FCC)
• Range: Up to 20 km (ground-to-air, line of sight)
• Air data rate: 200 kbps uplink, 15 Mbps downlink
• Channels: 11
• Battery: 10,000 mAh, 5-6 hours
• Charging: USB-C, about 3 hours
• Remote ports: PPM, LAN, USB-C

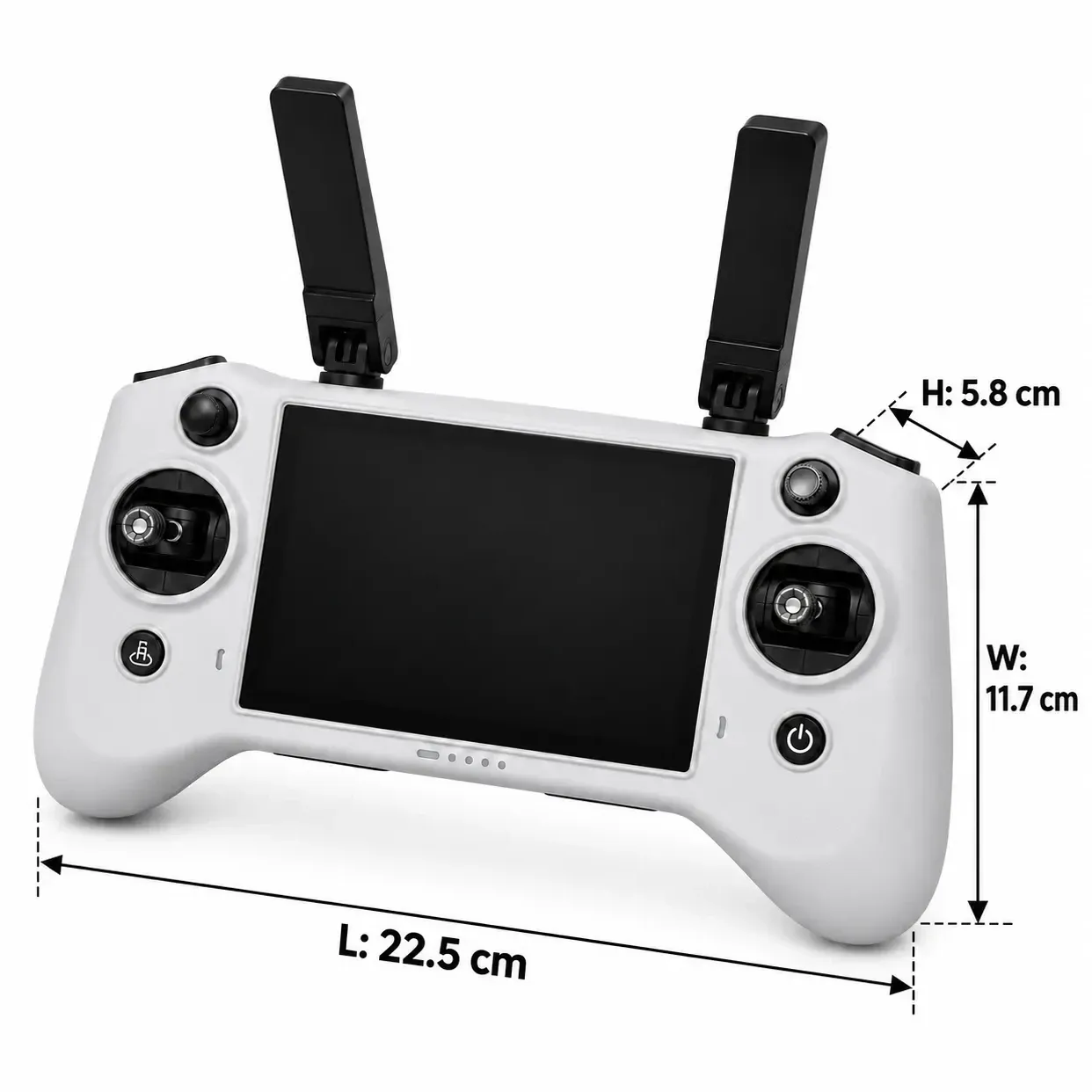

• Remote dimensions: 225.3 × 66.9 × 120 mm
• Remote weight: 480 g
• Operating temperature: -10 to 50 °C
• GR01 outputs: SBUS, 3 × PWM, serial data, LAN
• GR01 dimensions: 45.5 × 60 × 21.5 mm
• GR01 weight: 37 g

Connect the GR01's SBUS output to the flight controller's RC input and its serial data line to a telemetry UART for ground-station data. Real-world range depends on antenna placement, altitude and local interference, so plan missions well inside the rated 20 km.
