Skydroid H16 7-Inch Remote Controller with H16 Receiver

Skydroid's H16 is an Android ground station for industrial and agricultural UAVs, combining RC control, datalink and HD digital video with a 7-inch high-brightness screen. This set pairs the H16 remote with its R16 airborne receiver, ready to install on the aircraft.

Key features

• 16 channels on 2.400–2.483GHz with HD digital video to the built-in 7-inch screen

• 20000mAh battery rated for 6–20 hours, charged over Type-C

• Android system built for the unmanned industry, with room for expansion

• R16 receiver: 16 channels and a wide 7.2–72V input in a 90 g unit

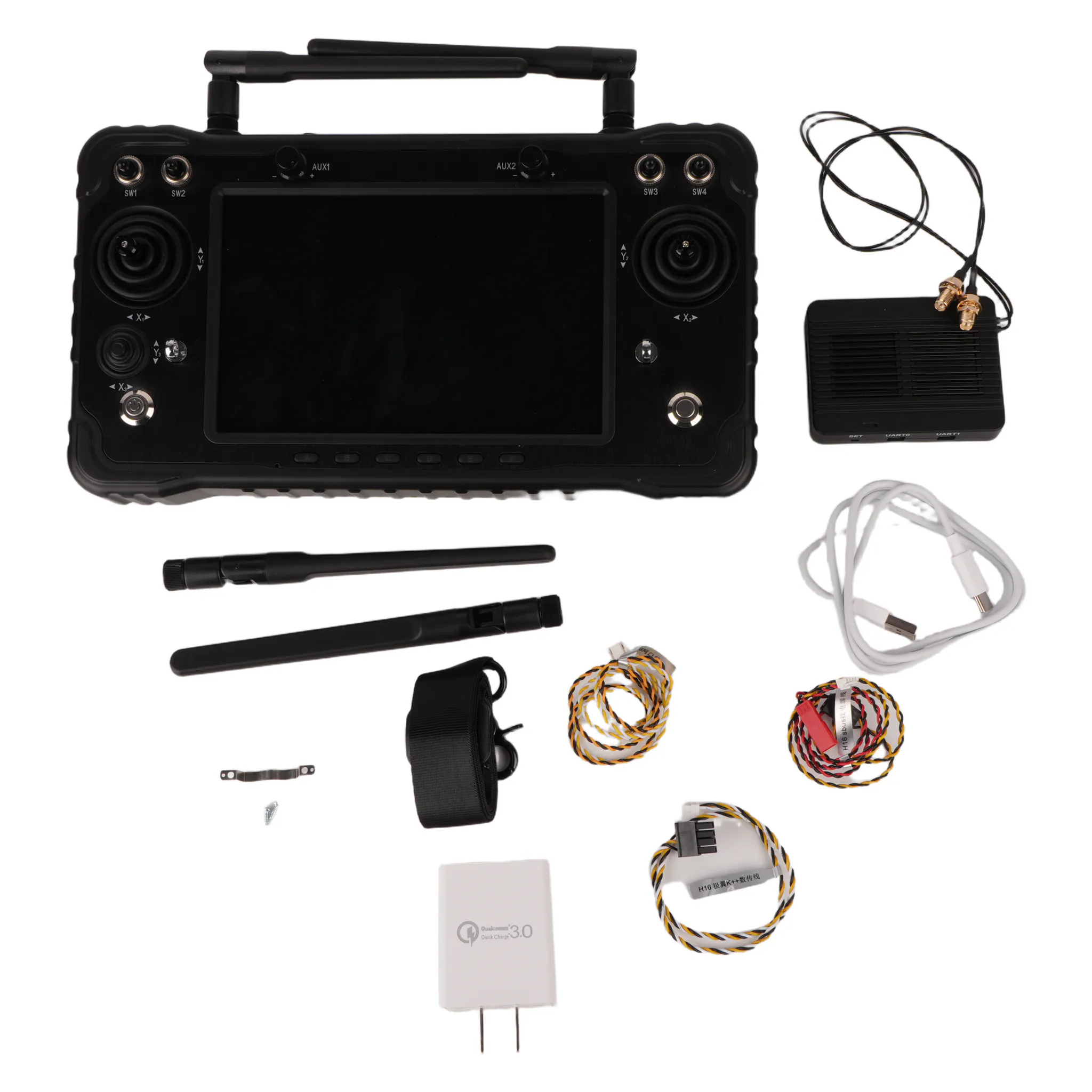

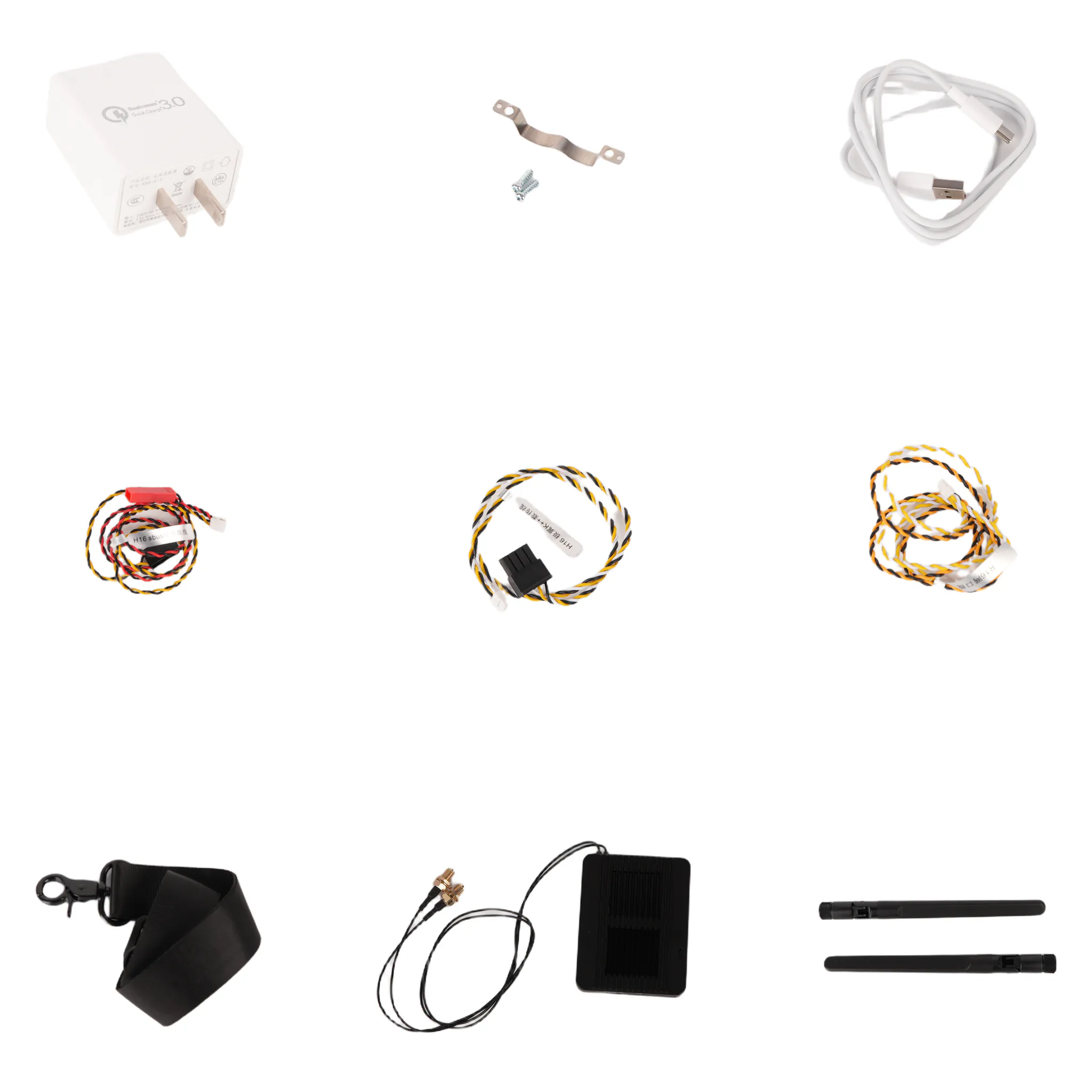

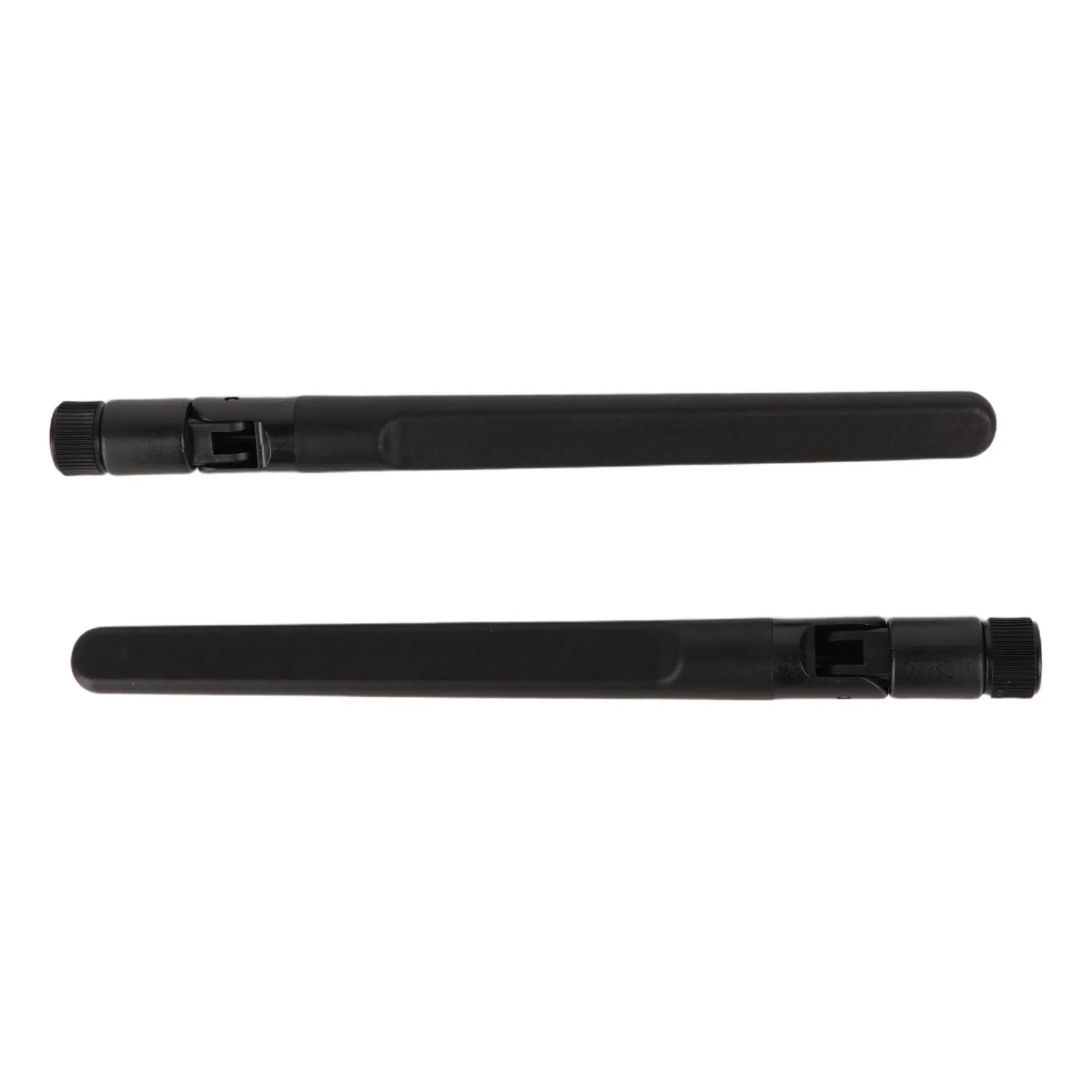

• Kit includes two ground-station antennas, a charger, neck strap and cable package

Specifications

• Remote: H16, 4.2V working voltage

• Frequency: 2.400–2.483GHz

• Channels: 16

• RF power: 20 dBm (CE) / 23 dBm (FCC)

• Battery: 20000mAh

• Endurance: 6–20 hours

• Charging port: Type-C

• Remote size: 272 × 183 × 94 mm

• Remote weight: 1034 g

• Receiver: R16, 7.2–72V input, 16 channels

• Receiver size: 102.1 × 42.6 × 36.5 mm

• Receiver weight: 90 g

The R16's 7.2–72V input covers flight packs from 3S survey craft up to 16S heavy-lift sprayers, so it can run directly from the flight battery without a separate regulator.
